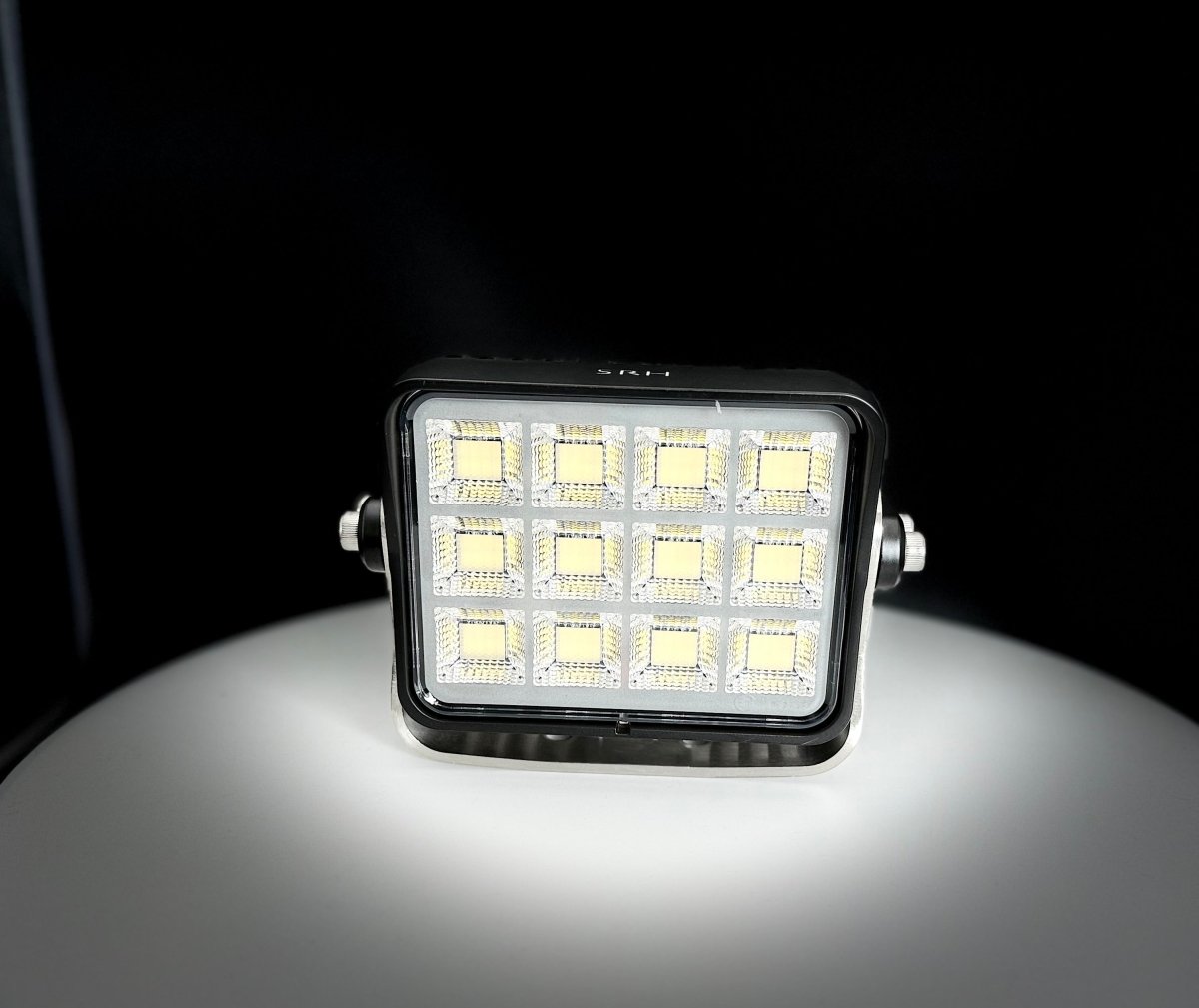

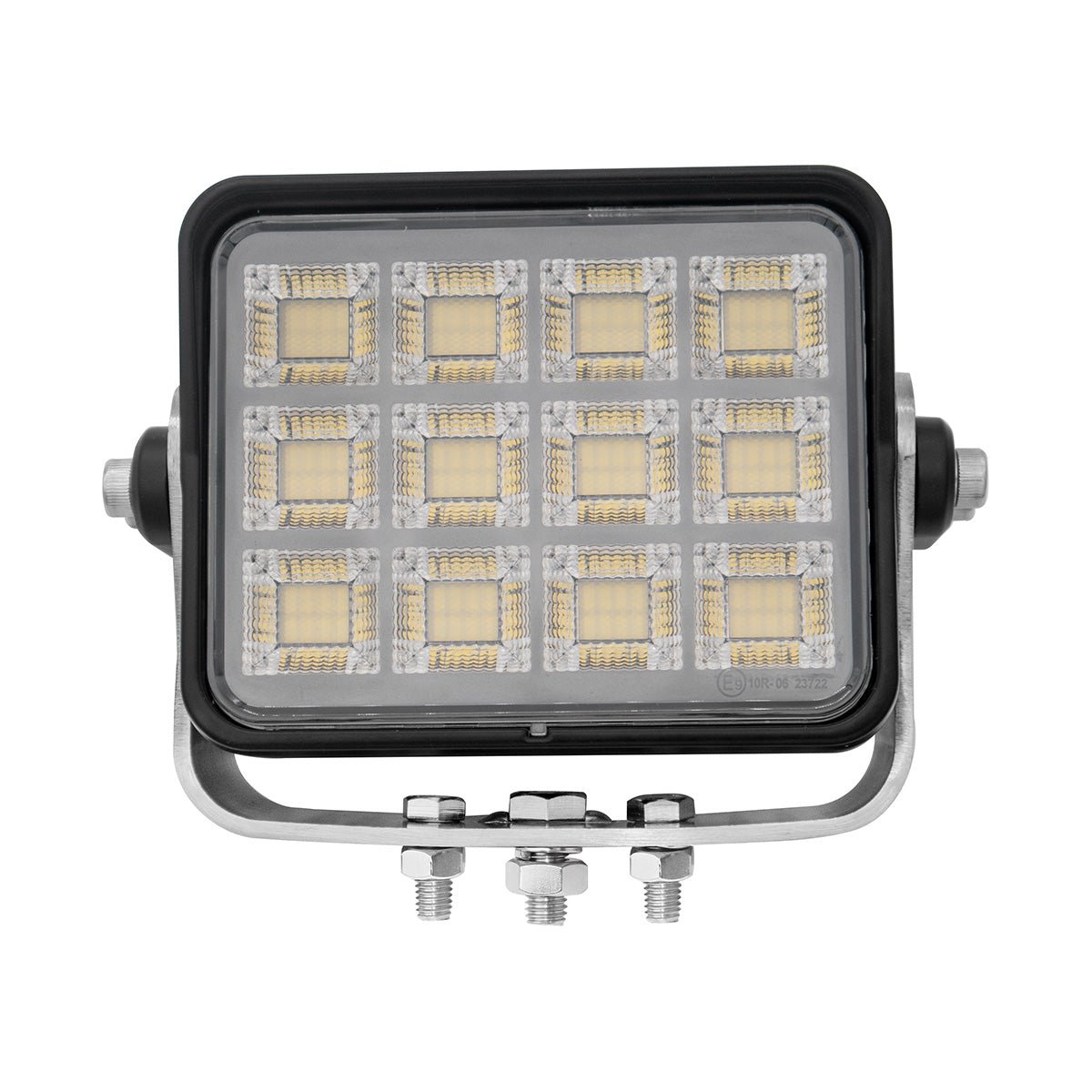

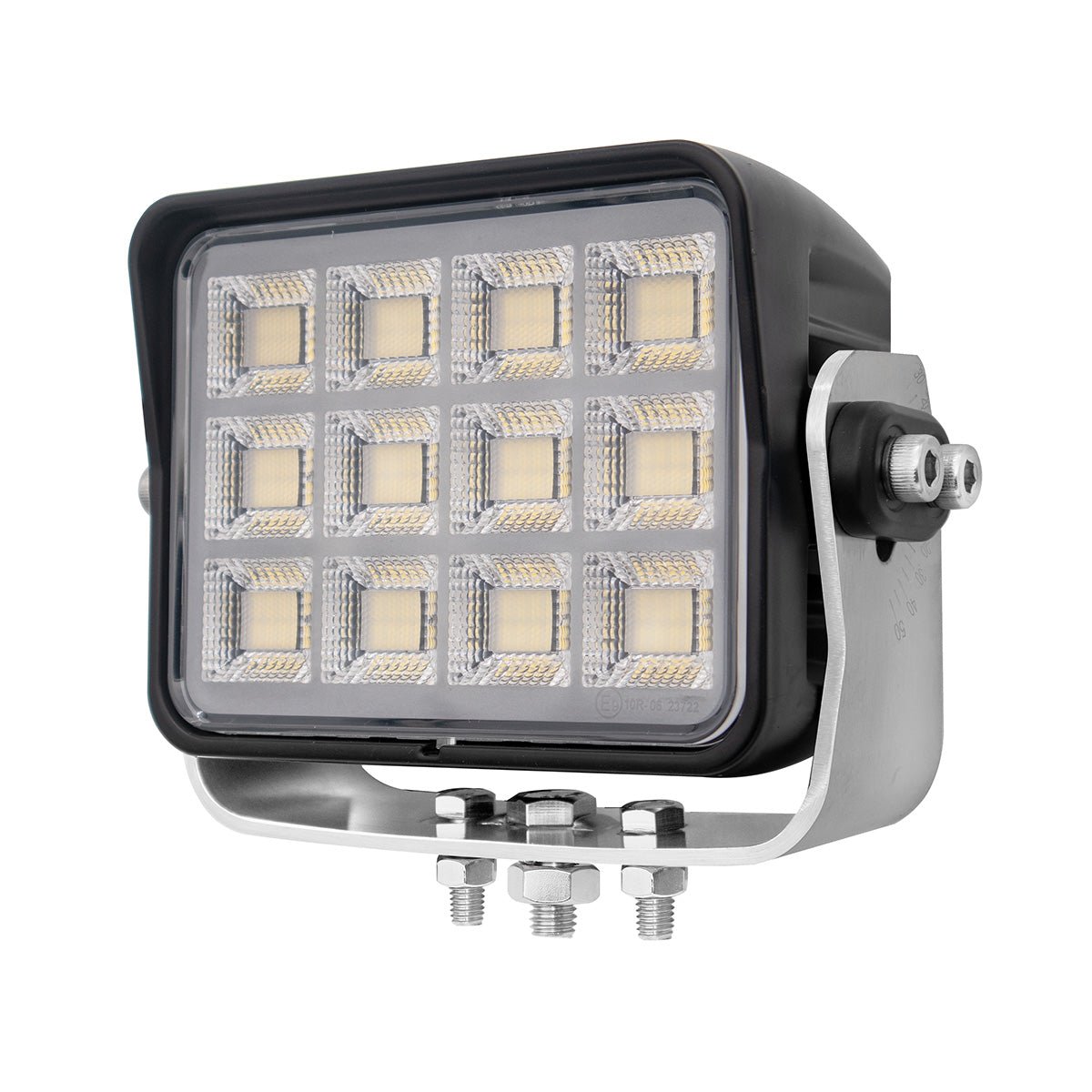

XS Series square LED work light 192w 12v 24v

Name: XS Series square LED work light 192w 12v 24v
Brand: SRH Lighting
Price: 155.41 GBP
Availability: InStock

SKU:0809-192

£155.41 GBP

Sale Sold out

Shipping calculated at checkout.

SRH Lighting

Appearance Square

Lumens 17280lm

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

SHIPPING

Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.

Orders placed after 12:00
Processed & shipped the next working day.

Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.

Orders are shipped Monday-Friday only.

Download XS Series PDF leaflet

View full details

Some website images have been AI enhanced for improved visual presentation only. Product specifications, appearance, and performance remain unchanged.

Specification	Details
Part Number	0809-192
Voltage Range	9-32V
Power Consumption	192W
Light Source	Osram 1W LED matrix
Effective Lumens	17280
Lens Material	Polycarbonate

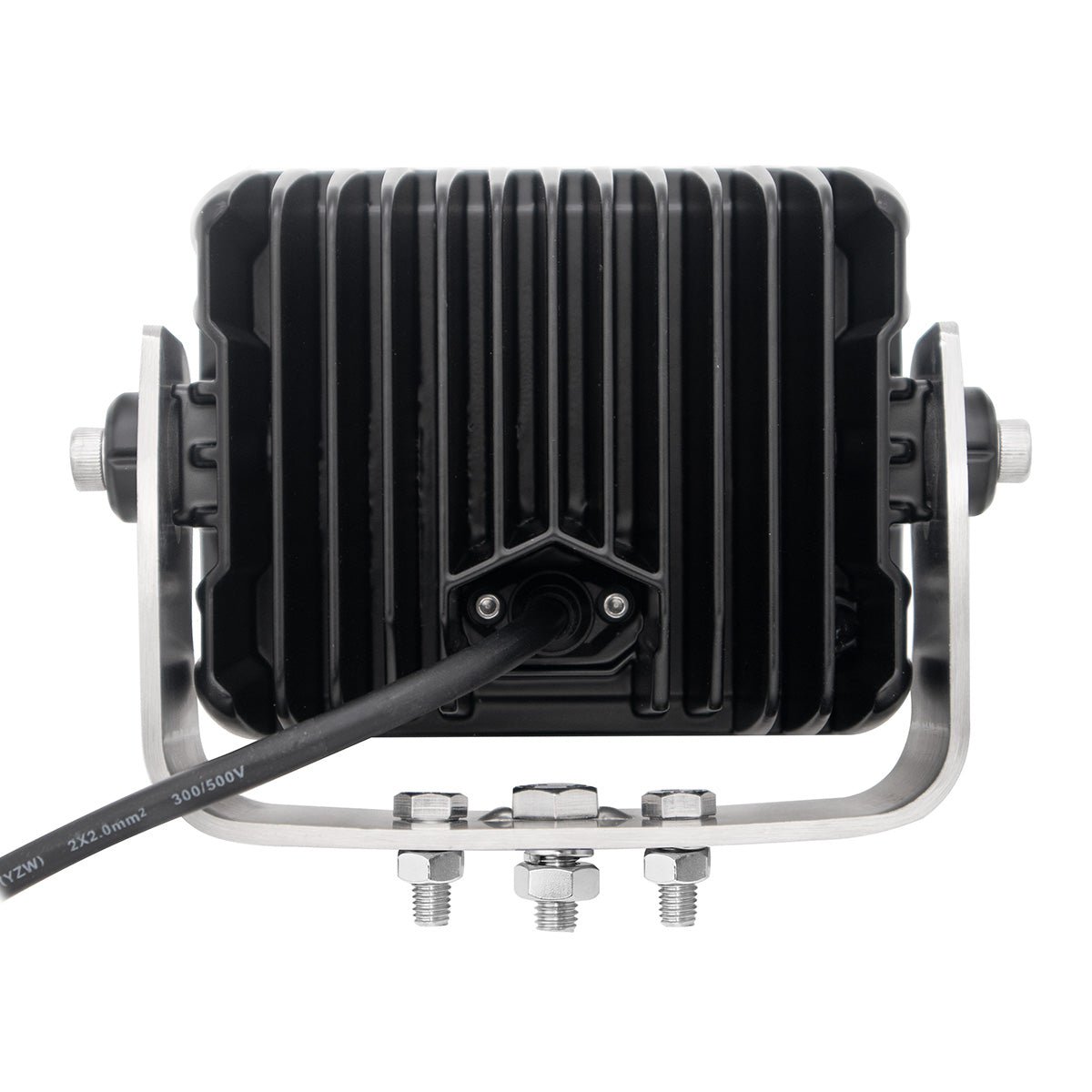

Housing Material	Aluminium
IP Rating	IP68
EMC, ECE Approvals	R10 : CISPR25 Class 4

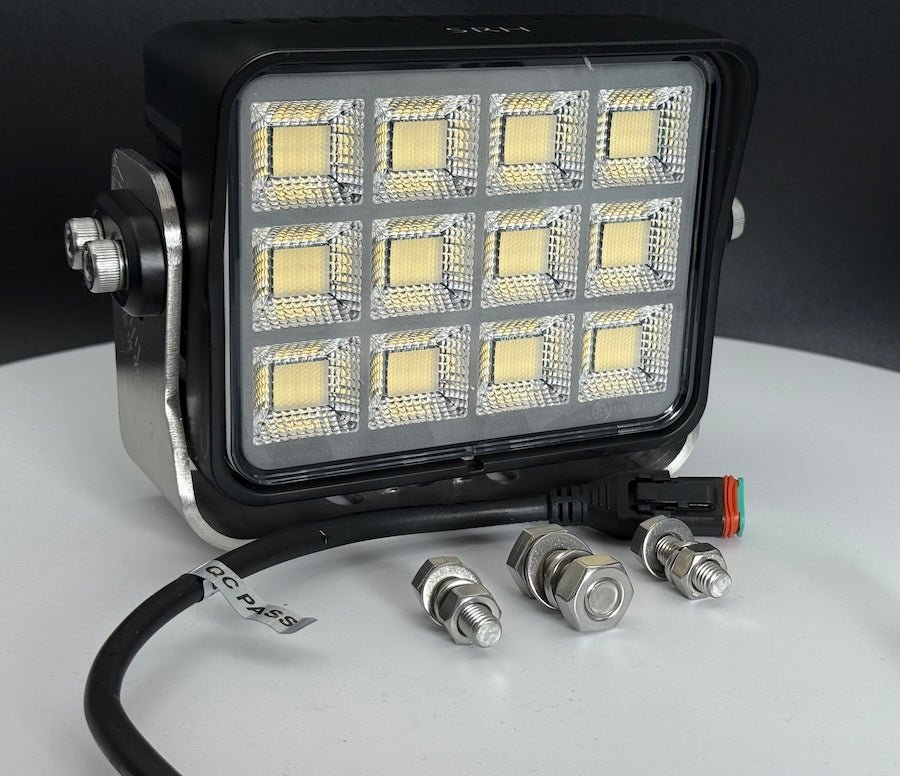

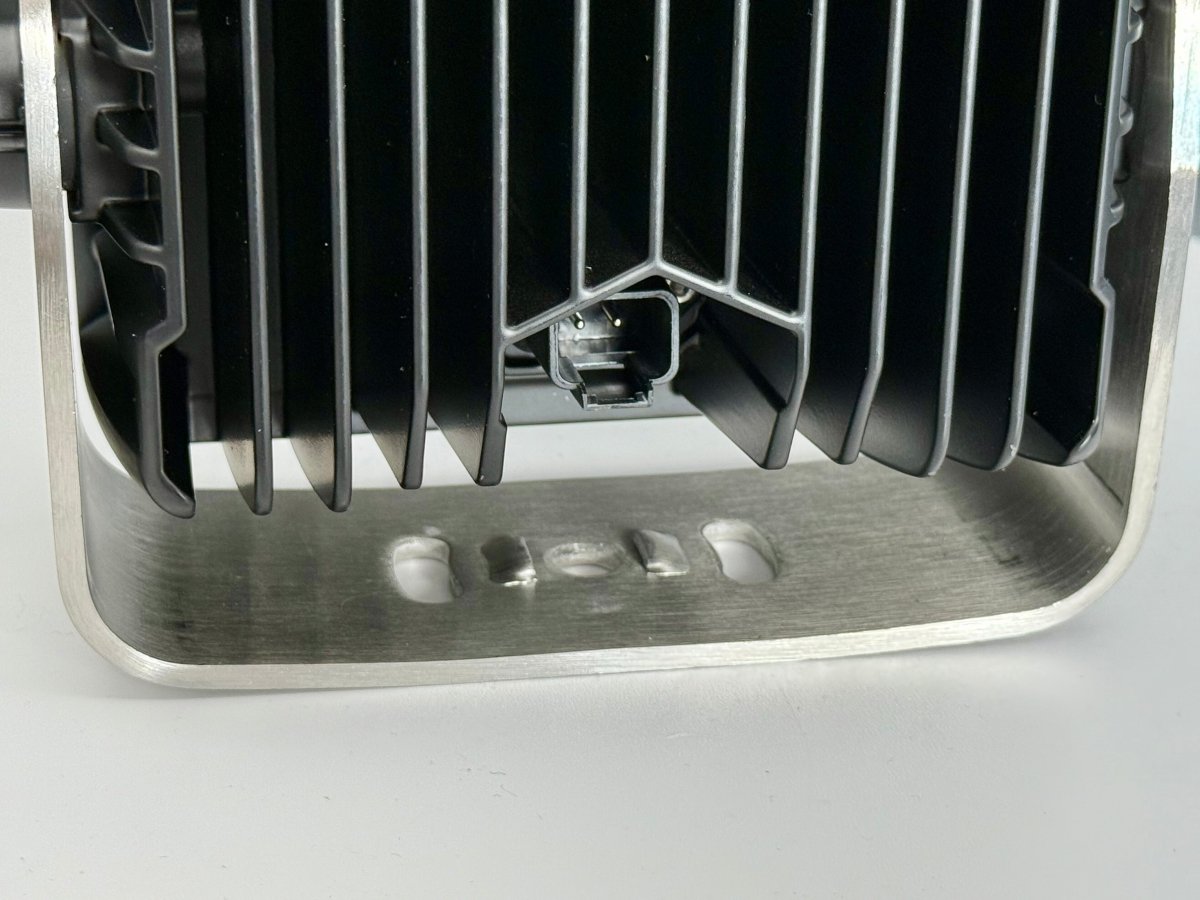

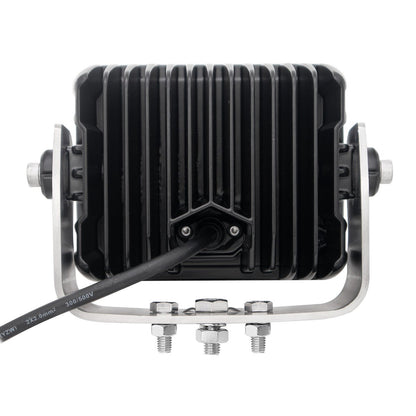

Connection Type	DT Connector

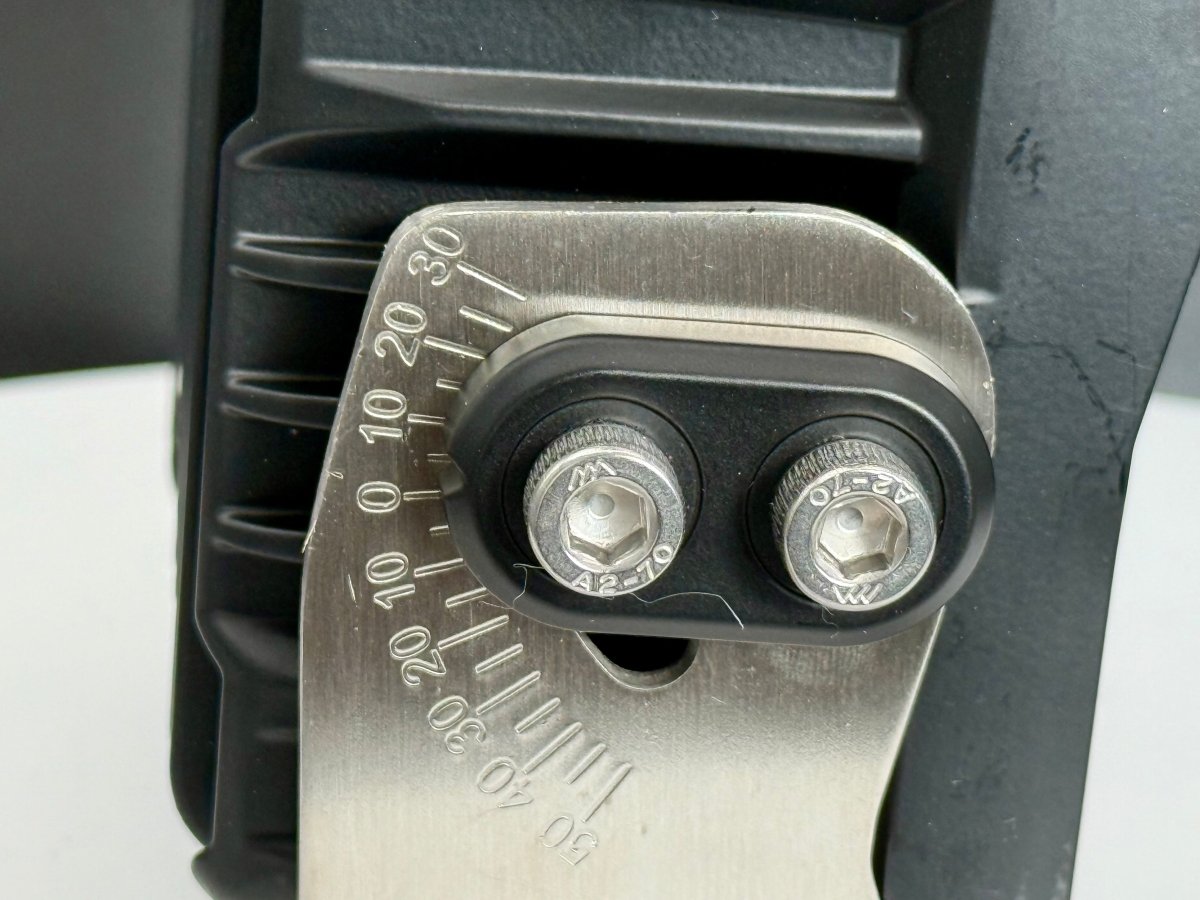

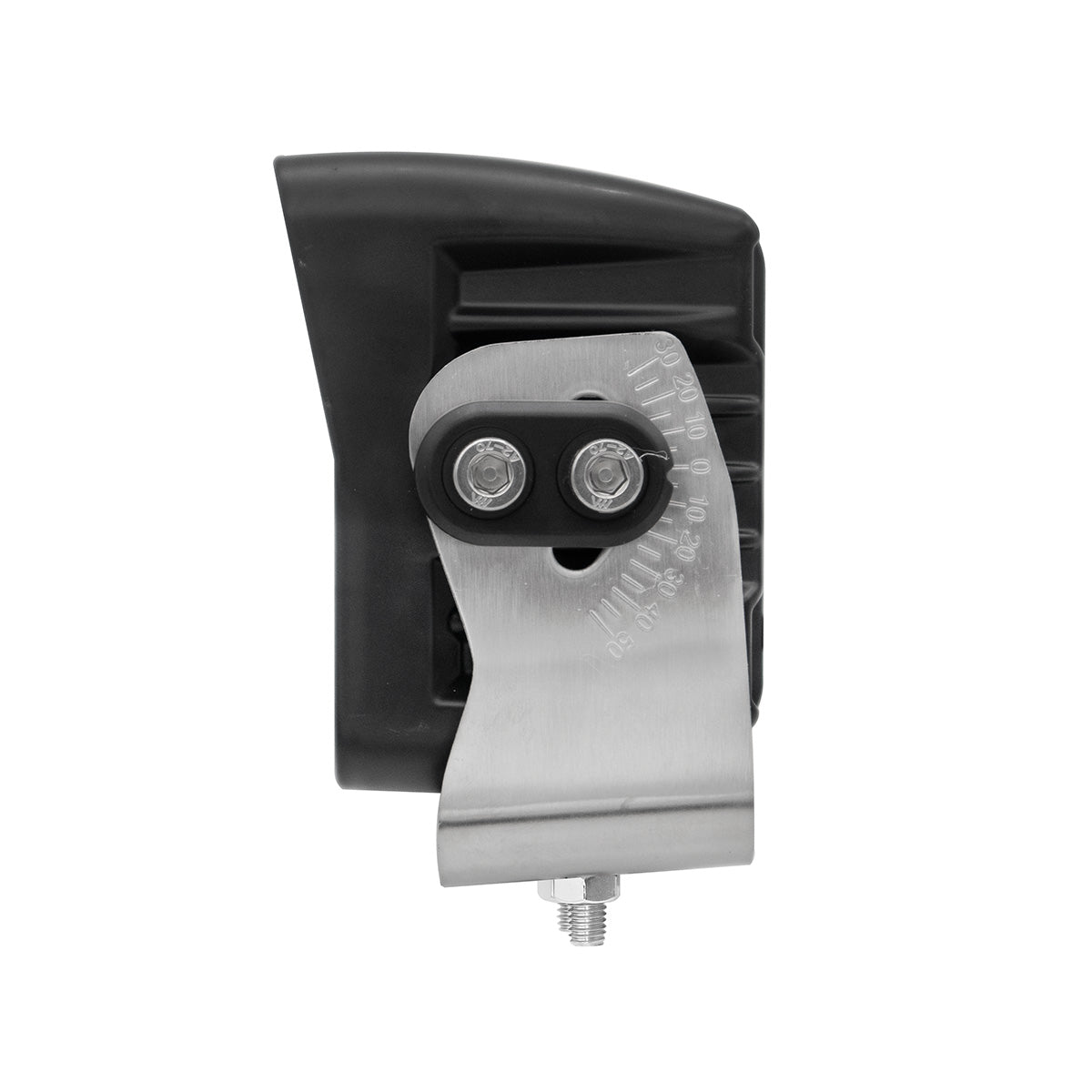

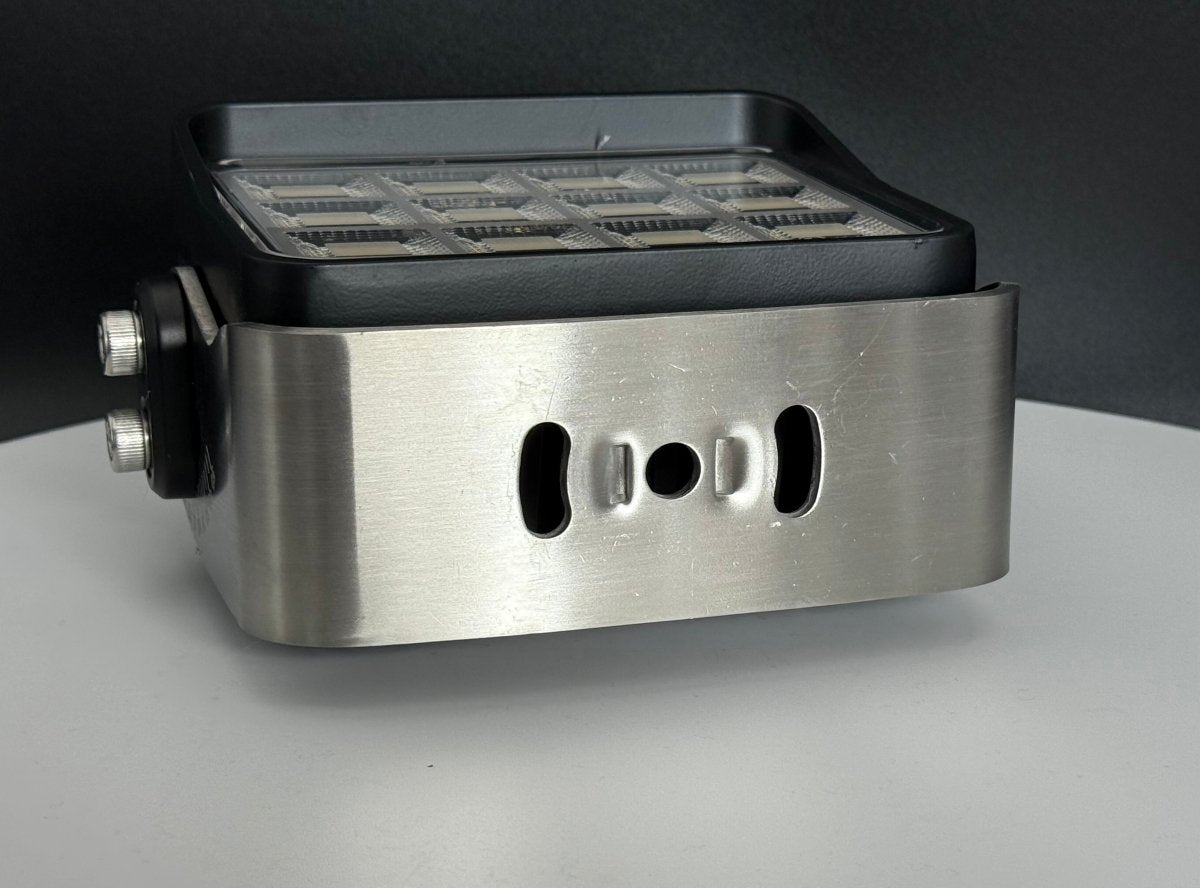

Mounting Type	Bracket : Stainless steel
Special Features	High power LED matrix with advanced optics

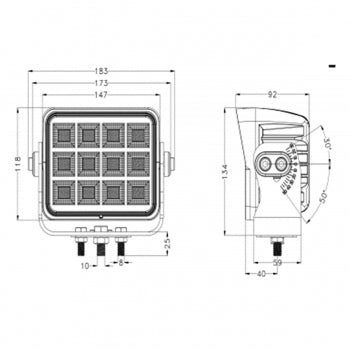

Dimensions HxWxD	134 x 183 x 92mm

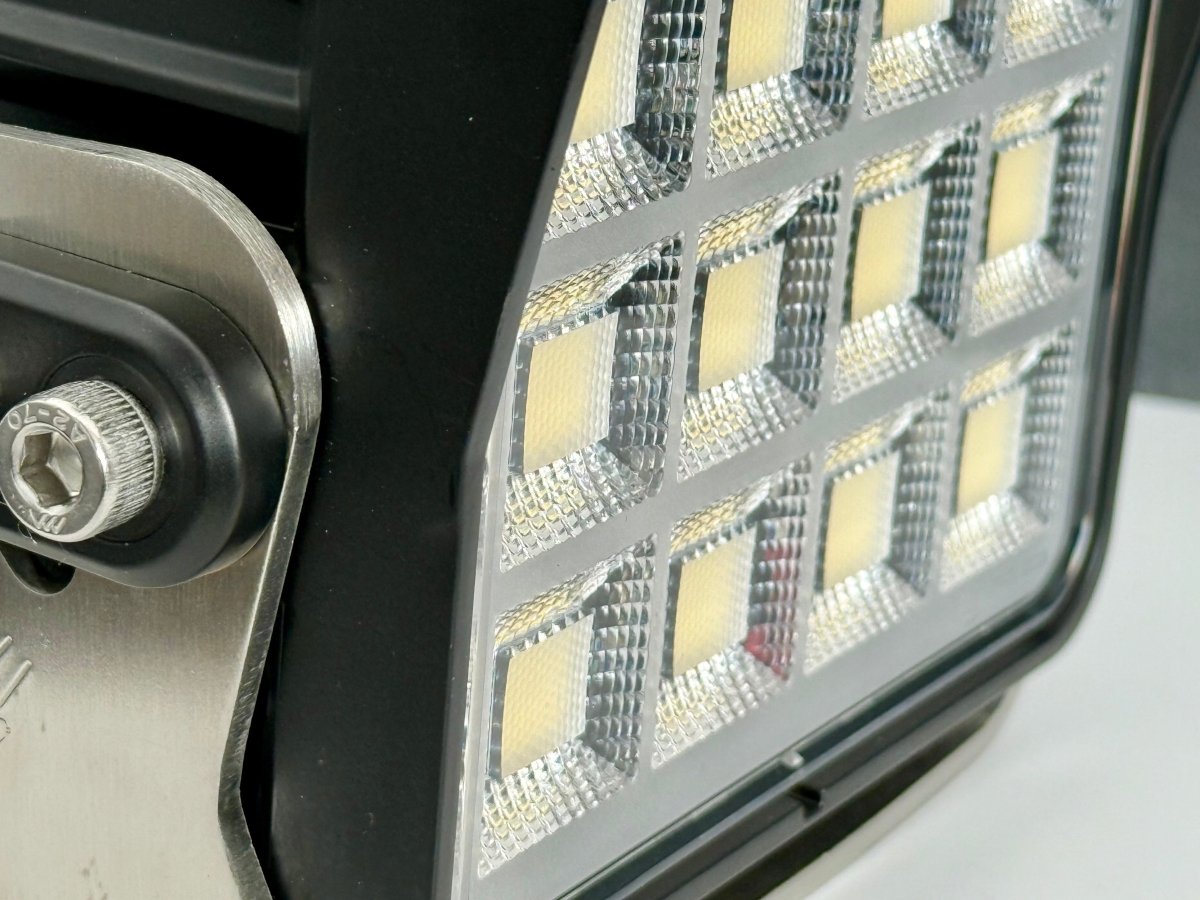

The XS range of LED work lights takes LED work lights to the next level. Combining the features that make our General Duty lights “First in Class” with the New MATRIX LED chips, each matrix module has multiple One watt OSRAM chips for exceptional performance with precision optics.

All lights in the XS range are certified CISPR-25 Class 4, eliminating worries about electromagnetic interference. The XS is perfect for those who need an exceptional bright light but don’t require the high-end specification and durability of our Heavy Duty 8100 Series or the 0807 Industrial Range.
