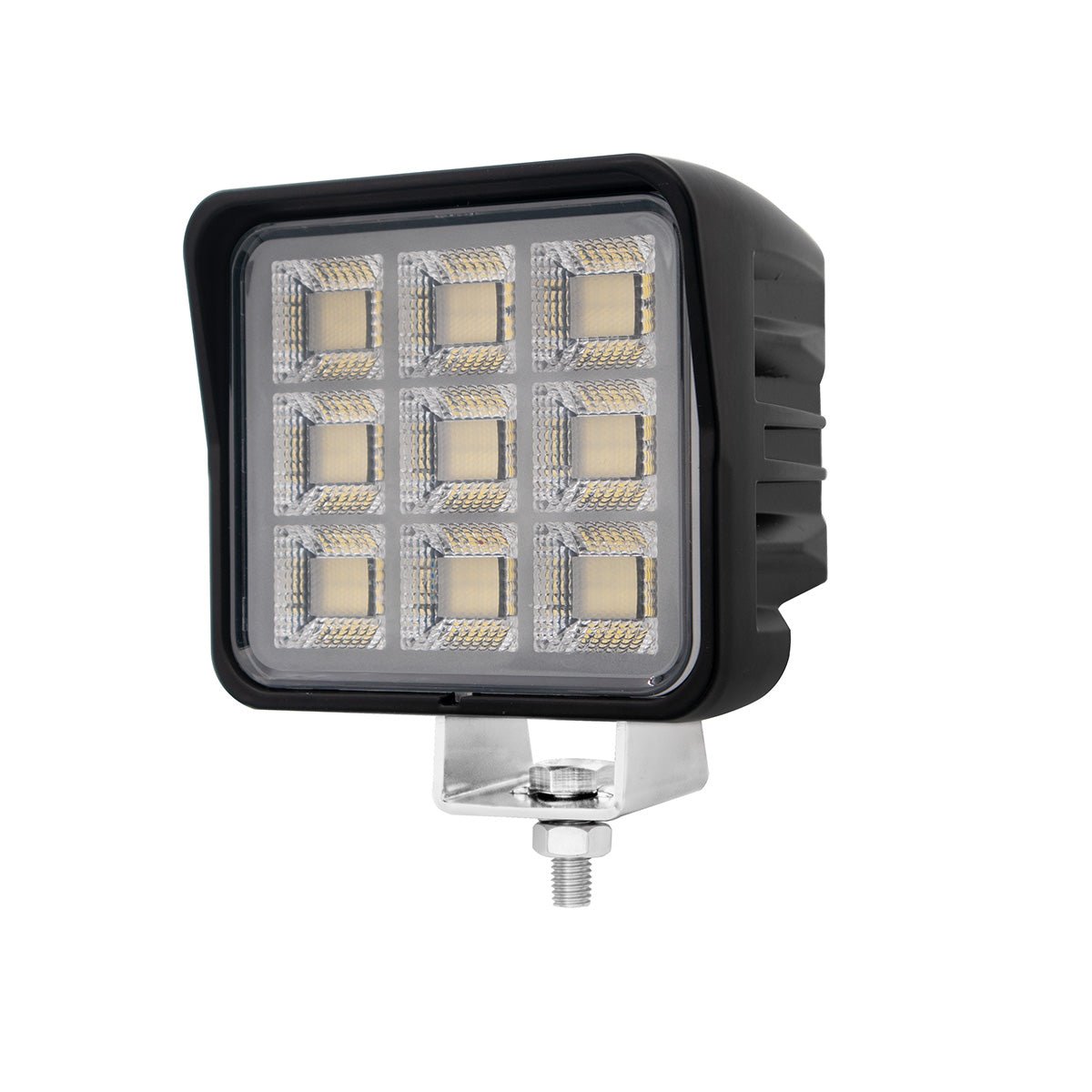

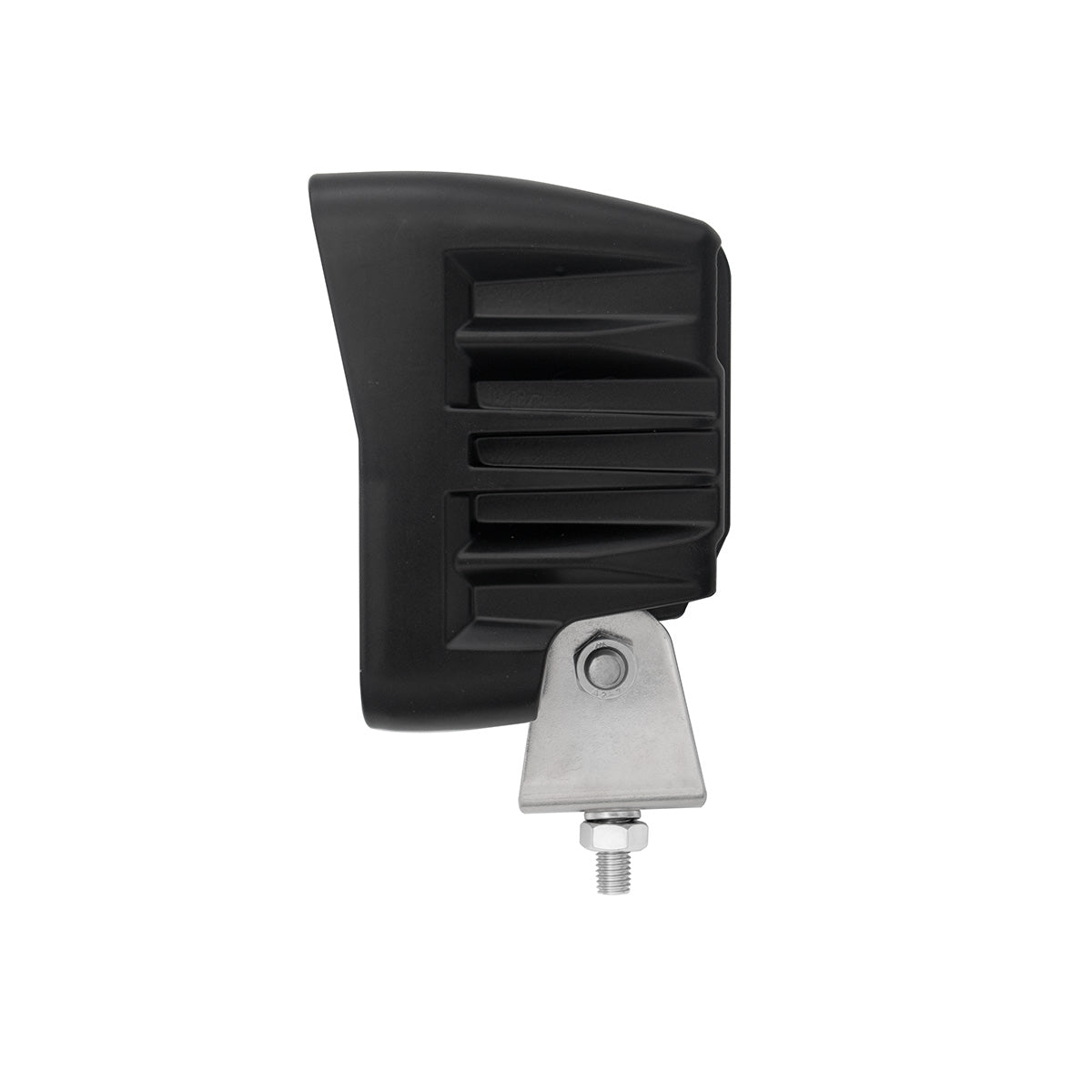

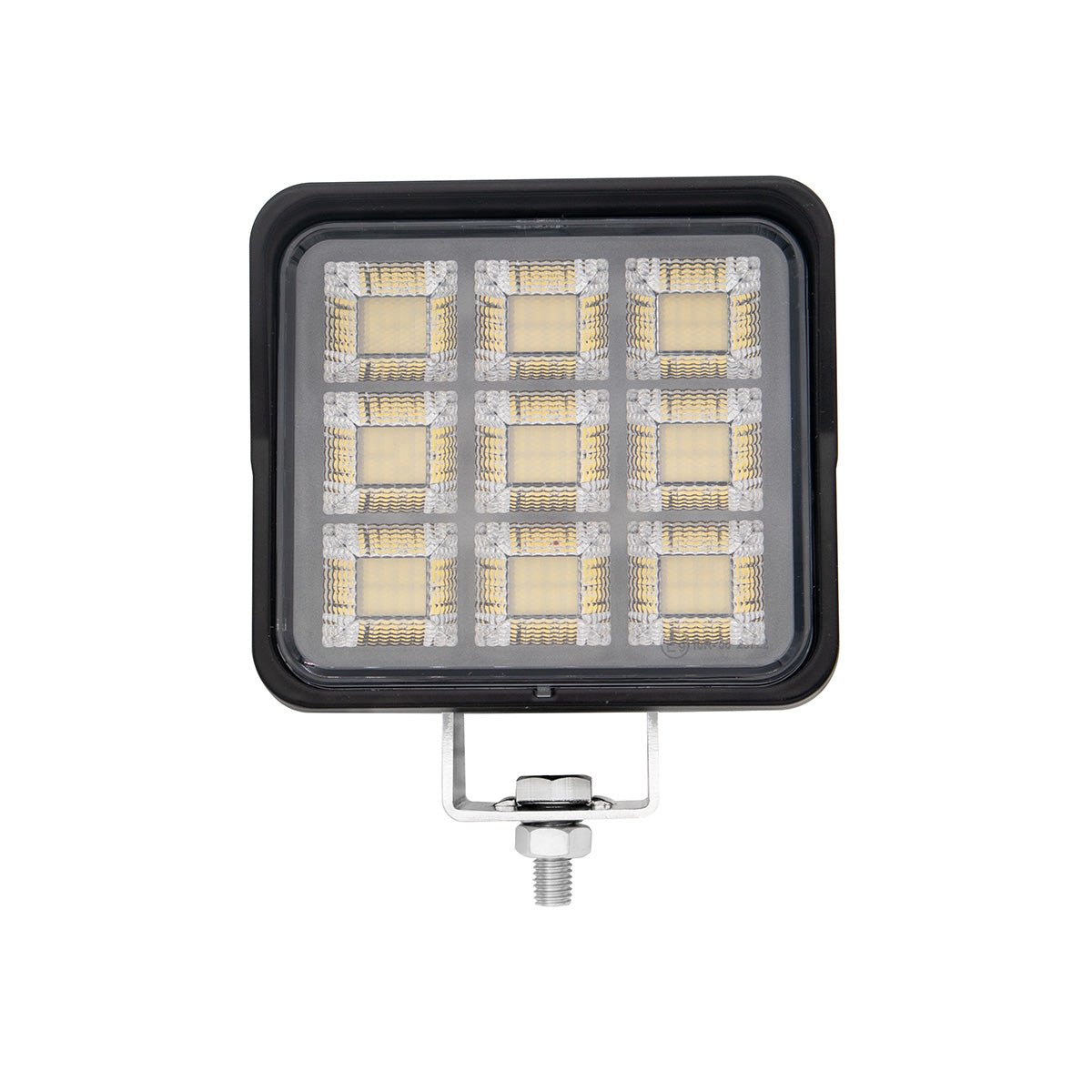

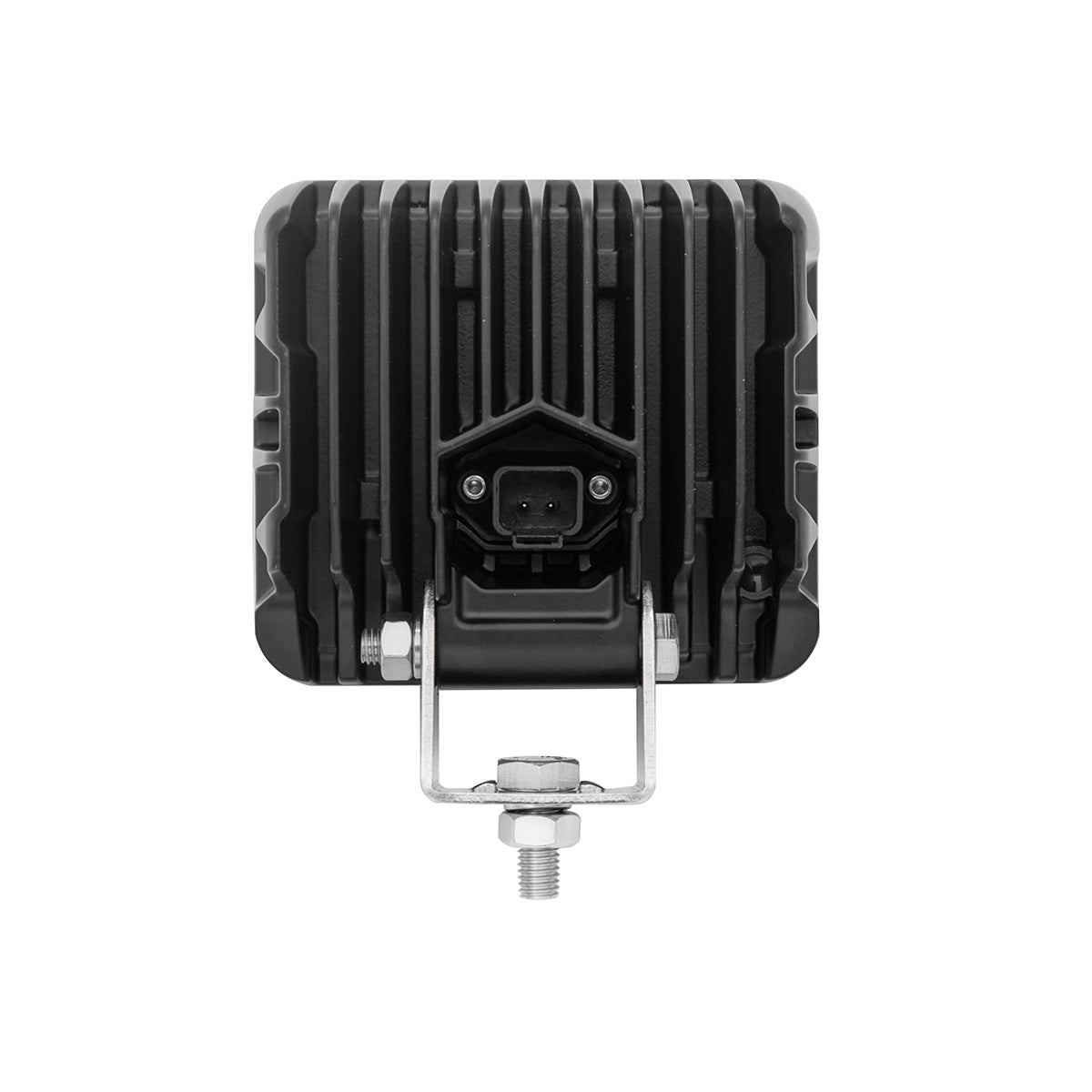

XS Series square LED work light 144w 12v 24v
XS Series square LED work light 144w 12v 24v
SKU:0809-144
SRH Lighting
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
The XS range of LED work lights takes LED work lights to the next level. Combining the features that make our General Duty lights “First in Class” with the New MATRIX LED chips, each matrix module has multiple One watt OSRAM chips for exceptional performance with precision optics.
All lights in the XS range are certified CISPR-25 Class 4, eliminating worries about electromagnetic interference. The XS is perfect for those who need an exceptional bright light but don’t require the high-end specification and durability of our Heavy Duty 8100 Series or the 0807 Industrial Range.
SPECIFICATION
SPECIFICATION
- Power:144W
- Luminous flux:12,960LM
- Light source: OSRAM 1W
- Waterproof rate:IP68
- EMC/EMI rating: CISPR 25 Class 4
- Voltage range:9-32V
- P.C. Lens
- Material of housing: aluminium alloy
- LED lifetime: 30,000 hours
- Beam:Flood beam
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
SHIPPING
SHIPPING
Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.
Orders placed after 12:00
Processed & shipped the next working day.
Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.
Orders are shipped Monday-Friday only.
Download XS Series PDF leaflet
