XS Series LED work light 40w 12v 24v

XS Series LED work light 40w 12v 24v

SKU:0609-40

Regular price £30.98 GBP
Regular price Sale price £30.98 GBP
Sale Sold out
Shipping calculated at checkout.

SRH Lighting

Appearance
Lumens
Quantity
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

DESCRIPTION

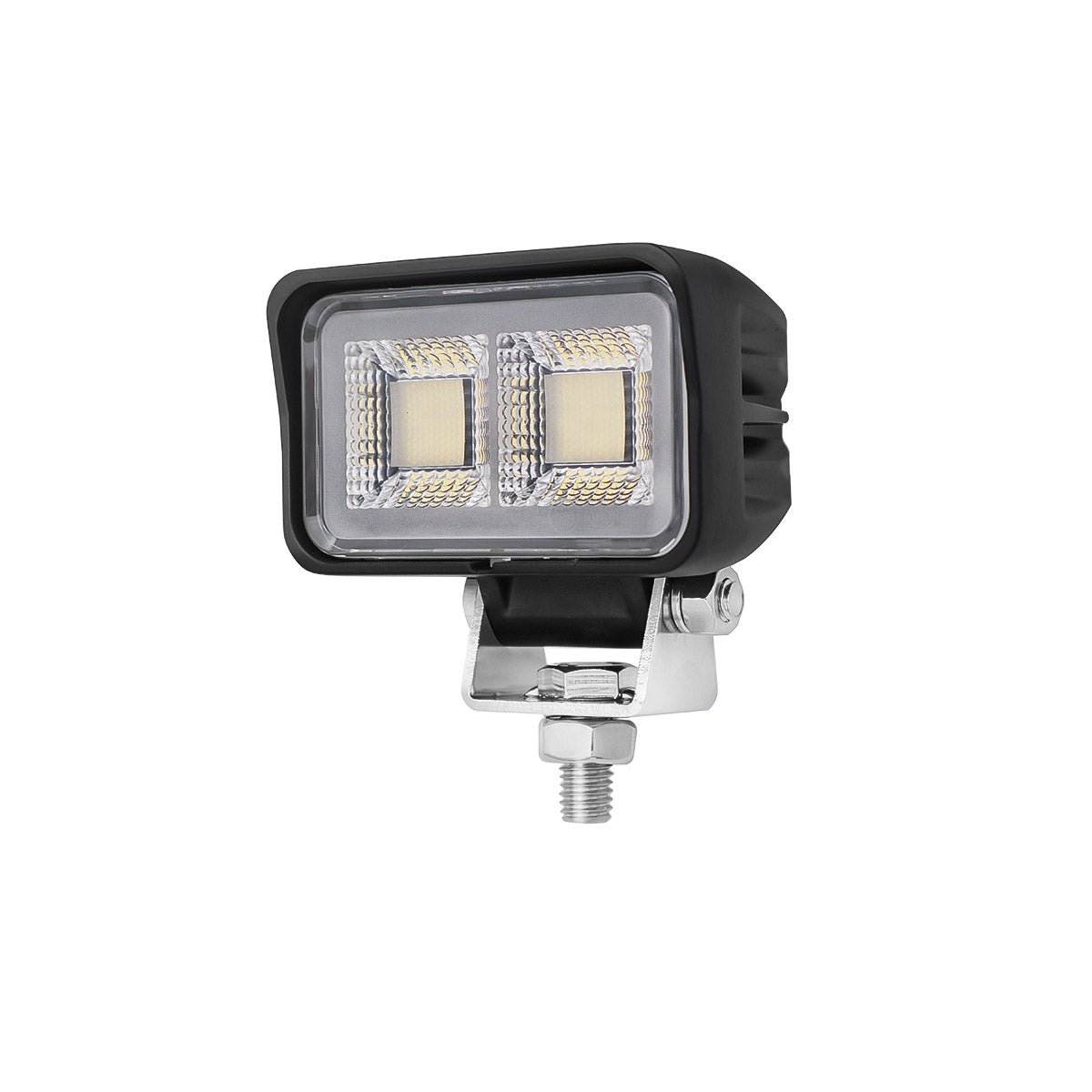

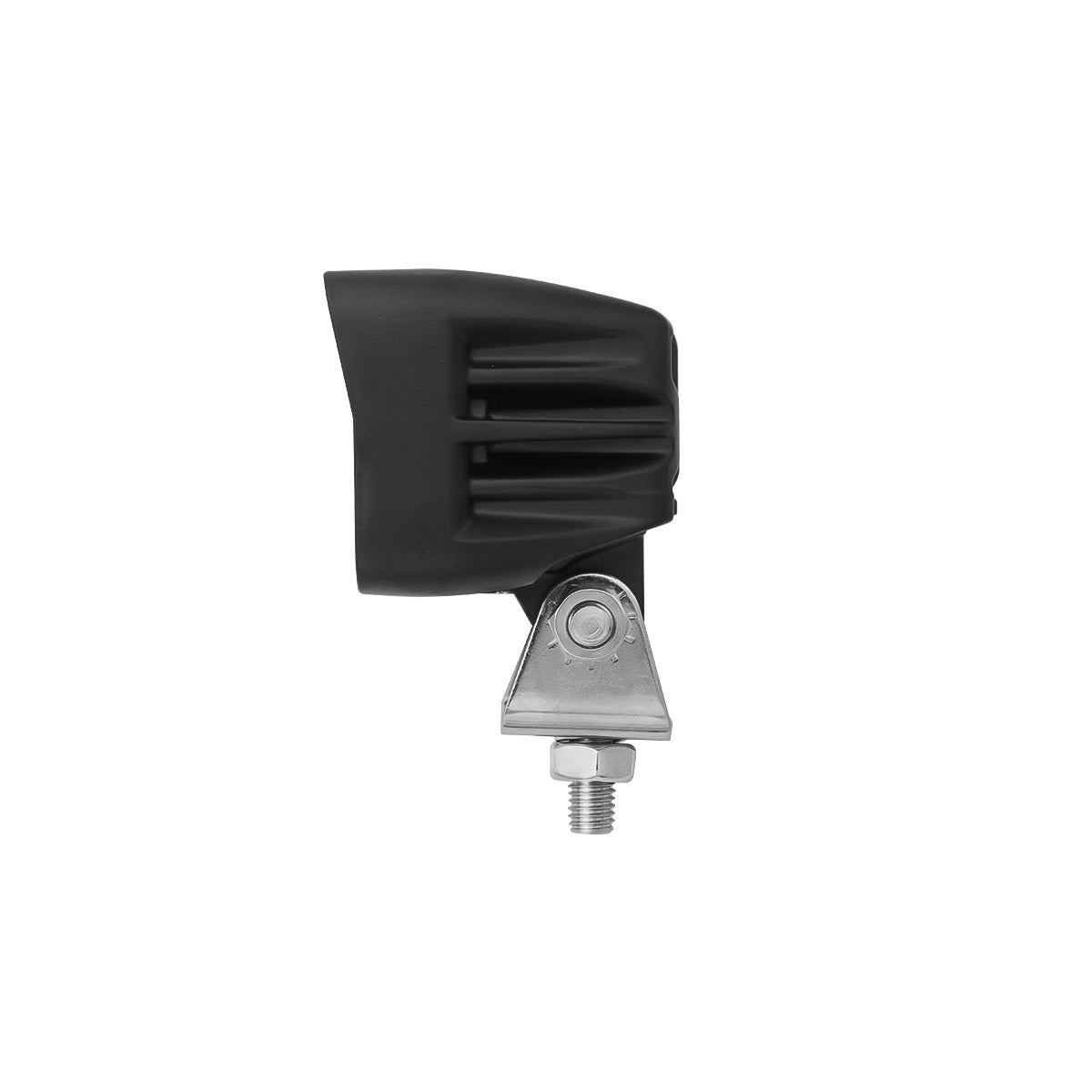

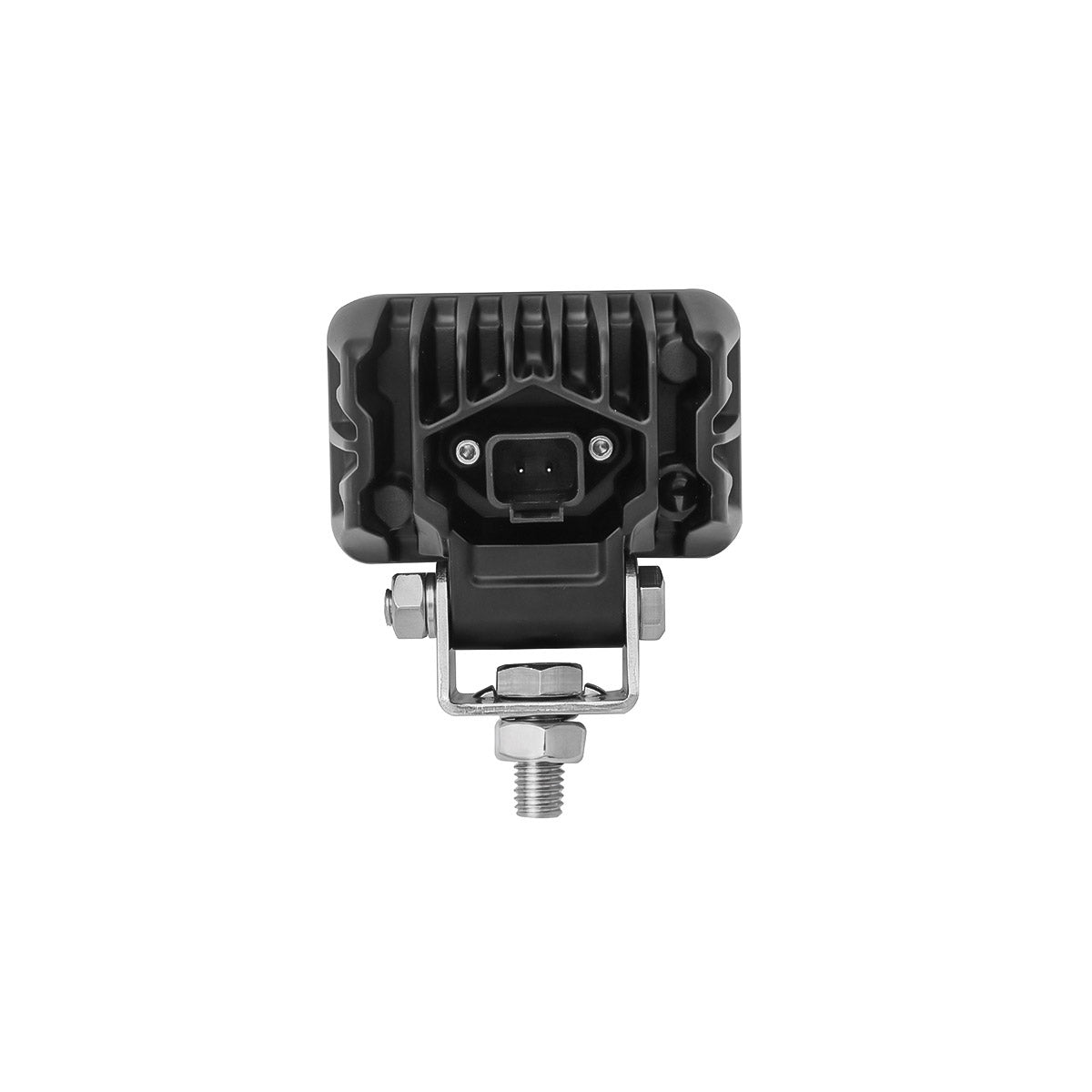

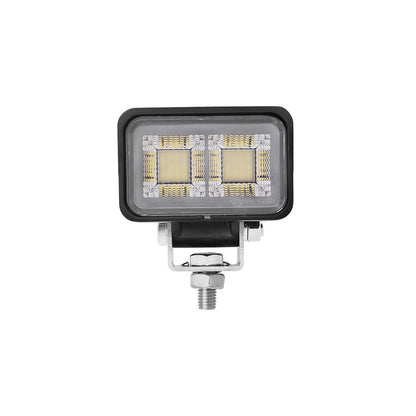

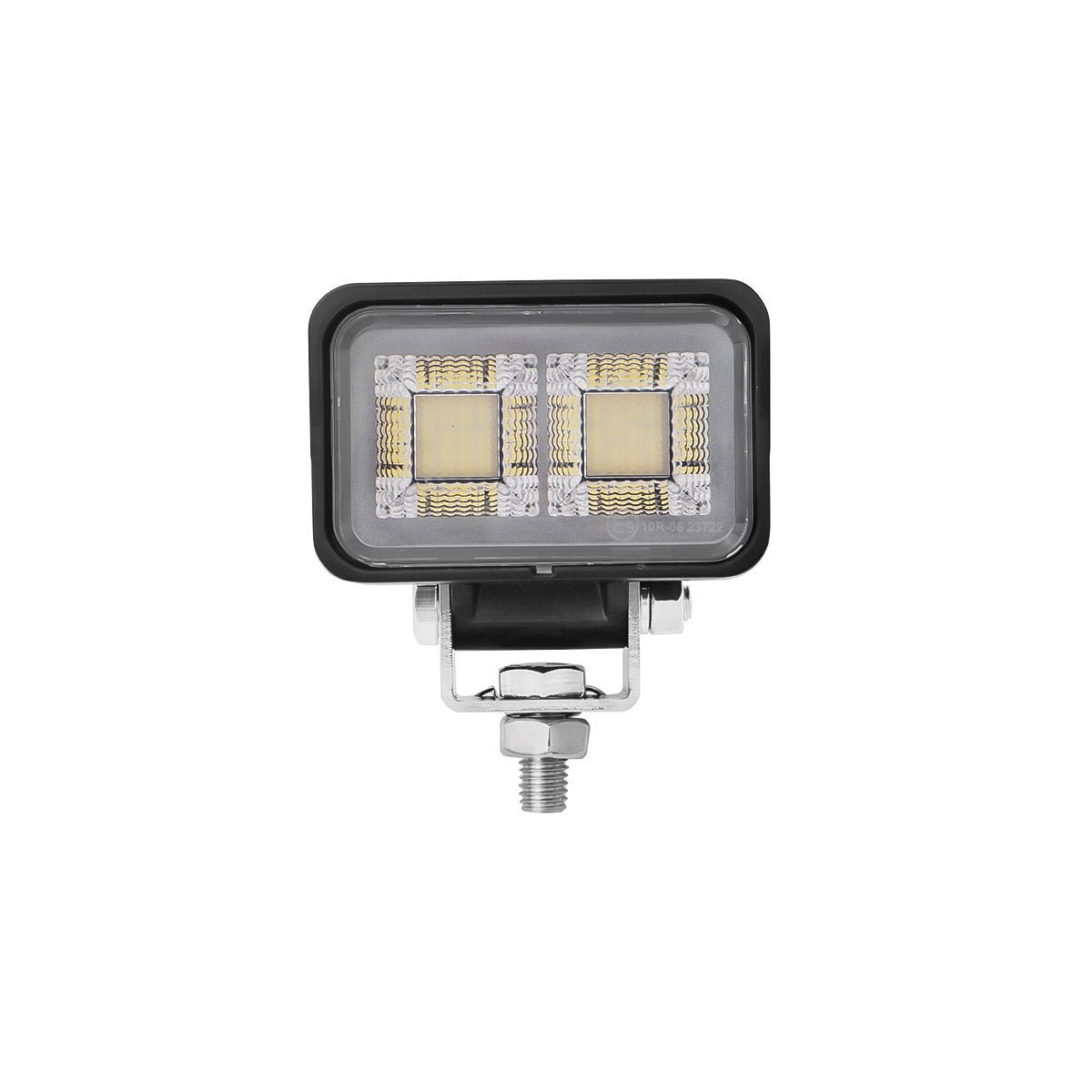

XS Series 40W LED Work Light 12V 24V

The next level of LED lighting

The XS 40w 12/24 volt LED work light pushes the boundaries in lighting innovation. Building on our General Duty lights' successful formula, it incorporates the new MATRIX LED chips. These chips integrate multiple one-watt OSRAM chips to deliver remarkable illumination and precision optics for clear, focused light output.

Minimized electromagnetic interference

All models within the XS range proudly bear the CISPR-25 Class 4 certification. This certification ensures that concerns about electromagnetic interference are a thing of the past. Users can confidently operate equipment knowing their work environment remains free from disruptive signals.

An exceptional bright light option

For those requiring high-quality brightness without the extreme specifications and durability needed in heavy-duty applications, the XS range is an ideal choice. It delivers brilliant performance without overengineering, bridging the gap between everyday needs and specialized industrial requirements.

SPECIFICATION

  • Power:40W
  • Luminous flux:3,600LM
  • Light source: OSRAM 1W
  • Waterproof rate:IP68
  • EMC/EMI rating: CISPR 25 Class 4
  • Voltage range:9-32V
  • P.C. Lens
  • Material of housing: aluminium alloy
  • LED lifetime: 30,000 hours
  • Beam:Flood beam

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

FAQ

Warranty Information

Product Warranty

At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.

Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.

For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.

To help us process your claim efficiently, please provide:

  • Your invoice or proof of purchase
  • Product part number
  • Details of the fault
  • Supporting photographs where possible

Warranty Exclusions

The warranty does not cover faults or damage resulting from:

  • Accidental damage, impact, collision, storm damage, or other external influences
  • Incorrect installation, misuse, neglect, or improper operation
  • Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
  • Normal wear and tear or environmental deterioration

SRH Lighting reserves the right to inspect products before approving any warranty claim.

Please refer to our Terms & Conditions for full warranty details.

Condensation

A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.

As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.

To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.

Paint & Surface Finish

Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.

Regular cleaning and maintenance are recommended, particularly in harsh operating environments.

Installation & Mounting

Products should always be mounted securely and in accordance with the manufacturer’s recommendations.

Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.

Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.

SHIPPING

Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.

Orders placed after 12:00
Processed & shipped the next working day.

Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.

Orders are shipped Monday-Friday only.

Download XS Series PDF leaflet
