Tralert Atlas 320 + R65 Warning light unit 60W - 6000lm - 3m cable

Name: Tralert Atlas 320 + R65 Warning light unit 60W - 6000lm - 3m cable
Brand: Tralert
Price: 165.34 GBP
Availability: InStock

Tralert Atlas 320 + R65 Warning light unit 60W - 6000lm - 3m cable

SKU:WD-6060A

£165.34 GBP

Sale Sold out

Shipping calculated at checkout.

Tralert

DESCRIPTION

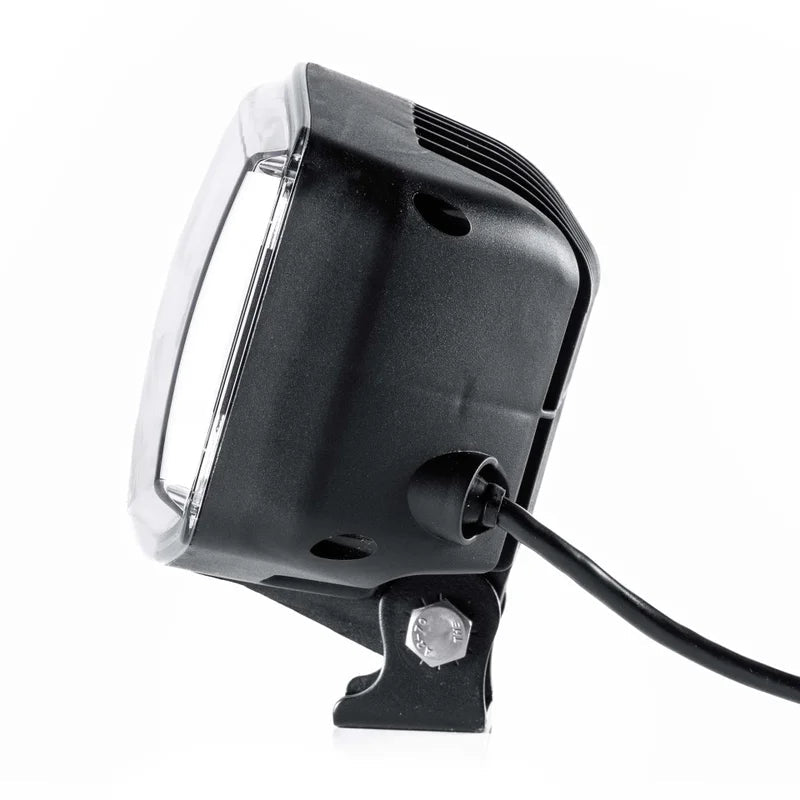

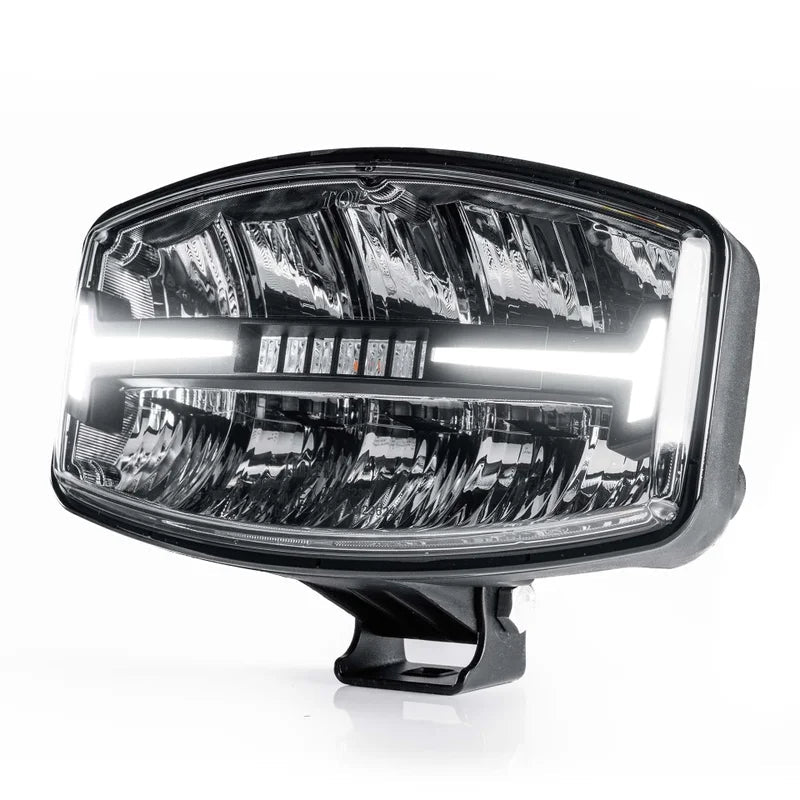

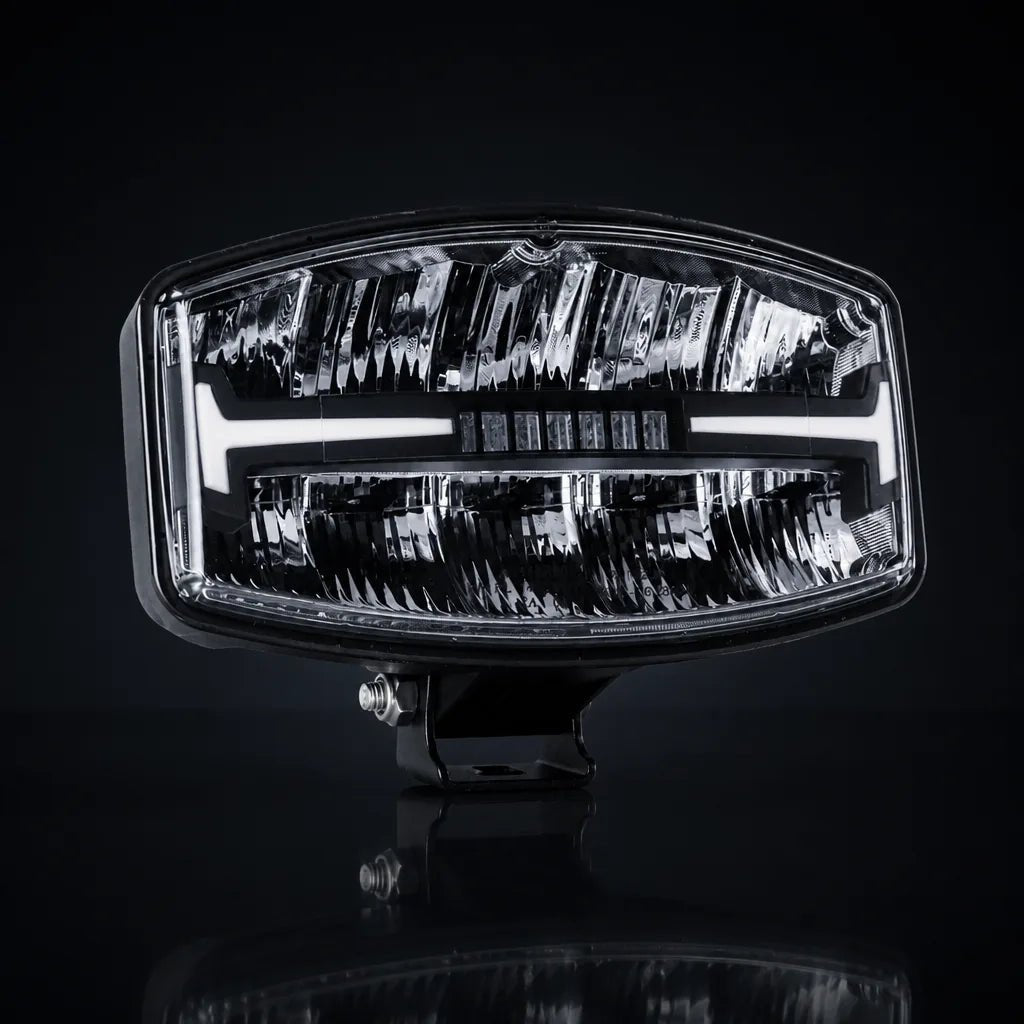

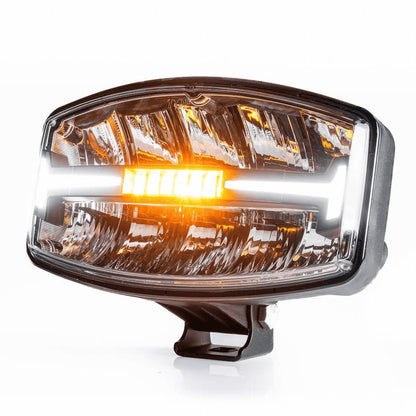

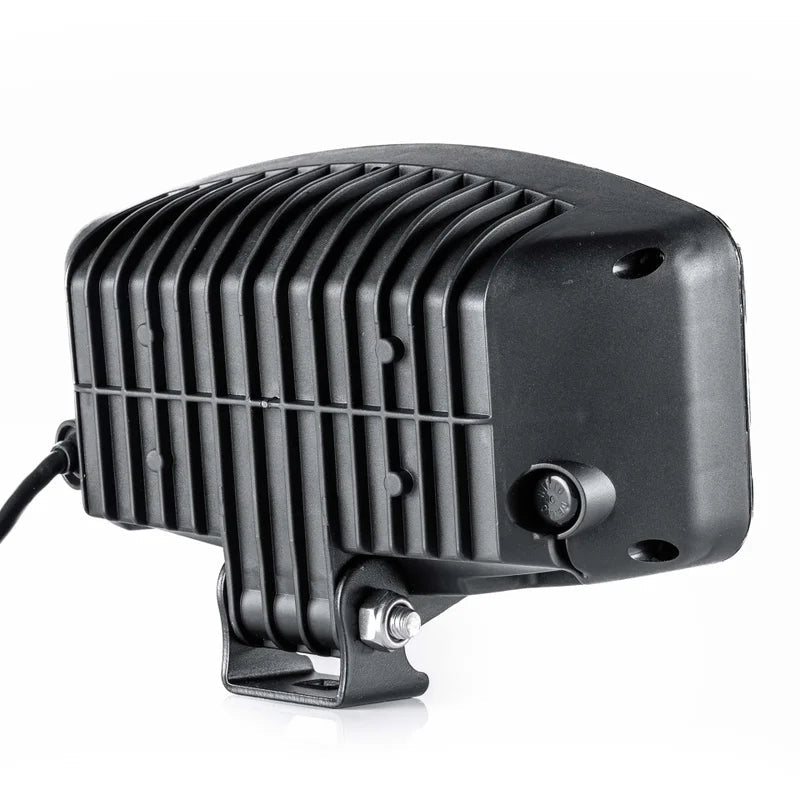

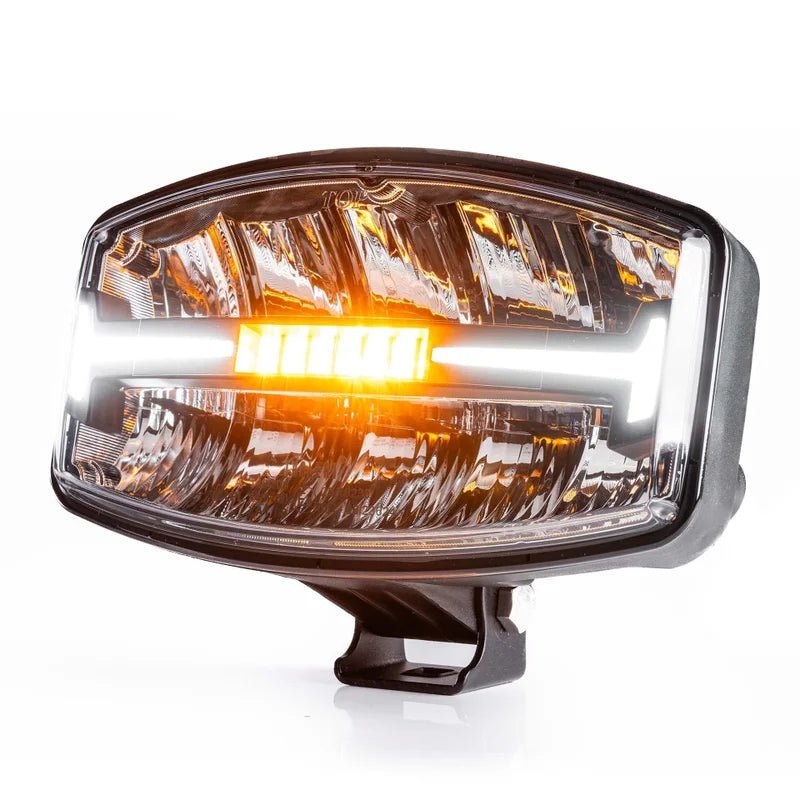

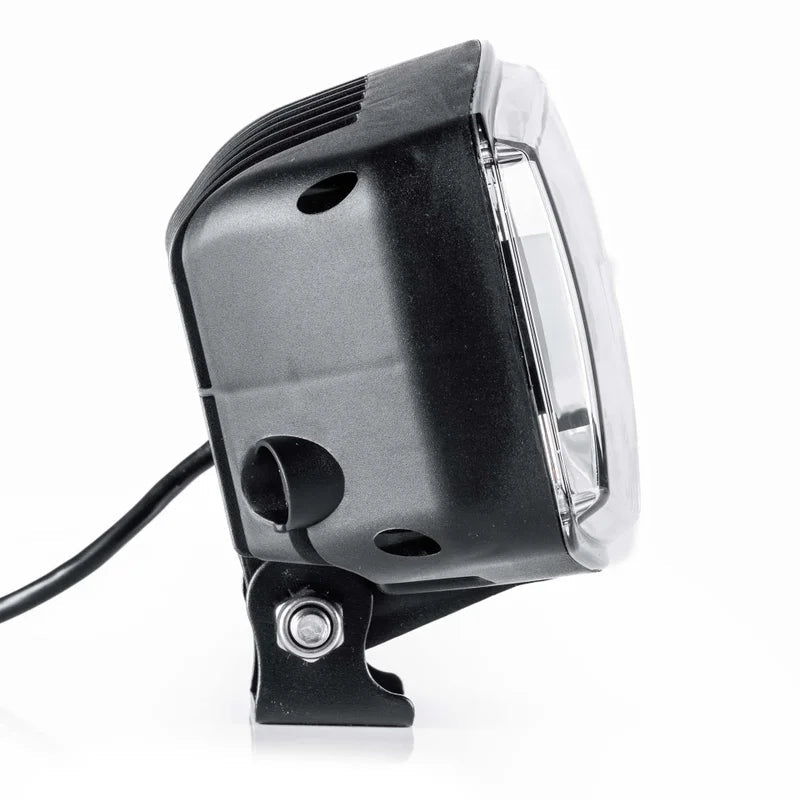

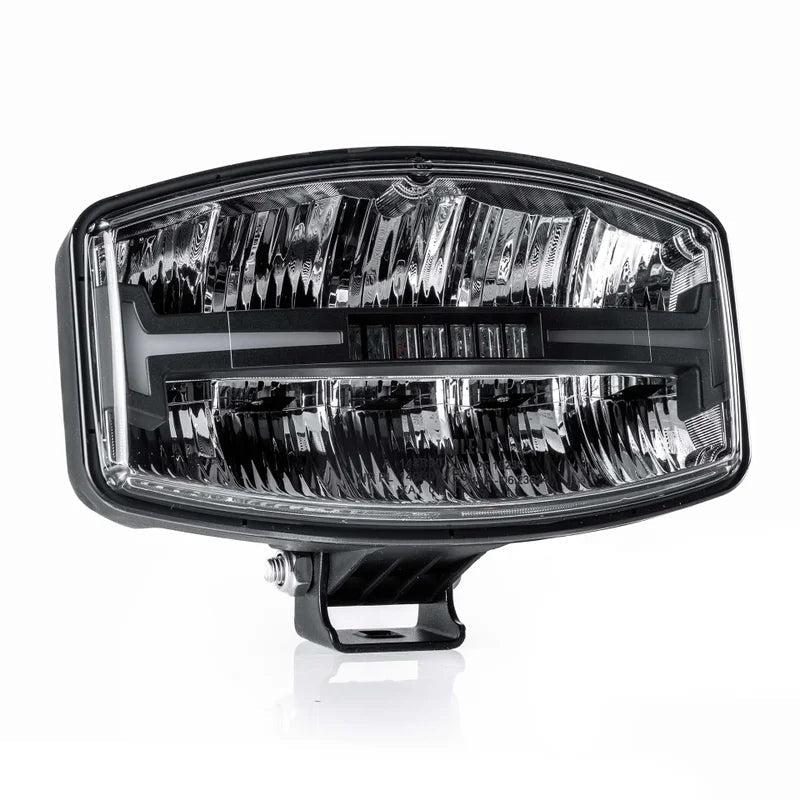

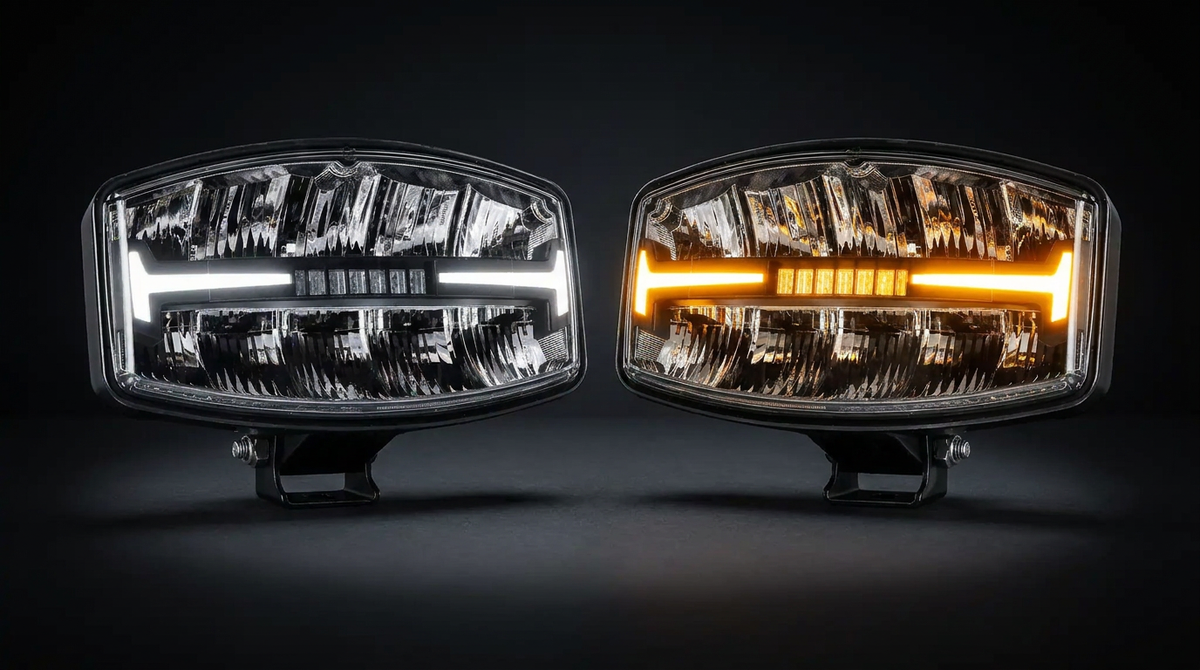

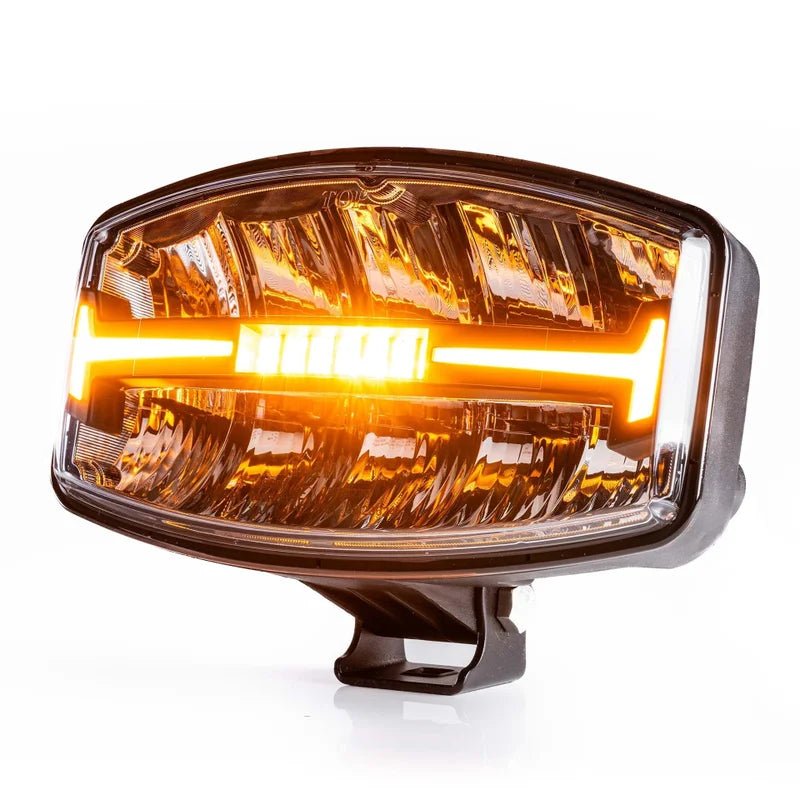

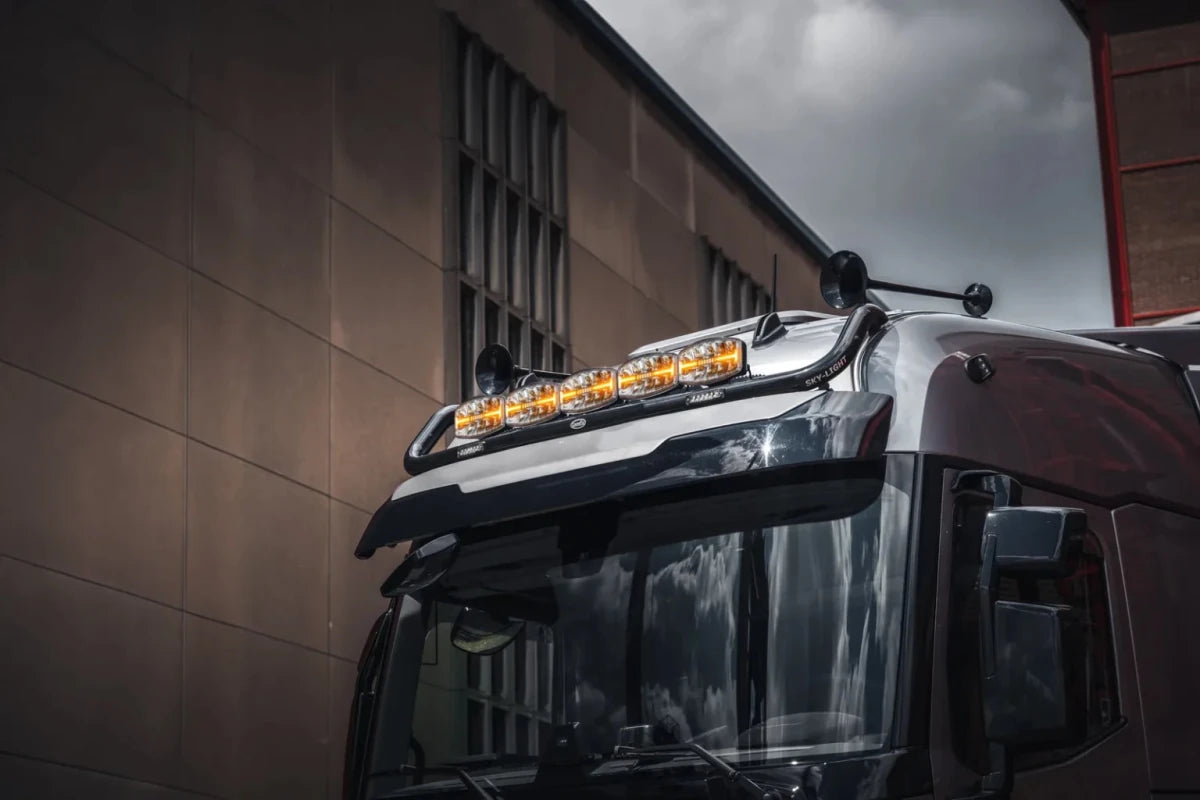

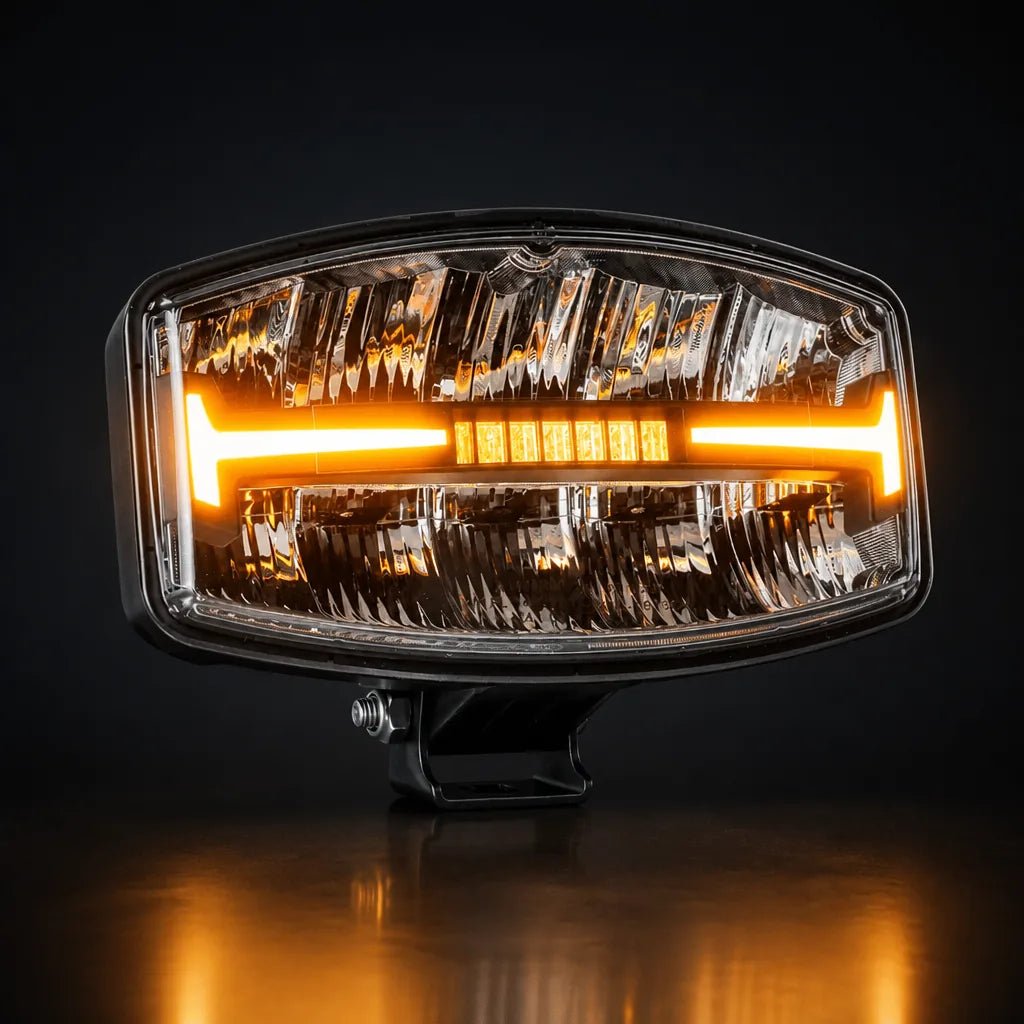

With this LED driving light, the TRALERT® Atlas series offers a robust lighting solution for vehicles in agriculture, construction and transport applications, among others. Thanks to the Driving Beam light image, the luminaire is suitable for medium to long distances. This LED driving light features duo-colour driving lights with both amber and white light, and also includes a warning light function. The housing is made of graphene and fitted with an impact-resistant polycarbonate lens.

The driving light is equipped with 300 cm connection cable with open wire end as standard and is suitable for 10-30 V systems. With a light output of 6,000 lm and a power consumption of 51.75 W, this model offers a versatile lighting solution. The version complies with various approvals, including CE, ECE-R10, ECE-R65, ECE-R148, ECE-R149 and CISPR25 Class 3. In addition, protection against dust and water is ensured via IP69K classification. Mounting is via surface mounting.

Plus points of this series:

– Driving lights in popular dimensions
– Fitted as standard with duo-colour position lights
– Optionally available with built-in R65 LED warning light
– RFT lens technology for an ideal beam

SPECIFICATION

Voltage 10-30 volts
Lights pattern : Drivng Beam
Features : Built-in R65 Strobe + Duo Colour DRL
Wattage : 6 x 10W Osram LED's / 7 x 3 Watt warning Light
Lumens (Raw) : 6,000lm
Certificates : ECE R0, R148, R149, R65 Class 1, CISPR25 Class3
Lens : Polycarbonate
Body : Graphene
Dimensions : 244.5 x 138.4 x 110mm

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
