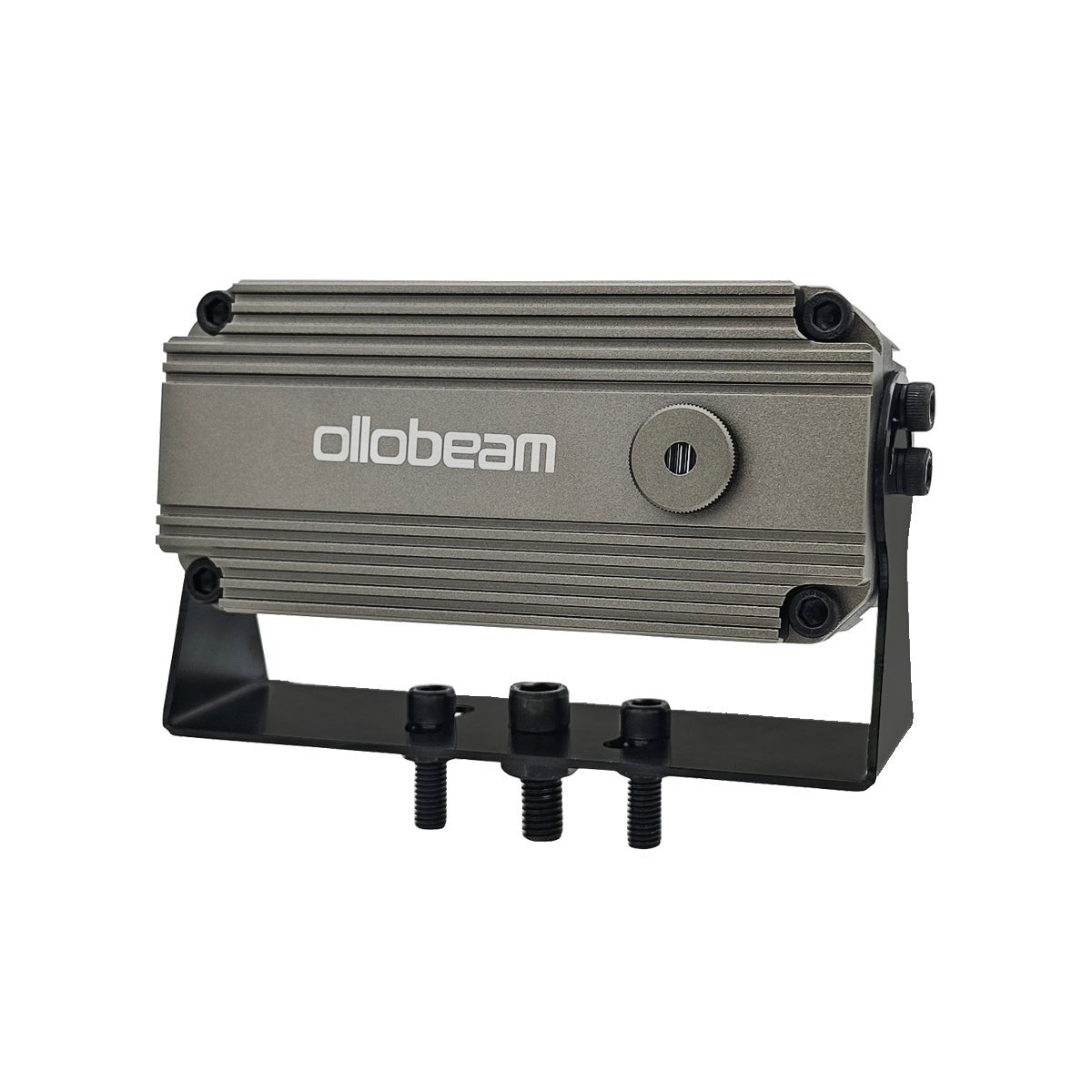

Red Laser Line Safety Light – 500mW | Forklift & Vehicle Safety Zone Lighting

Red Laser Line Safety Light – 500mW | Forklift & Vehicle Safety Zone Lighting

SKU:1001-RED-500mw

Regular price £124.80 GBP
Regular price Sale price £124.80 GBP
Sale Sold out
Shipping calculated at checkout.

SRH Lighting

Quantity
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

DESCRIPTION

Red Laser Line Safety Light – 500mW | Forklift & Vehicle Safety Zone Lighting

Improve workplace safety and clearly define exclusion zones around moving vehicles with this powerful Red Laser Line Safety Light. Designed for forklifts, warehouse vehicles and industrial machinery, the lamp projects a highly visible red line onto the ground to create a clear visual safety boundary.

Using a 638nm Mitsubishi 500mW laser, the light produces a crisp and precise line that remains clearly visible in busy industrial environments. This makes it ideal for warning pedestrians of approaching vehicles or marking hazardous areas around machinery.

The laser features a 90° projection angle, creating a clearly defined safety line along the side or rear of a vehicle. When mounted on forklifts or material handling equipment, the projected line acts as a visual exclusion zone, helping to reduce the risk of accidents in warehouses, factories and logistics operations.

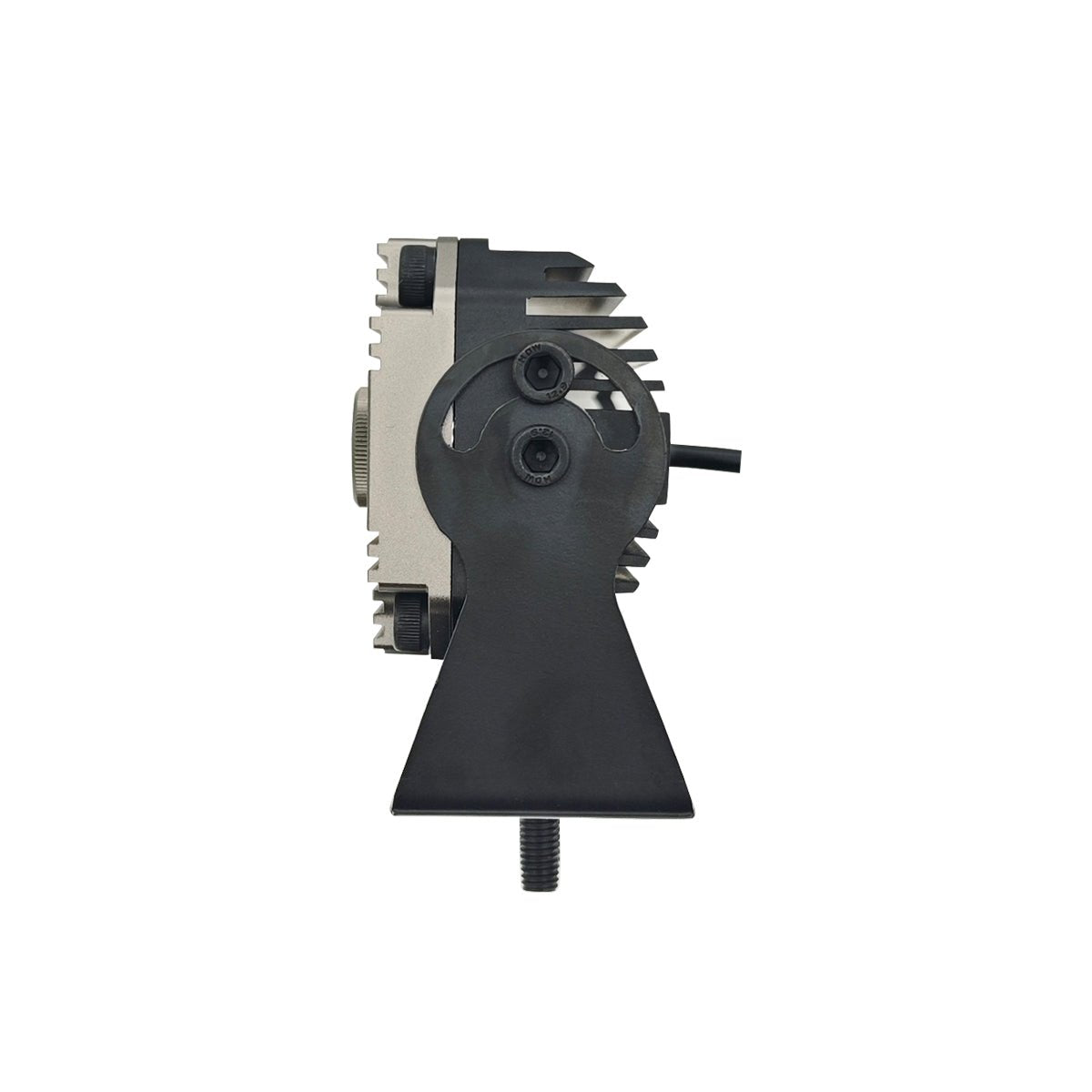

Engineered for demanding environments, the lamp is housed in a rugged aluminium body with a stainless steel mounting bracket and IP67 protection rating, ensuring reliable performance in harsh industrial conditions.

With a wide 10–80V DC operating range, the light is compatible with 12V and 24V vehicle electrical systems, making it suitable for a wide range of industrial vehicles and mobile equipment.

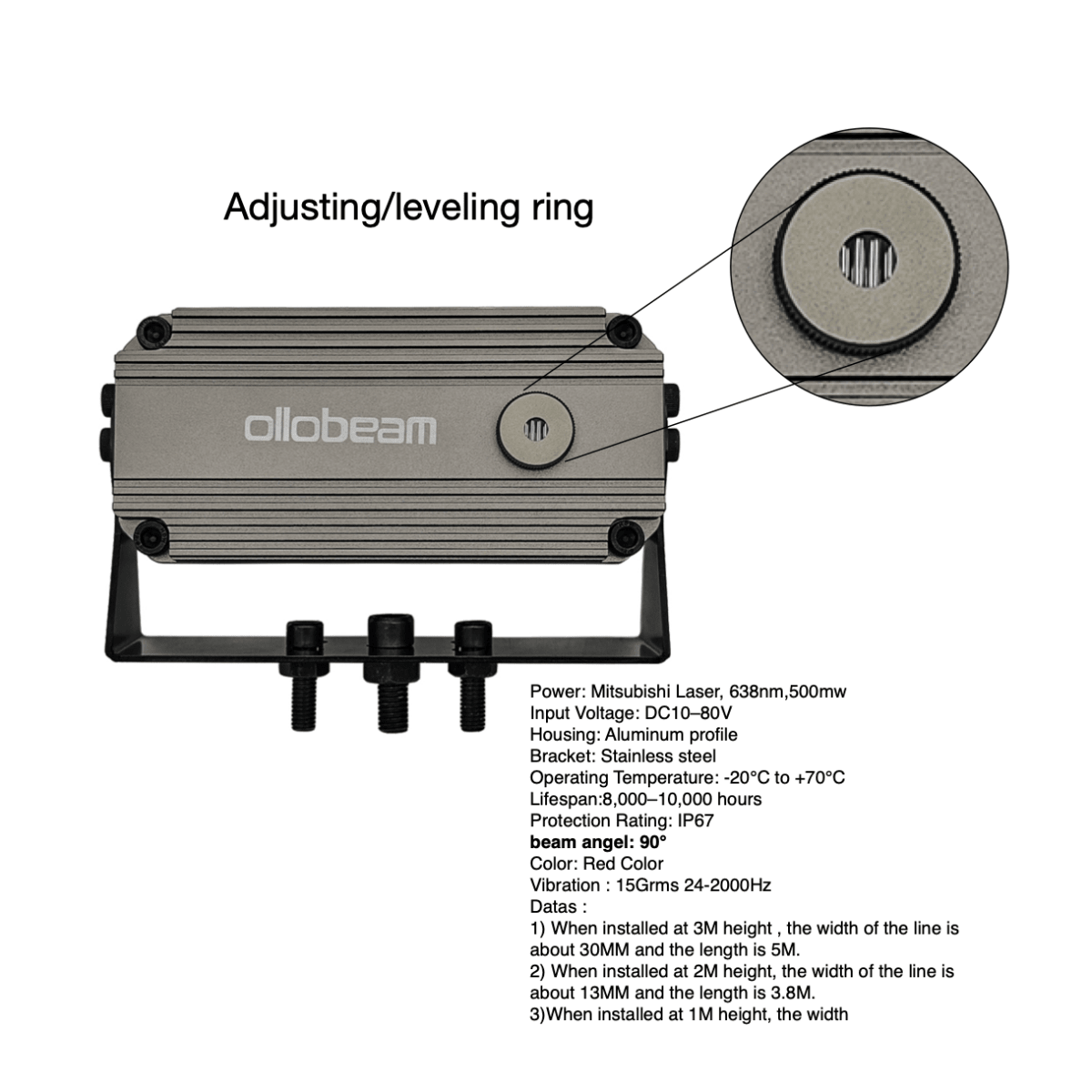

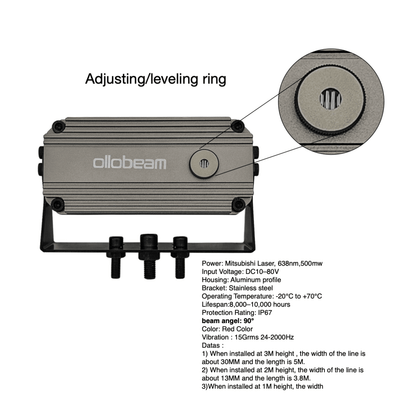

The projected beam can be adjusted via the ring situated around the light aperture allowing the lamp to be positioned in nearly any position.

Key Features

• High visibility red laser safety line
500mW Mitsubishi 638nm laser for a sharp and precise beam
• Wide 90° projection angle for clear ground marking
• Ideal for forklifts, warehouse vehicles, construction and industrial machinery
10–80V DC input – suitable for 12V and 24V systems
• Durable aluminium housing with stainless steel mounting bracket
IP67 rated – dustproof and waterproof
• Operating temperature –20°C to +70°C
• Long service life 8,000–10,000 hours

Projection Performance

Installation height affects the projected line:

3m height: approx. 5m long line / 30mm width
2m height: approx. 3.8m long line / 13mm width
1m height: approx. 2m long line / 10mm width

SPECIFICATION

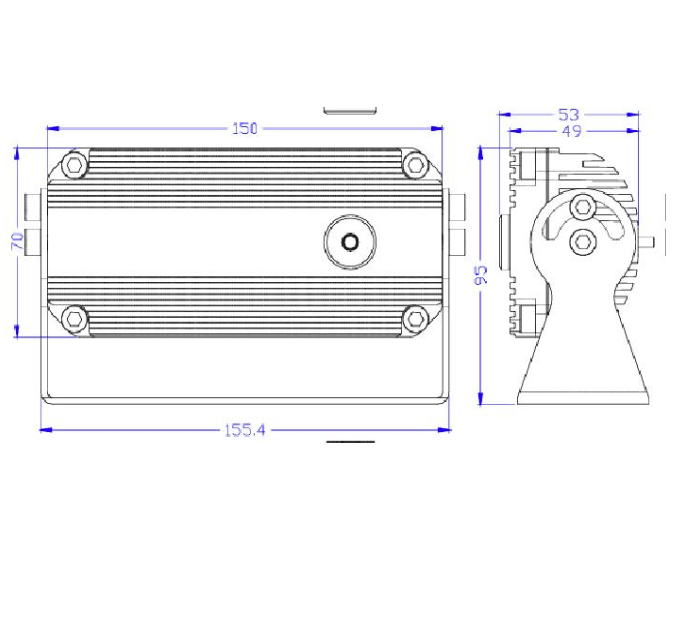

Dimensions 155.4 x 95mm x 53mm (L:H:D)

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

FAQ

Warranty Information

Product Warranty

At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.

Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.

For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.

To help us process your claim efficiently, please provide:

  • Your invoice or proof of purchase
  • Product part number
  • Details of the fault
  • Supporting photographs where possible

Warranty Exclusions

The warranty does not cover faults or damage resulting from:

  • Accidental damage, impact, collision, storm damage, or other external influences
  • Incorrect installation, misuse, neglect, or improper operation
  • Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
  • Normal wear and tear or environmental deterioration

SRH Lighting reserves the right to inspect products before approving any warranty claim.

Please refer to our Terms & Conditions for full warranty details.

Condensation

A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.

As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.

To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.

Paint & Surface Finish

Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.

Regular cleaning and maintenance are recommended, particularly in harsh operating environments.

Installation & Mounting

Products should always be mounted securely and in accordance with the manufacturer’s recommendations.

Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.

Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
