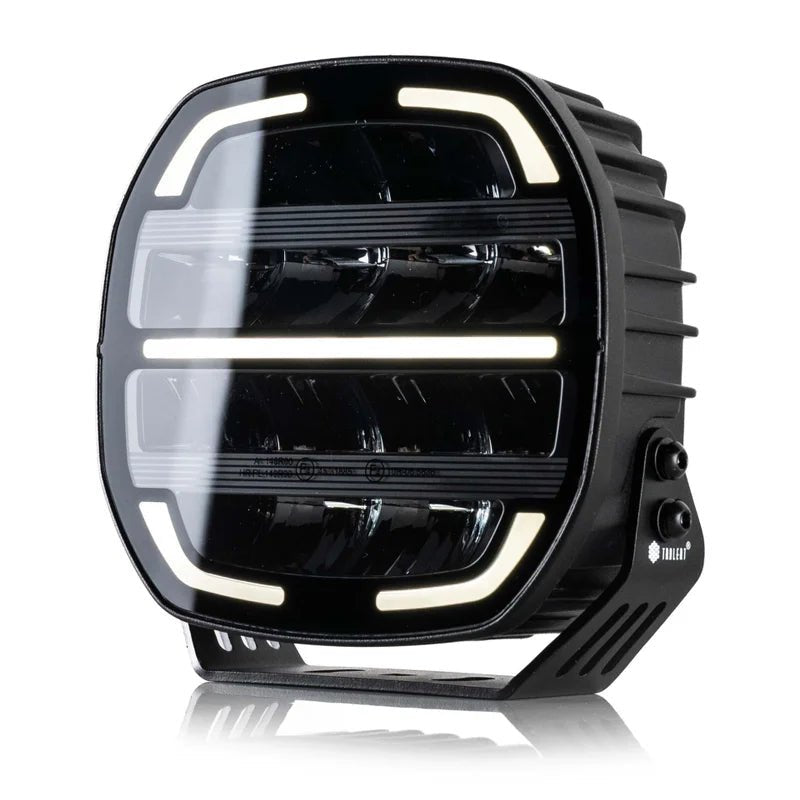

Phantom 7 & 9" Driving light with dual colour position

Phantom 7 & 9" Driving light with dual colour position

SKU:WD-16016

Regular price £239.41 GBP
Regular price Sale price £239.41 GBP
Sale Sold out
Shipping calculated at checkout.

Tralert

Features
appearance
Light Sizes
Quantity
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

DESCRIPTION

New in the LED spotlight range: the TRALERT® Phantom Series. The spotlight for when your vehicle deserves or requires only the best in optics and functionality. With its dark-look lens and uniquely designed daytime running lights, it's a real eye-catcher. The Phantom Series consists of two models: a variant with a black housing (WD-16016) and a variant with a white housing (WD-16016W). Both spotlights have a light output of no less than 16,000 lumens, resulting in excellent visibility in all conditions.

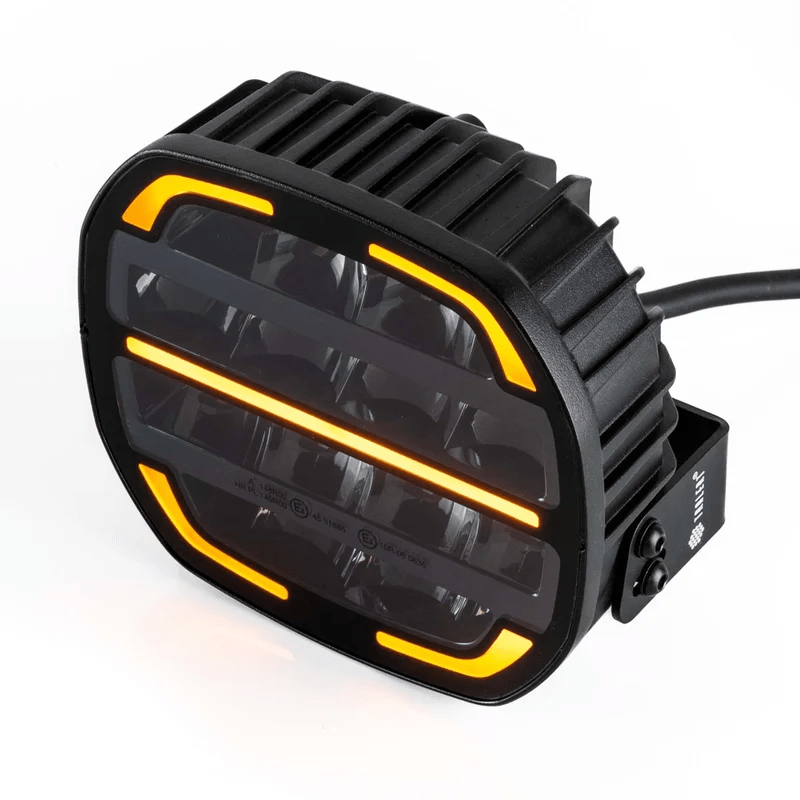

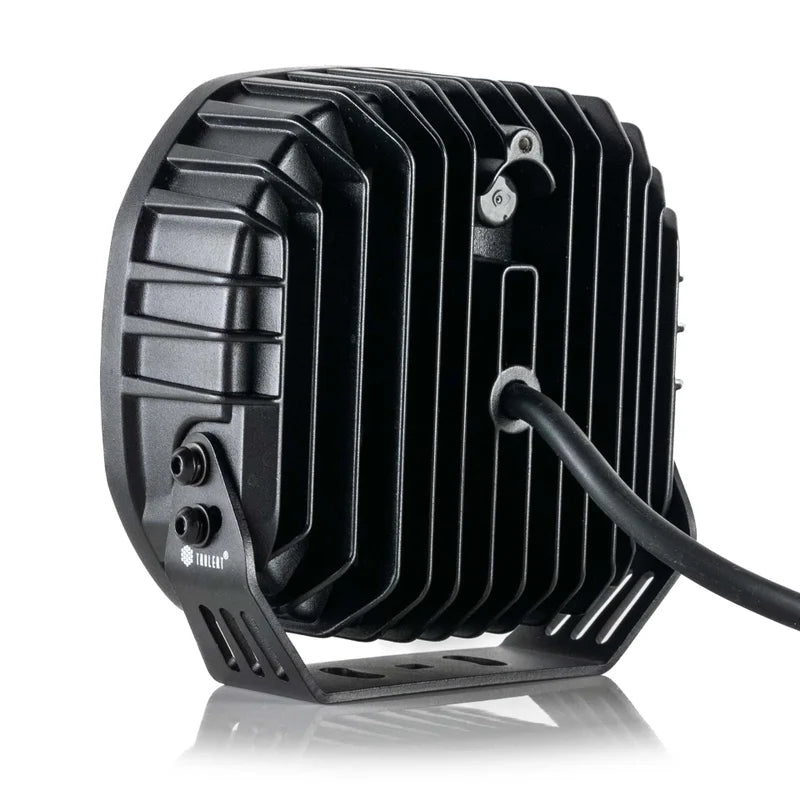

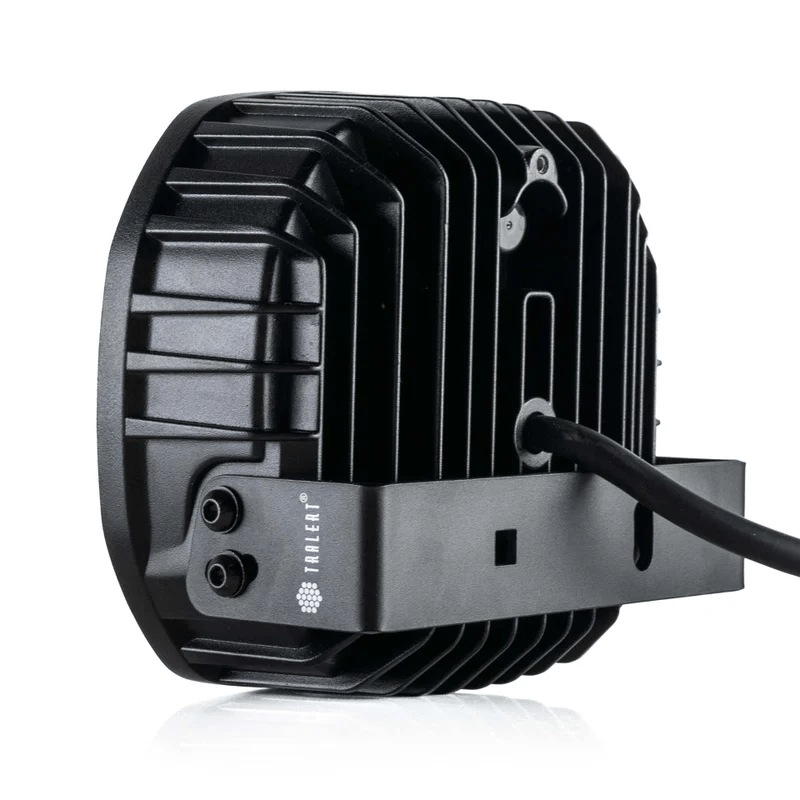

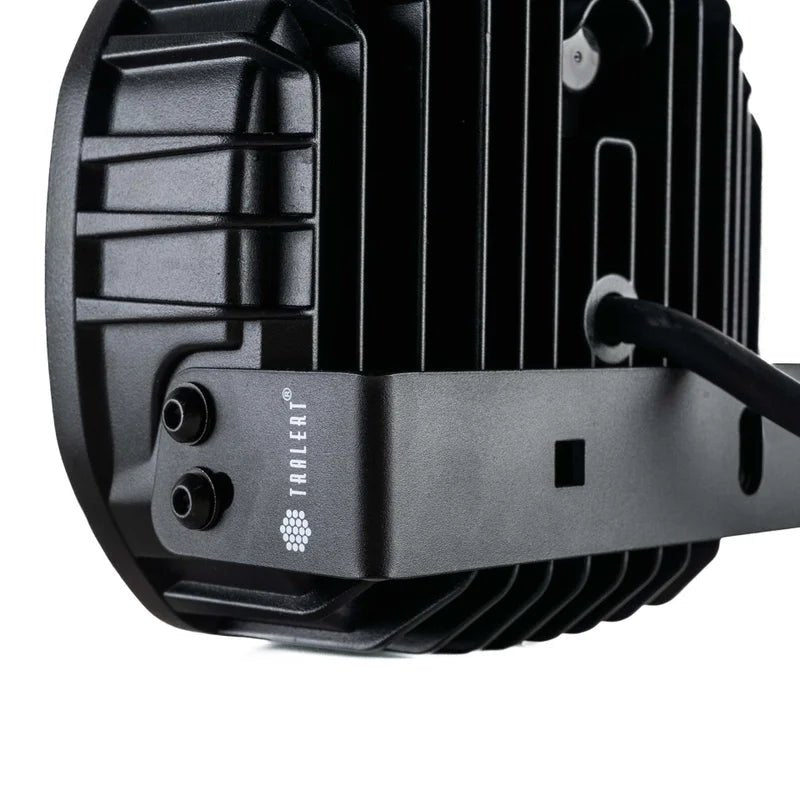

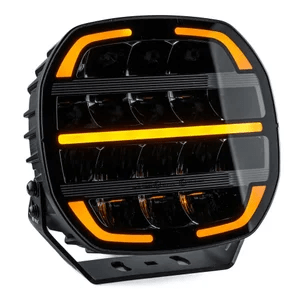

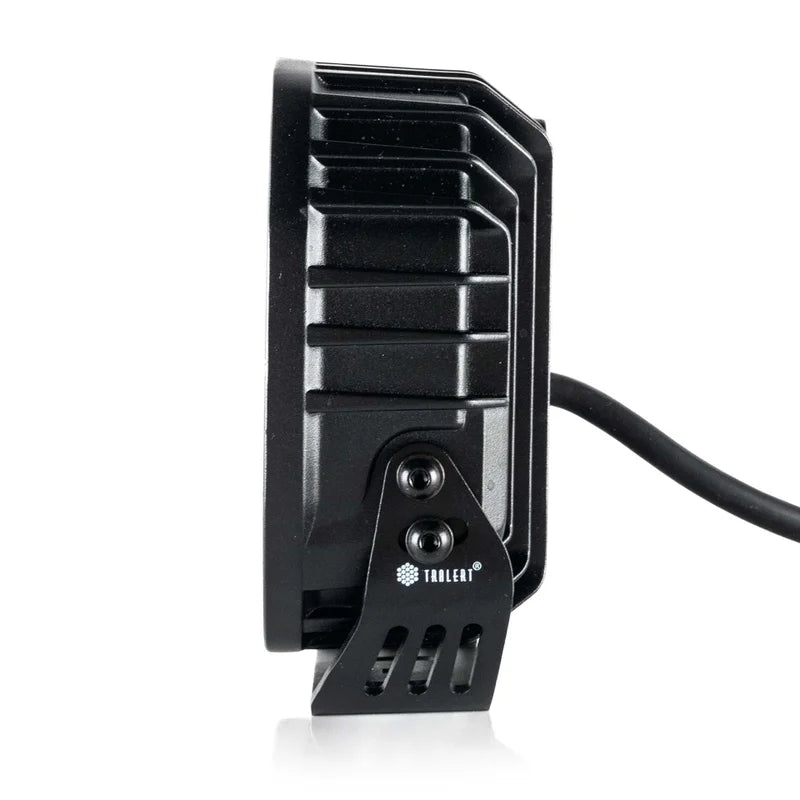

This LED spotlight series from TRALERT® also features duo-colour daytime running lights. You can choose between amber or white daytime running lights. Additionally, the Phantom Series comes standard with two mounting brackets: one for mounting on the underside and one for mounting on the rear. This allows the WD-16016(W) to be elegantly mounted on almost all truck brands.

SPECIFICATION

1. Power: High beam 120W (7')  150W (9") + Position light 2W
2. Light source: 5W Luminous LEDs.
3. Effective Lumens output: up to 12300LM (9")
4. Voltage range: 9-32VDC
5. Waterproof rate: IP68
6. PC Lens
7. Material housing: aluminium alloy
8. Bracket material: steel with surface black spray paint
9.LED lifetime:30000 hours
10.Operating temperature:-45°C.+85°C
11. Certificates ECE R112
12. 2 Year warranty

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

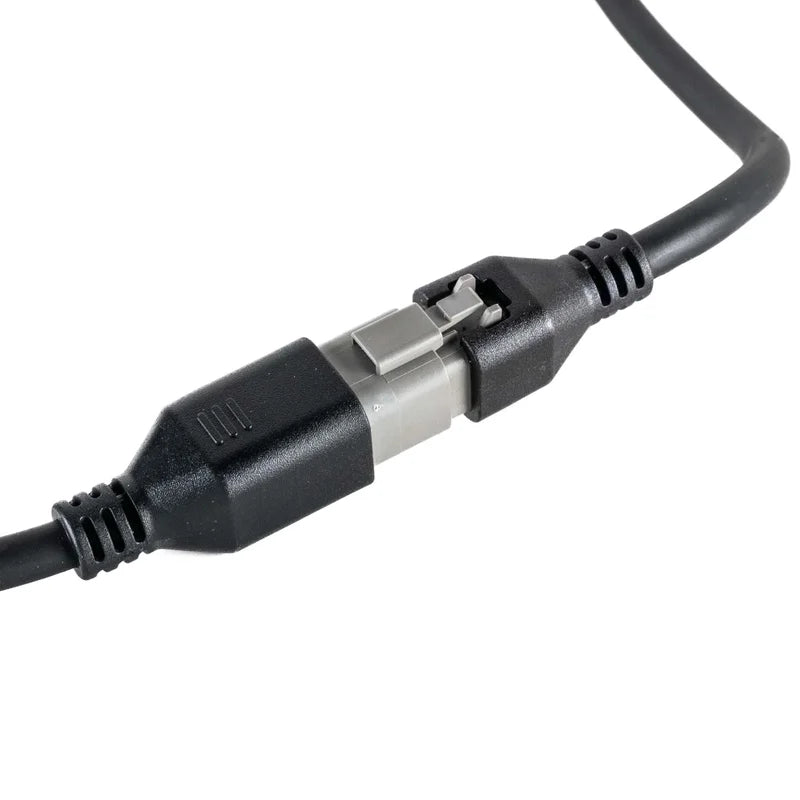

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

Condensation is a natural occurrence and is not a cause for concern. These units are designed with vents to accommodate fluctuations in air pressure, which can lead to condensation. When moist air enters the lamp assembly, condensation can form, particularly at low temperatures. This condensation typically manifests as a fine mist on the interior of the lens. However, this mist eventually dissipates and exits through the vents during normal operation.

FAQ

Warranty Information

Product Warranty

At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.

Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.

For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.

To help us process your claim efficiently, please provide:

  • Your invoice or proof of purchase
  • Product part number
  • Details of the fault
  • Supporting photographs where possible

Warranty Exclusions

The warranty does not cover faults or damage resulting from:

  • Accidental damage, impact, collision, storm damage, or other external influences
  • Incorrect installation, misuse, neglect, or improper operation
  • Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
  • Normal wear and tear or environmental deterioration

SRH Lighting reserves the right to inspect products before approving any warranty claim.

Please refer to our Terms & Conditions for full warranty details.

Condensation

A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.

As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.

To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.

Paint & Surface Finish

Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.

Regular cleaning and maintenance are recommended, particularly in harsh operating environments.

Installation & Mounting

Products should always be mounted securely and in accordance with the manufacturer’s recommendations.

Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.

Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.

SHIPPING

Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.

Orders placed after 12:00
Processed & shipped the next working day.

Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.

Orders are shipped Monday-Friday only.

Download product leaflet
