OZZ XB1 SERIES 9" light bar with dual colour side light and dynamic start
OZZ XB1 SERIES 9" light bar with dual colour side light and dynamic start
SKU:88203
Tralert
Couldn't load pickup availability
The OZZ XB1 P9” dynamic LED light bar combines technological
innovation with a compact and functional design. Despite its small size,
this light bar is equipped with six Osram P9 LEDs, delivering an impressive
light output of 4960 lumens. This provides a bright light up to 315 meters away with 1 lux.
Specification
Specification
Connector: Deutsch-connector
Beam pattern: Driving beam
Voltage: 10-32V
IP rating: IP67
Cable length: 100cm

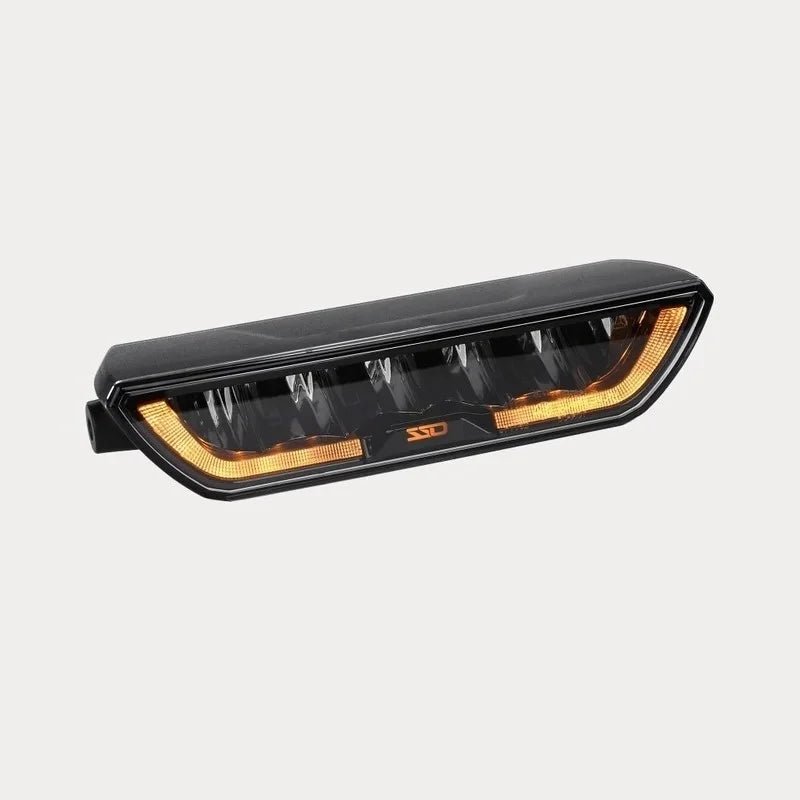

Daytime running light colour: White / amber
High beam colour temperature: 5000K (white)
Mounting: Incl. mounting brackets
Lens material: Polycarbonate
Housing material: Die-cast aluminium (ADC12)
Housing colour: Black
EMC suppression: ECE-R10
Certifications: ECE-R10 / ECE-R7 / ECE-R112 / ECE-R148
Warranty: 2 year
Installation and care
Installation and care
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
Additional Information
Additional Information
Condensation is a natural occurrence and is not a cause for concern. These units are designed with vents to accommodate fluctuations in air pressure, which can lead to condensation. When moist air enters the lamp assembly, condensation can form, particularly at low temperatures. This condensation typically manifests as a fine mist on the interior of the lens. However, this mist eventually dissipates and exits through the vents during normal operation.
