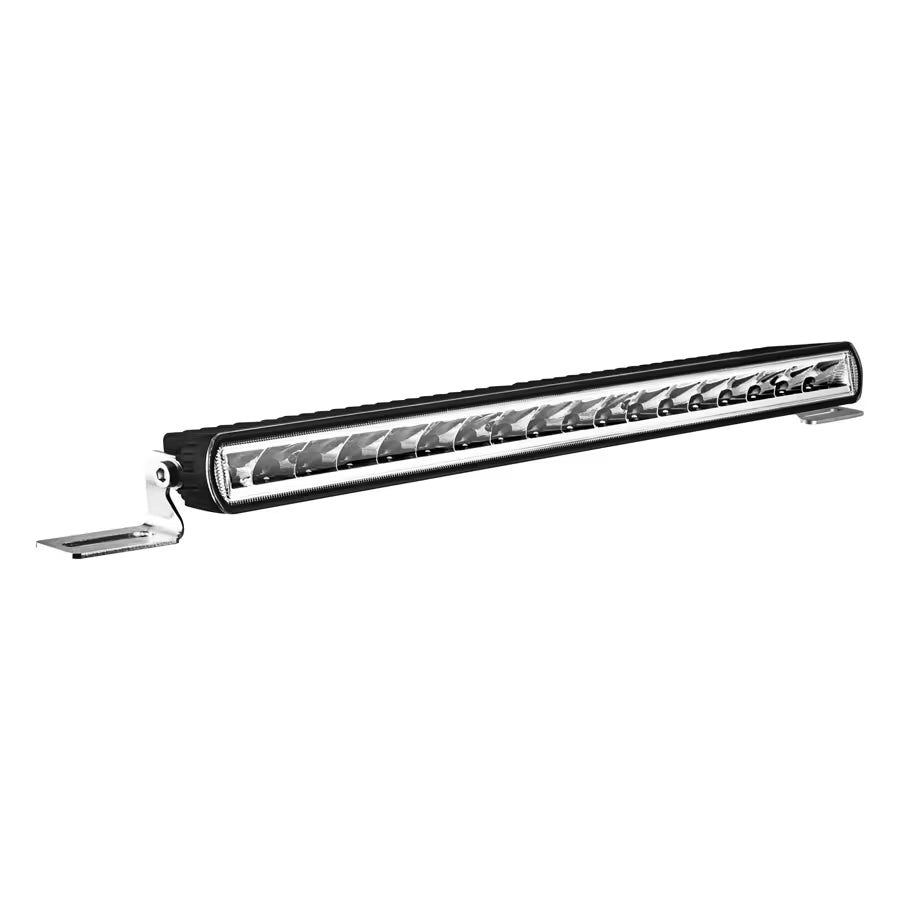

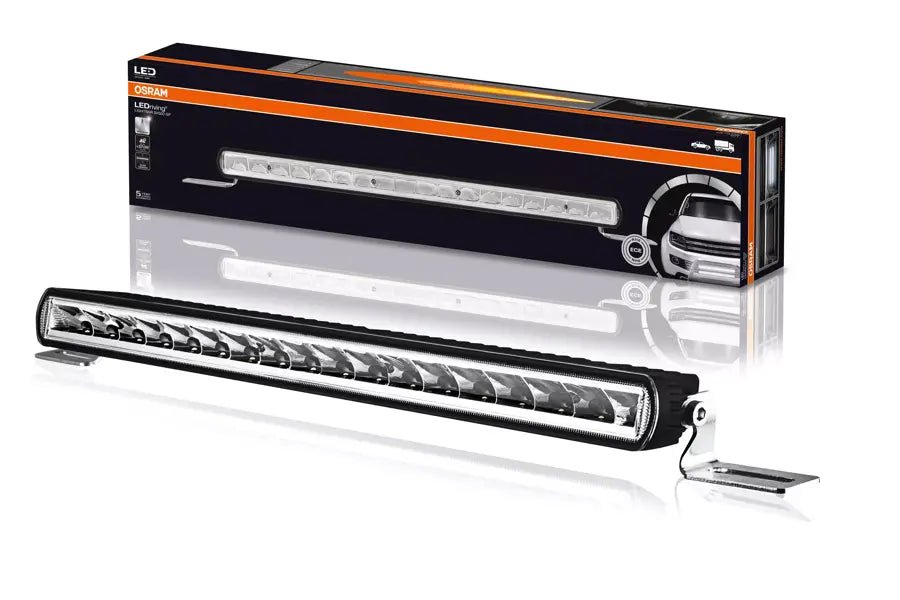

OSRAM LEDriving SX500 light bars

OSRAM LEDriving SX500 light bars

SKU:LLED107-SP

Regular price £148.42 GBP
Regular price Sale price £148.42 GBP
Sale Sold out
Shipping calculated at checkout.

OSRAM

Beam pattern
Length
Series
Quantity
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

DESCRIPTION

Durable LED power for improved road safety

Intelligent lighting technology meets a long lifespan with the LEDriving Lightbar SX500-SP driving light. With a lifespan of 5000 hours, the LED auxiliary light with certified approval provides increased and long-lasting safety on the road.
With an illuminance of one lux, the beam from the LED auxiliary light can reach up to 360 meters with a beam angle of eight degrees. The 18 high-performance LEDs produce a brightness that is especially beneficial for drivers on unlit streets and in difficult visibility conditions.
The intelligent reflector design of the LED bar for automobiles provides very high optical efficiency with uniform light distribution and reduced glare for oncoming traffic. Reduced glare in particular counts as another important aspect of road safety.
But the light output from the 3900 lumen LED high beam isn’t the only feature that gives the light its appeal: It also enhances the off-road look of the vehicle.

Durable LED driving light for safe driving pleasure
Daily use demands quite a bit from the material used. The LED auxiliary lights are therefore equipped with a long-wearing polycarbonate lens. The driving light also works in extreme air temperatures ranging from -30 to 60 degrees Celsius.
An integrated driver and thermal management system regulates heat generation during operation and protects the 18 high-performance LEDs from possible overheating.
Over and under voltage protection automatically breaks the circuit when power exceeds the predetermined current for a specified amount of time. This practical function provides added protection from operational damage.
The LEDriving Lightbar SX500-SP LED bar is suitable for cars, 4x4 and off-road vehicles and for utility and industrial vehicles. Thanks to compact mounting dimensions, even agricultural vehicles can benefit from the intense brightness of the LED auxiliary light.

More Detail on the OSRAM SX Series Visit OSRAM.co.uk

SPECIFICATION

Warranty : 5 years
Connection : DT Connector
Certification : ECE R10, R112
Type of protection : IP69K

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

FAQ

Warranty Information

Product Warranty

At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.

Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.

For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.

To help us process your claim efficiently, please provide:

  • Your invoice or proof of purchase
  • Product part number
  • Details of the fault
  • Supporting photographs where possible

Warranty Exclusions

The warranty does not cover faults or damage resulting from:

  • Accidental damage, impact, collision, storm damage, or other external influences
  • Incorrect installation, misuse, neglect, or improper operation
  • Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
  • Normal wear and tear or environmental deterioration

SRH Lighting reserves the right to inspect products before approving any warranty claim.

Please refer to our Terms & Conditions for full warranty details.

Condensation

A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.

As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.

To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.

Paint & Surface Finish

Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.

Regular cleaning and maintenance are recommended, particularly in harsh operating environments.

Installation & Mounting

Products should always be mounted securely and in accordance with the manufacturer’s recommendations.

Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.

Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.

SHIPPING

Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.

Orders placed after 12:00
Processed & shipped the next working day.

Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.

Orders are shipped Monday-Friday only.

Download product Leaflet
