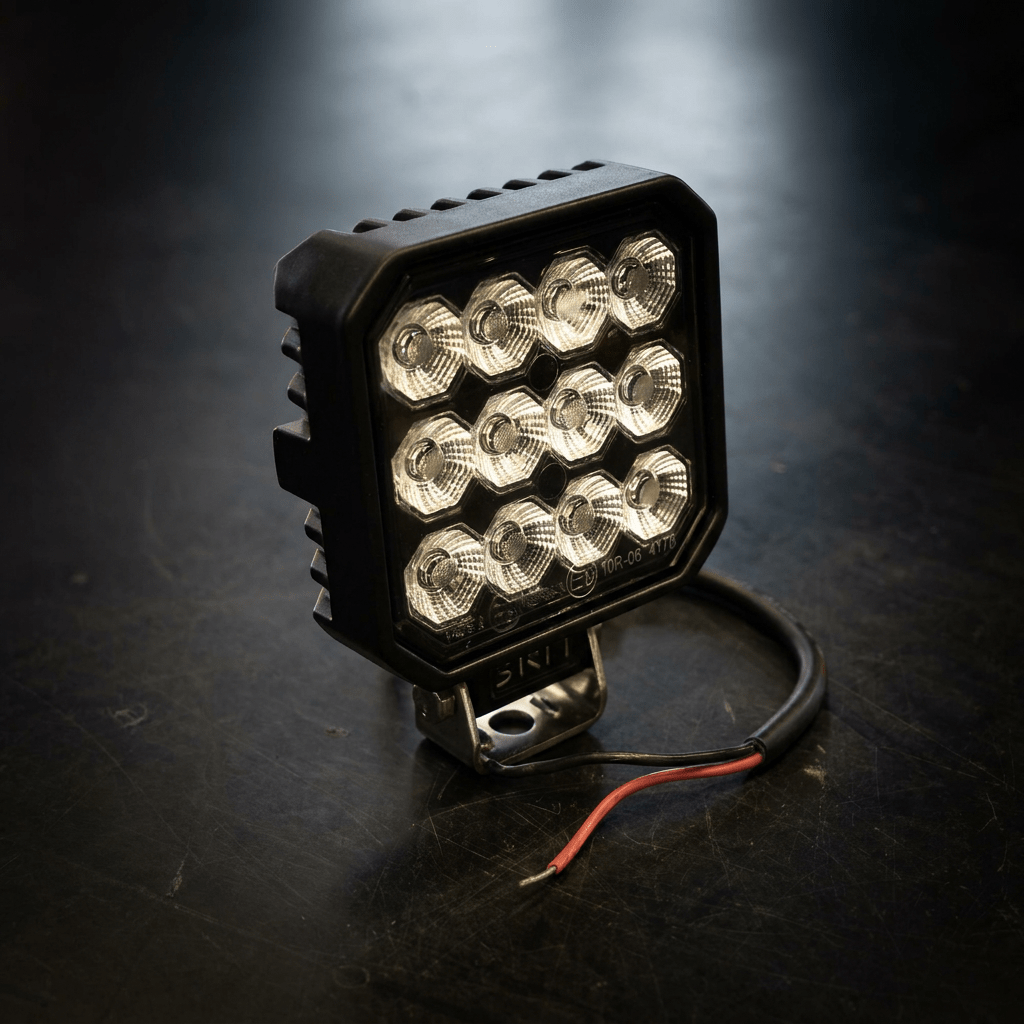

Lunar 3" Square LED Work Light 12v 24v R23 Reverse light approved
Lunar 3" Square LED Work Light 12v 24v R23 Reverse light approved
SKU:2100-12
SRH Lighting
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
Drive with Confidence. Reverse with Precision.
Introducing the Lunar Series R23 Approved LED Reverse Lights — engineered for commercial vehicles and trailers that demand safety, compliance, and performance. Available in 76mm, 90mm, and 110mm square formats, these lights meet ECE Regulation 23 standards, ensuring optimal light output, durability, and road legality.
Why choose R23 Approved Reverse Lights?
- Fully road-legal across Europe and beyond
- High-output LED technology for superior rear visibility
- Enhanced safety for drivers, pedestrians, and worksites
- Built tough for commercial use — day in, day out
Upgrade to certified confidence with Lunar Series – where compliance meets performance.
SPECIFICATION
SPECIFICATION
Part number SRH-2100-12
Power 12W
Luminous flux 912lm - 1200lm
Light source 12pcs 1W OSRAM LED chips
Voltage range 9-32V
Protection IP68
Material housing Aluminium
Beam Flood
ECE R10 R23
EMC rating CISPR 25 Class 3
INSTALLATION & CARE
INSTALLATION & CARE
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
SHIPPING
SHIPPING
Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.
Orders placed after 12:00
Processed & shipped the next working day.
Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.
Orders are shipped Monday-Friday only.
FAQ
FAQ
Warranty Information
Product Warranty
At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.
Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.
For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.
To help us process your claim efficiently, please provide:
- Your invoice or proof of purchase
- Product part number
- Details of the fault
- Supporting photographs where possible
Warranty Exclusions
The warranty does not cover faults or damage resulting from:
- Accidental damage, impact, collision, storm damage, or other external influences
- Incorrect installation, misuse, neglect, or improper operation
- Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
- Normal wear and tear or environmental deterioration
SRH Lighting reserves the right to inspect products before approving any warranty claim.
Please refer to our Terms & Conditions for full warranty details.
Condensation
A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.
As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.
To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.
Paint & Surface Finish
Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.
Regular cleaning and maintenance are recommended, particularly in harsh operating environments.
Installation & Mounting
Products should always be mounted securely and in accordance with the manufacturer’s recommendations.
Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.
Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
