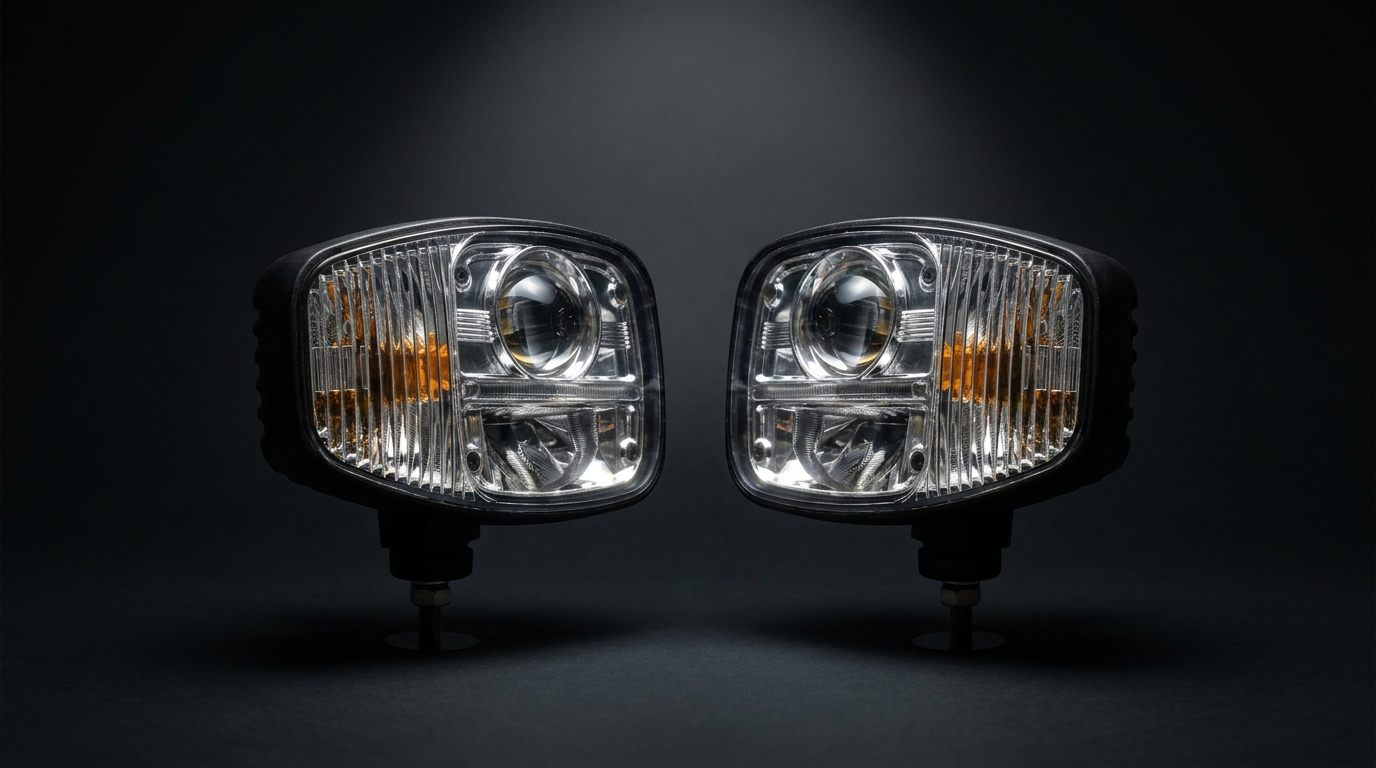

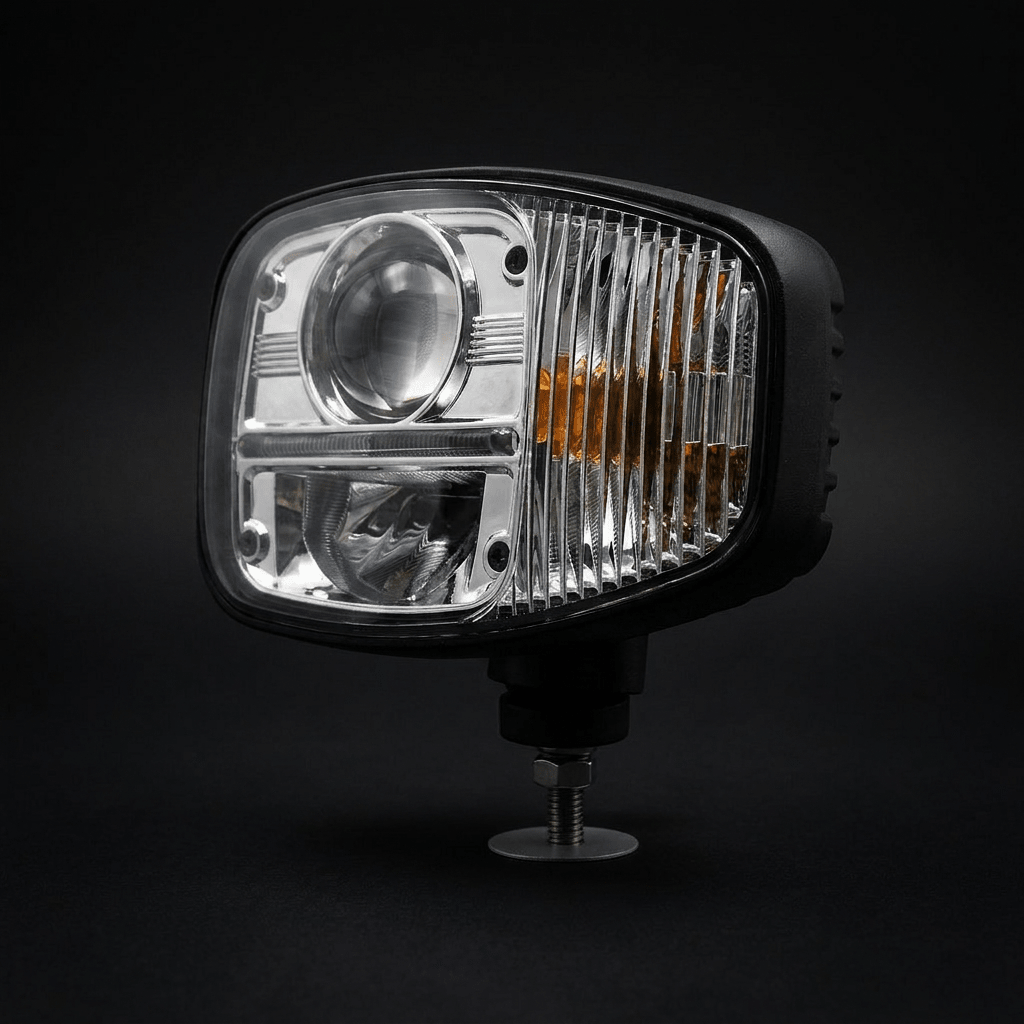

LED Auxiliary headlight assembly with DRL light (sold in pairs)
LED Auxiliary headlight assembly with DRL light (sold in pairs)
SKU:9102-82W
SRH Lighting
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
This LED auxiliary headlight assembly with DRL light is engineered to meet CISPR 25 - Class 4 standards, delivering outstanding electromagnetic compatibility suppression to minimise interference with vehicle electronics.
Featuring high-quality LEDs, it ensures consistent, reliable illumination with extended service life. The IP68-rated enclosure offers robust protection against dust and water, making it suitable for demanding environments. Its die-cast aluminium housing not only enhances durability but also facilitates efficient heat dissipation, maintaining optimal operating temperatures.
Additionally, the flexible mounting design allows installation at the rear bottom of the unit, providing adaptability to various vehicle configurations. This combination of advanced features makes it an excellent choice for professional automotive lighting applications requiring both performance and reliability.
SPECIFICATION
SPECIFICATION
Power:82W
Waterproof rate:IP68
EMC/EMI rating: CISPR 25 Class 3
Voltage range:9-32V
D T Connector
P.C. Lens
Material of housing: aluminium alloy

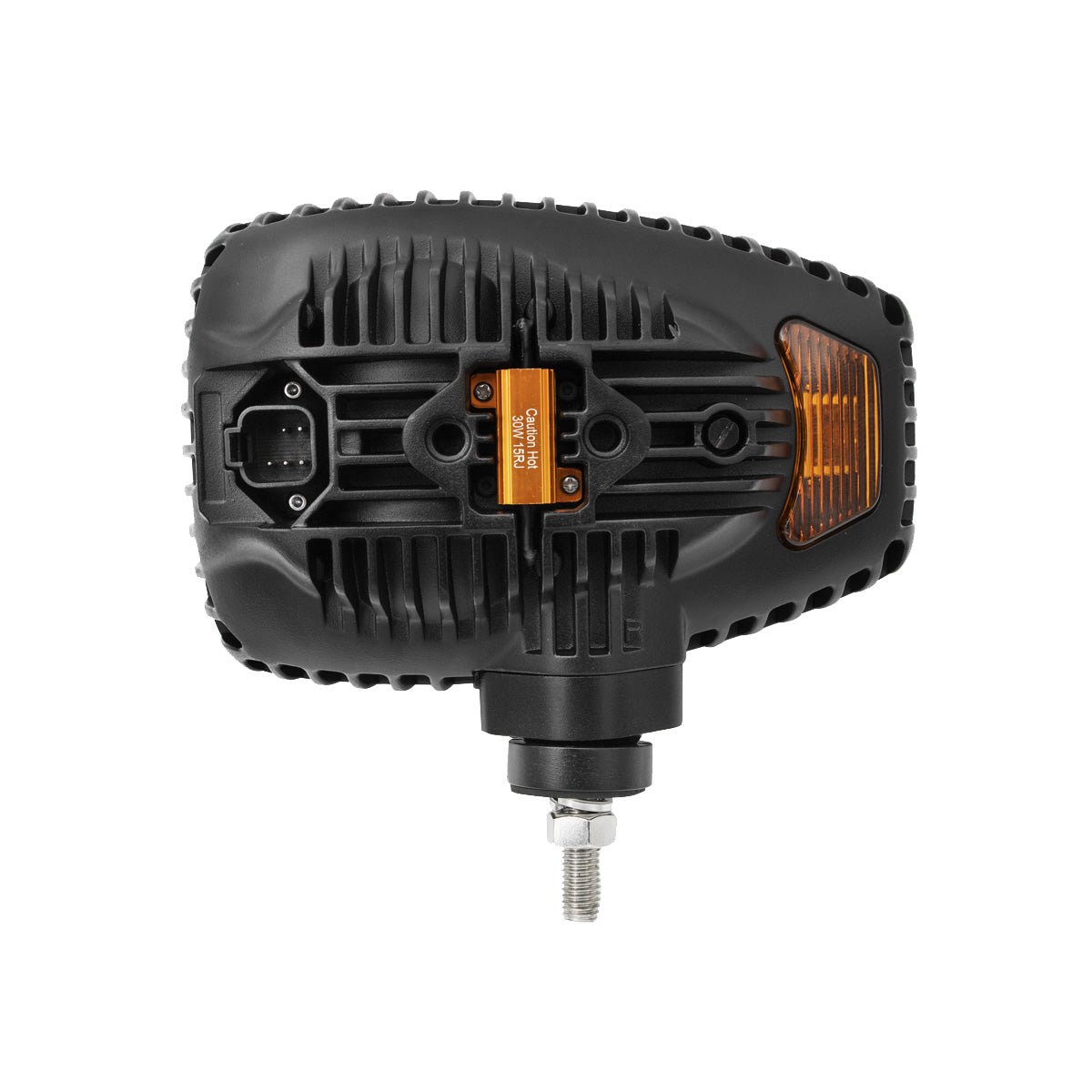

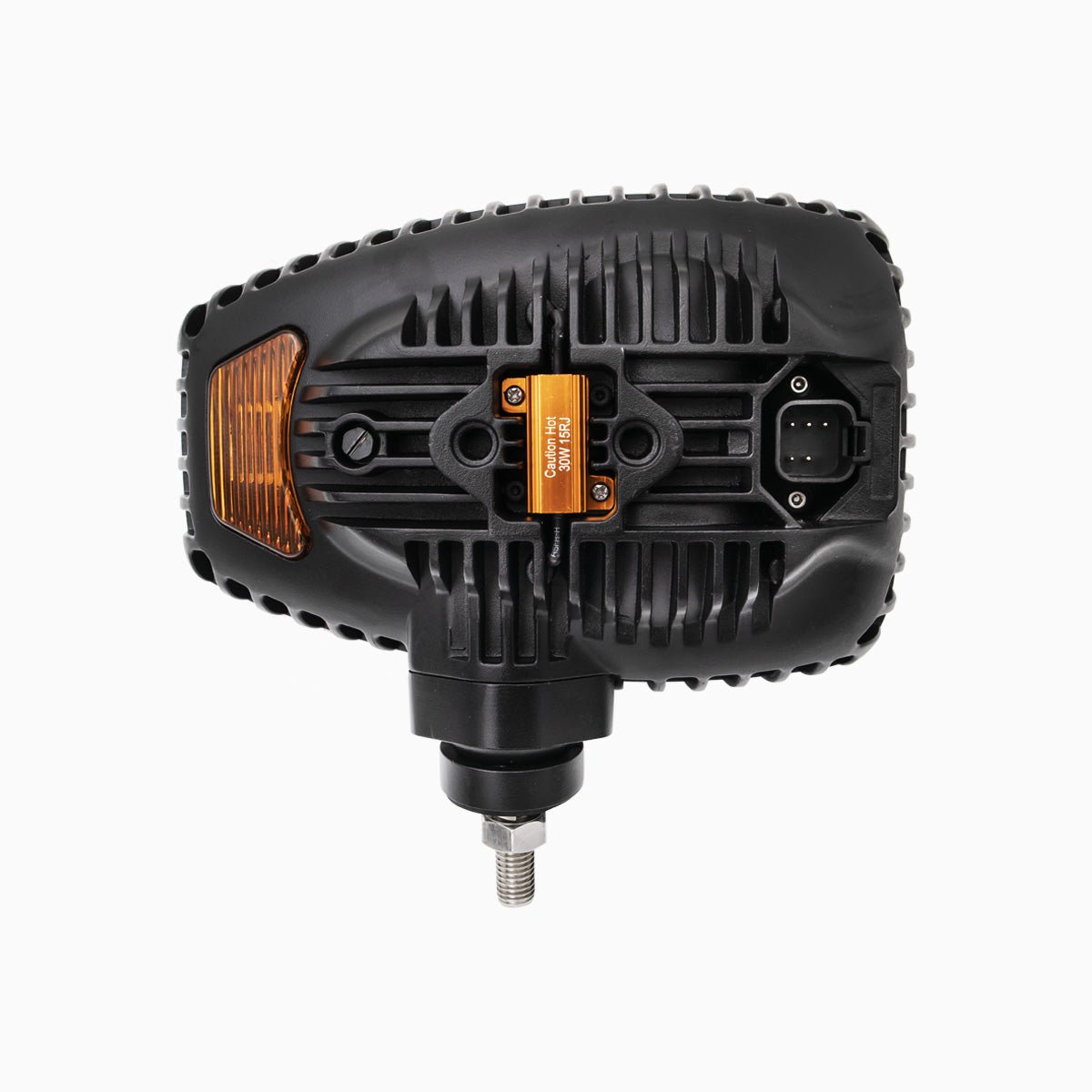

Built-in Resistors
Beam: Dip beam, high beam, DRL, indicator

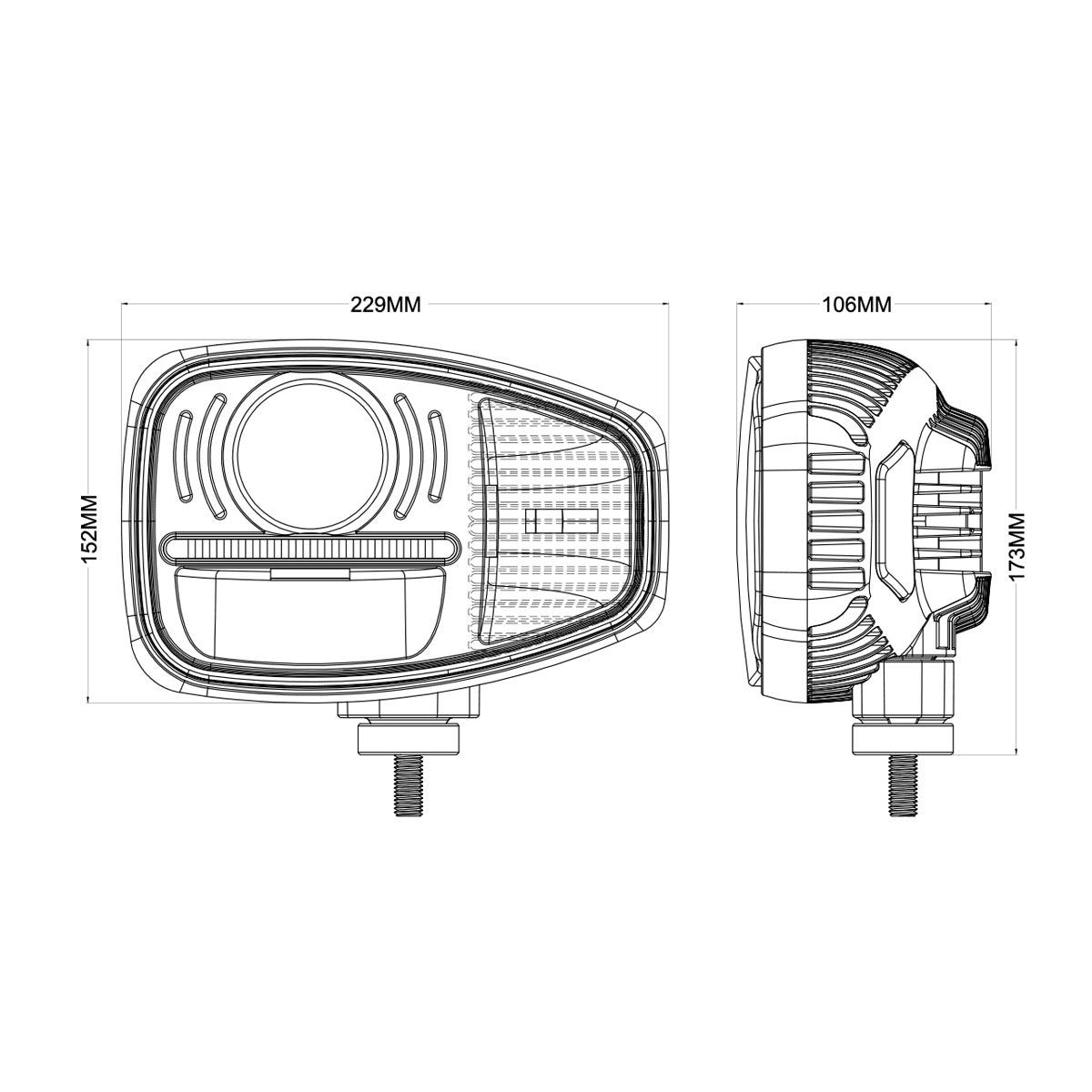

Dimensions 229 x 152 x 106mm

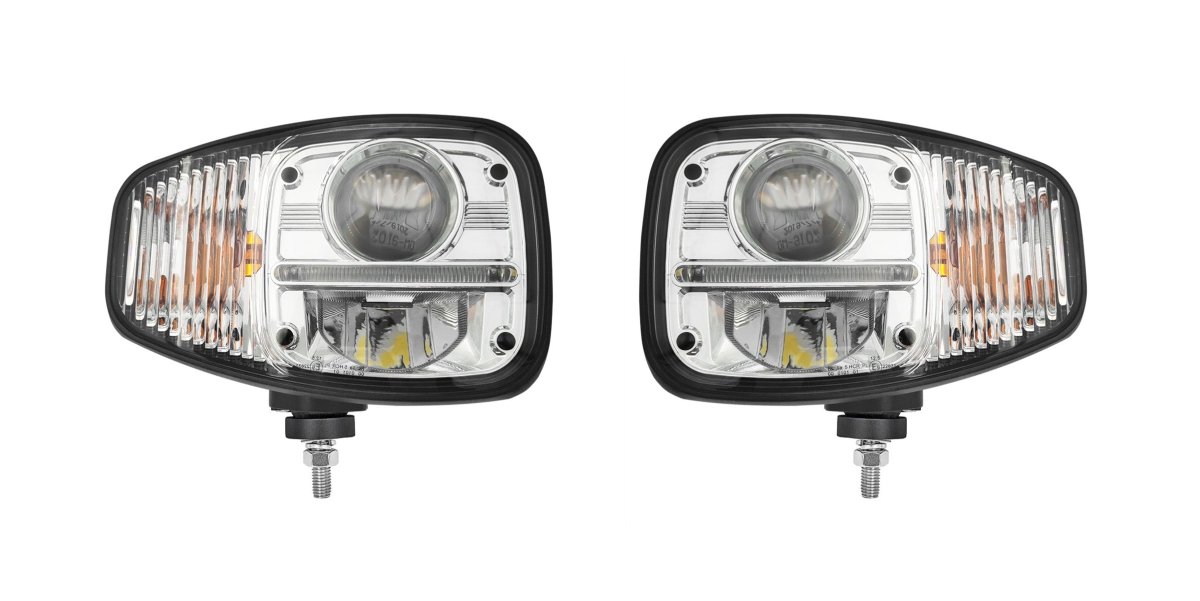

Sold in pairs
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
FAQ
FAQ
Warranty Information
Product Warranty
At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.
Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.
For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.
To help us process your claim efficiently, please provide:
- Your invoice or proof of purchase
- Product part number
- Details of the fault
- Supporting photographs where possible
Warranty Exclusions
The warranty does not cover faults or damage resulting from:
- Accidental damage, impact, collision, storm damage, or other external influences
- Incorrect installation, misuse, neglect, or improper operation
- Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
- Normal wear and tear or environmental deterioration
SRH Lighting reserves the right to inspect products before approving any warranty claim.
Please refer to our Terms & Conditions for full warranty details.
Condensation
A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.
As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.
To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.
Paint & Surface Finish
Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.
Regular cleaning and maintenance are recommended, particularly in harsh operating environments.
Installation & Mounting
Products should always be mounted securely and in accordance with the manufacturer’s recommendations.
Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.
Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
