Hella Valuefit low profile flashing beacon
Hella Valuefit low profile flashing beacon
SKU:2XD 357 980-001
Hella
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
-

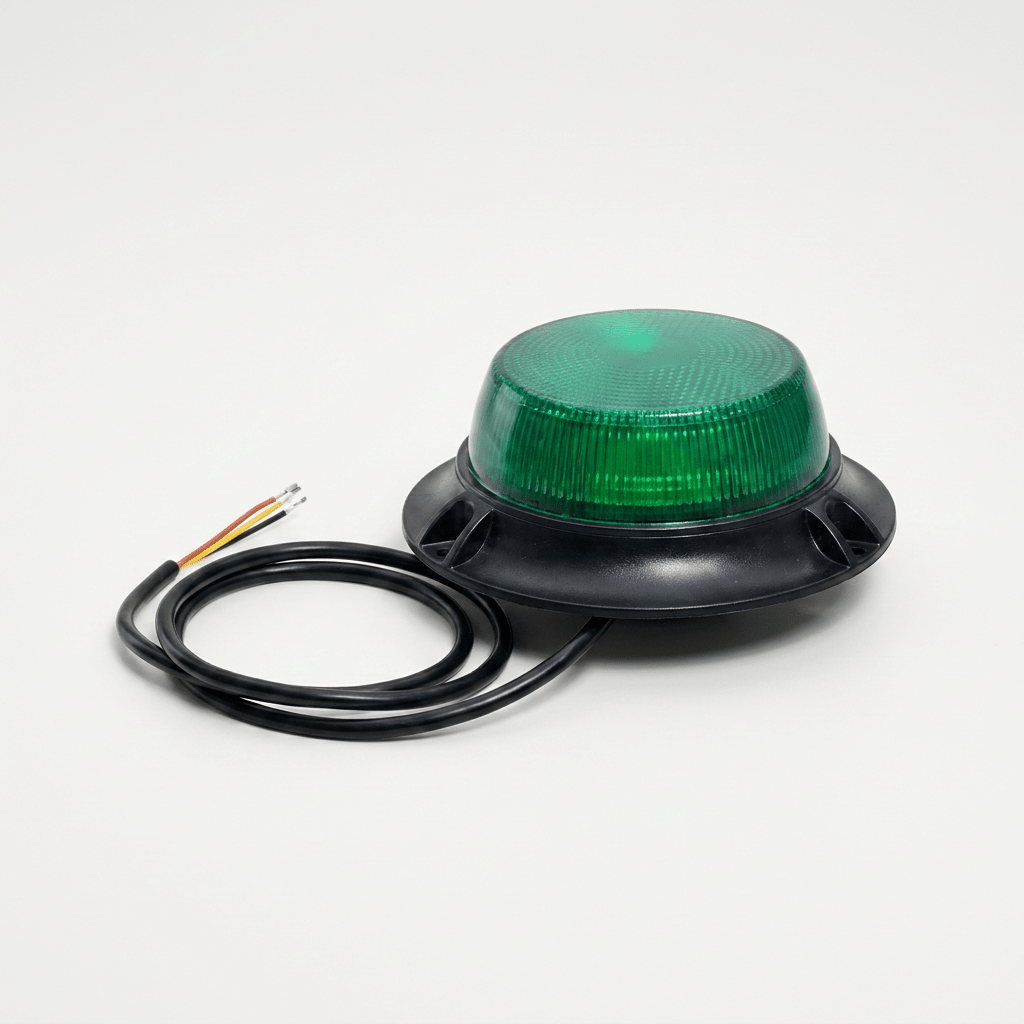

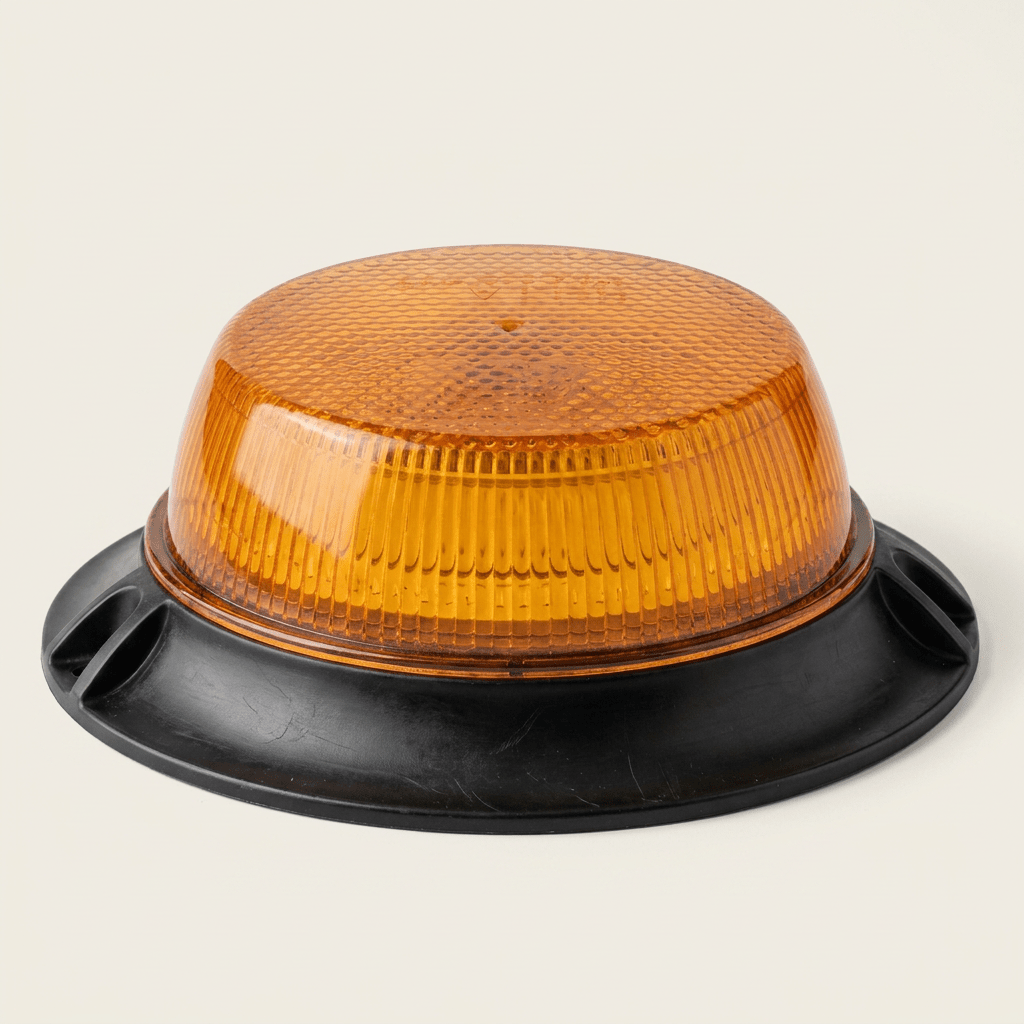

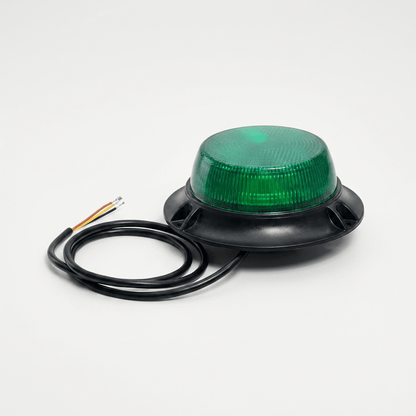

The HELLA VALUEFIT Low Profile LED Beacon combines premium engineering with outstanding warning performance in a compact, modern design. Available with either an amber or green lens, this versatile beacon is ideal for commercial vehicles, plant machinery, agricultural equipment and industrial applications where reliable, highly visible signalling is essential.
Featuring 24 high-output LEDs, the beacon offers a choice of single or double flash patterns while consuming just 10 watts, delivering exceptional efficiency without compromising visibility. Fully approved to ECE R65 TA1, ECE R10and SAE J845 Class 1 standards, it provides dependable performance and compliance for demanding professional applications.
The rugged black aluminium housing and impact-resistant polycarbonate lens are engineered to withstand harsh working environments, while IP67 and IP69K ingress protection ensures reliable operation in extreme weather and during high-pressure vehicle washing. With a slim 50mm profile and a 130mm bolt circle compatible with standard HELLA mounting arrangements, installation is quick and straightforward. Integrated overvoltage and electronic protection further enhance reliability, making the HELLA VALUEFIT beacon a dependable warning solution backed by the quality and performance expected from HELLA.
SPECIFICATION
SPECIFICATION
- Lamp Type: LED - Number of LEDs: 24 - Power consumption: 10W
- Simple Flasher/Double flasher - Lens Colour: yellow
- Registration Type: SAE - Fulfils ECE norm.: R65 TA1/R10 - fulfils SAE norm: J845 Class 1 - Prot.type (IP Code): IP67/IP69K
- Housing material: Aluminium - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
- Height: 50mm
- Smart beacon in slim design with single and double flash function
- Over voltage and electronic protection
- ECE (R10 and R65) and SAE (J845 Class 1) approval
- The bolt circle diameter of 130 mm offers the usual HELLA mounting points
- Highest protection class for high-pressure jet cleaning is ensured by the protection classes IP 67 and IP 69K.
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
WARRANTY
WARRANTY
Warranty Information
Product Warranty
At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.
Unless otherwise stated, products are covered by a 12-month warranty period from the original invoice date.
For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.
To help us process your claim efficiently, please provide:
- Your invoice or proof of purchase
- Product part number
- Details of the fault
- Supporting photographs where possible
Warranty Exclusions
The warranty does not cover faults or damage resulting from:
- Accidental damage, impact, collision, storm damage, or other external influences
- Incorrect installation, misuse, neglect, or improper operation
- Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
- Normal wear and tear or environmental deterioration
SRH Lighting reserves the right to inspect products before approving any warranty claim.
Please refer to our Terms & Conditions for full warranty details.
Condensation
A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.
As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.
To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.
Paint & Surface Finish
Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.
Regular cleaning and maintenance are recommended, particularly in harsh operating environments.
Installation & Mounting
Products should always be mounted securely and in accordance with the manufacturer’s recommendations.
Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.
Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
