HELLA SPF2200 Multifunction LED Work Lamp

Name: HELLA SPF2200 Multifunction LED Work Lamp
Brand: Hella
SKU: 1GA 357 400-001
Price: 80.50 GBP
Availability: InStock

HELLA SPF2200 Multifunction LED Work Lamp

SKU:1GA 357 400-001

£80.50 GBP

Sale Sold out

Shipping calculated at checkout.

Hella

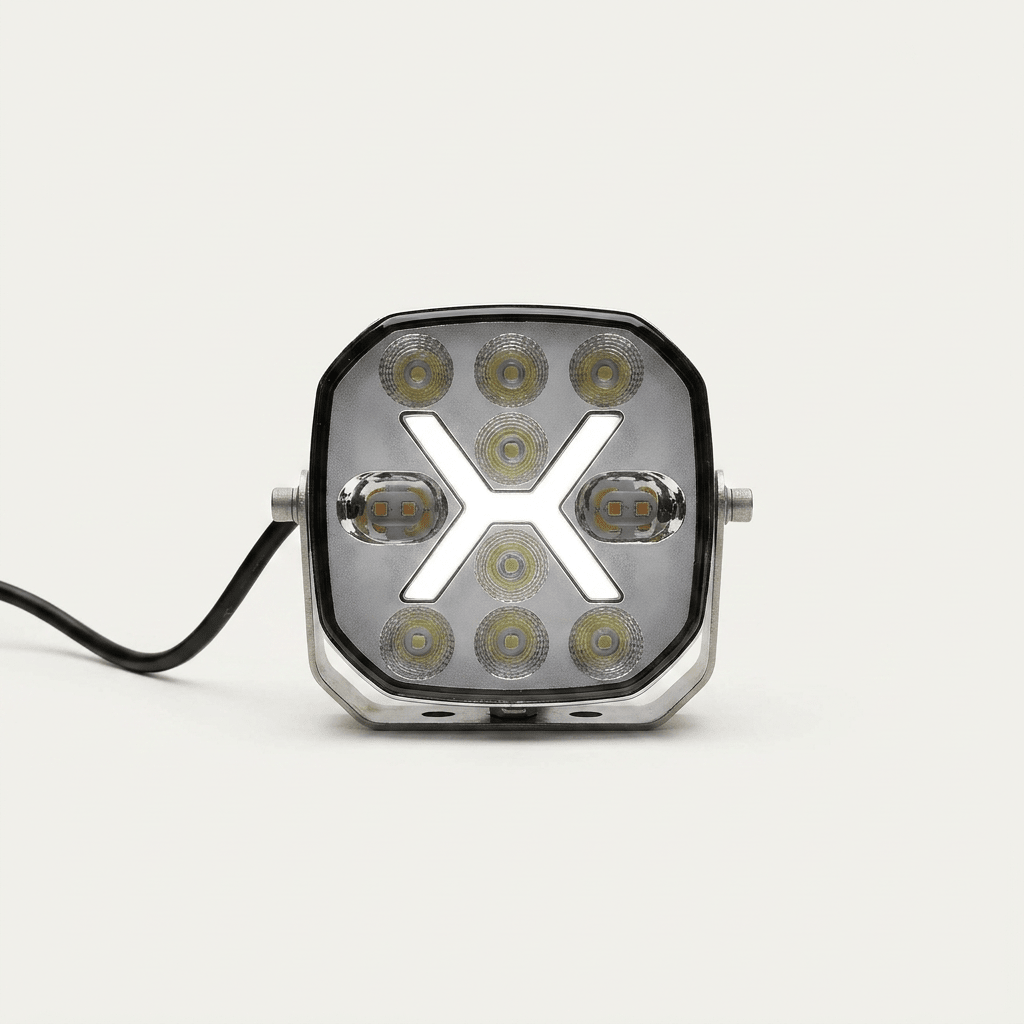

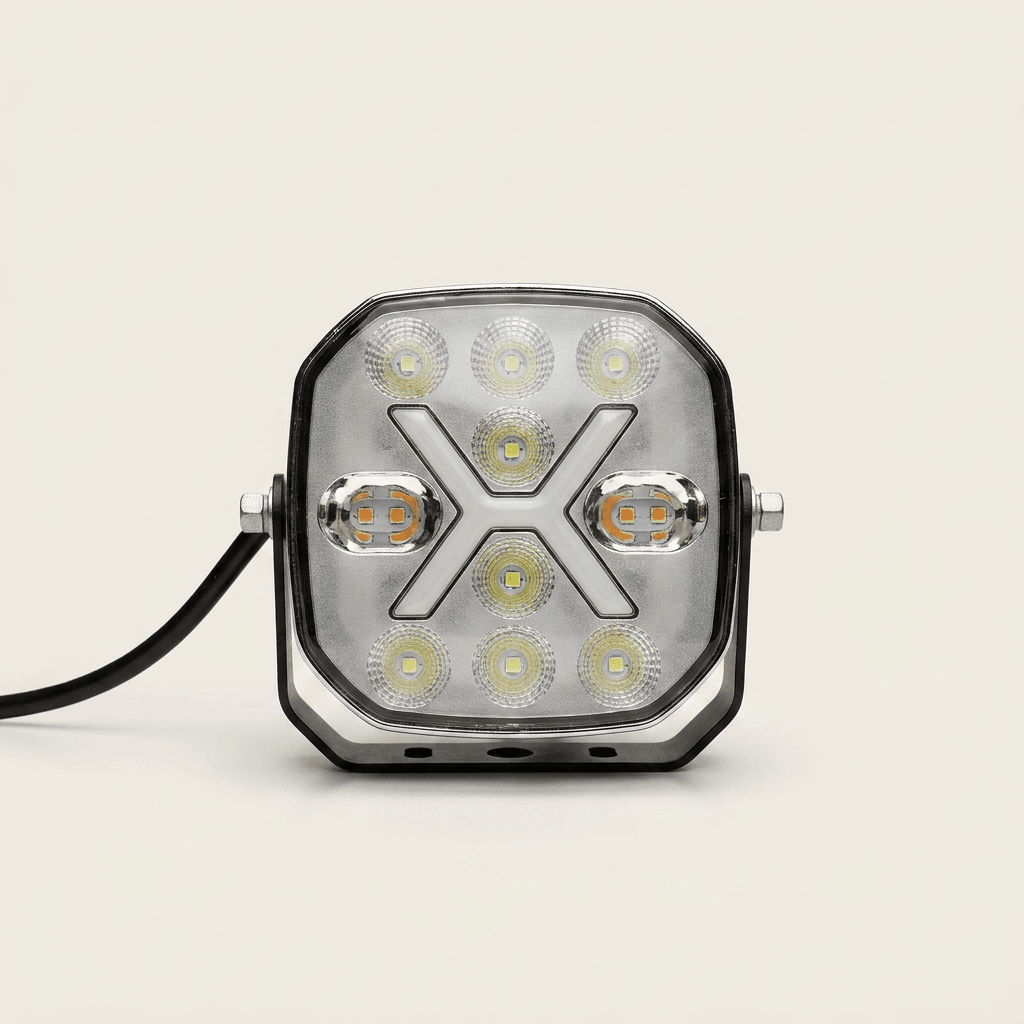

HELLA SPF2200 Multifunction LED Work Lamp

Powerful Illumination. Integrated Safety. Built for Demanding Environments.

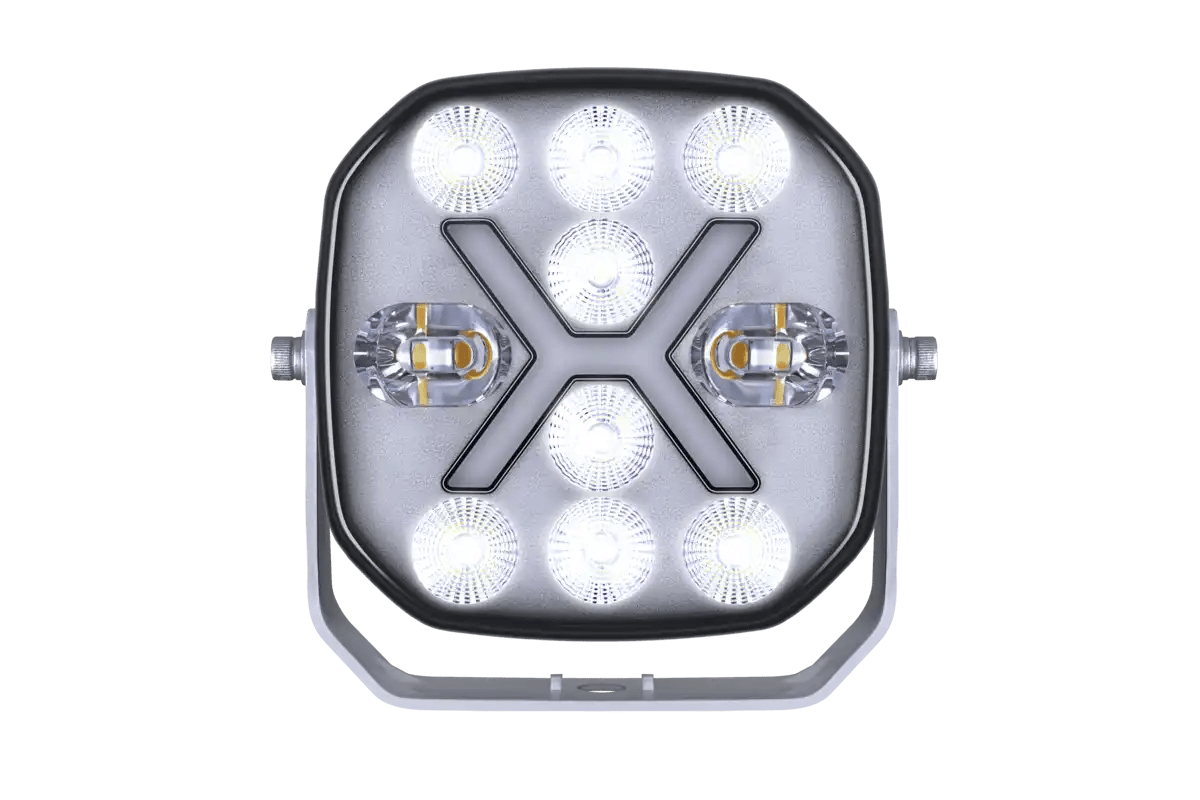

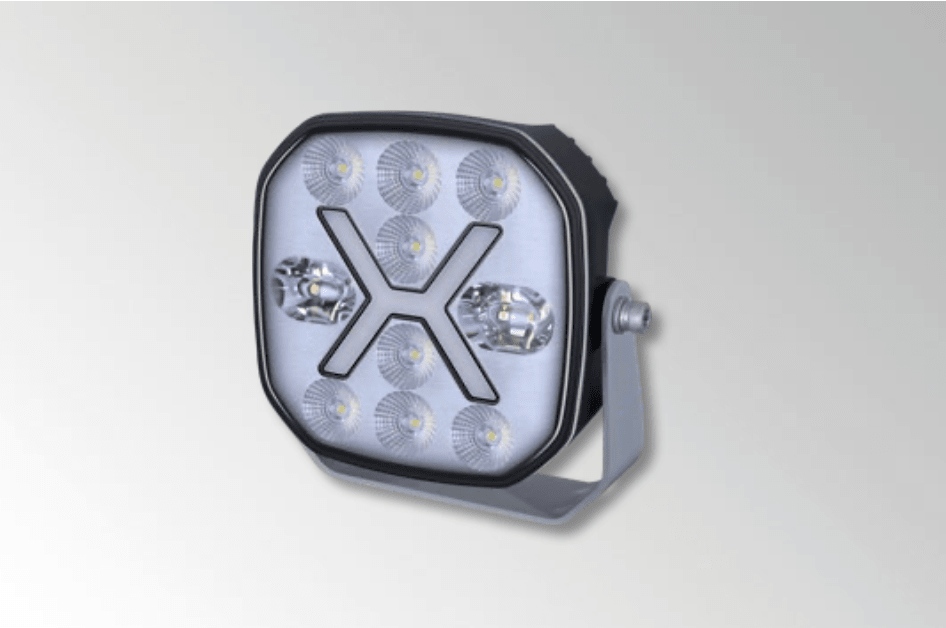

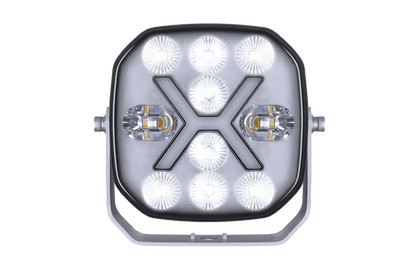

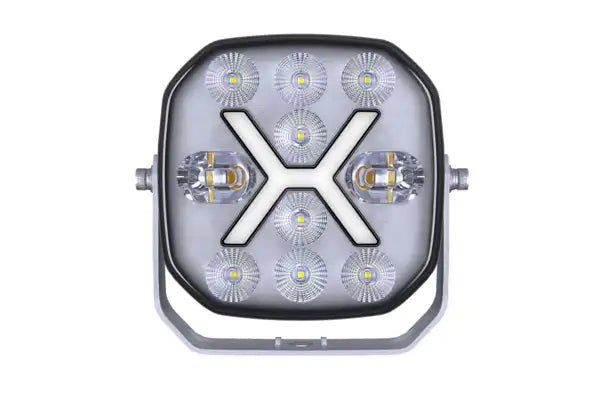

The HELLA SPF2200 is a heavy-duty multifunction LED work lamp designed to deliver powerful close-range illumination while integrating essential safety lighting functions in one compact unit. Producing an impressive 2,200 lumens, the SPF2200 ensures excellent visibility for working areas at the rear of trucks, agricultural machinery and specialist vehicles.

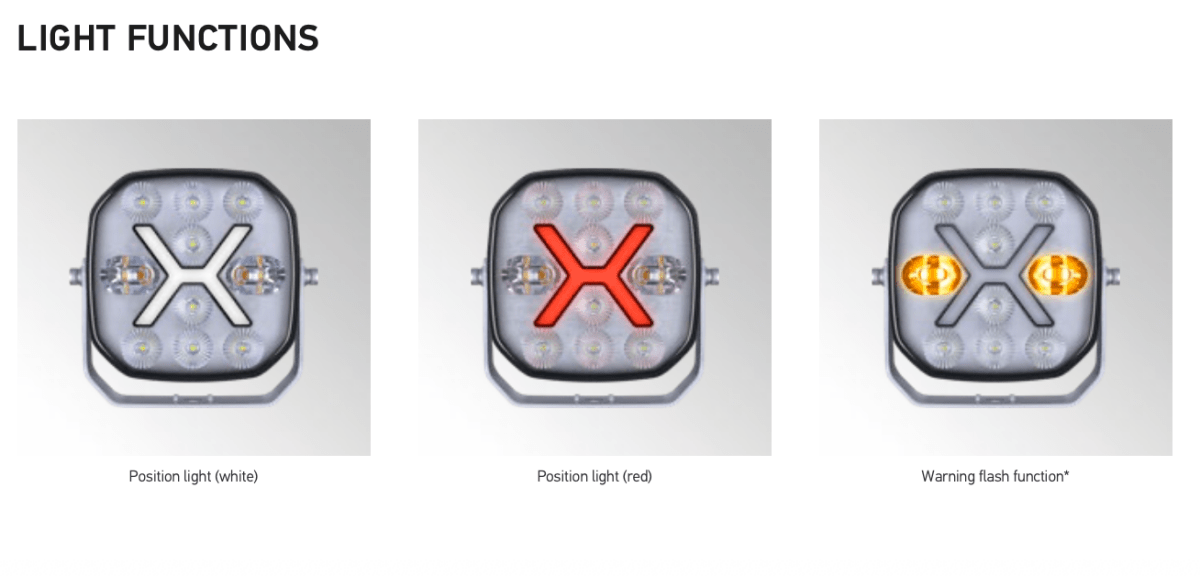

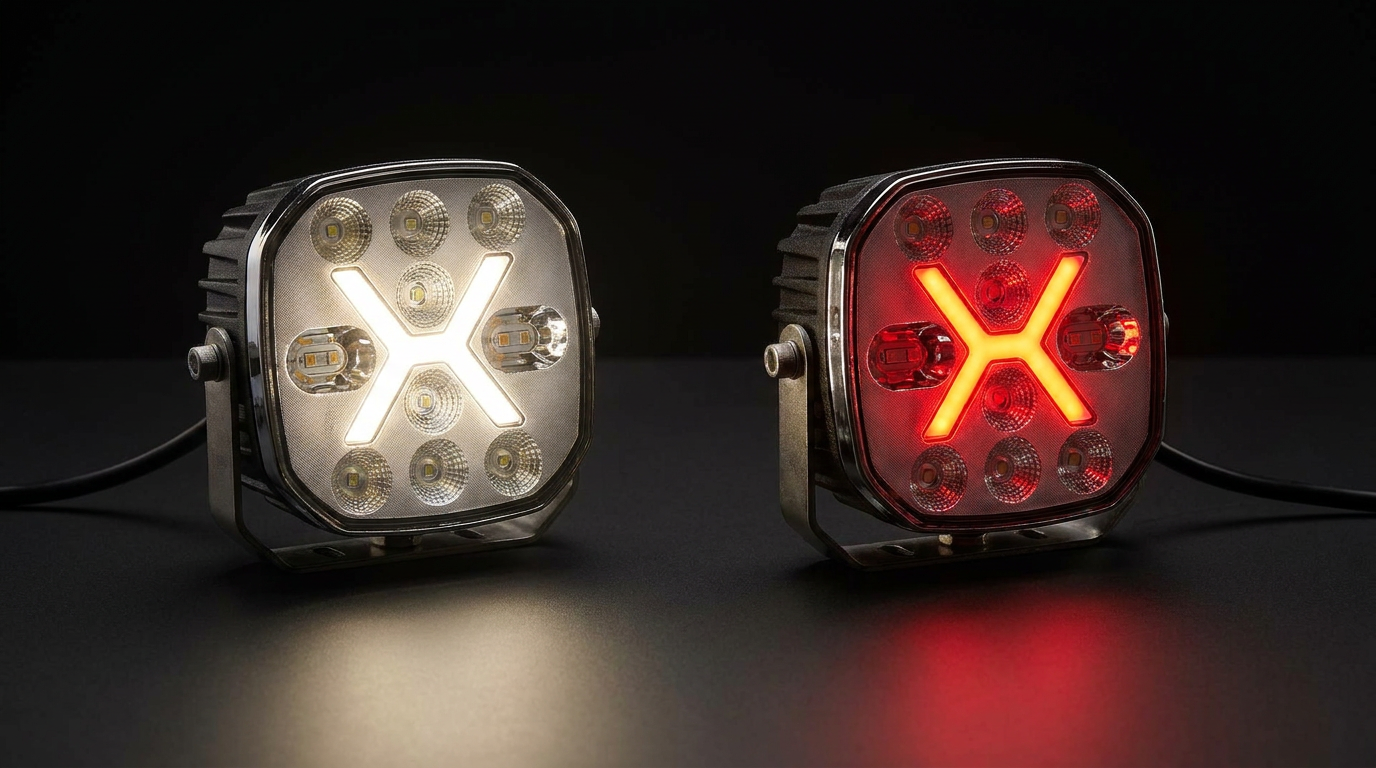

What sets the SPF2200 apart is its integrated multi-function design, combining a high-performance work light, white and red position lights, and an ECE R65 warning flash function within a single robust housing. This makes it an ideal solution where visibility, safety and reliability are essential.

Engineered for harsh working environments, the lamp features a die-cast aluminium housing, an impact-resistant polycarbonate lens, and a high IP6K7/IP6K9 protection rating to withstand dust, water ingress and high-pressure cleaning.

Flexible installation allows the lamp to be mounted upright or pendant, giving vehicle builders and operators greater freedom when integrating the light into rear vehicle structures or machinery.

With ADR approval and ECE R10 compliance, the SPF2200 offers dependable performance across a wide range of demanding professional applications.

Note: This work lamp is intended for off-road use outside of public road traffic.

Specification

Technical Specifications

Operating Voltage: 10–30V (multi-voltage)
Light Output: 2,200 lumens
Light Source: LED
Colour Temperature: 5,700 K

Power Consumption

Work light: 22W

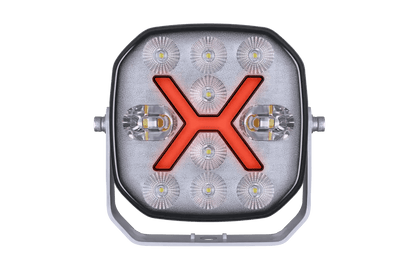

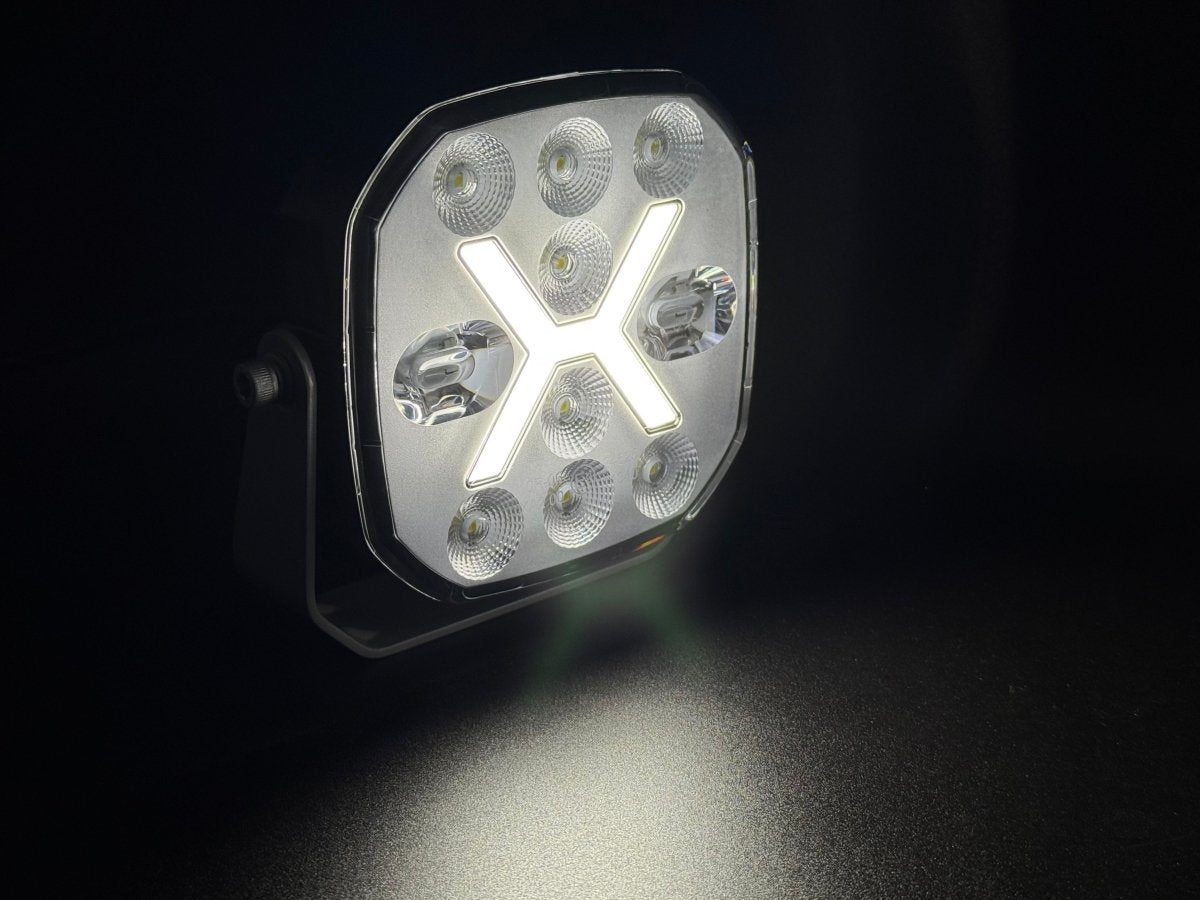

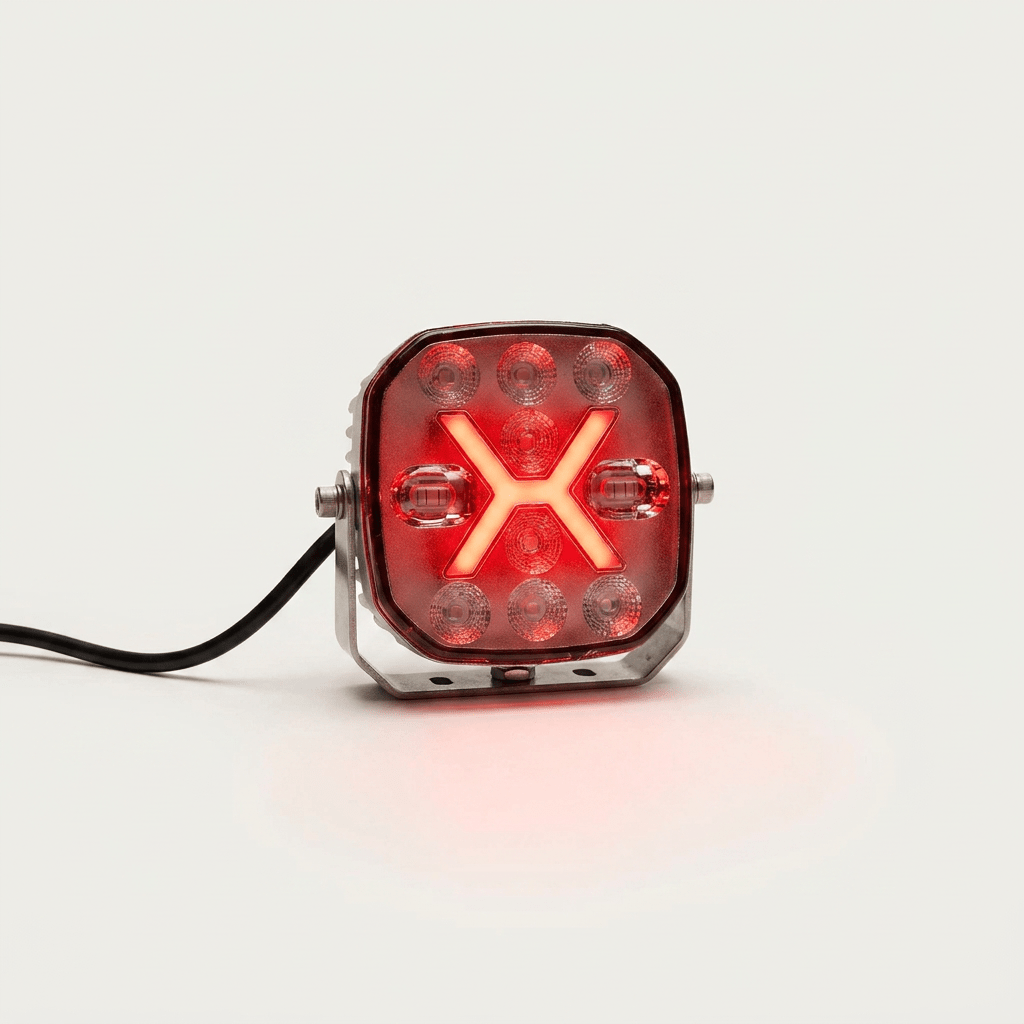

White position light: 3.4W

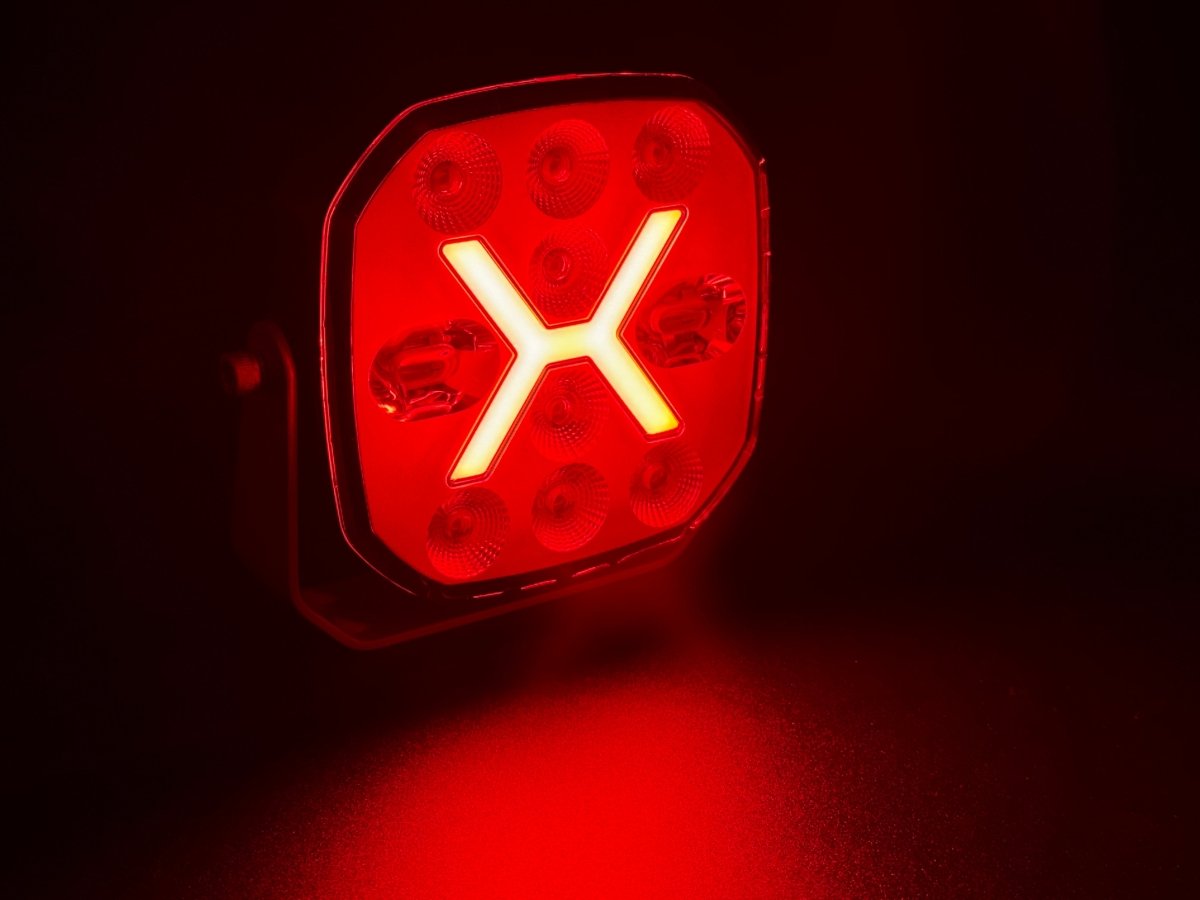

Red position light: 3.6W
Warning flash: 9.7W

Housing: Die-cast aluminium
Lens: Impact-resistant polycarbonate
Mounting Bracket: Stainless steel
Cable: 1000 mm with open ends

Operating Temperature: -40°C to +65°C

Approvals & Protection

ECE R10 (EMC / CISPR 25 Class 3)
ECE R65 Warning Flash (for vehicles complying with ECE R86)
ADR / GGVSEB approved
IP6K7 / IP6K9 ingress protection

Installation and care

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

Additional Information

Product FAQ

Key Benefits

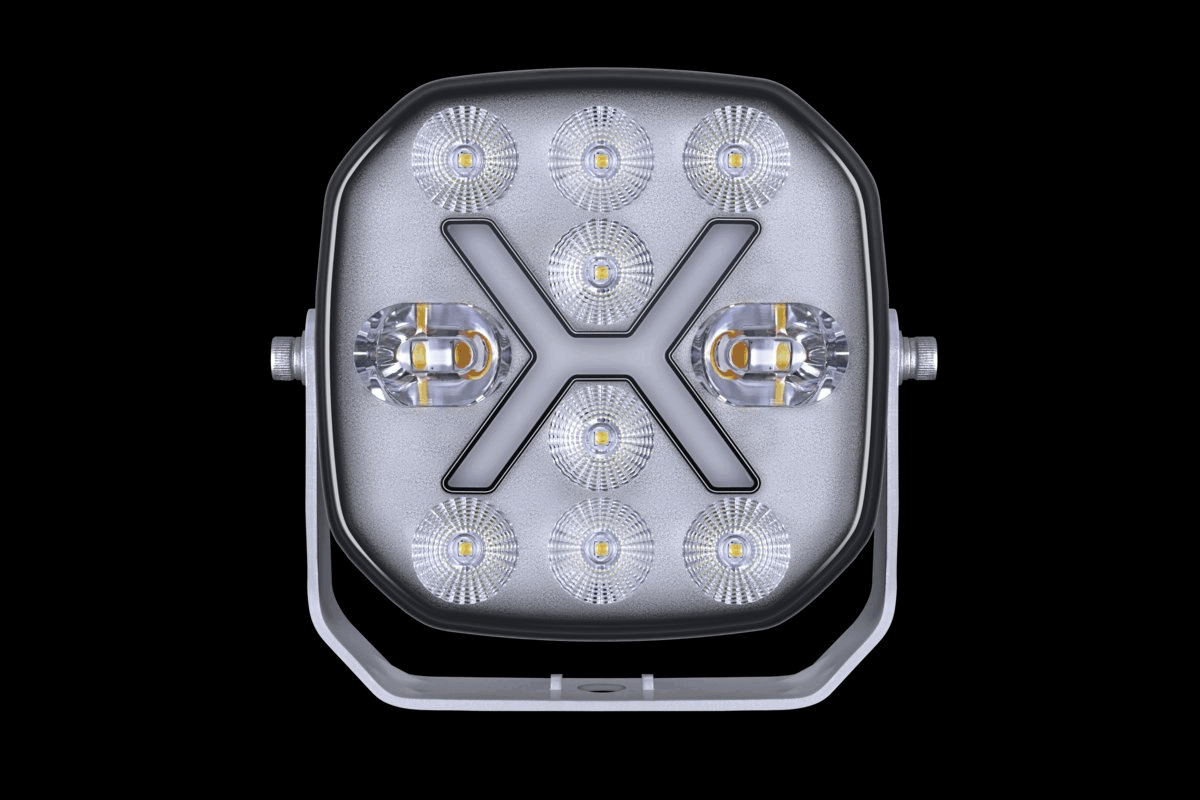

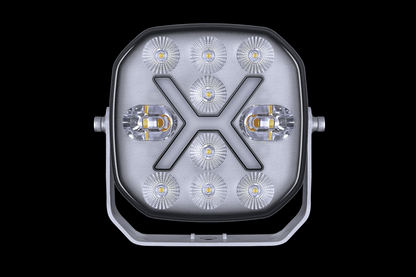

3 Lighting Functions in One Lamp
Combines a powerful LED work light, position lights and warning flash functionality, reducing the need for multiple separate lamps.

High Performance LED Output

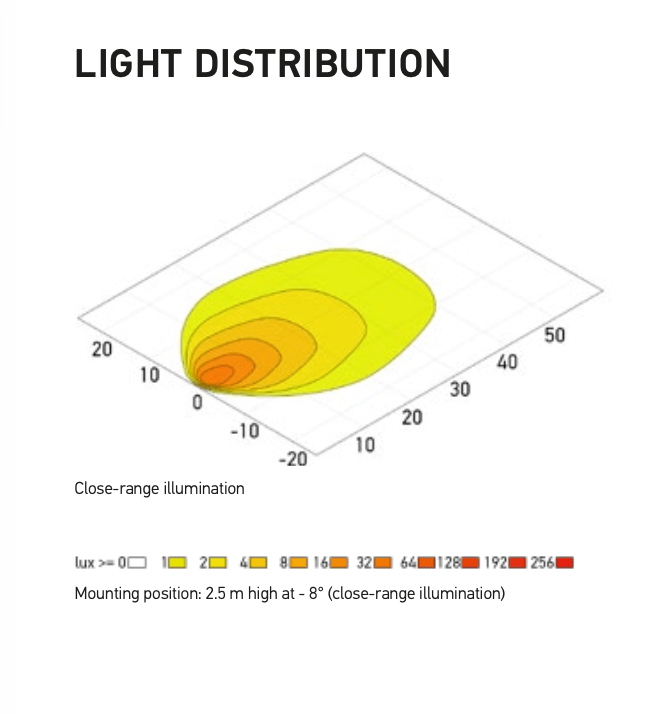

Delivers 2,200 lumens of bright, wide close-range illumination to improve working visibility around the vehicle.

Integrated Safety Lighting

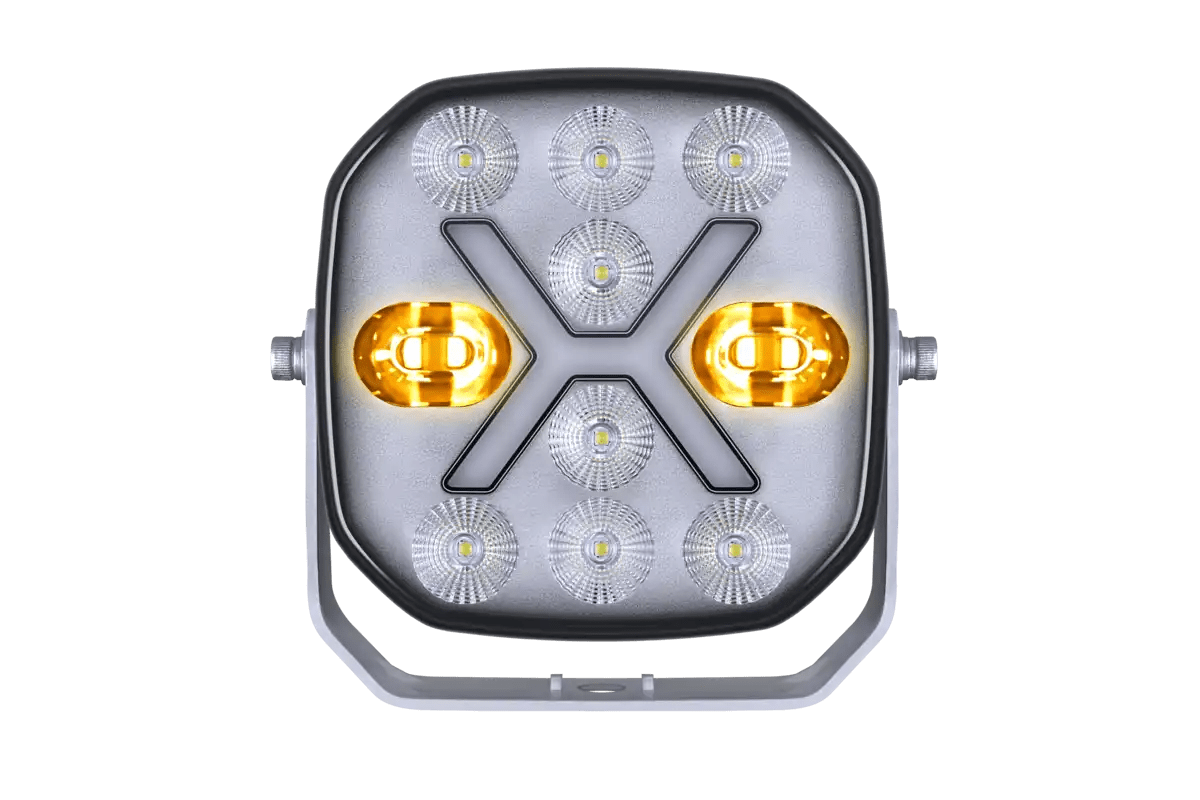

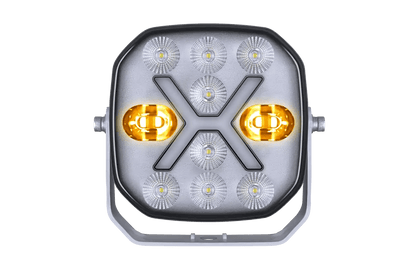

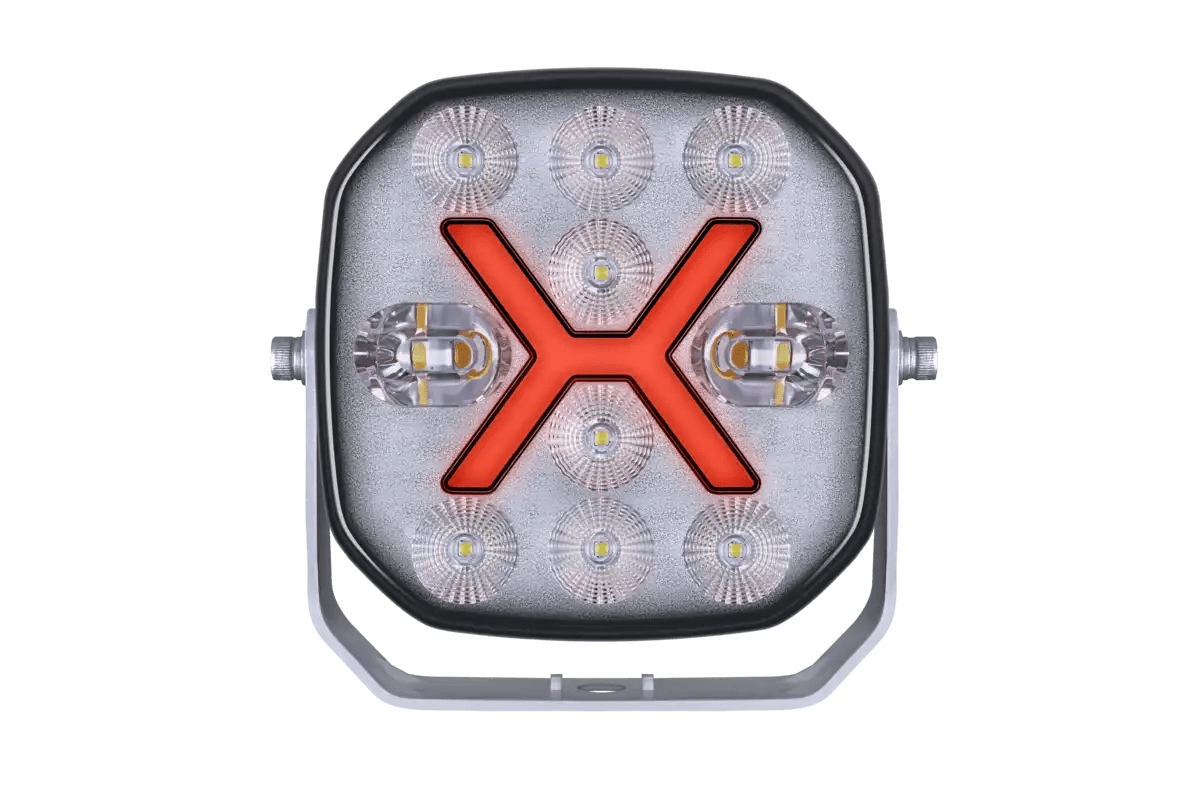

White and red position lights improve vehicle visibility, while the ECE R65 warning flash enhances safety in hazardous working environments.

Built for Harsh Conditions
Heavy-duty aluminium housing and a polycarbonate lens provide excellent resistance to vibration, impact and extreme environments.

Weatherproof and Washdown Ready
With IP6K7 and IP6K9 protection, the SPF2200 is designed to withstand dust, water immersion and high-pressure cleaning.

Flexible Mounting Options
Can be mounted upright or suspended, making installation easy across a wide variety of vehicles and machinery.
