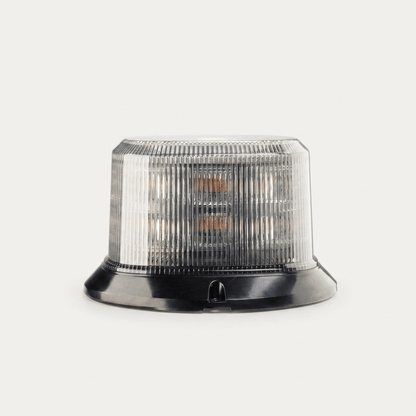

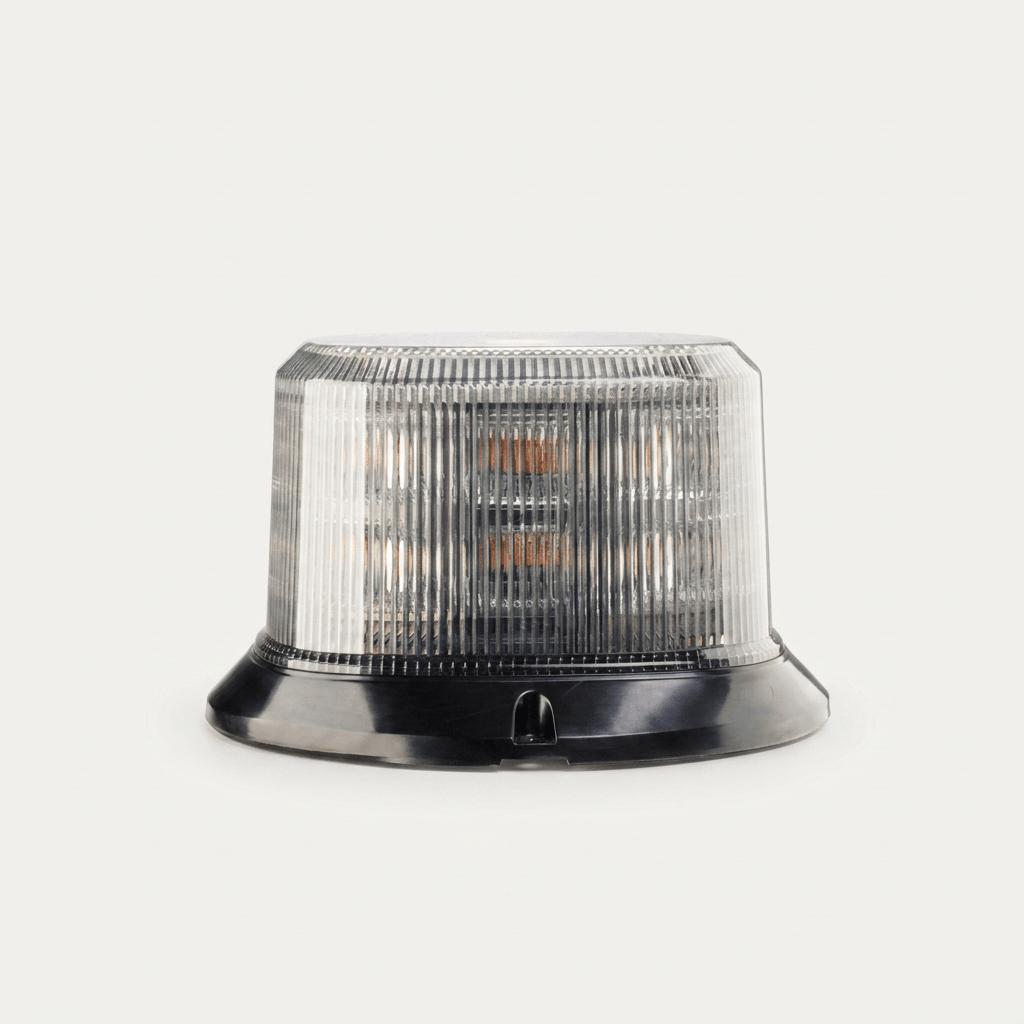

Hella K-LED Quadra amber LED beacon with Dark lens

Hella K-LED Quadra amber LED beacon with Dark lens

SKU:2XD 357 557-011

Regular price £110.94 GBP
Regular price Sale price £110.94 GBP
Sale Sold out
Shipping calculated at checkout.

Hella

Quantity
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

DESCRIPTION

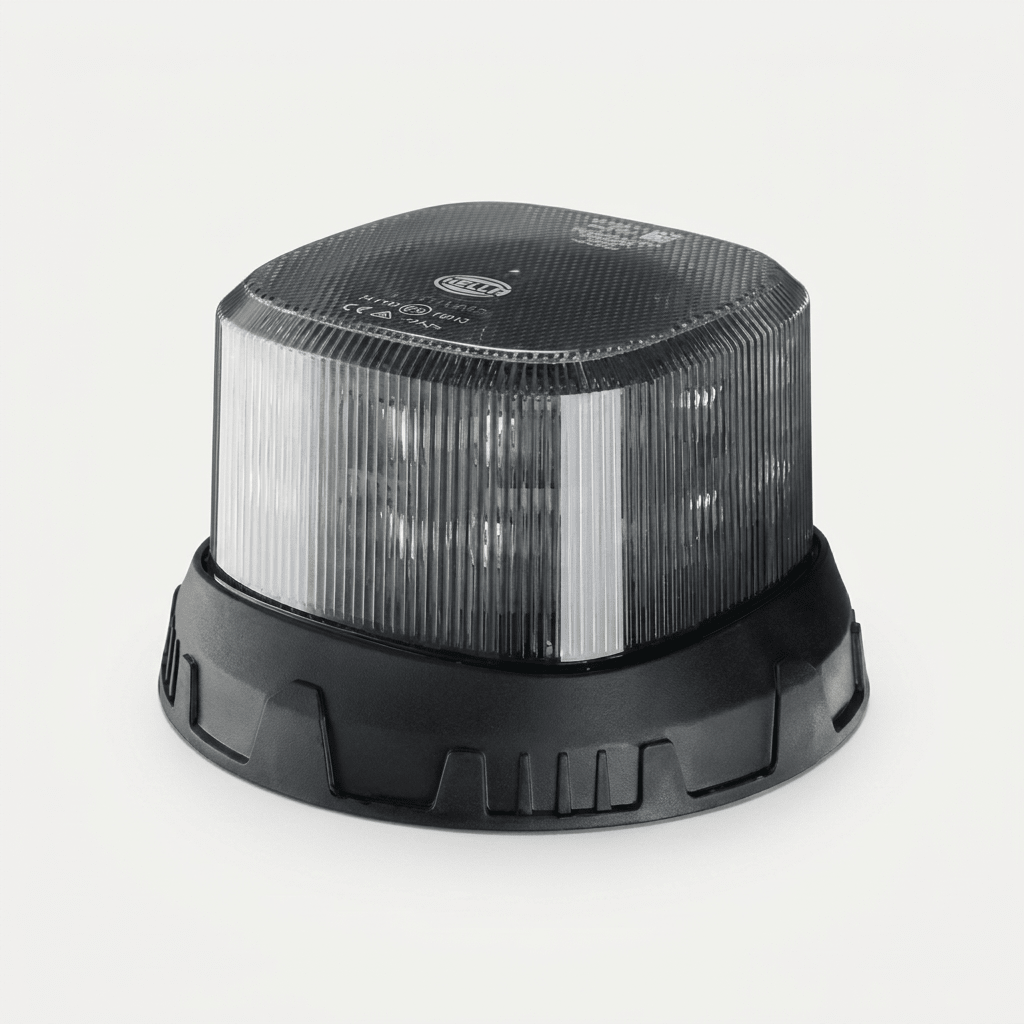

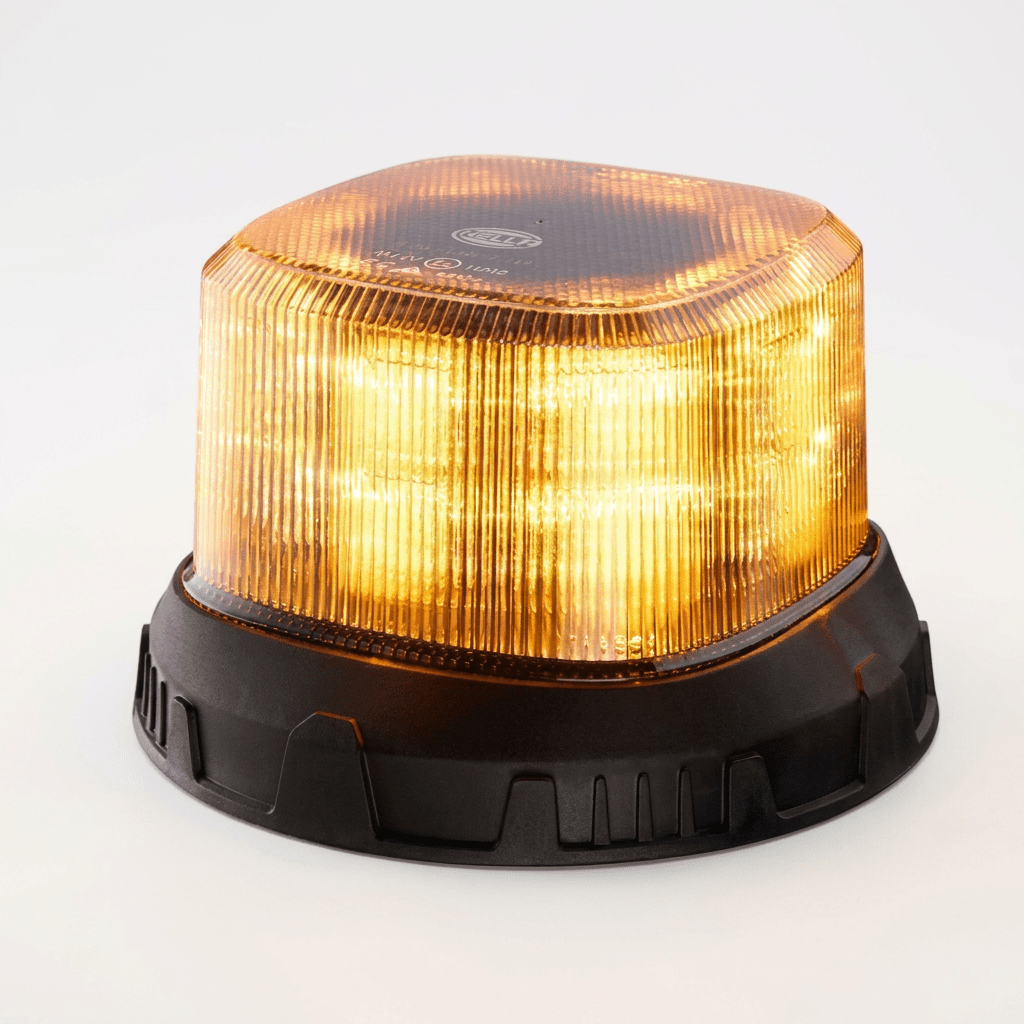

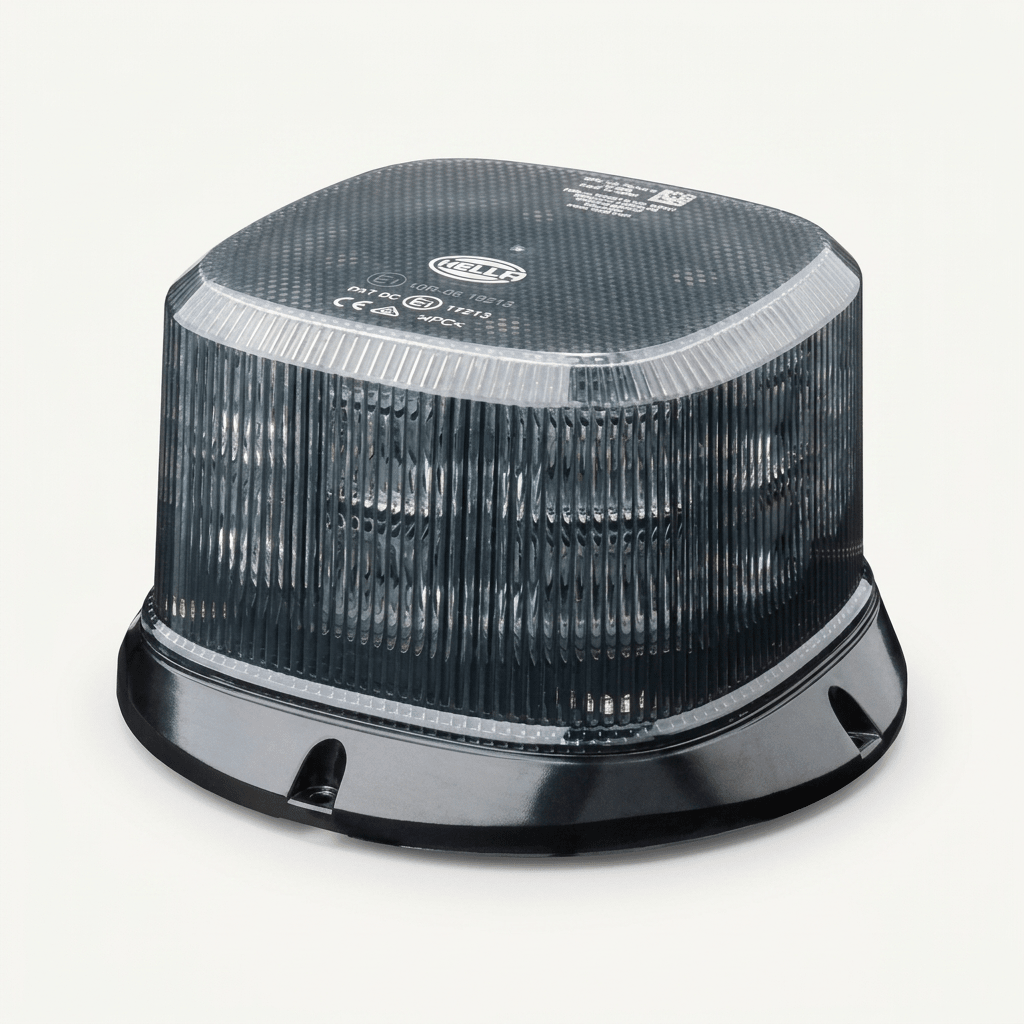

Hella K-LED QUADRA Dark Lens LED Beacon

The Hella K-LED QUADRA Dark Lens is a compact, high-performance LED warning beacon featuring a distinctive QUADRA design and dark light dome. Engineered for maximum visibility and durability, it delivers a powerful warning signal in demanding commercial and industrial environments.

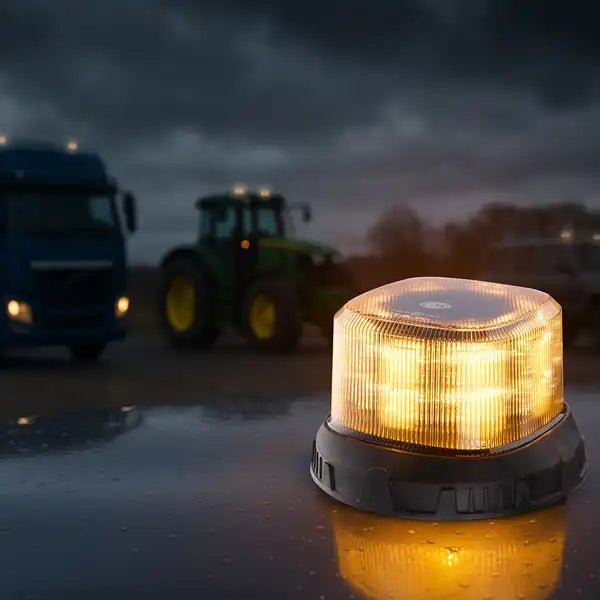

Equipped with 32 high-output LEDs, the beacon offers double flash and rotating warning functions, ensuring excellent attention-grabbing performance in all conditions. Its robust aluminium housing and vibration-resistant construction (up to 9.6G) make it ideal for use on trucks, construction equipment, agricultural machinery and emergency vehicles.

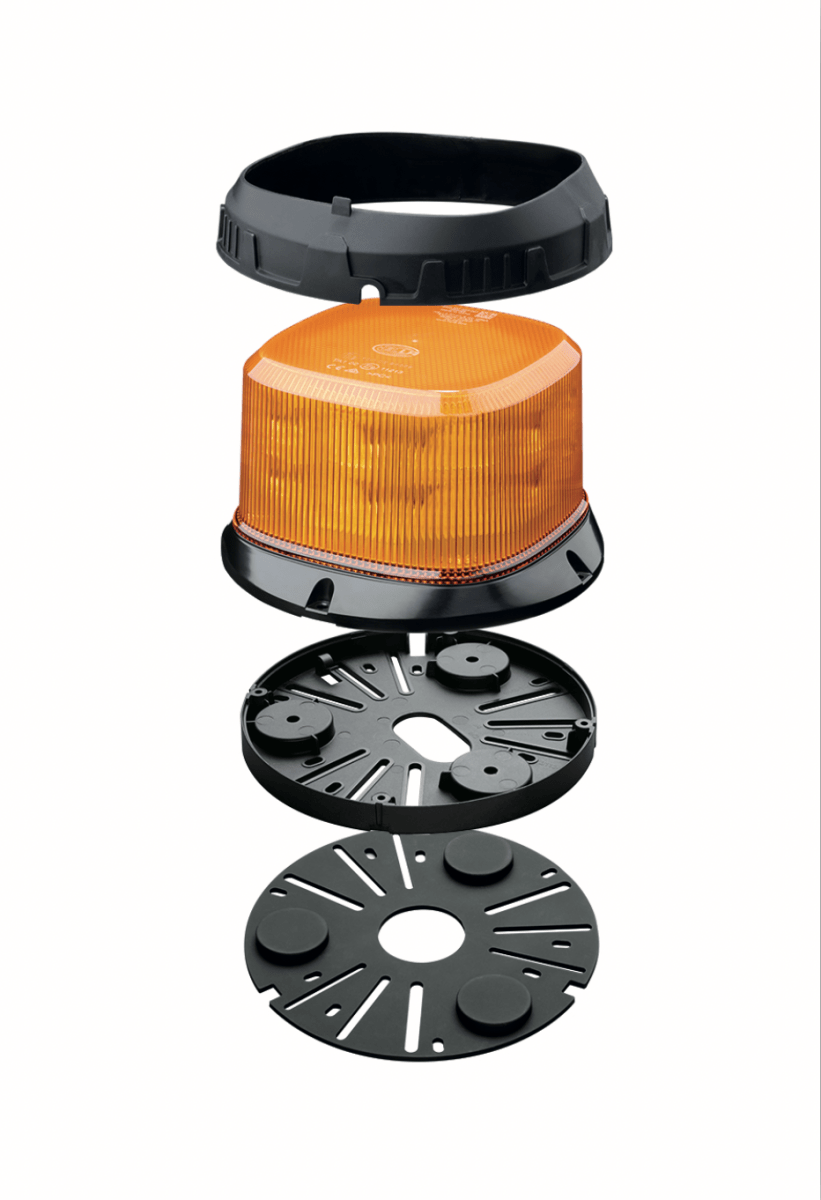

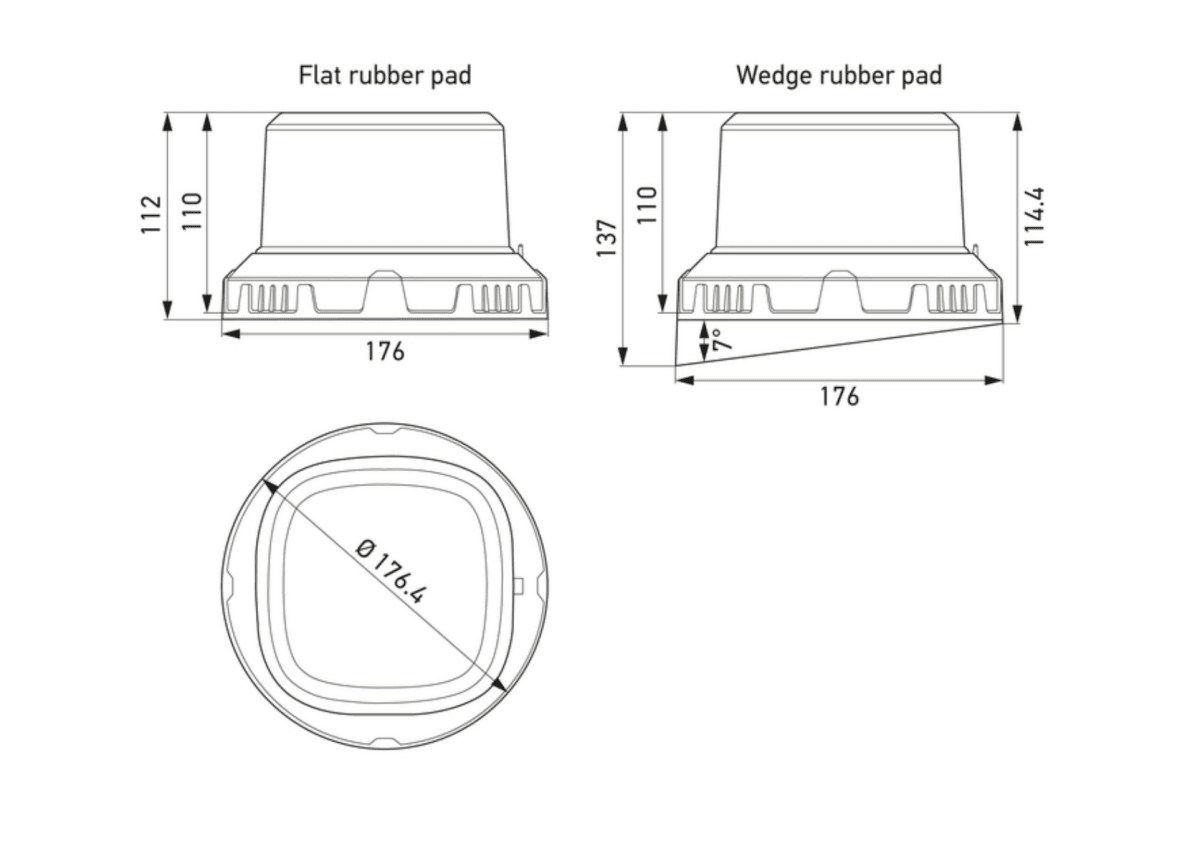

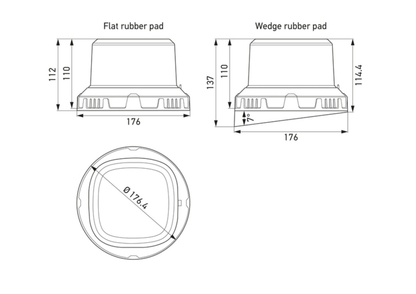

Designed for versatility, the K-LED QUADRA is supplied with flat and wedge-shaped mounting bases, allowing easy fixed installation across a wide range of vehicle applications.

Fully approved to international standards, this beacon provides reliable performance, long service life and exceptional resistance to harsh environments.

Compact LED warning beacon with striking QUADRA design

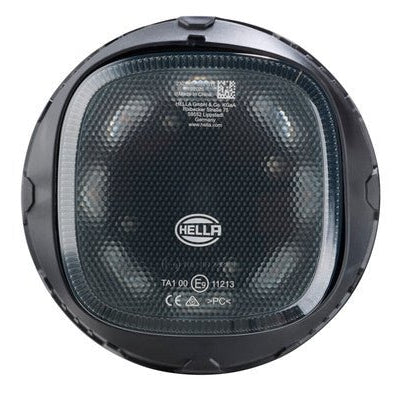

Dark lens for a modern, discreet appearance
Double flash and rotating warning light functions
32 powerful LEDs for maximum warning effect
Robust aluminium housing with high vibration resistance (9.6G)
Fixed mounting with flat and wedge-shaped mounting bases included
Fully approved for road and commercial use
EMC CISPR 25 Class 5 and Ingress protection to IP69K

SPECIFICATION

Technical Specifications

  • Lamp Type: LED
  • Number of LEDs: 32
  • Power Consumption: 96W
  • Light Functions: Rotating warning signal / Double flasher
  • Lens Colour: Dark
  • Housing Material: Aluminium
  • Housing Colour: Black
  • Lens Material: Polycarbonate (PC)
  • Height: 110mm
  • Ingress Protection: IP67 / IP69K

Approvals & Compliance

  • ECE R65 TA2
  • SAE J845 Class 1
  • ADR / GGVS
  • EMC: CISPR 25 Class 5

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

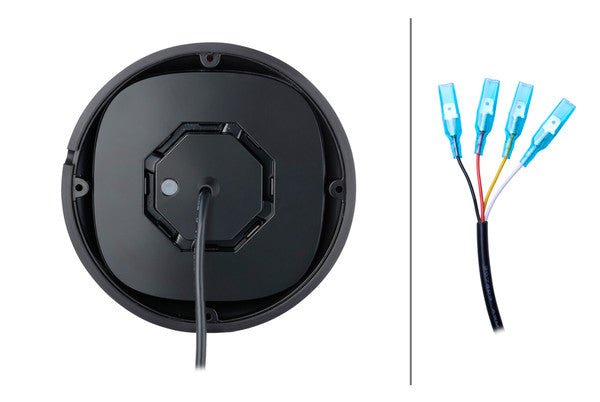

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

FAQ

Warranty Information

Product Warranty

At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.

Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.

For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.

To help us process your claim efficiently, please provide:

  • Your invoice or proof of purchase
  • Product part number
  • Details of the fault
  • Supporting photographs where possible

Warranty Exclusions

The warranty does not cover faults or damage resulting from:

  • Accidental damage, impact, collision, storm damage, or other external influences
  • Incorrect installation, misuse, neglect, or improper operation
  • Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
  • Normal wear and tear or environmental deterioration

SRH Lighting reserves the right to inspect products before approving any warranty claim.

Please refer to our Terms & Conditions for full warranty details.

Condensation

A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.

As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.

To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.

Paint & Surface Finish

Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.

Regular cleaning and maintenance are recommended, particularly in harsh operating environments.

Installation & Mounting

Products should always be mounted securely and in accordance with the manufacturer’s recommendations.

Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.

Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
