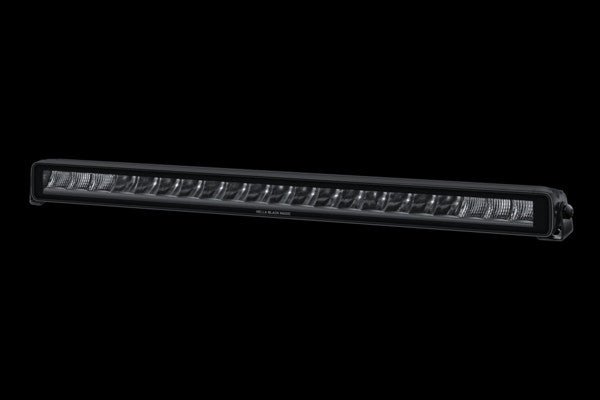

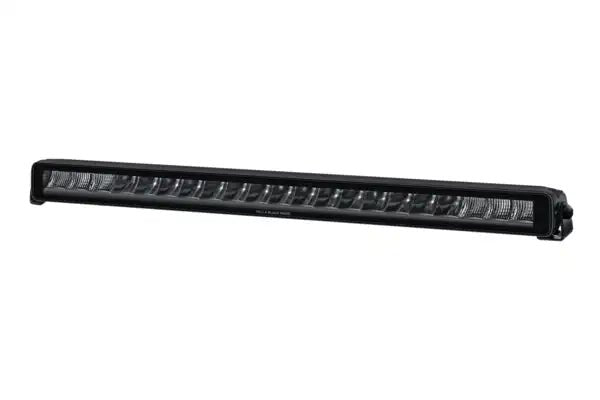

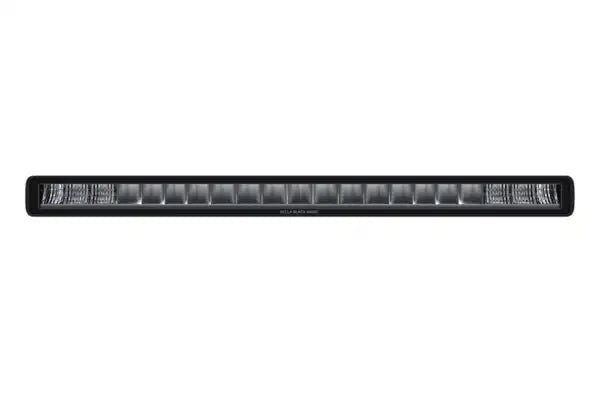

Hella Black Magic Edgeless Pro 20" with Boost and dual colour position light

Hella Black Magic Edgeless Pro 20" with Boost and dual colour position light

SKU:1FJ 358 236-001

Regular price £168.98 GBP
Regular price Sale price £168.98 GBP
Sale Sold out
Shipping calculated at checkout.

Hella

Length
Series
Quantity
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

DESCRIPTION

The NEW Hella Black Magic Edgeless Pro 20" light bars with Dynamic start up, boost and dual colour position

The Ultimate Driving Experience

The HELLA Black Magic Edgeless Pro sets new standards in functionality and design. Featuring a high-boost function, it ensures optimal visibility, enhancing the driving experience. The edgeless aluminium housing with electrophoresis coating provides effective corrosion resistance and longevity under challenging conditions.

Enhanced Visibility and Longevity

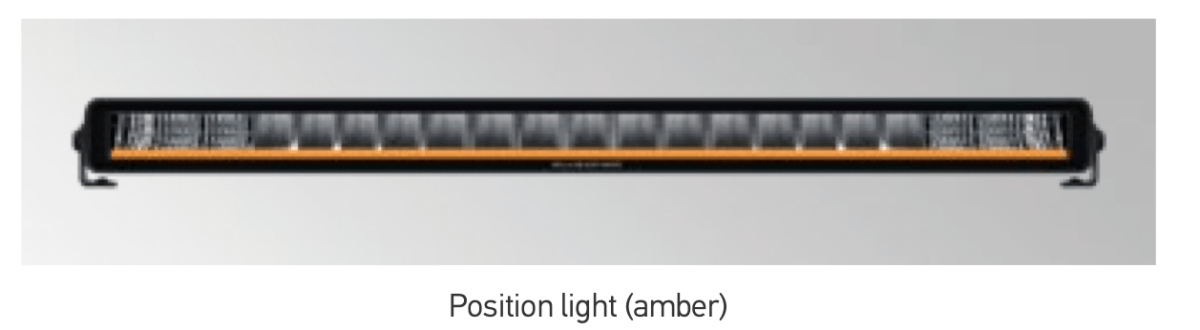

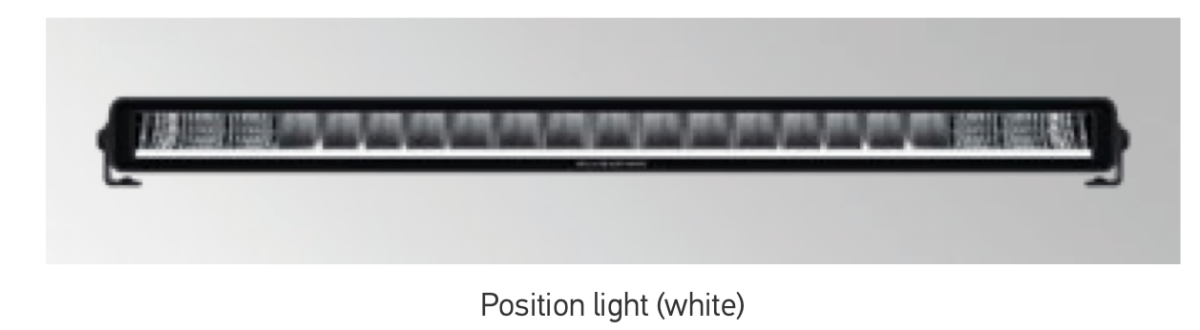

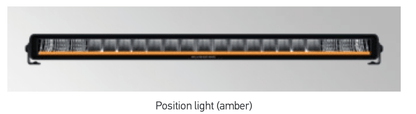

The Black Magic Edgeless Pro offers more than just a sleek design. Its versatile position light can be white or amber, catering to different preferences and needs. Additionally, the innovative welcome and goodbye light feature creates the perfect setting for any vehicle, adding a touch of theatre.

Versatile and Durable

With its cutting-edge technology and durable construction, the HELLA Black Magic Edgeless Pro is built to last. Whether you're driving through rough terrain or city streets, this set will provide reliable performance and style. Elevate your driving experience with the Black Magic Edgeless Pro.

High Boost mode unleashes a surge of illumination that’s electronically controlled for consistency and reliability. Built-in safeguards mean it can’t be activated accidentally, and full installation guidance is included.

SPECIFICATION

Power Consumption
: ECE Mode 47
: High Boost Mode 83W

Light Output (effective
: 3,730lm
: 6,332lm

Approvals : ECE-R10, ECE-R148, ECE-R149

Protection : IP68, IP69

Supplied with 2 meters cable with open ends

Light Function : High Beam, Position light (white & amber), high boost, welcome and goodbye light ( dynamic startup & shutdown)

The Amber position light does not have ECE approval: use limited to off-road areas.

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

FAQ

Warranty Information

Product Warranty

At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.

Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.

For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.

To help us process your claim efficiently, please provide:

  • Your invoice or proof of purchase
  • Product part number
  • Details of the fault
  • Supporting photographs where possible

Warranty Exclusions

The warranty does not cover faults or damage resulting from:

  • Accidental damage, impact, collision, storm damage, or other external influences
  • Incorrect installation, misuse, neglect, or improper operation
  • Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
  • Normal wear and tear or environmental deterioration

SRH Lighting reserves the right to inspect products before approving any warranty claim.

Please refer to our Terms & Conditions for full warranty details.

Condensation

A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.

As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.

To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.

Paint & Surface Finish

Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.

Regular cleaning and maintenance are recommended, particularly in harsh operating environments.

Installation & Mounting

Products should always be mounted securely and in accordance with the manufacturer’s recommendations.

Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.

Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.

SHIPPING

Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.

Orders placed after 12:00
Processed & shipped the next working day.

Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.

Orders are shipped Monday-Friday only.

Download product leaflet
