Hella Black Magic Cube Set + Harness 2.7 inch Flood

Hella Black Magic Cube Set + Harness 2.7 inch Flood

SKU:1FA 358 176-801

Regular price £96.61 GBP
Regular price Sale price £96.61 GBP
Sale Sold out
Shipping calculated at checkout.

Hella

Appearance
Lumens
Quantity
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

DESCRIPTION

HELLA‘s Black Magic Cubes are available in two sizes, 2.7″ is  distinguished by the full blackout appearance and sleek design this light stands out from the crowd.

HELLA Black Magic Cubes received the highest dust and water proof rating in the industry. They come in kits of two lights including a wiring harness with DT connector, switch and relay making them easy to install.

HELLA Black Magic Cubes received the highest dust and water proof rating in the industry. They come in kits of 2 lights including a wiring harness with DT connector, switch, connector and relays making them easy to install. The 2.7" is available in Flood  version and can be mounted either upright or pendant or integrated into the body work or bumper. HELLA‘s Black Magic Cubes are ready to brighten up your next off-road adventure.

SPECIFICATION

Specifications:

  • 4 High intensity LEDs Light function:
  • Flood Die-cast aluminium housing
  • Aluminium, black stainless steel mounting bracket

Measured lumen:

  • 1400 lm
  • Multivolt 10-30V DC

Current consumption:

  • 1.8 A (12V) / 0.9 A (24 V)

Connection:

  • 1.64 ft (500 mm) cable with DT connector + short adapter harness
  • 20 W

Protection class:

  • IP 68, IP 69K

EMC protection:

  • ECE-R10

Color temperature:

  • 5700 Kelvin

Weight:

  • 350 g

Sold Individually Dimensions:

  • 2.7? W x 2.8? H x 2.4? D / 70 x 72 x 60 mm

Technology:
LED Mounting:

  • Upright / Pendant Single Lamp

includes:

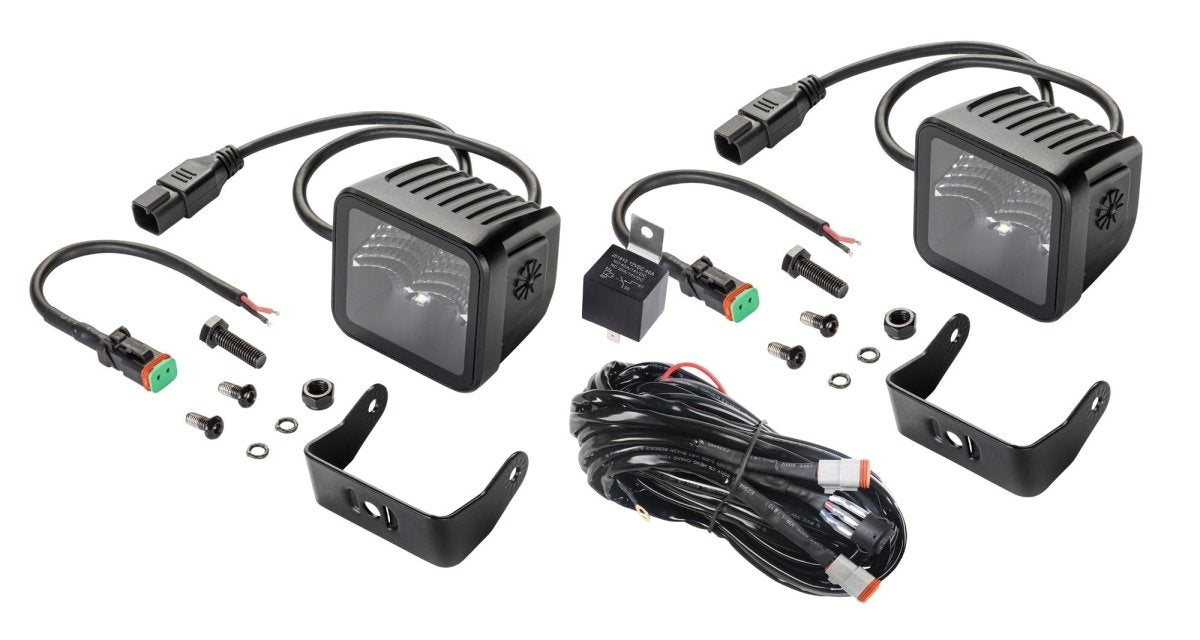

  •  (2) LED spotlights, (1) relay, (1) switch and mounting instructions, (1) wiring harness with DT connector

INSTALLATION & CARE

To preserve the quality of your lights, do not utilise a pressure washer on a high setting.

The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.

ADDITIONAL INFORMATION

FAQ

Warranty Information

Product Warranty

At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.

Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.

For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.

To help us process your claim efficiently, please provide:

  • Your invoice or proof of purchase
  • Product part number
  • Details of the fault
  • Supporting photographs where possible

Warranty Exclusions

The warranty does not cover faults or damage resulting from:

  • Accidental damage, impact, collision, storm damage, or other external influences
  • Incorrect installation, misuse, neglect, or improper operation
  • Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
  • Normal wear and tear or environmental deterioration

SRH Lighting reserves the right to inspect products before approving any warranty claim.

Please refer to our Terms & Conditions for full warranty details.

Condensation

A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.

As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.

To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.

Paint & Surface Finish

Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.

Regular cleaning and maintenance are recommended, particularly in harsh operating environments.

Installation & Mounting

Products should always be mounted securely and in accordance with the manufacturer’s recommendations.

Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.

Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.

SHIPPING

Orders placed before 12:00
Processed & shipped the same day unless otherwise stated.

Orders placed after 12:00
Processed & shipped the next working day.

Orders placed after 12:00 on a Friday.
Processed & shipped the following Monday.

Orders are shipped Monday-Friday only.
