Hella Black Magic 157mm Mini Lightbar
Hella Black Magic 157mm Mini Lightbar
SKU:1FB 358 176-211
Hella
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION

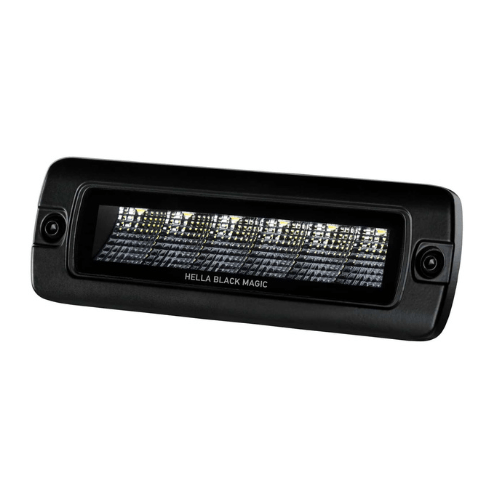

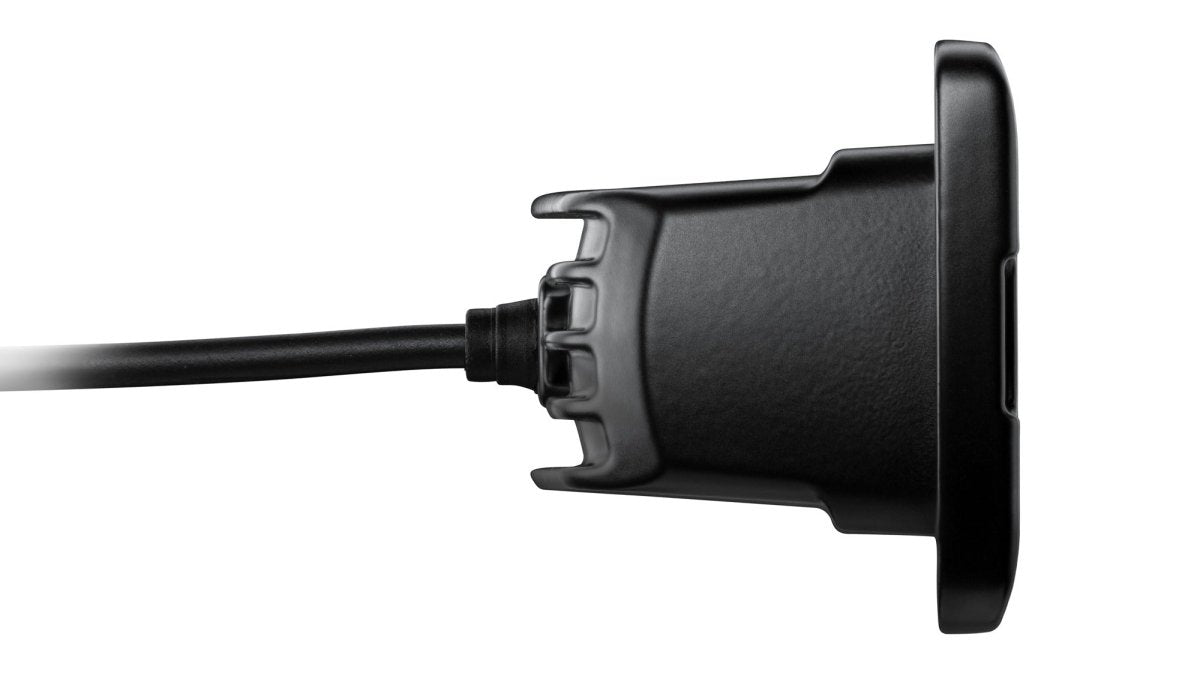

Distinguished by the full blackout appearance and sleek design that stands out from the crowd with unmatched light output. This product family scored the highest dust / waterproof rating in the industry, and its edgeless design prevents dust deposits from settling along the edges. The extra-long cable allows for easy installation. The Mini Lightbar comes in a Flood or Spotlight. Standard or flush mounting options are available for the flood beam pattern. This light bar is ready to brighten up your next off-road adventure.

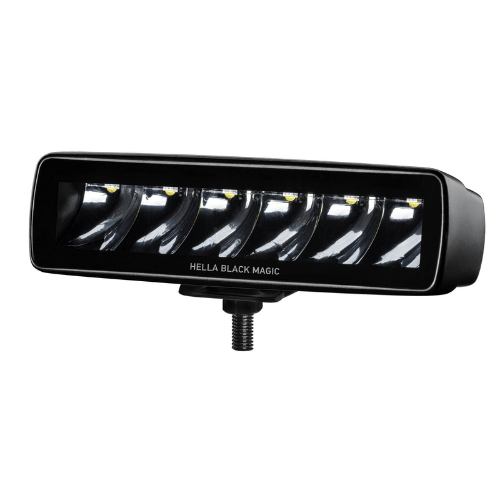

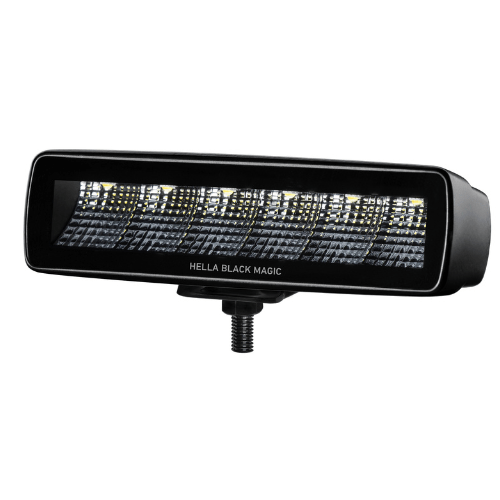

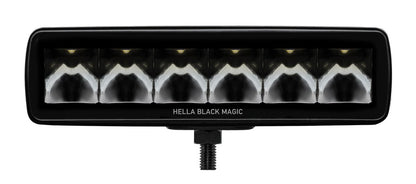

The HELLA Black Magic LED Mini Lightbar 6.2″” with 6 high intensity LEDs and spot pattern produces 1,600 actual lumen.
Distinguished by the full blackout appearance and sleek design that stands out from the crowd with unmatched light output. This product family scored the highest dust / waterproof rating in the industry, and its edgeless design prevents dust deposits from settling along the edges. The long included cable allows for easy vehicle mounting. This light bar is ready to brighten up your next off-road adventure.
SPECIFICATION
SPECIFICATION
Specifications:

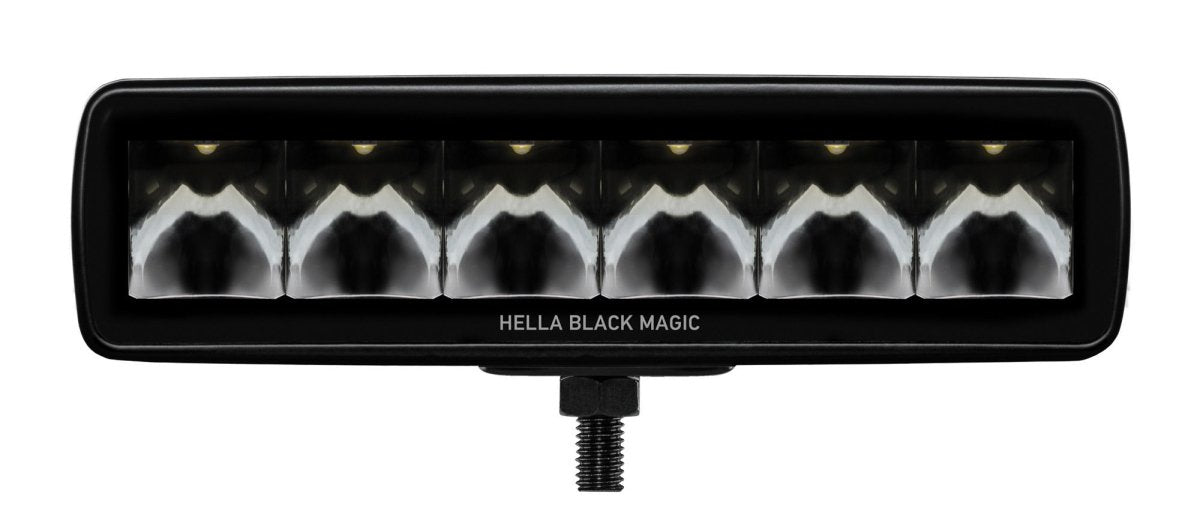

- 6 High intensity LEDs
Light function:

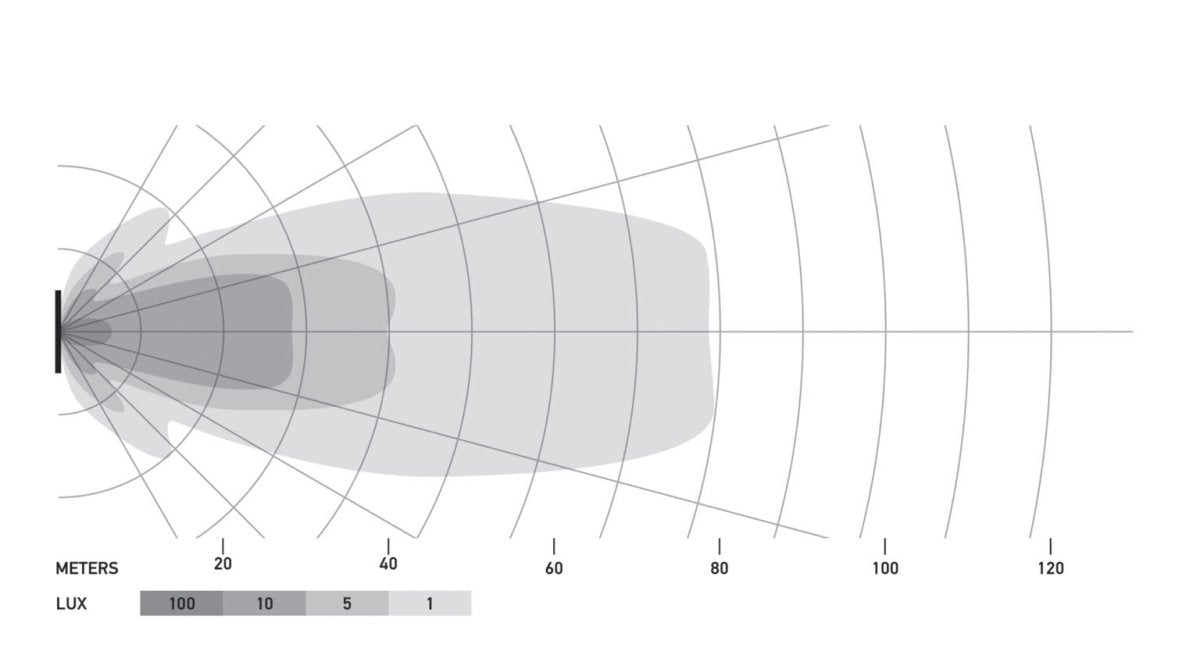

- Spot
- Die-cast aluminum housing
- Aluminum, black stainless steel mounting bracket
Measured lumen:
- 1600 lm
- Multivolt 10-30V DC
Current consumption: 2.6 A (12V) / 1.3 A (24 V)

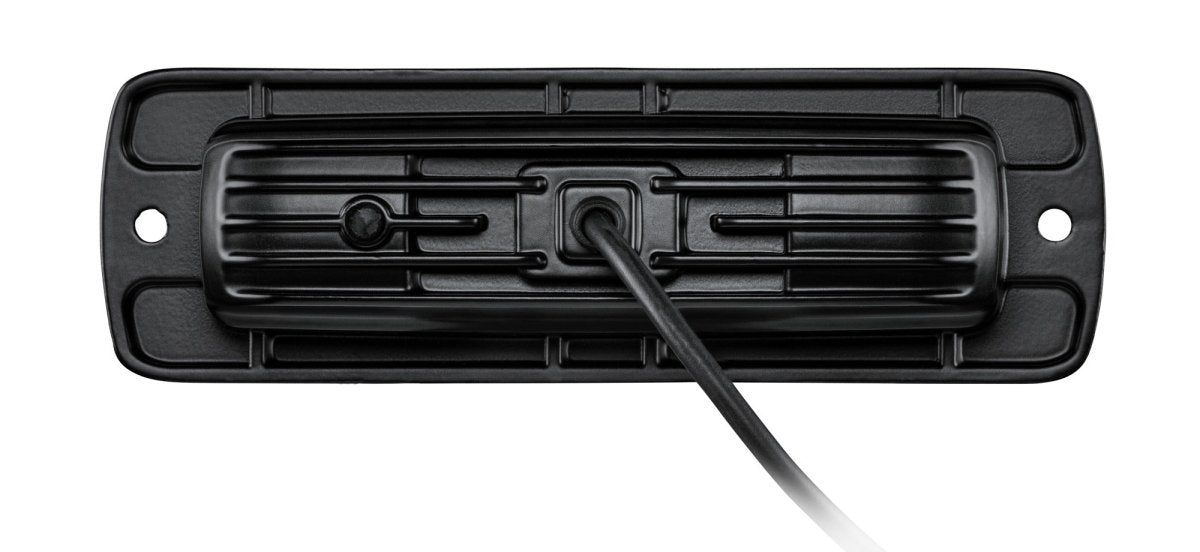

Connection: 2.6 ft (800 mm) cable with open ends
- 30 W
Protection class: IP 68, IP 69K
EMC protection: ECE-R10
Color temperature: 5700 Kelvin
Weight: 470 g

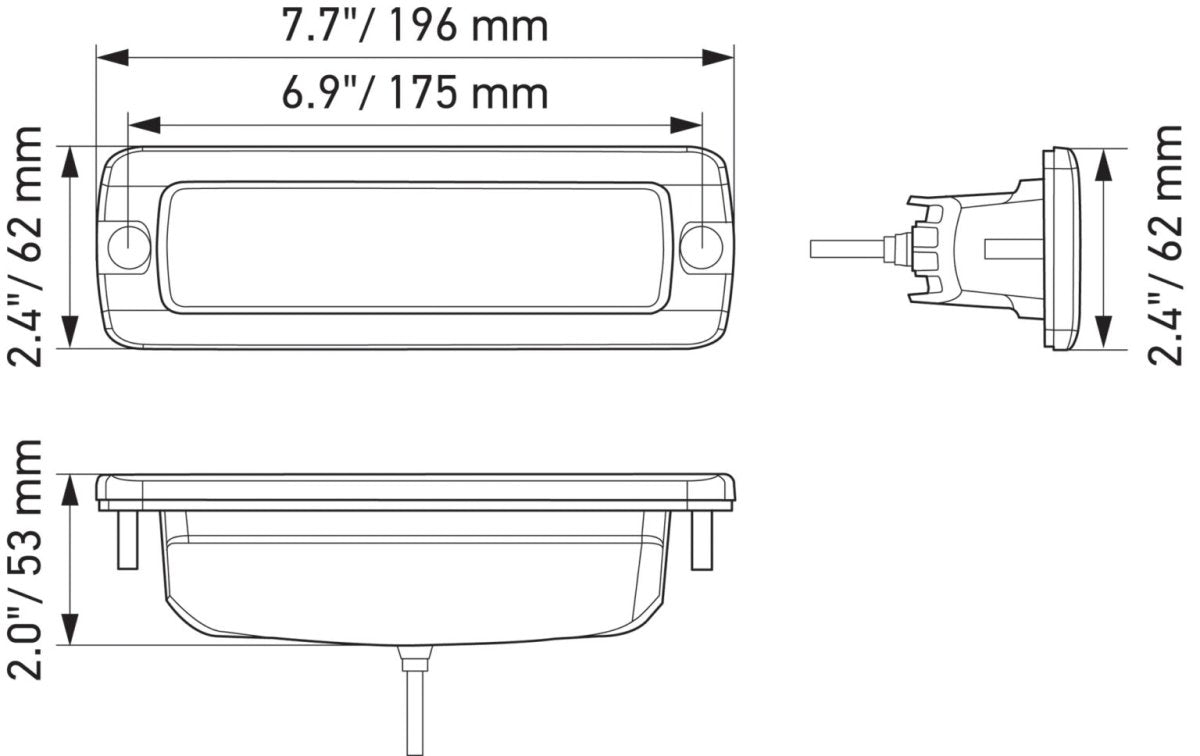

Sold Individually Dimensions: 6.2? W x 2? H x 2.4? D / 157 x 50 x 60 mm
Technology:
LED Mounting: Upright / Pendant Single Lamp

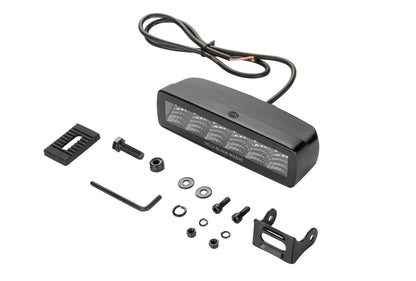

includes:

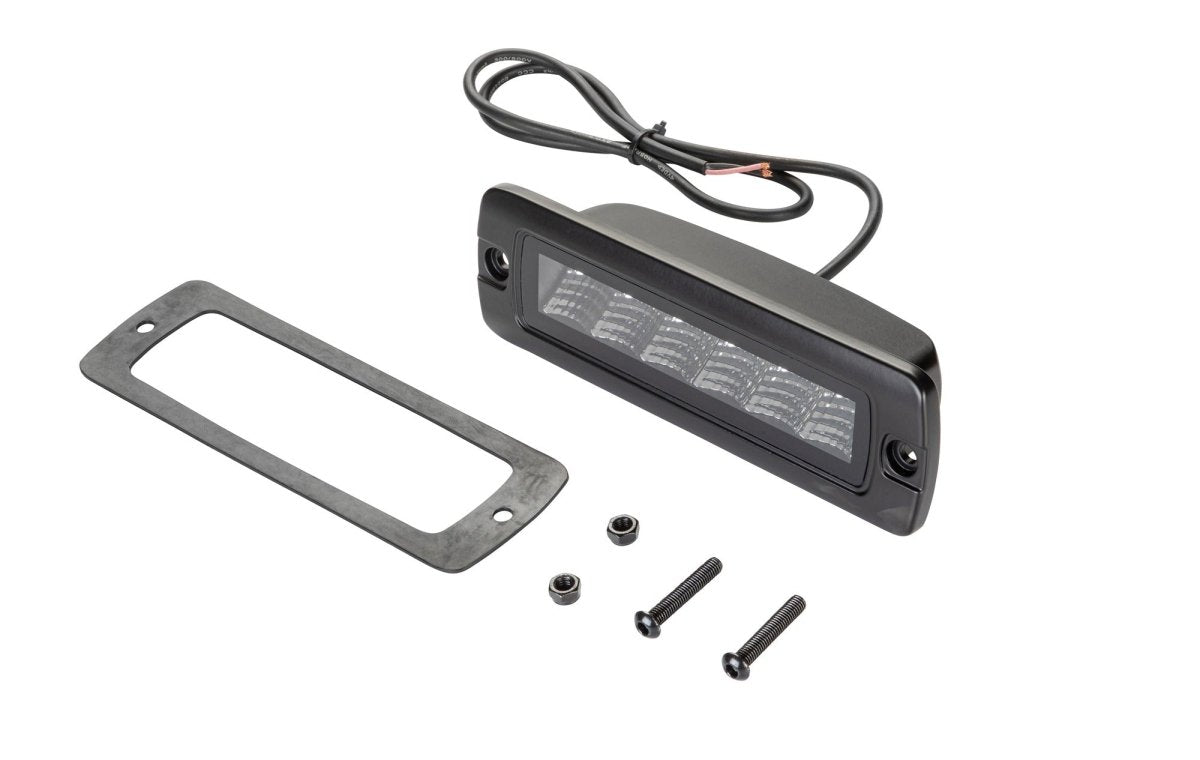

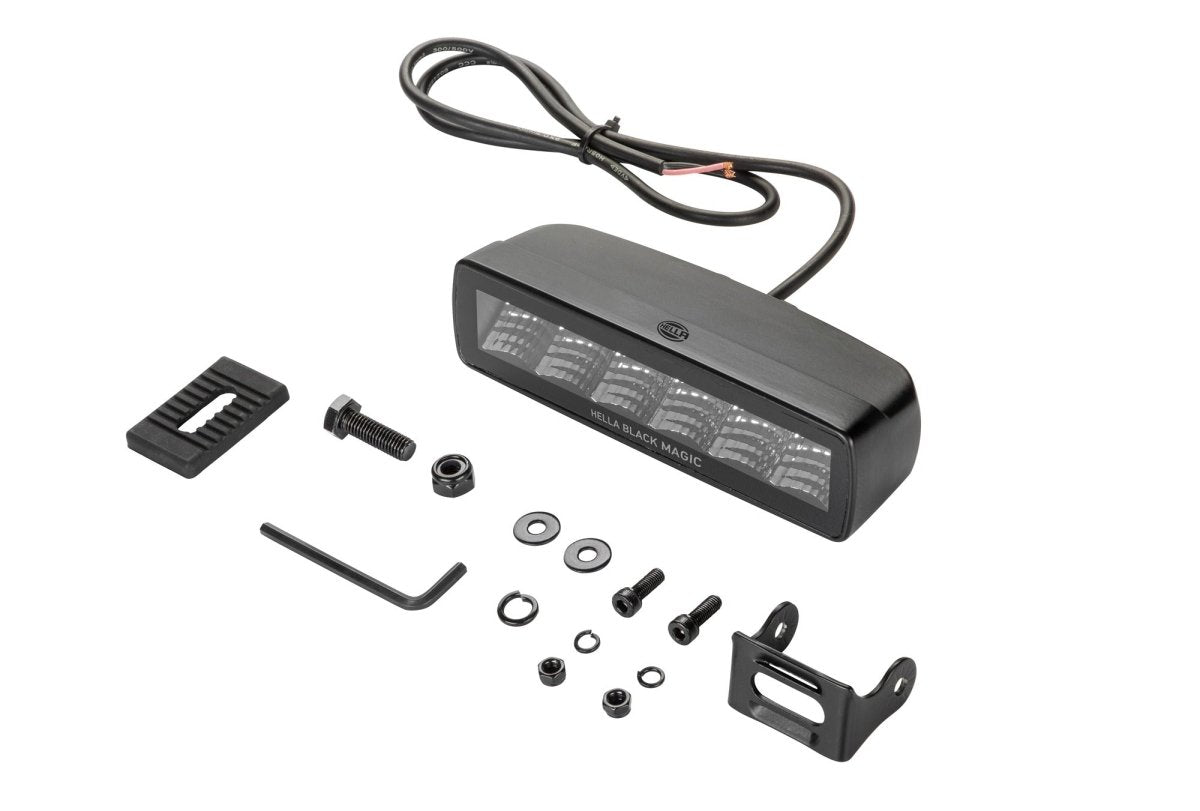

- (1) LED Mini Light Bar with mounting hardware
- Mounting Instructions
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
Condensation is a natural occurrence and is not a cause for concern. These units are designed with vents to accommodate fluctuations in air pressure, which can lead to condensation. When moist air enters the lamp assembly, condensation can form, particularly at low temperatures. This condensation typically manifests as a fine mist on the interior of the lens. However, this mist eventually dissipates and exits through the vents during normal operation.
FAQ
FAQ
Warranty Information
Product Warranty
At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.
Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.
For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.
To help us process your claim efficiently, please provide:
- Your invoice or proof of purchase
- Product part number
- Details of the fault
- Supporting photographs where possible
Warranty Exclusions
The warranty does not cover faults or damage resulting from:
- Accidental damage, impact, collision, storm damage, or other external influences
- Incorrect installation, misuse, neglect, or improper operation
- Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
- Normal wear and tear or environmental deterioration
SRH Lighting reserves the right to inspect products before approving any warranty claim.
Please refer to our Terms & Conditions for full warranty details.
Condensation
A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.
As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.
To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.
Paint & Surface Finish
Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.
Regular cleaning and maintenance are recommended, particularly in harsh operating environments.
Installation & Mounting
Products should always be mounted securely and in accordance with the manufacturer’s recommendations.
Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.
Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
