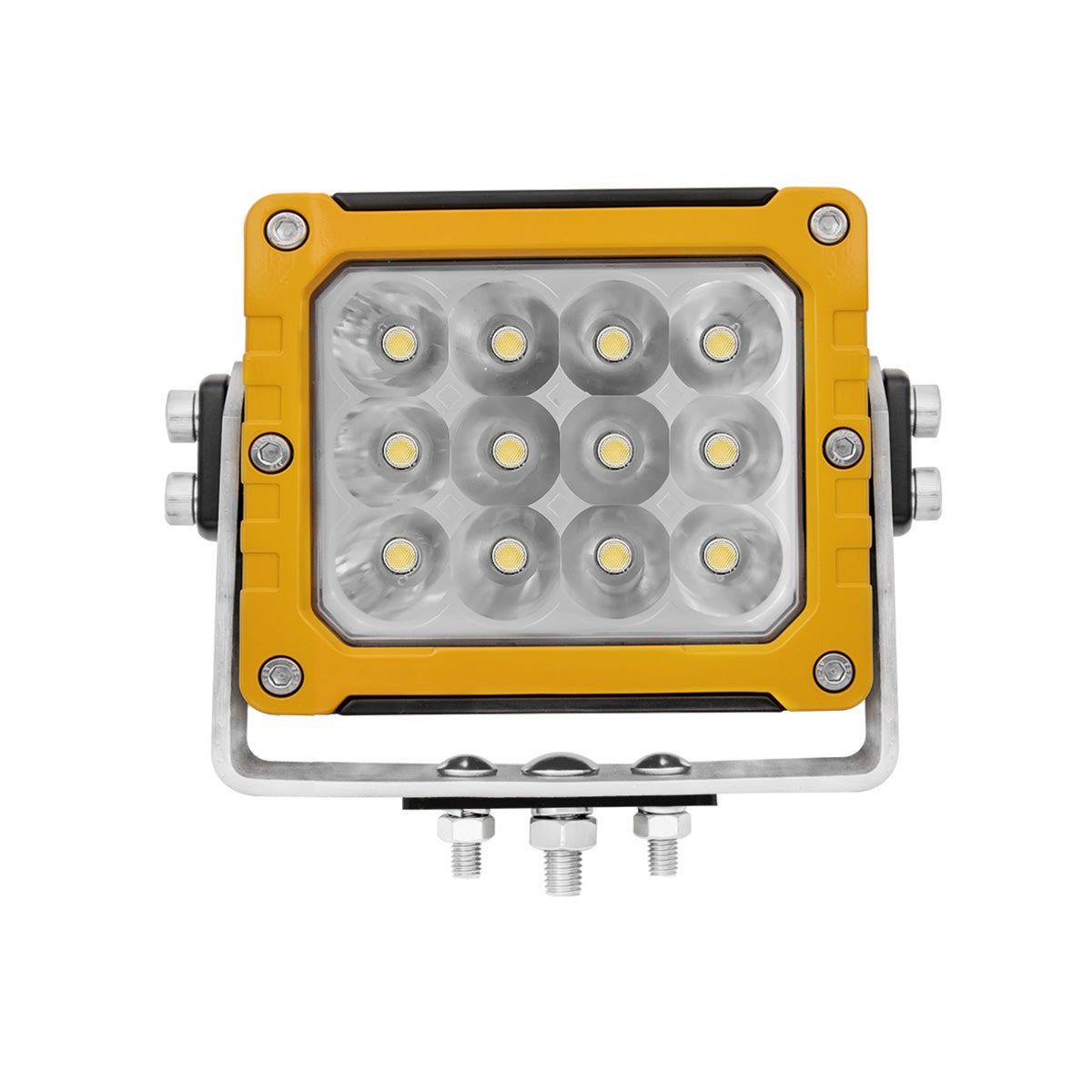

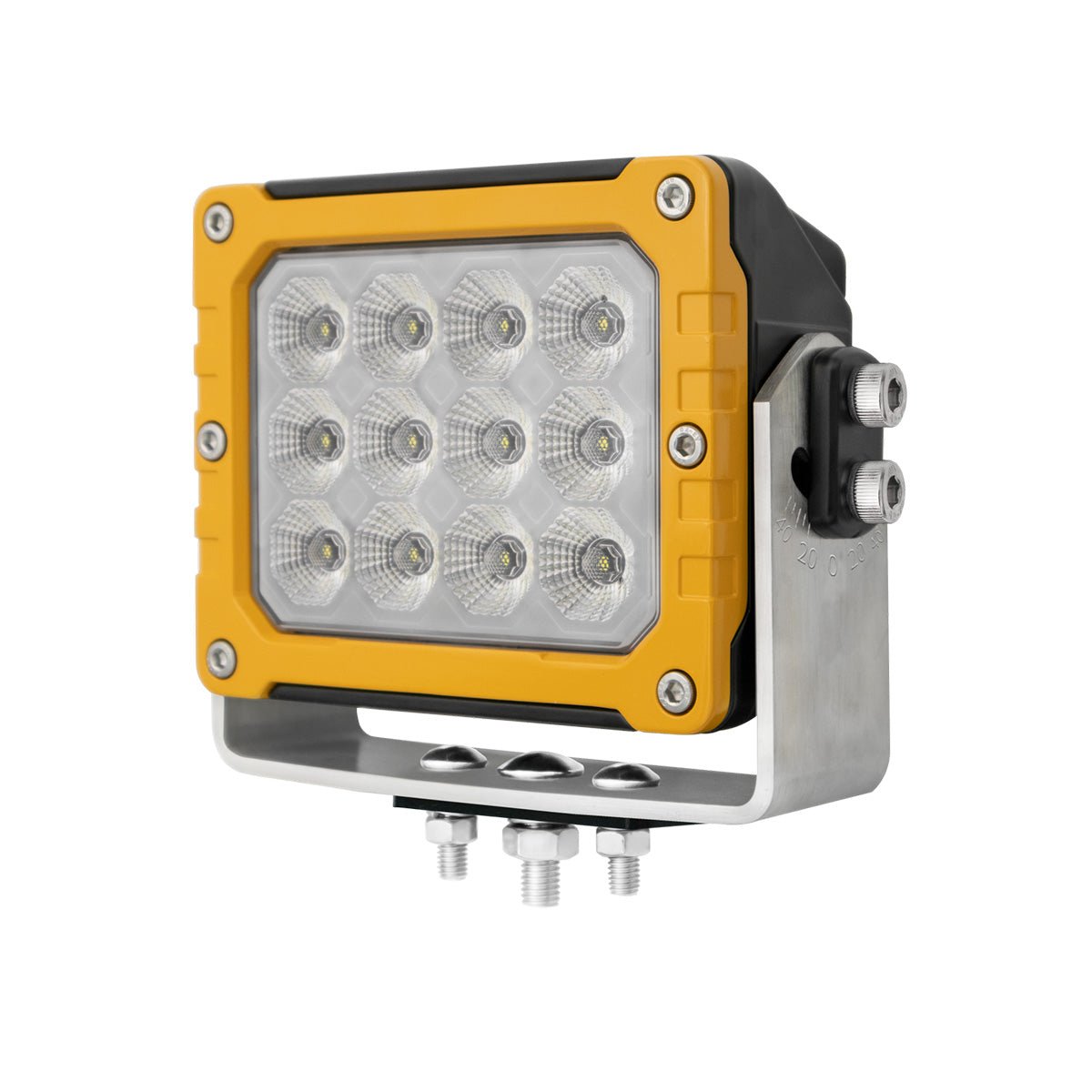

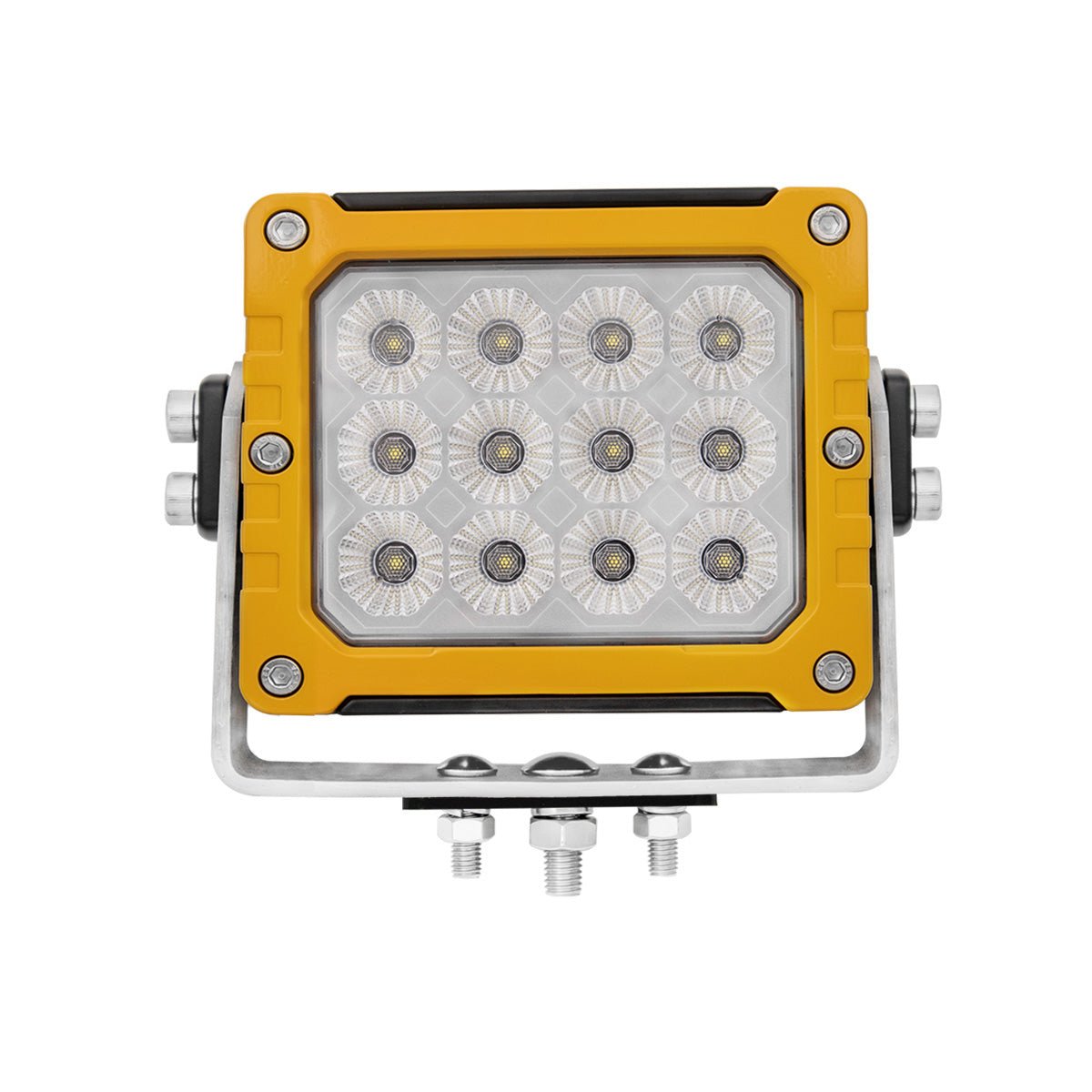

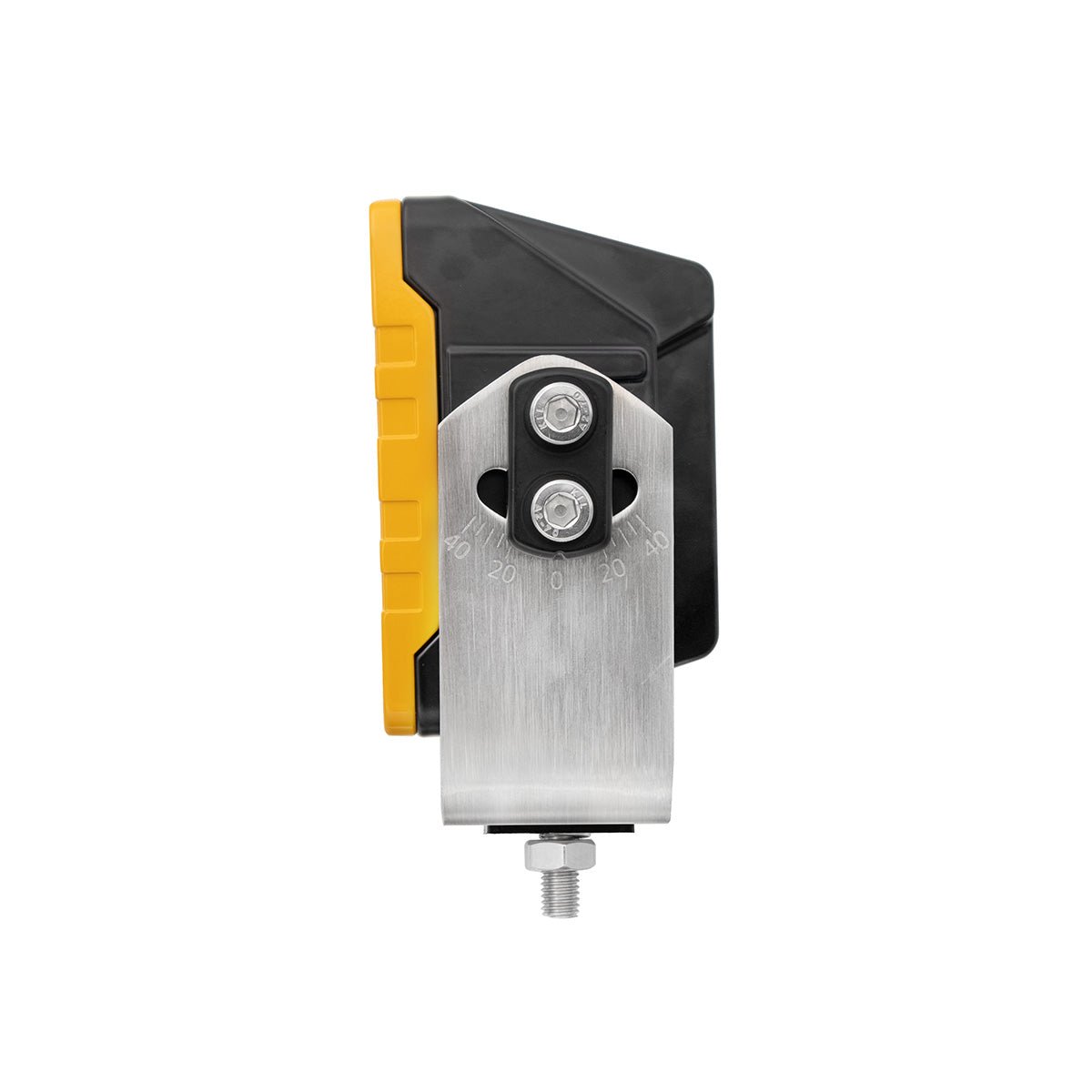

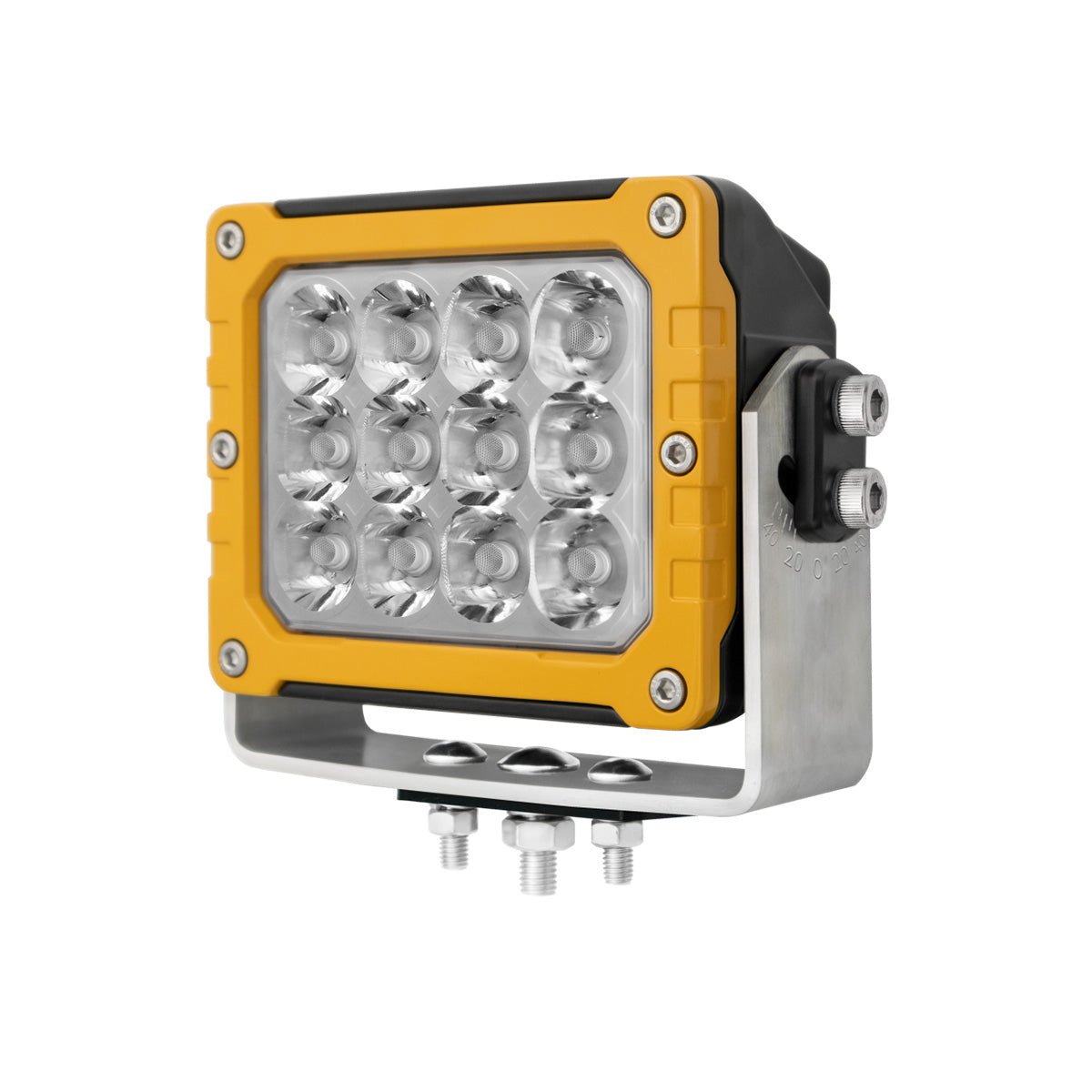

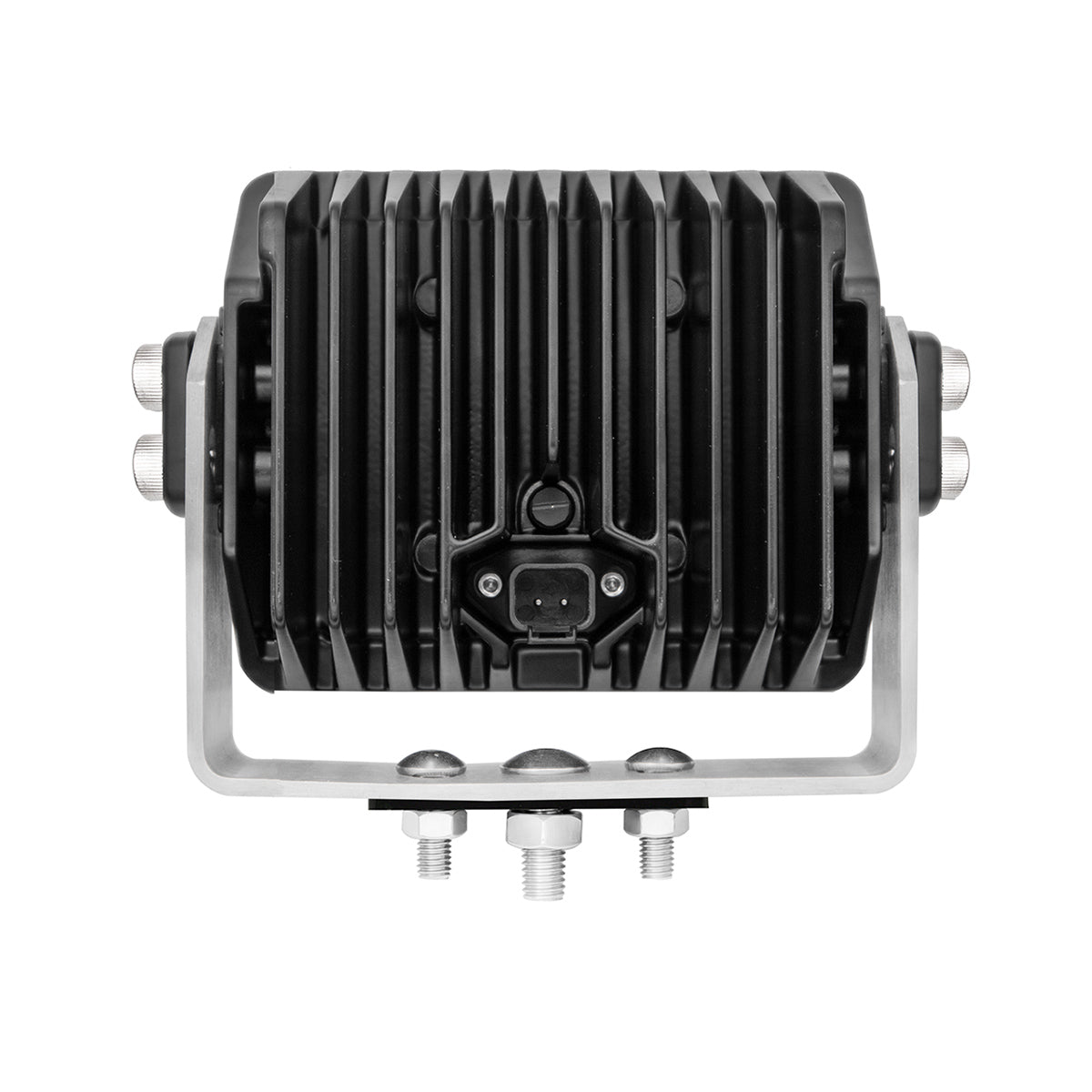

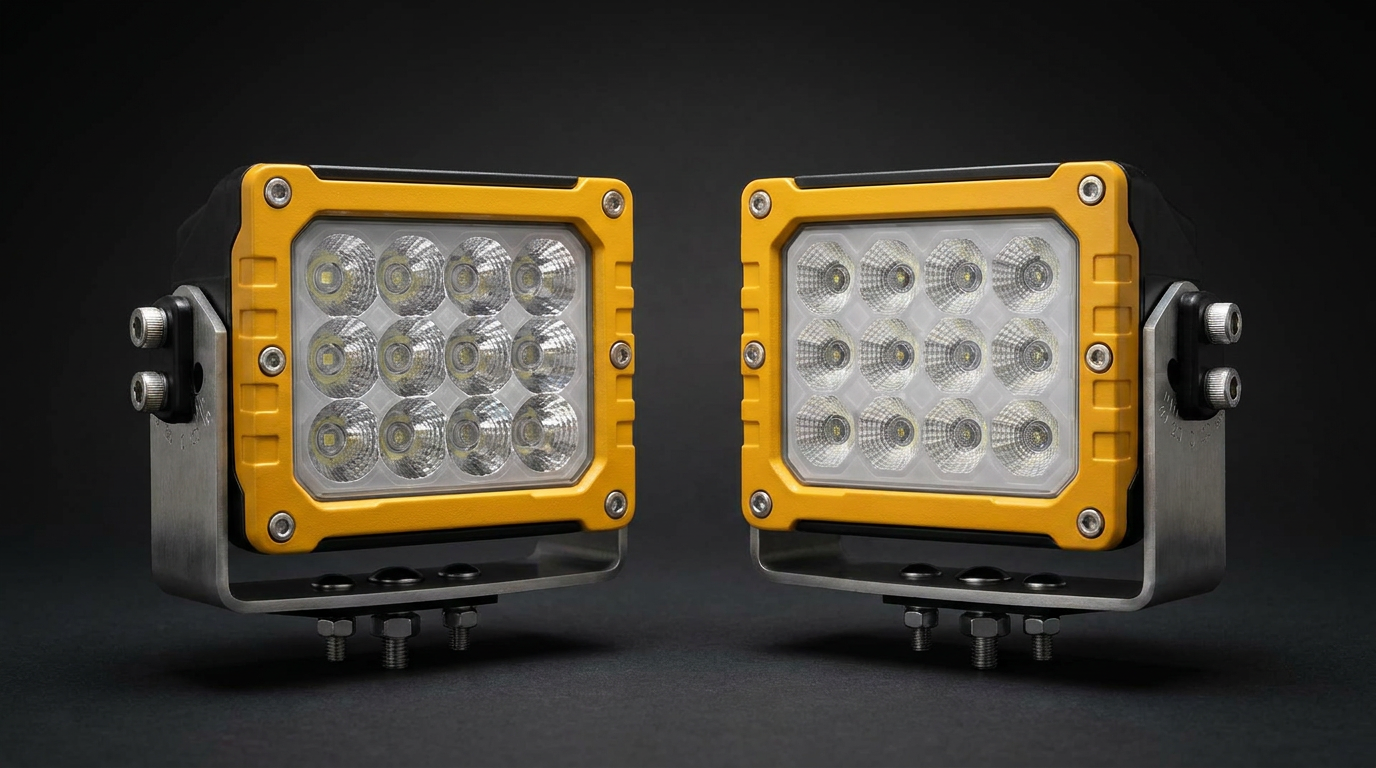

Heavy Duty LED work light 120w 9,600lm
Heavy Duty LED work light 120w 9,600lm
SKU:8100-120YS
SRH Lighting
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
The 8100 Series LED Work Lights are designed for the demanding environments of mining, quarrying, and construction equipment. Built to withstand harsh operating conditions, these compact heavy-duty lamps have been tested for vibration, shock, salt spray, IP69K water and dust resistance, temperature extremes, CE compliance, and CISPR 25 Class 5 EMC standards — providing dependable performance where reliability matters most.
Available in four compact models, the 8100 Series combines rugged durability with high-performance LED technology. Each lamp features LEDs rated for up to 50,000 hours of service life, helping to reduce maintenance, minimise downtime, and lower replacement costs compared to traditional lighting solutions.
The advanced LED output delivers bright, efficient illumination to improve operator visibility and workplace safety, even in the toughest working environments. Designed for versatility, the lamps operate reliably in both extreme hot and cold temperatures and can be easily installed across a wide range of OEM mobile equipment applications.
Offering outstanding durability, excellent performance, and competitive pricing, the 8100 Series provides a dependable and cost-effective lighting solution for heavy-duty industrial vehicles and machinery.
Key Features
- Heavy-duty LED work light for mining, quarrying, and construction equipment
- Available in four compact models
- Tested for vibration, shock, and salt spray resistance
- IP69K rated for maximum protection against water and dust ingress
- CISPR 25 Class 5 EMC approved for reduced electrical interference
- High-performance LEDs rated for up to 50,000 hours service life
- Bright, efficient illumination for improved operator visibility and safety
- Suitable for extreme hot and cold operating temperatures
- Easy installation across a wide range of OEM mobile equipment
- Rugged, reliable design to minimise maintenance and downtime
- Cost-effective lighting solution for demanding environments
SPECIFICATION
SPECIFICATION
Lumens: 9,600lm
Voltage : 9-92V
LED's : 12 x 10 watt OSRAM
Wattage : 120W
IP Rating : IP69K
ECE : R10 CISPR 25 Class 5
Flood : 85 deg.
Spot : 10 deg.
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.

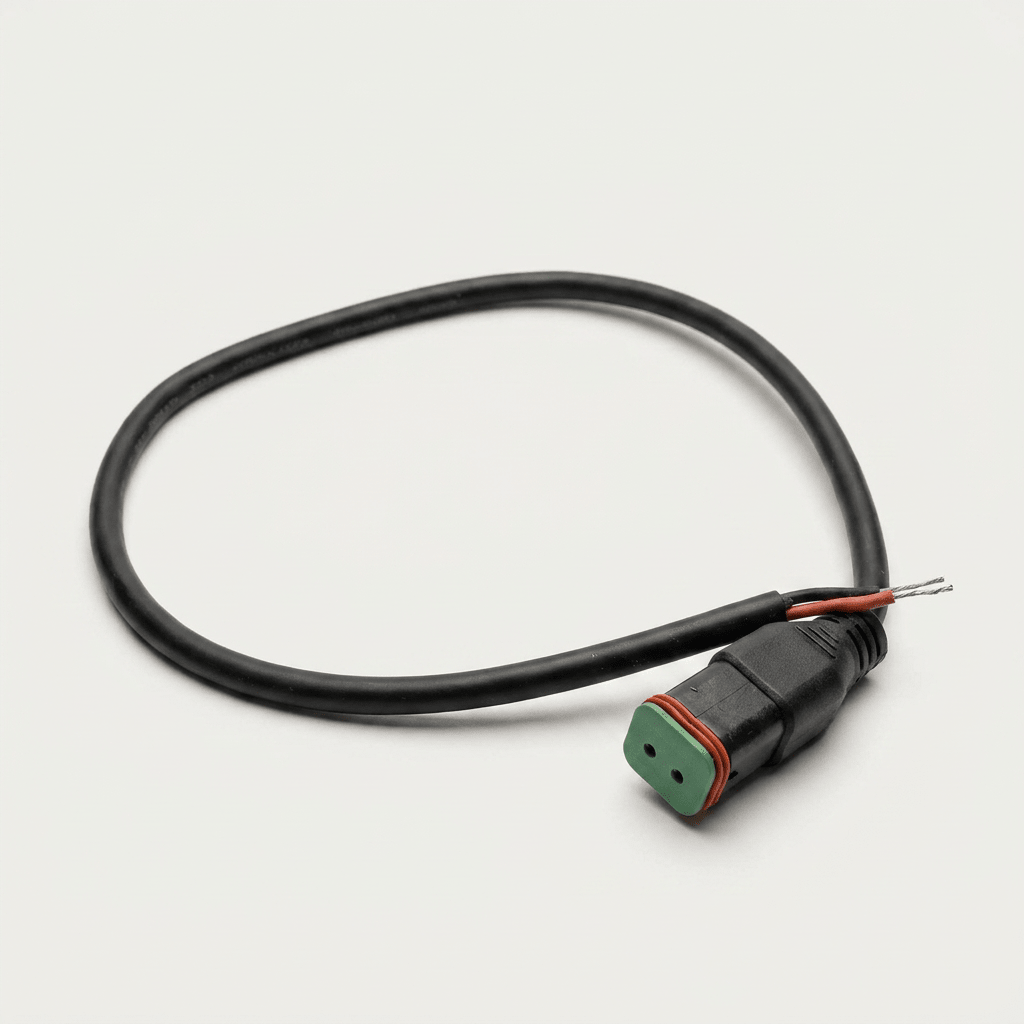

With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
FAQ
FAQ
Warranty Information
Product Warranty
At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.
Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.
For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.
To help us process your claim efficiently, please provide:
- Your invoice or proof of purchase
- Product part number
- Details of the fault
- Supporting photographs where possible
Warranty Exclusions
The warranty does not cover faults or damage resulting from:
- Accidental damage, impact, collision, storm damage, or other external influences
- Incorrect installation, misuse, neglect, or improper operation
- Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
- Normal wear and tear or environmental deterioration
SRH Lighting reserves the right to inspect products before approving any warranty claim.
Please refer to our Terms & Conditions for full warranty details.
Condensation
A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.
As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.
To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.
Paint & Surface Finish
Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.
Regular cleaning and maintenance are recommended, particularly in harsh operating environments.
Installation & Mounting
Products should always be mounted securely and in accordance with the manufacturer’s recommendations.
Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.
Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
