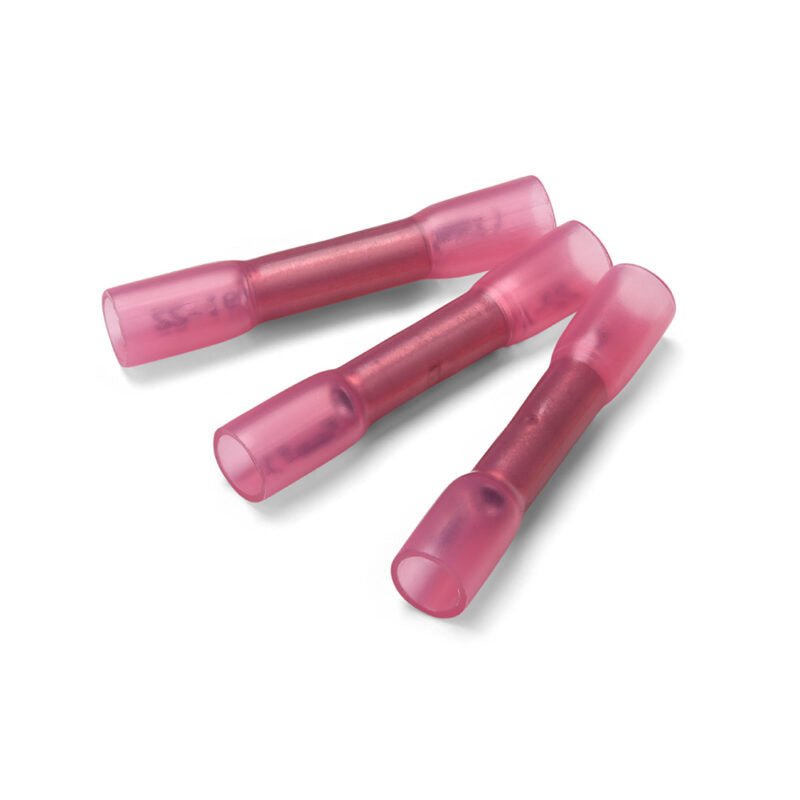

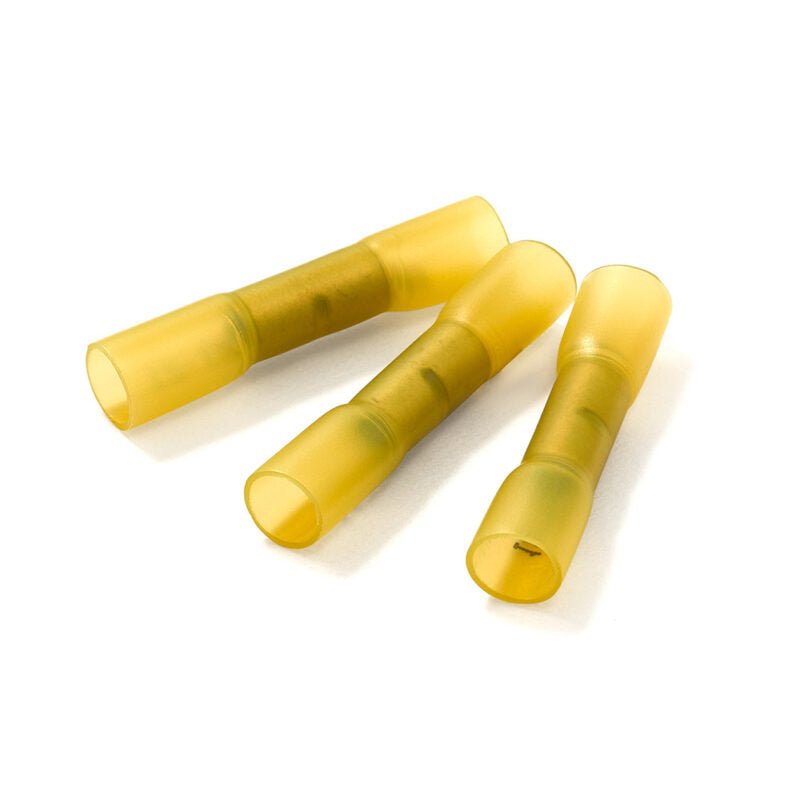

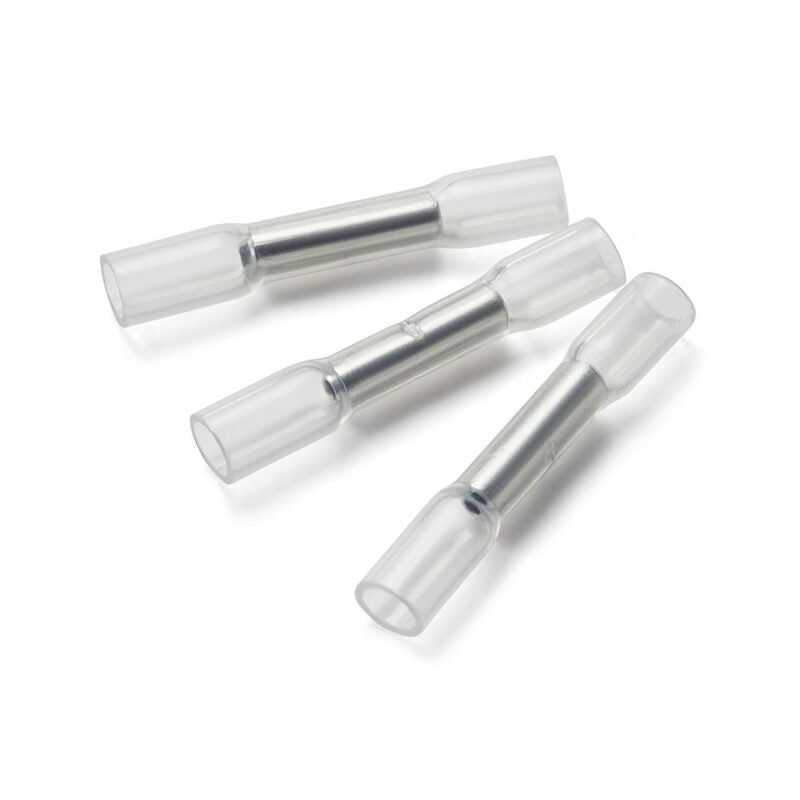

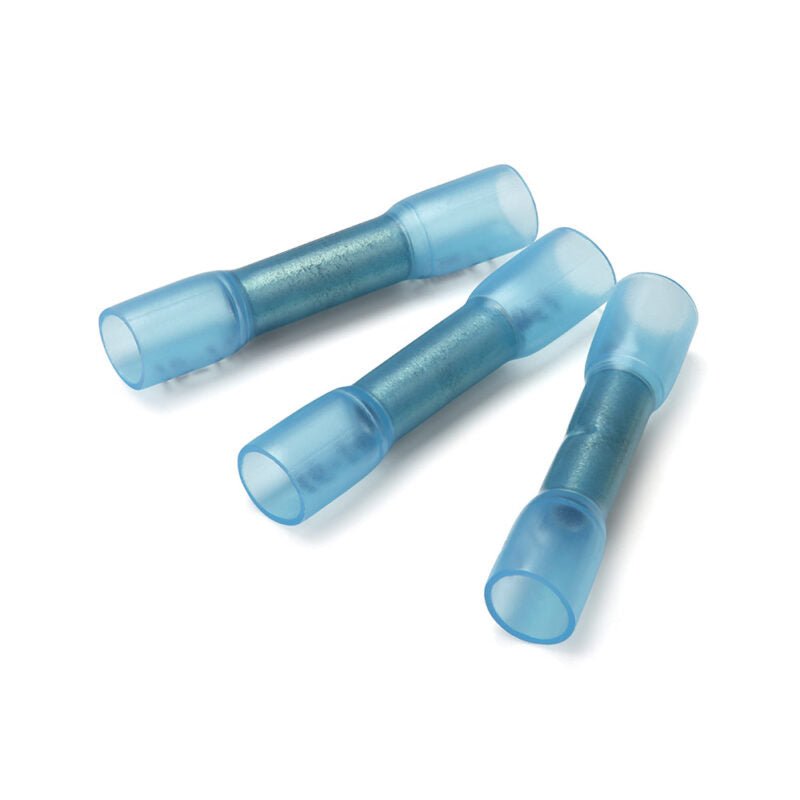

Heat Shrink Butt Connectors with adhesive
Heat Shrink Butt Connectors with adhesive
SKU:CHBC
C-Tie
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
High quality crimp terminals with an adhesive heat shrink insulation. Ideal for applications where a waterproof termination is required including electrical equipment and auto electrical repairs.
Supplied in packets of 100
SPECIFICATION
SPECIFICATION
Technical Specifications
Material (Insulation)
High-Density Polyethylene
Adhesive-Lined
Yes
Shrink Ratio
3:1
Material (Terminal)
Copper
Material (Plating)
Tin
Maximum Temperature
+125°C
Shrink Temperature
+90°C
Electrical Rating
600V
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
