EQ590AR65 Corner LED hazard Warning Lamp
EQ590AR65 Corner LED hazard Warning Lamp
SKU:EQ590AR65
LED Autolamps
Couldn't load pickup availability
The EQ590AR65 LED Corner Module Strobe is engineered specifically for use in a comprehensive four-way lighting configuration.
Designed to be installed at each corner of a vehicle, this module ensures optimal visibility and coverage from all angles. Its precise placement enhances the overall effectiveness of the strobe system, providing reliable and consistent illumination critical for safety and signalling purposes in demanding environments.
Specification
Specification

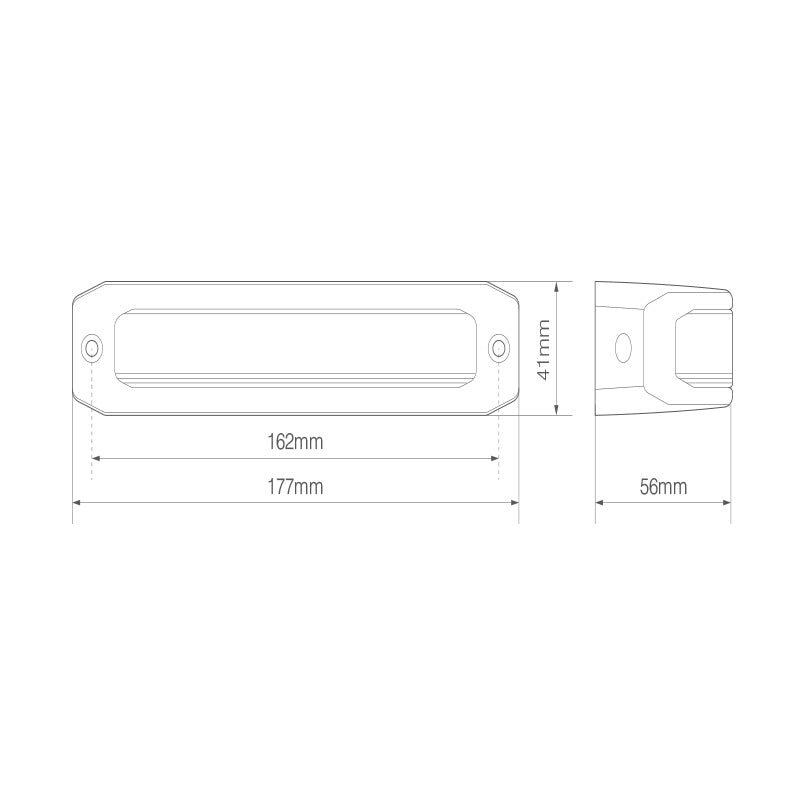

Dimensions: 177mm x 56mm x 41mm
12/24V Multivolt
- Fully ECE approved
- 120 degree wide angle light spread
- 10 selectable flash patterns, including; single, double, triple and quad flash
- 6 x 3W LED
- IP67 ingress protection

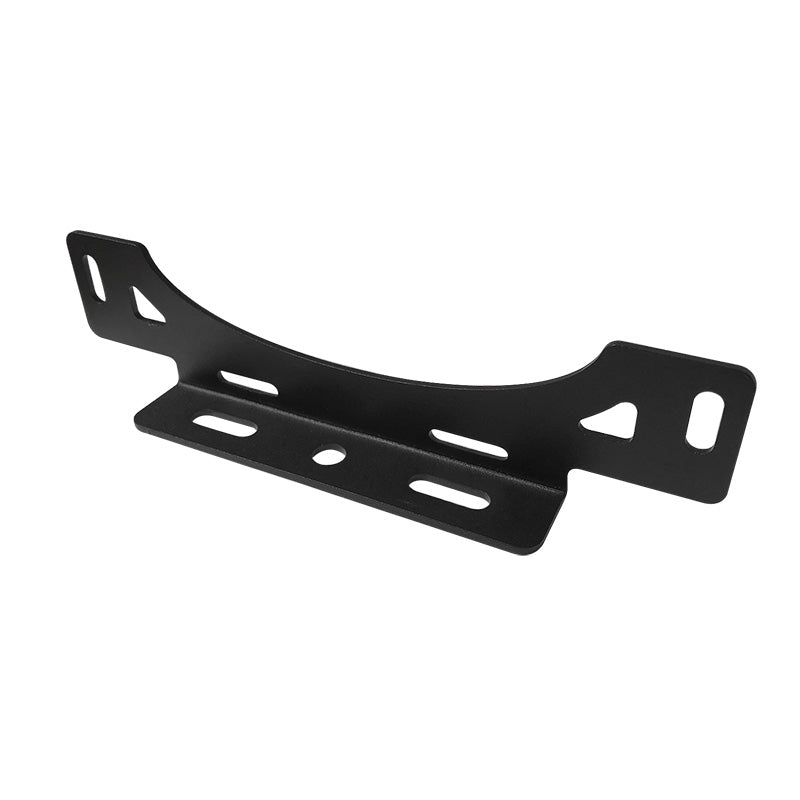

- 'L' shaped mounting bracket included
- Ideal for corner mounting
Installation and care
Installation and care
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
