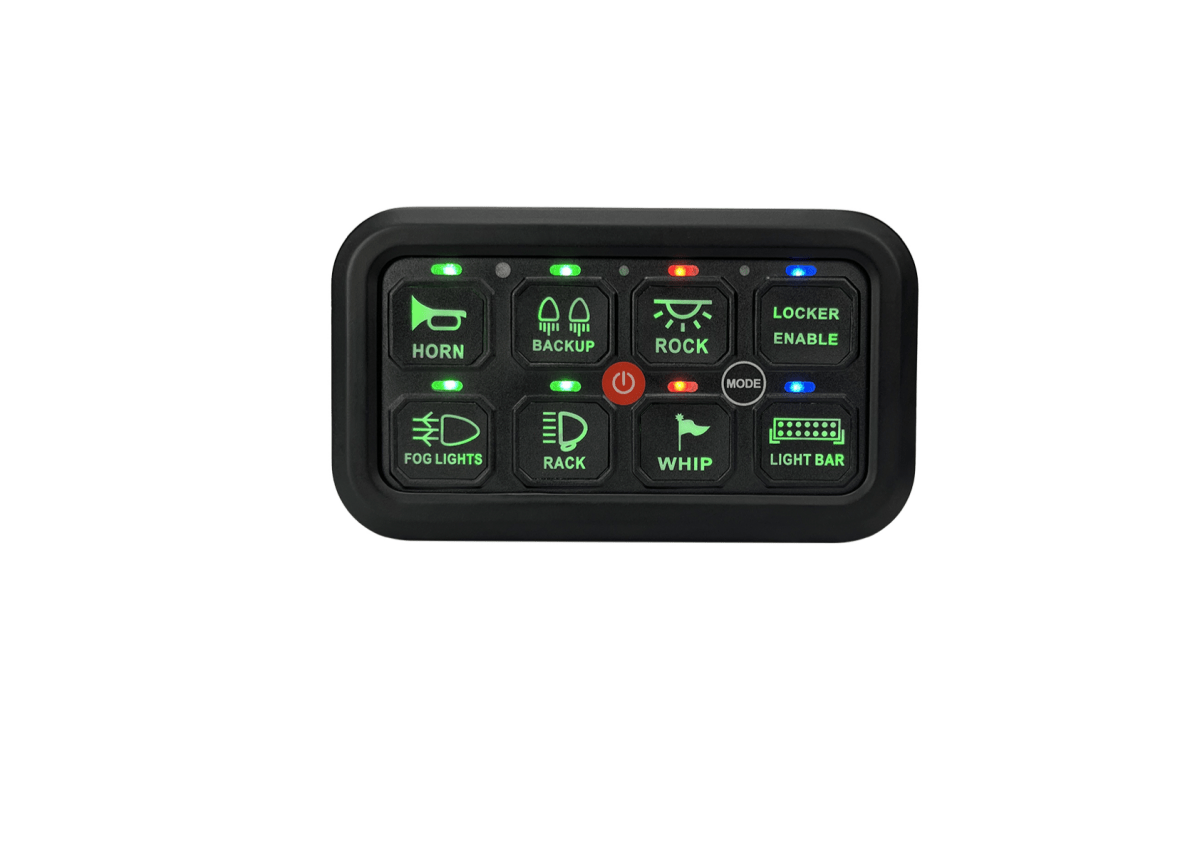

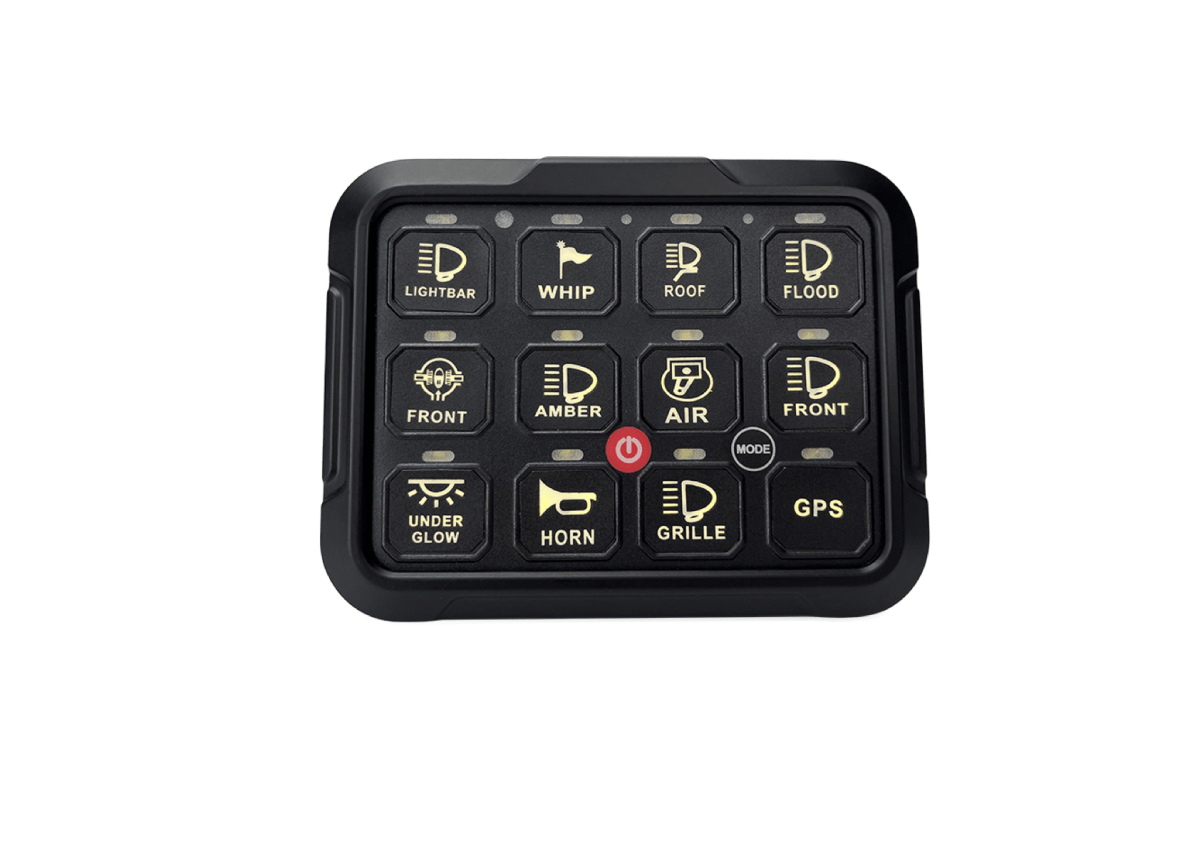

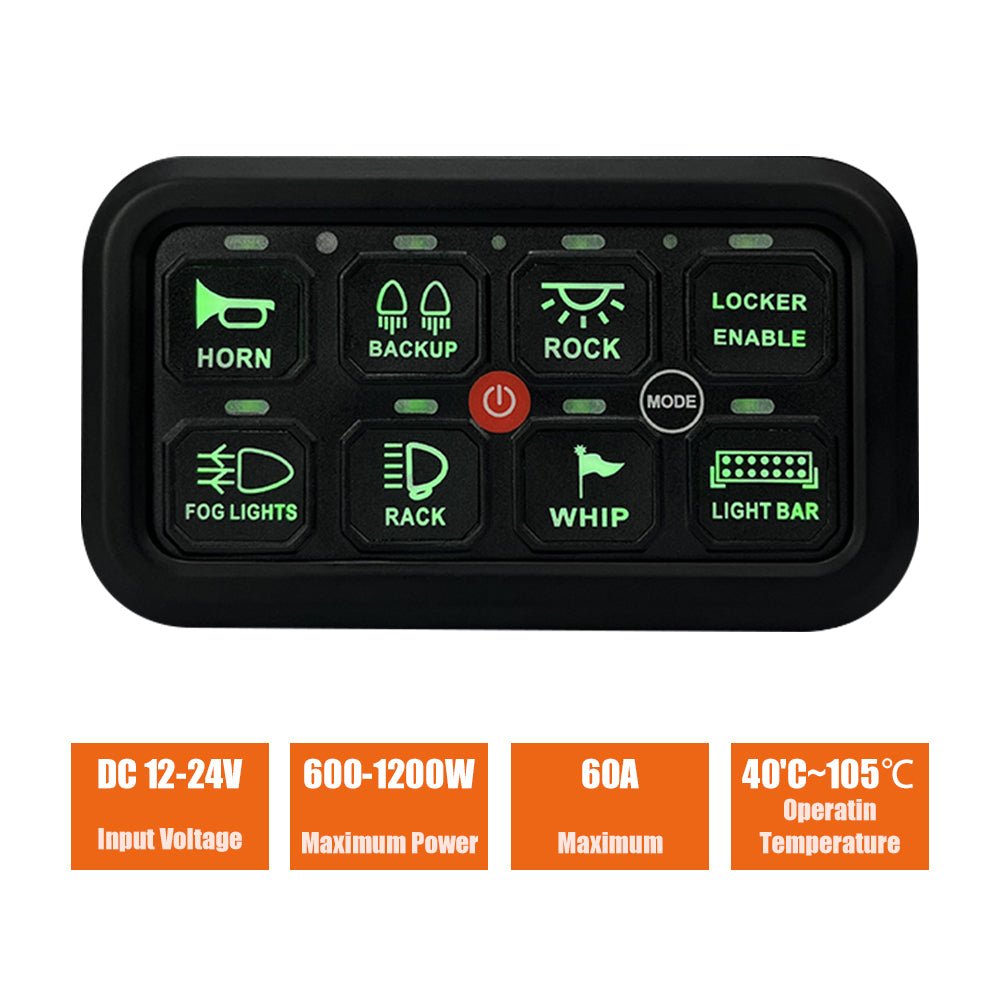

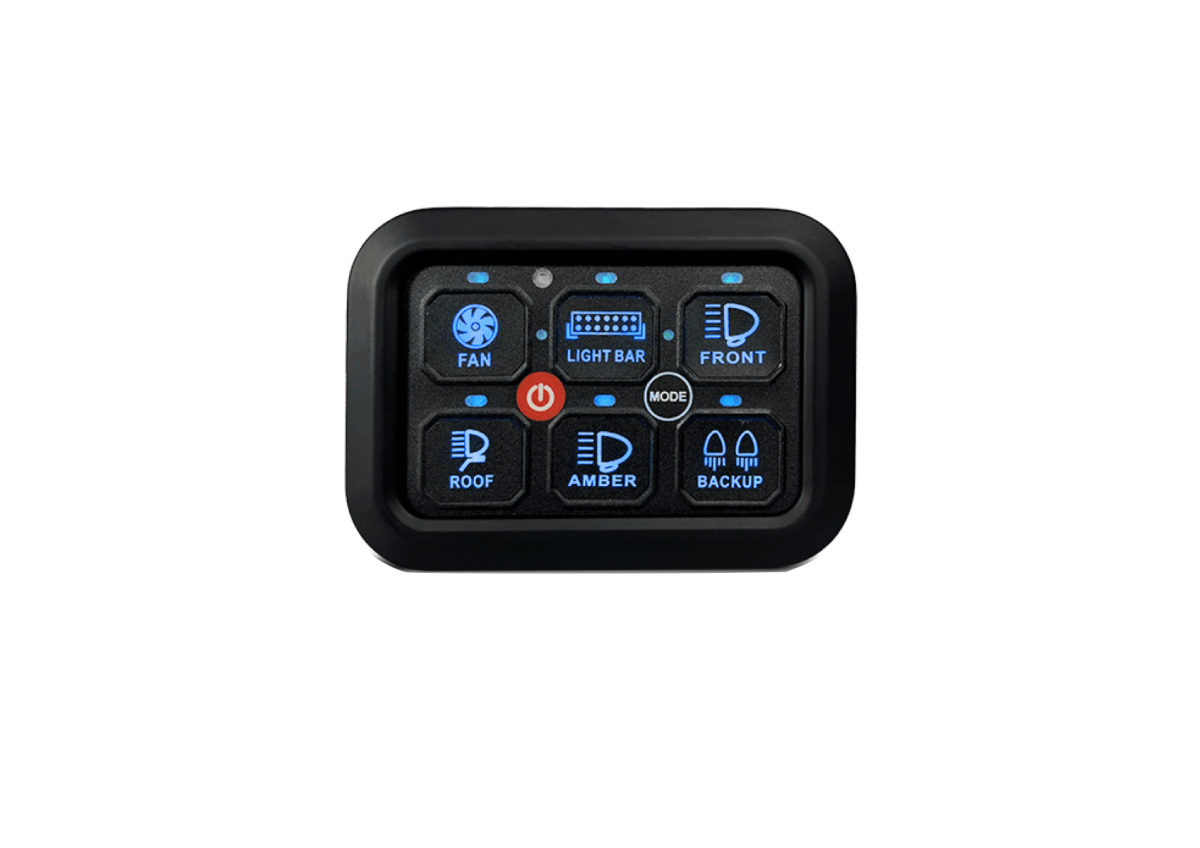

6, 8 & 12 way control panels
Our digital and programmable switch panel kits are all Bluetooth enabled allowing you to control the panel and therefor all your connected devises away from the cab. Each button can be programmed as an on/off switch, a momentary or strobe. The strobe program can be adjusted for different flash rates. You can also group buttons to they all operate as one allowing to to control multiple devices with on press
The switch button background can also be changed to suit and is also auto dimming for safe night time operation

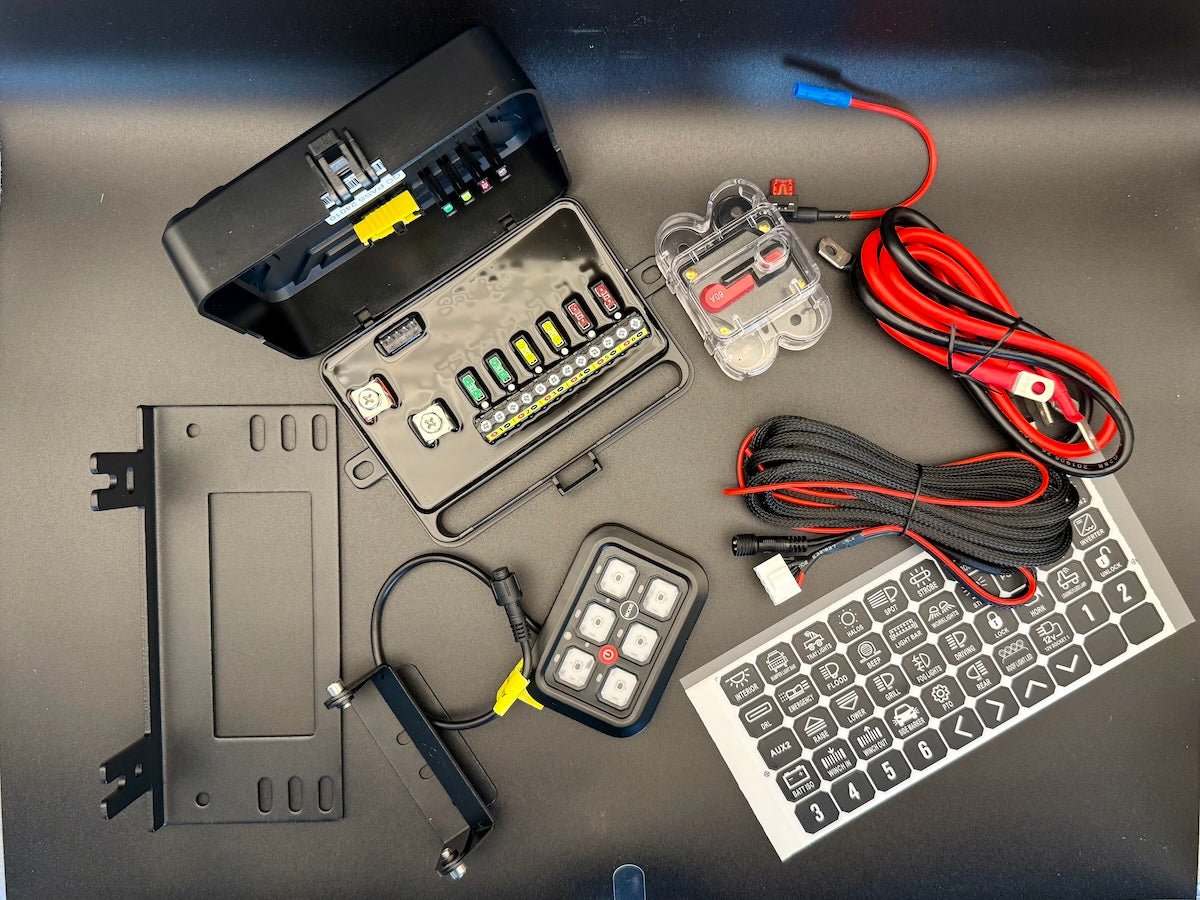

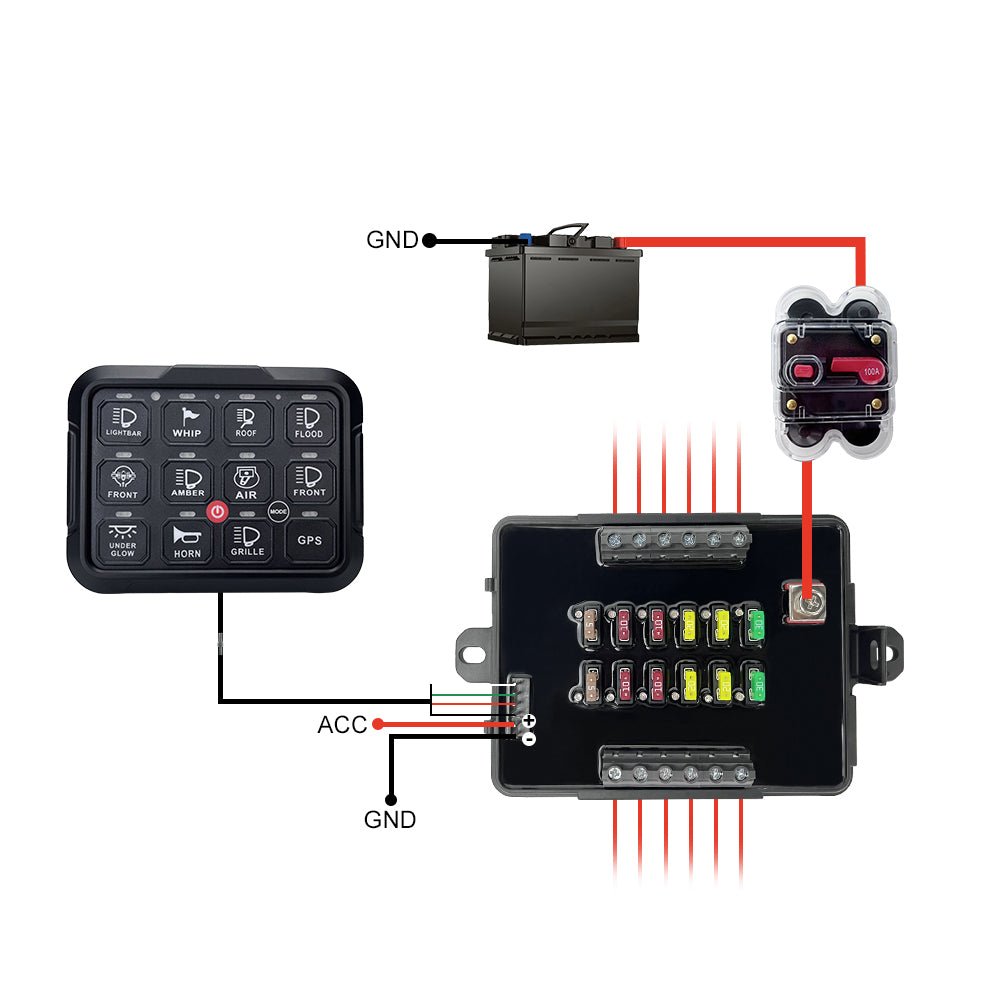

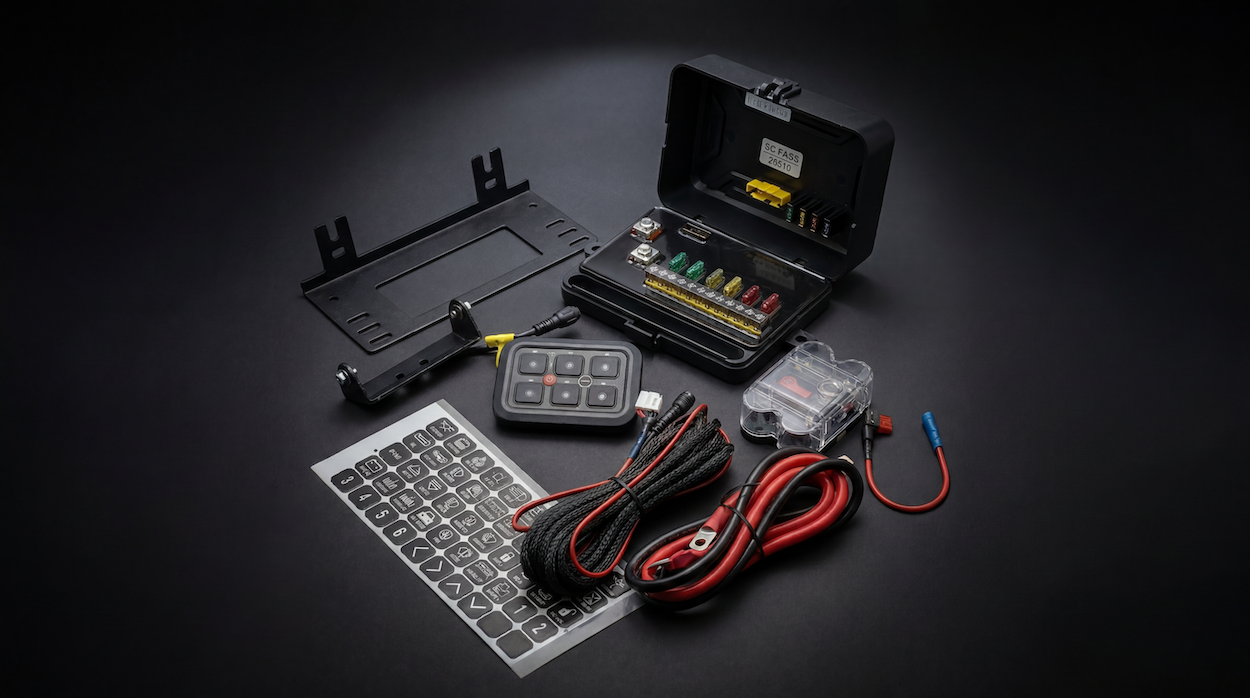

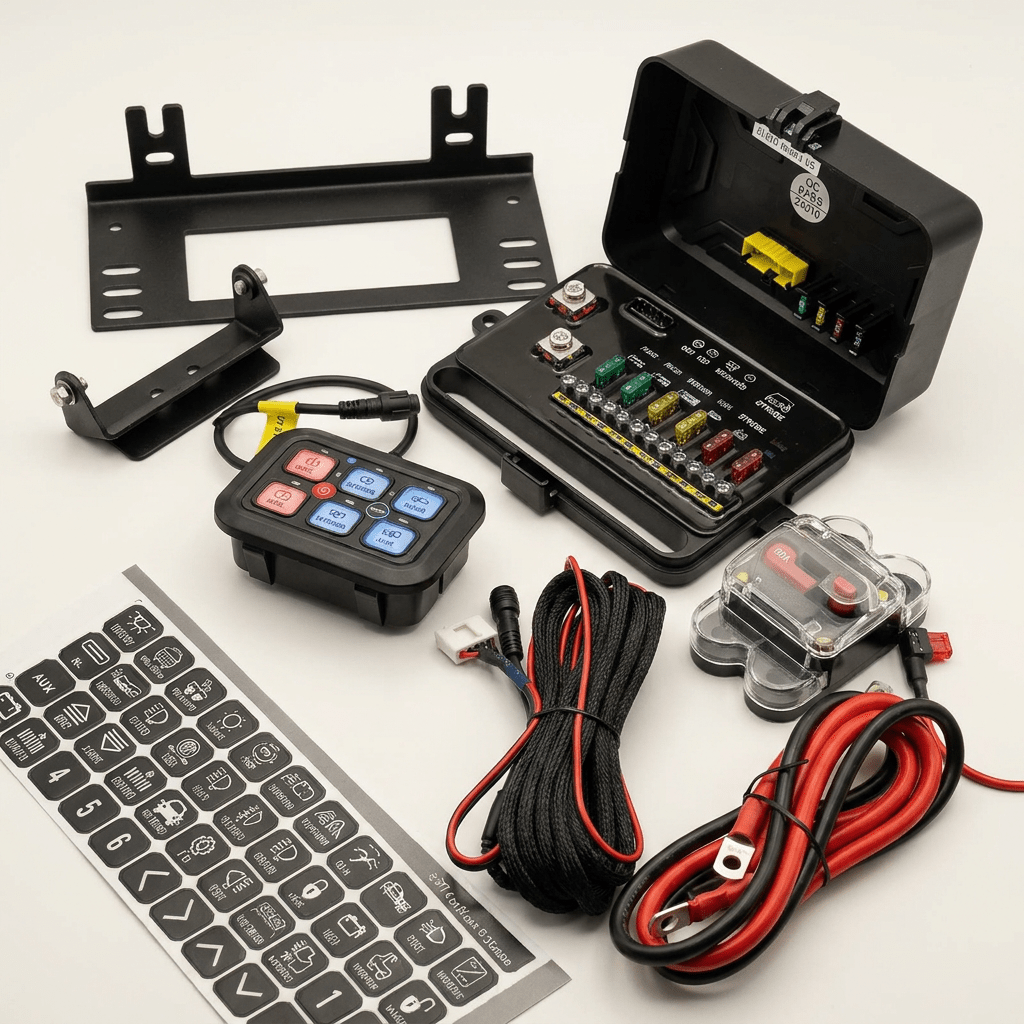

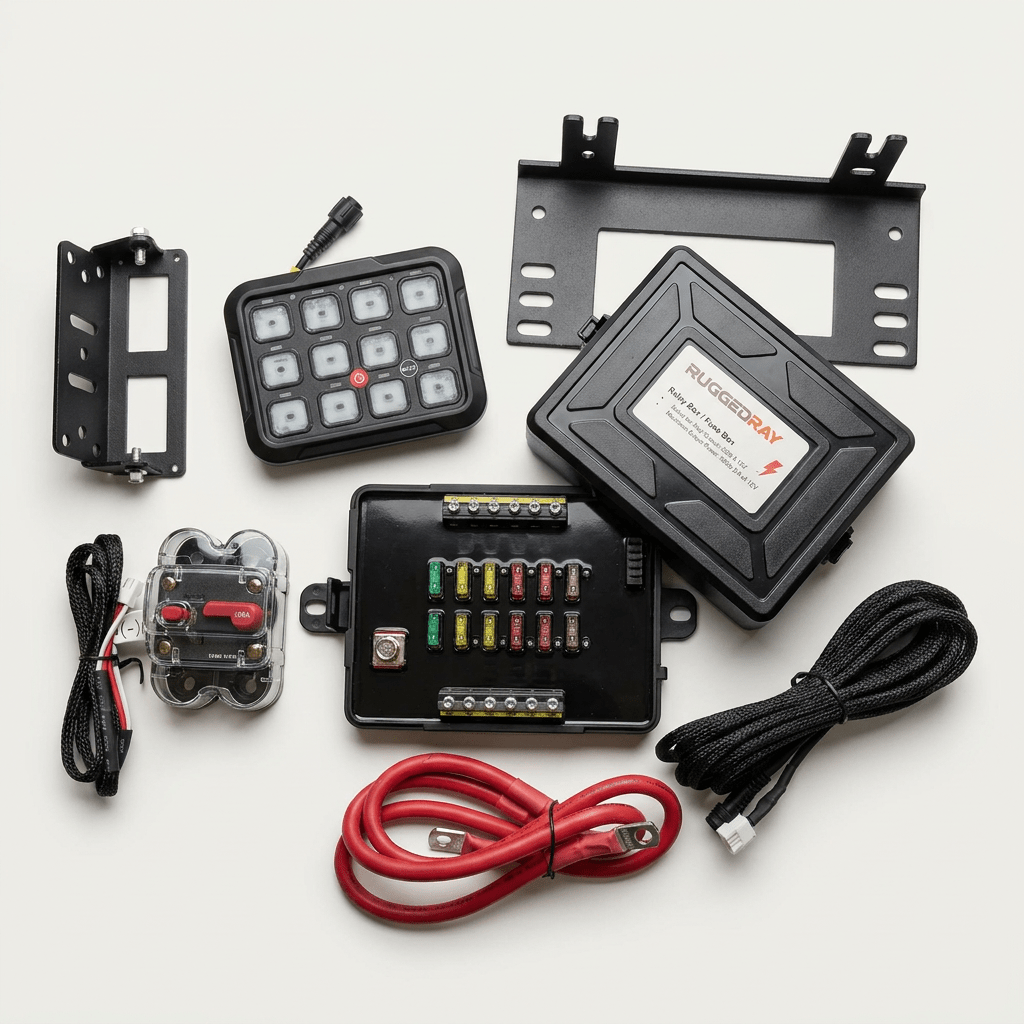

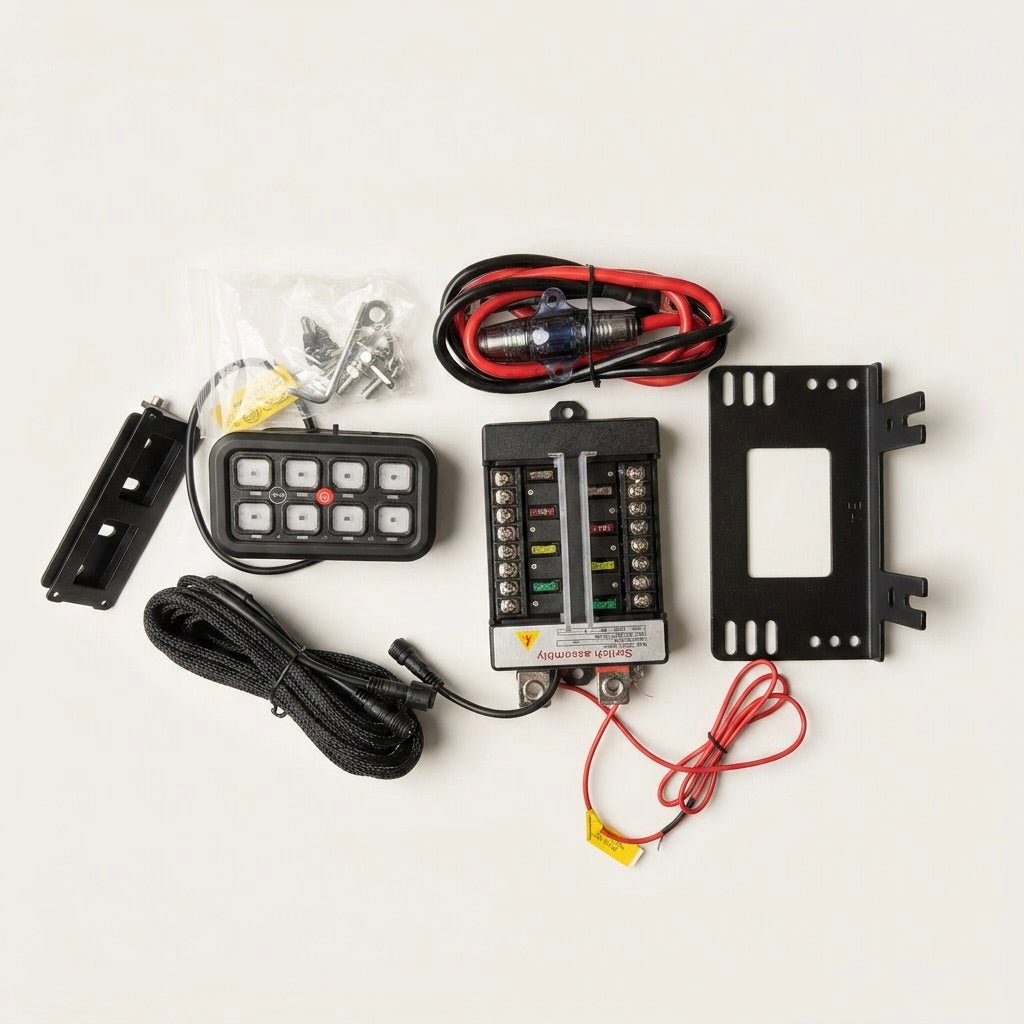

The kits are all supplied with a 3 meter control cable allowing you to place the switch box in a central location. A 5 meter cable is also available if required. Each kit is supplied with either a Mega fuse and holder of a heavy duty circuit breaker along with spare fuses for each device circuit. The maximum amperage is defined by the installed fuse rating and should not be over fused. If you want to fit a device that has a greater current draw we suggest you connect it via a relay.
The phone app can be downloaded for the Apple or Android stores using the supplied QR code
SPECIFICATION
SPECIFICATION

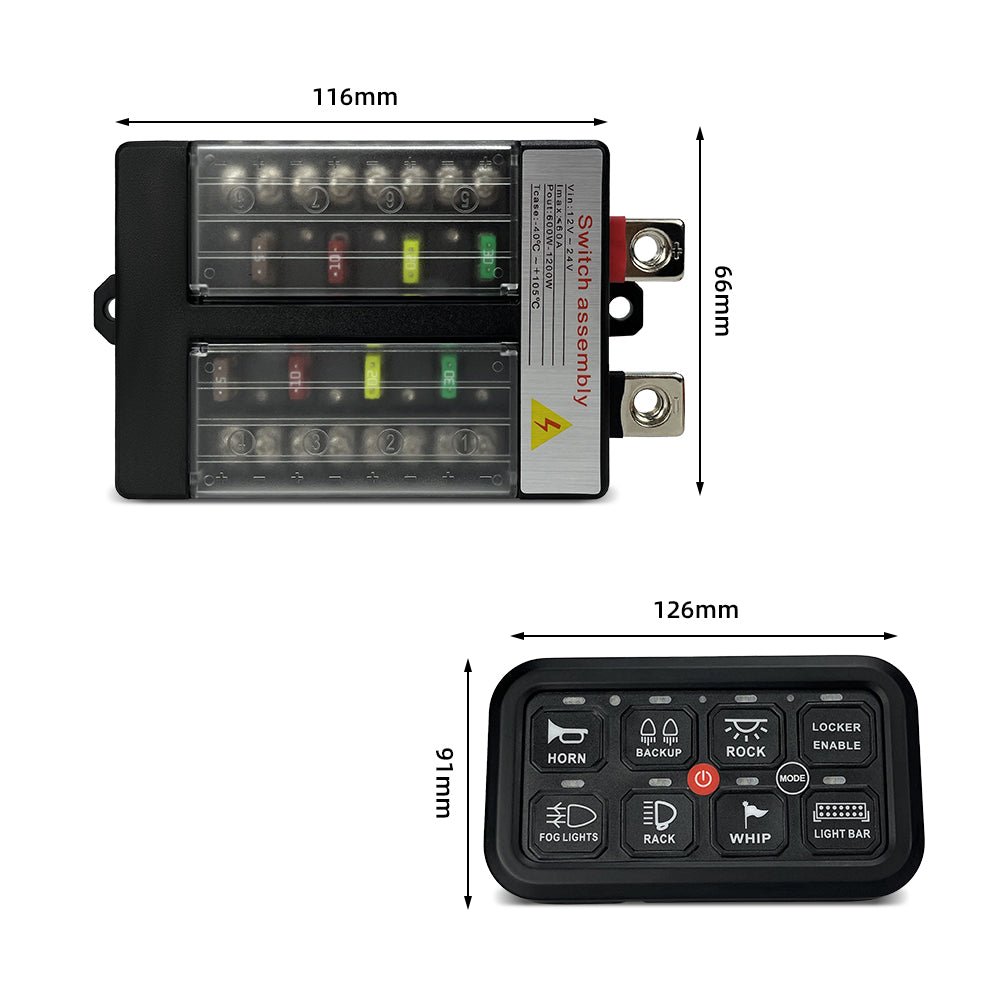

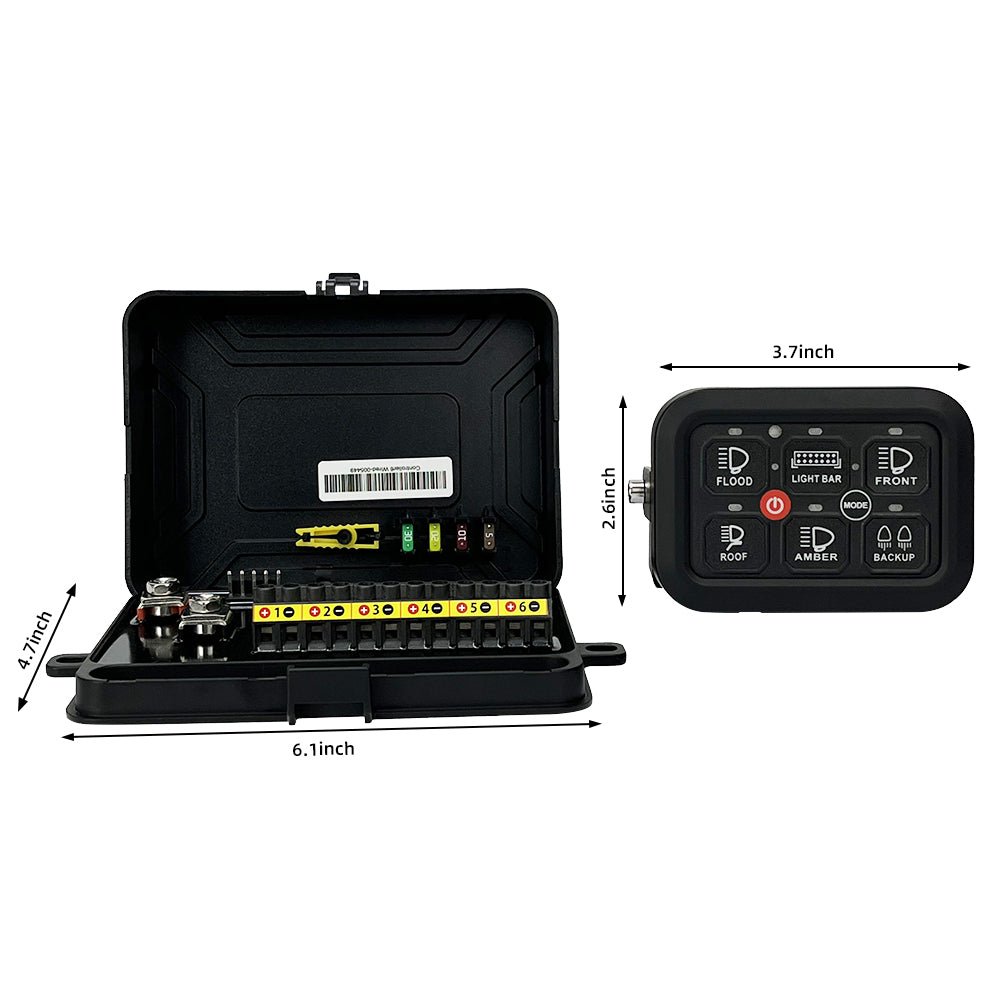

Programmable relay box with remote control
Max total current: 6 way switch 60A, 12 way switch 100 amps
individually programmable switches.
3. The maximum total current of this device is 60A. (12 way switch 100 amps)

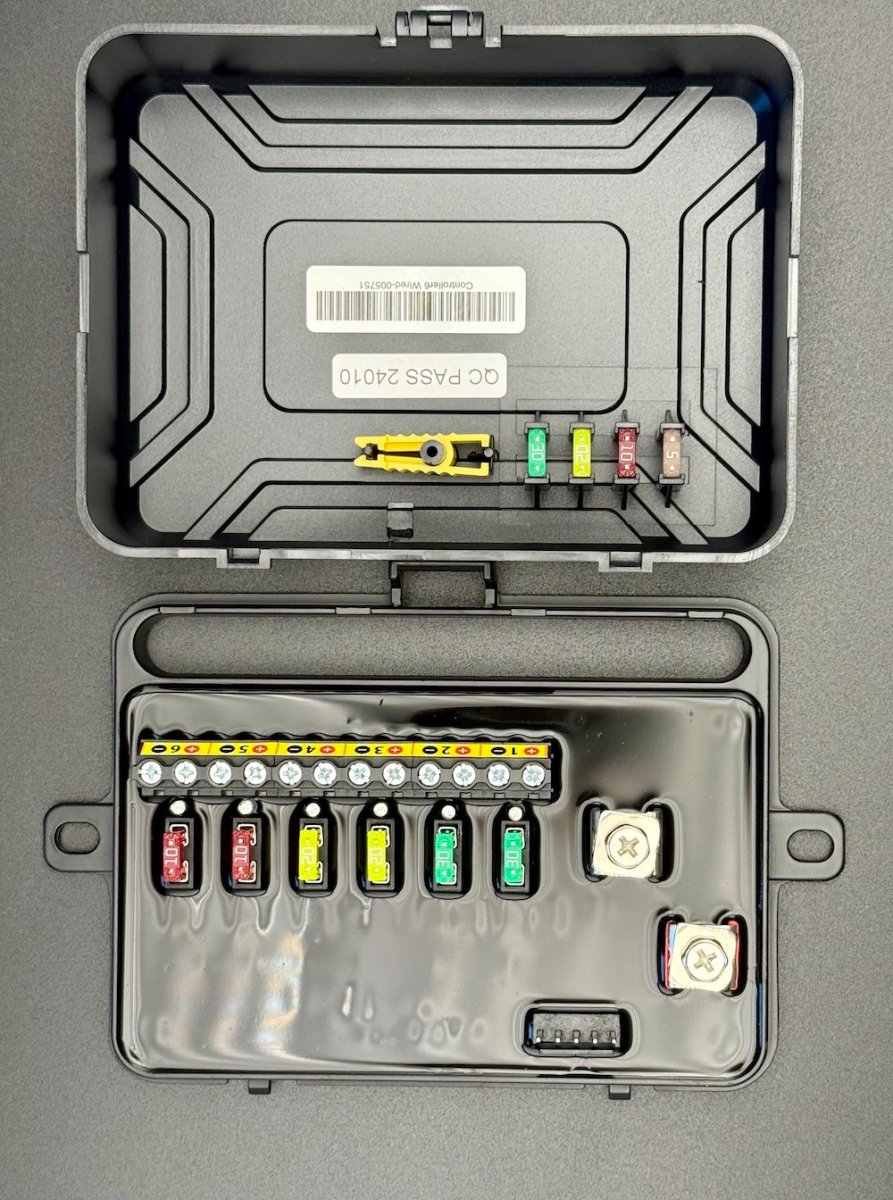

4. If the output has been overloaded, a red LED will indicate next to the blown fuse
5. Built-in Bluetooth for app control.
6. Protection against overheating, overload, short circuit, polarity protection.
7. Programmable icons.

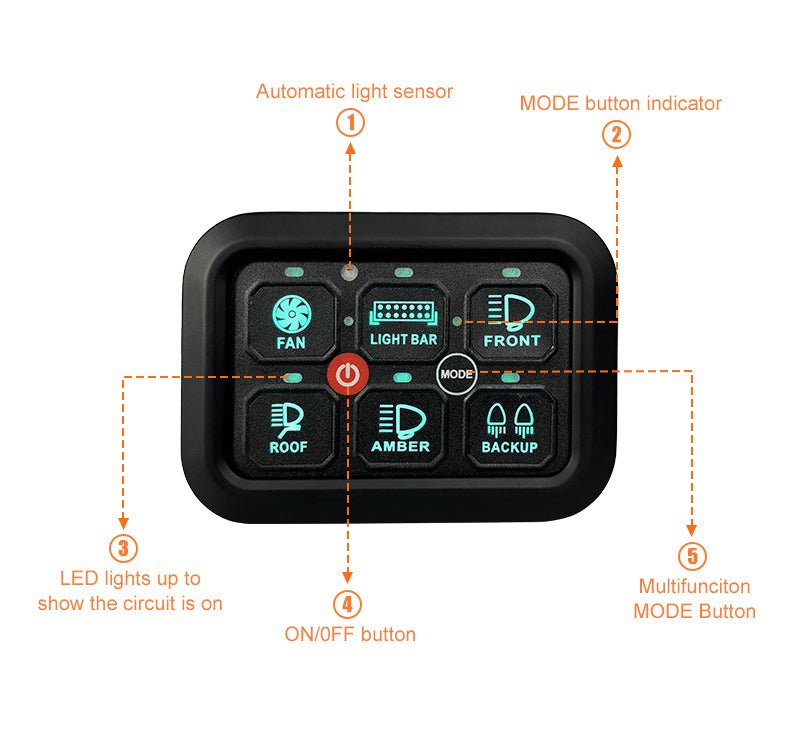

8. Backlight switches with selectable backlight colour.
9. LED indication for overload/broken fuse.
10. Each switch can be programmed for three different functions:
· Switch between On/Off
· Switch between On/Off as long as the button is pressed
· Strobe function
Alloy switch Base
Control cable 3.2 meters
For full specifications please see in box literature
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
FAQ
FAQ
Warranty Information
Product Warranty
At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.
Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.
For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.
To help us process your claim efficiently, please provide:
- Your invoice or proof of purchase
- Product part number
- Details of the fault
- Supporting photographs where possible
Warranty Exclusions
The warranty does not cover faults or damage resulting from:
- Accidental damage, impact, collision, storm damage, or other external influences
- Incorrect installation, misuse, neglect, or improper operation
- Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
- Normal wear and tear or environmental deterioration
SRH Lighting reserves the right to inspect products before approving any warranty claim.
Please refer to our Terms & Conditions for full warranty details.
Condensation
A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.
As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.
To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.
Paint & Surface Finish
Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.
Regular cleaning and maintenance are recommended, particularly in harsh operating environments.
Installation & Mounting
Products should always be mounted securely and in accordance with the manufacturer’s recommendations.
Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.
Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
