8-Way Wireless Switch Panel with Bluetooth Smartphone Control – 12/24V
Three Ways to Take Control. Eight Channels. One Smart Solution.
Take control of your vehicle’s electrical accessories with this versatile 8-Way Switch Panel System. Combining a wired alloy dashboard switch panel, a dedicated wireless controller and Bluetooth smartphone connectivity, it offers three convenient ways to operate up to eight separate accessory circuits.
Compatible with iOS and Android smartphones, the system allows all eight channels to be controlled directly through a dedicated smartphone app. The rechargeable wireless controller provides additional flexibility, while the wired dashboard panel offers convenient in-cab operation.
Ideal for managing driving lights, LED light bars, air compressors, fridges and other electrical accessories, the system is designed to provide flexible control across a wide range of 12–24V vehicle applications.

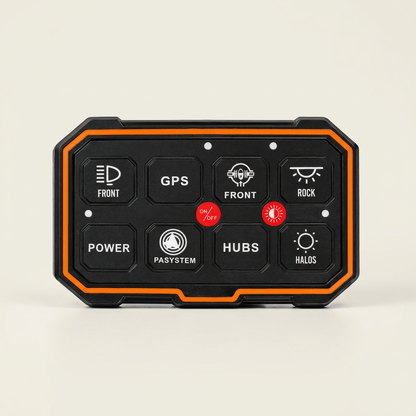

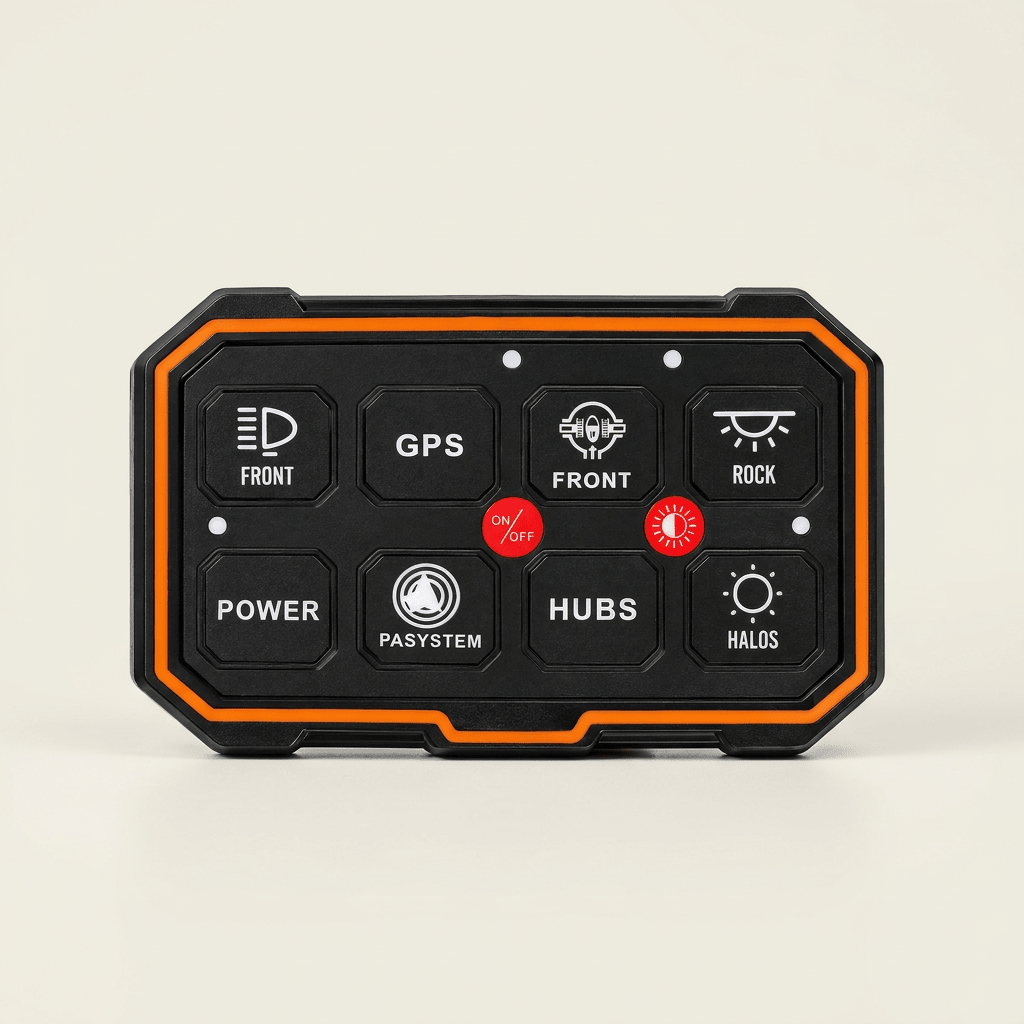

Each channel can be individually configured for latching, momentary or strobe operation, making it suitable for a variety of accessories and applications. The wired panel features customisable full-colour RGB backlighting with automatic brightness adjustment, combining practical functionality with a modern appearance.
With multiple control options and eight independently configurable outputs, this is a versatile solution for anyone looking to simplify the management of vehicle lighting and electrical accessories.
Key Features
Eight independent output channels for controlling multiple accessories.
Bluetooth smartphone control using compatible iOS and Android apps.
Three control options: wired dashboard panel, dedicated wireless controller and smartphone app.
12–24V DC operation for a wide range of vehicle applications.
Three selectable operating modes: latching, momentary and strobe, configurable per channel.
Customisable RGB backlighting with 360 colour options and automatic brightness adjustment on the wired panel.
433.92 MHz wireless controller with a range of up to 30 metres in open areas.
Rechargeable wireless controller with USB-C charging.
IP65 ingress protection.
Operating temperature: -20°C to +80°C.
SPECIFICATION
SPECIFICATION
SpecificationDetails
Operating voltage12–24V DC
Output channels8Channel ratings2 × 30A, 2 × 20A, 2 × 10A, 2 × 5A
Standard total system load60AOutput modesLatching / Momentary / Strobe
Smartphone compatibilityiOS and AndroidWireless controller frequency433.92 MHz
Wireless controller rangeUp to 30m in open areas
Remote batteryRechargeable 1,500mAh lithium-ion
Charging connectionUSB-C
Approximate charging time3 hours
Ingress protectionIP65
Operating temperature-20°C to +80°C
Individual channel ratings and the total system load must not be exceeded. Wireless range may be reduced by metal bodywork and other obstacles.

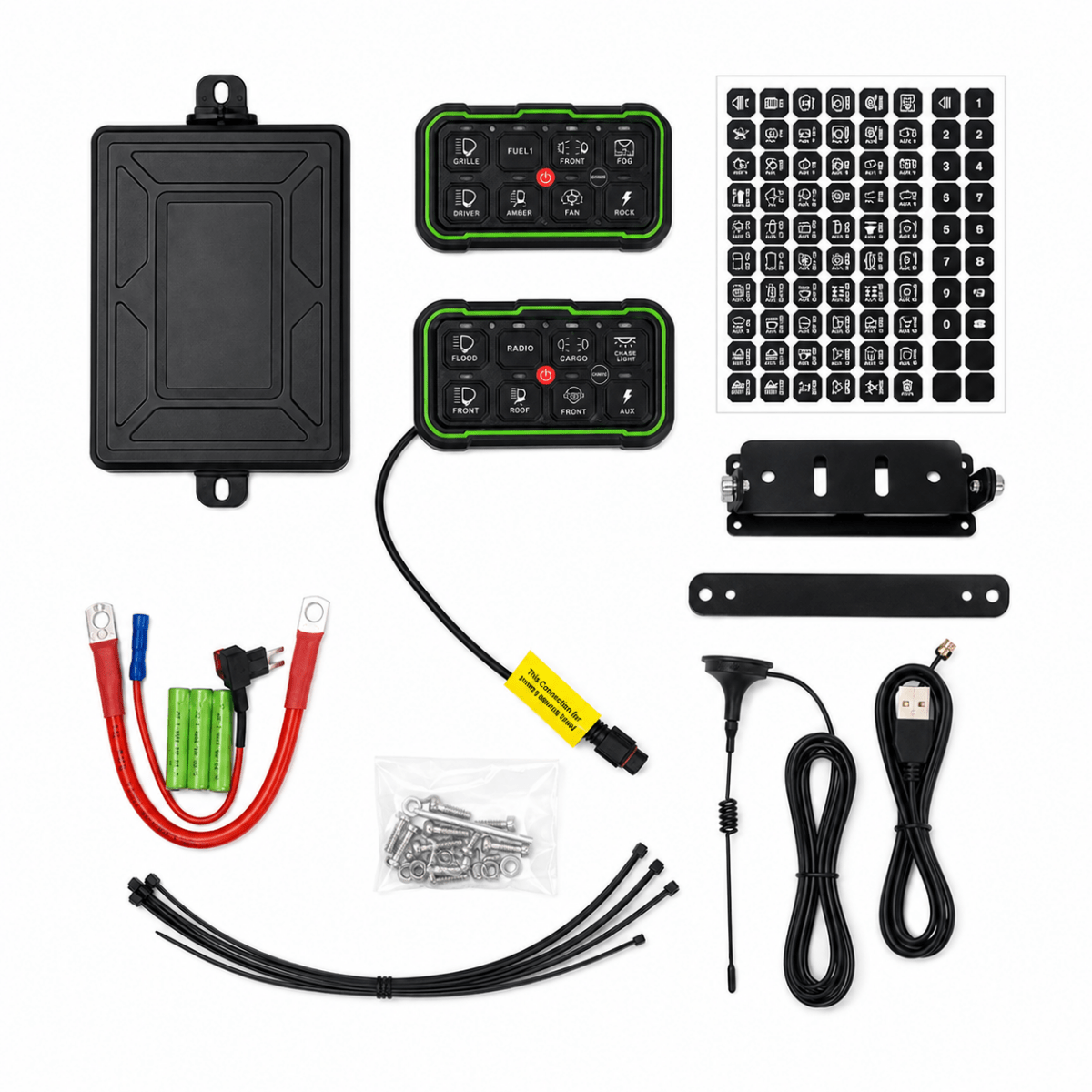

Supplied complete with: control box, wired aluminium switch panel, rechargeable wireless controller, USB-C charging cable, wiring harness set, copper power cables, circuit breaker, mounting screws and key legend stickers.
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
