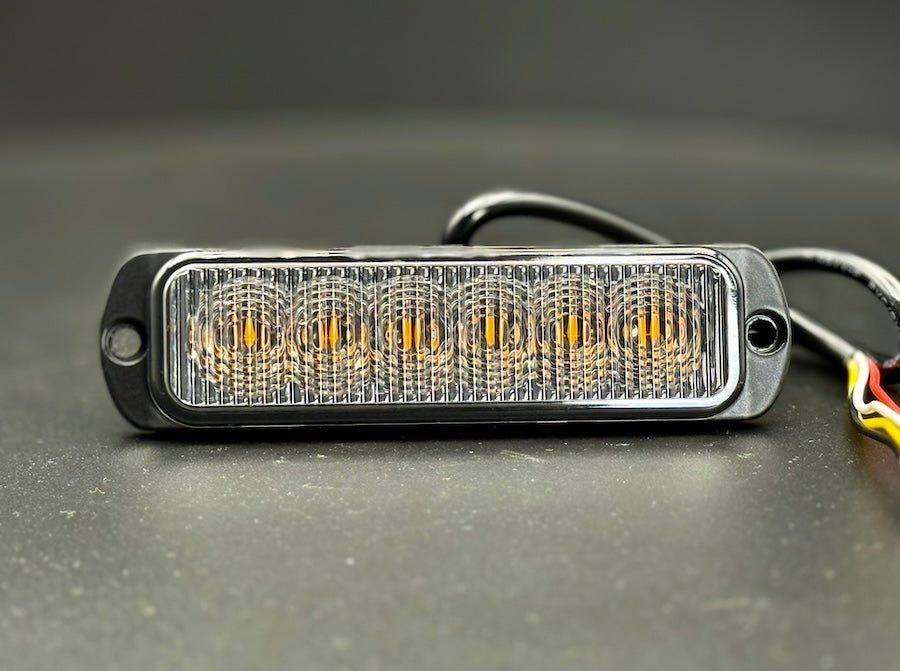

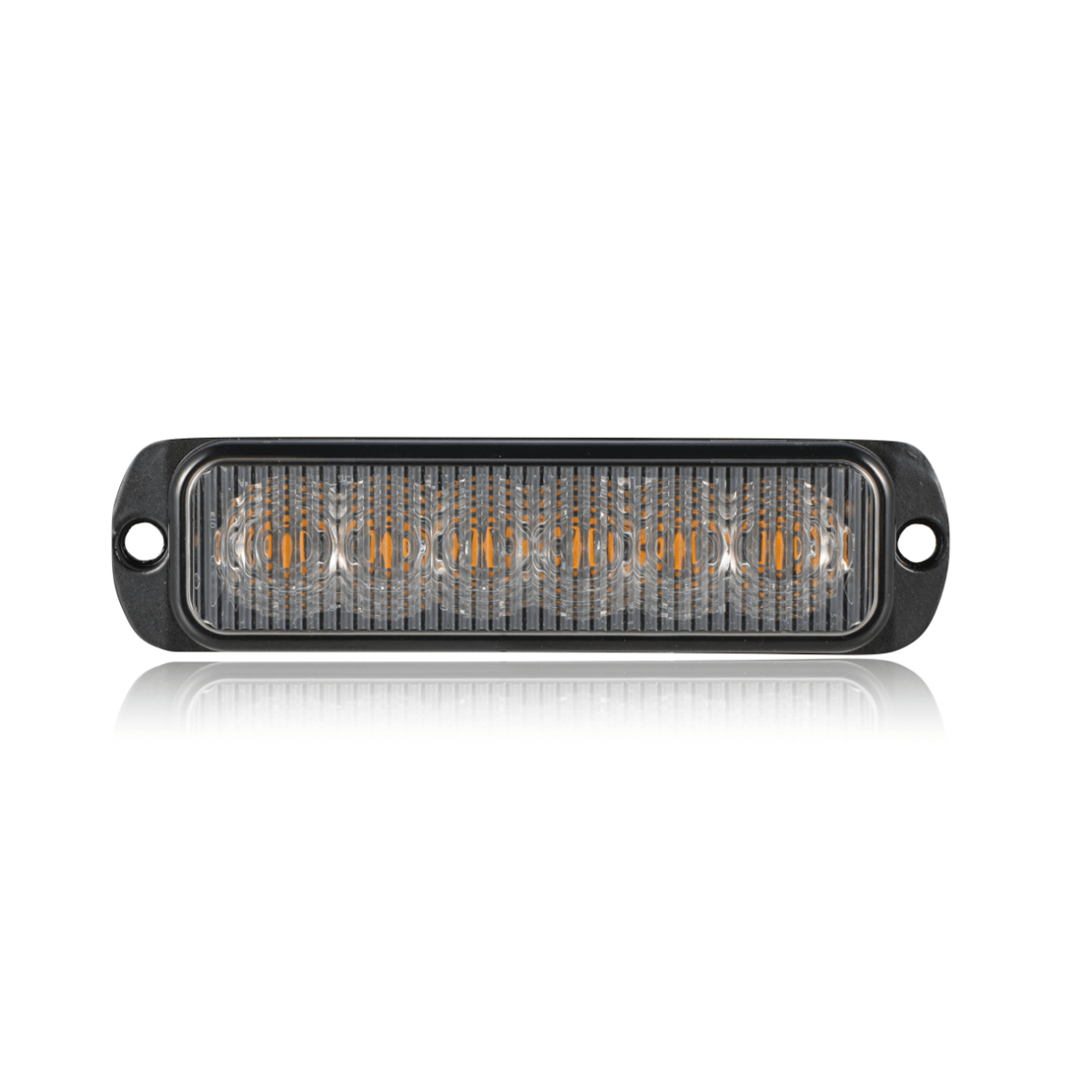

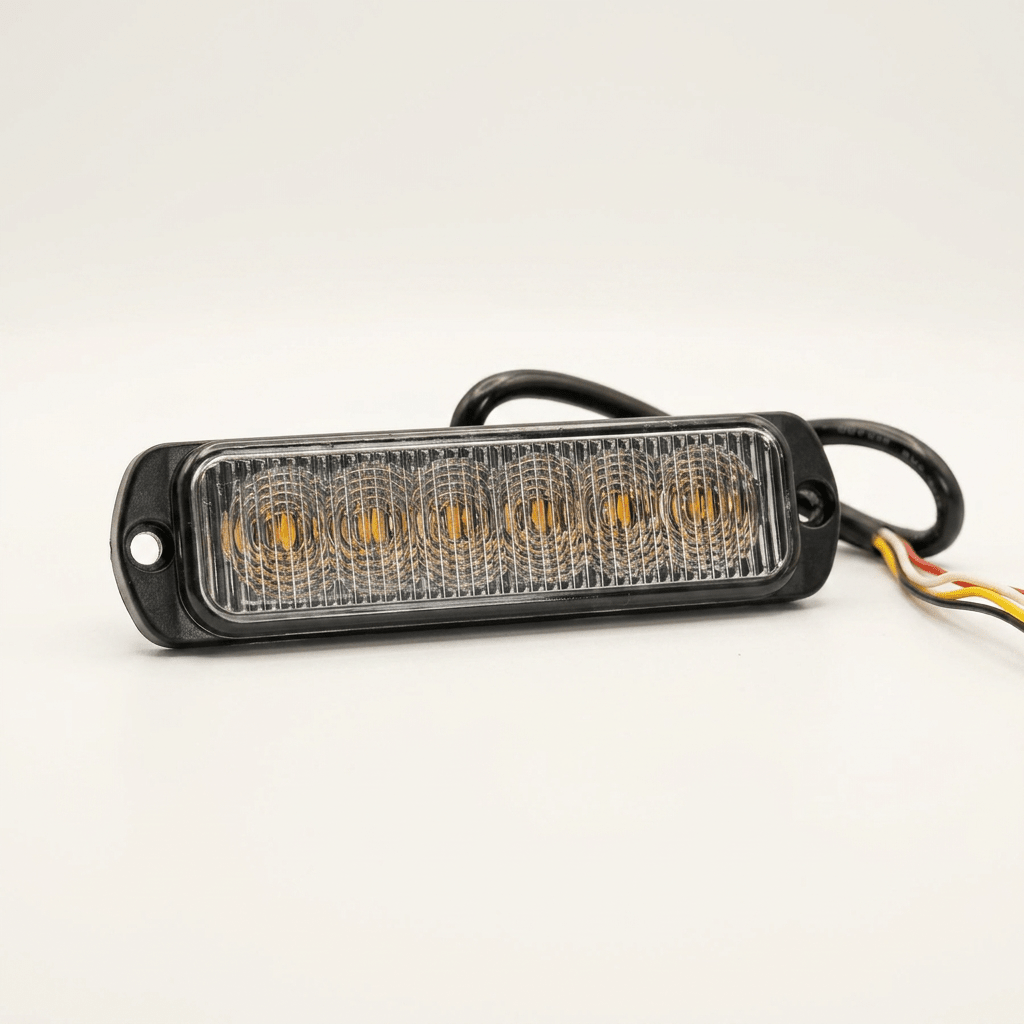

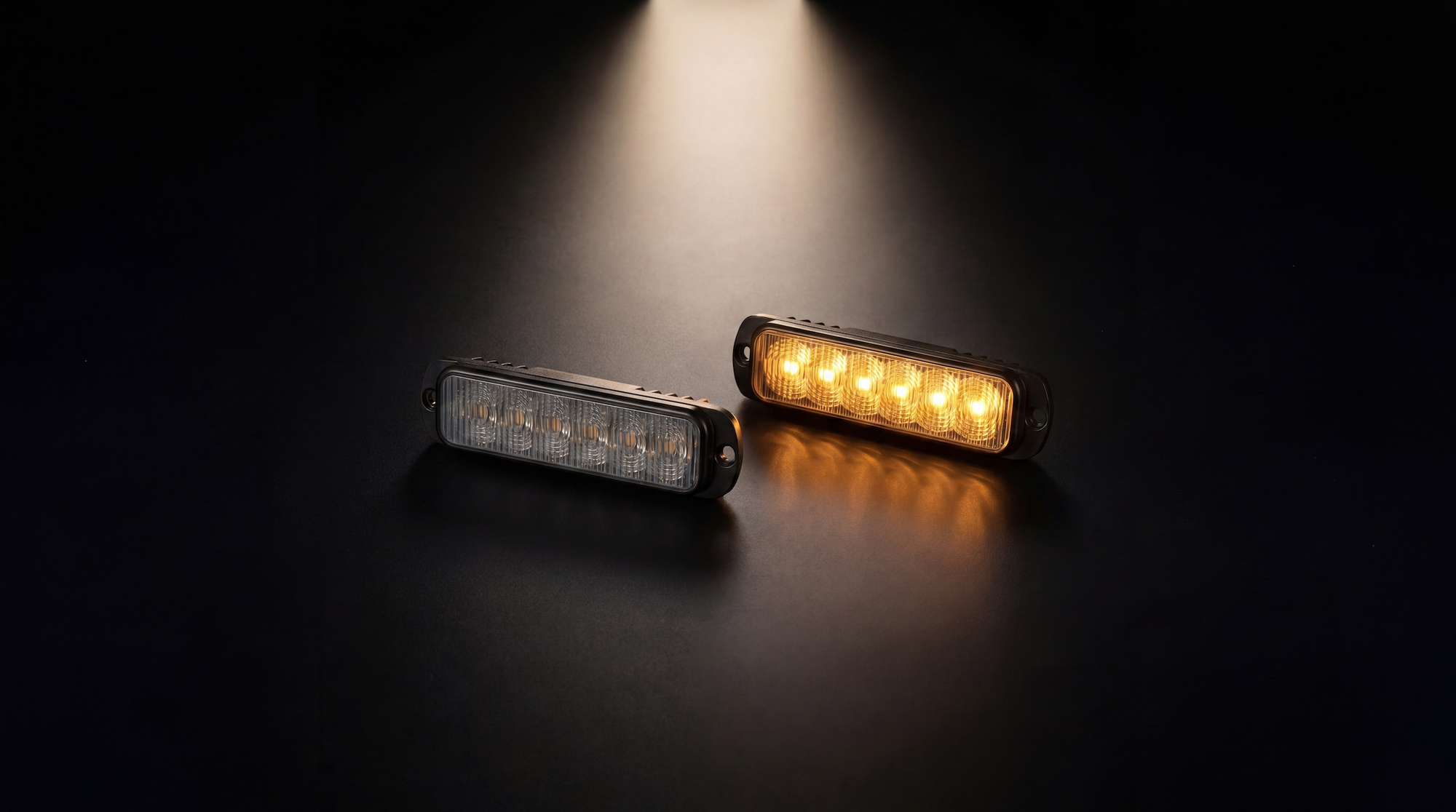

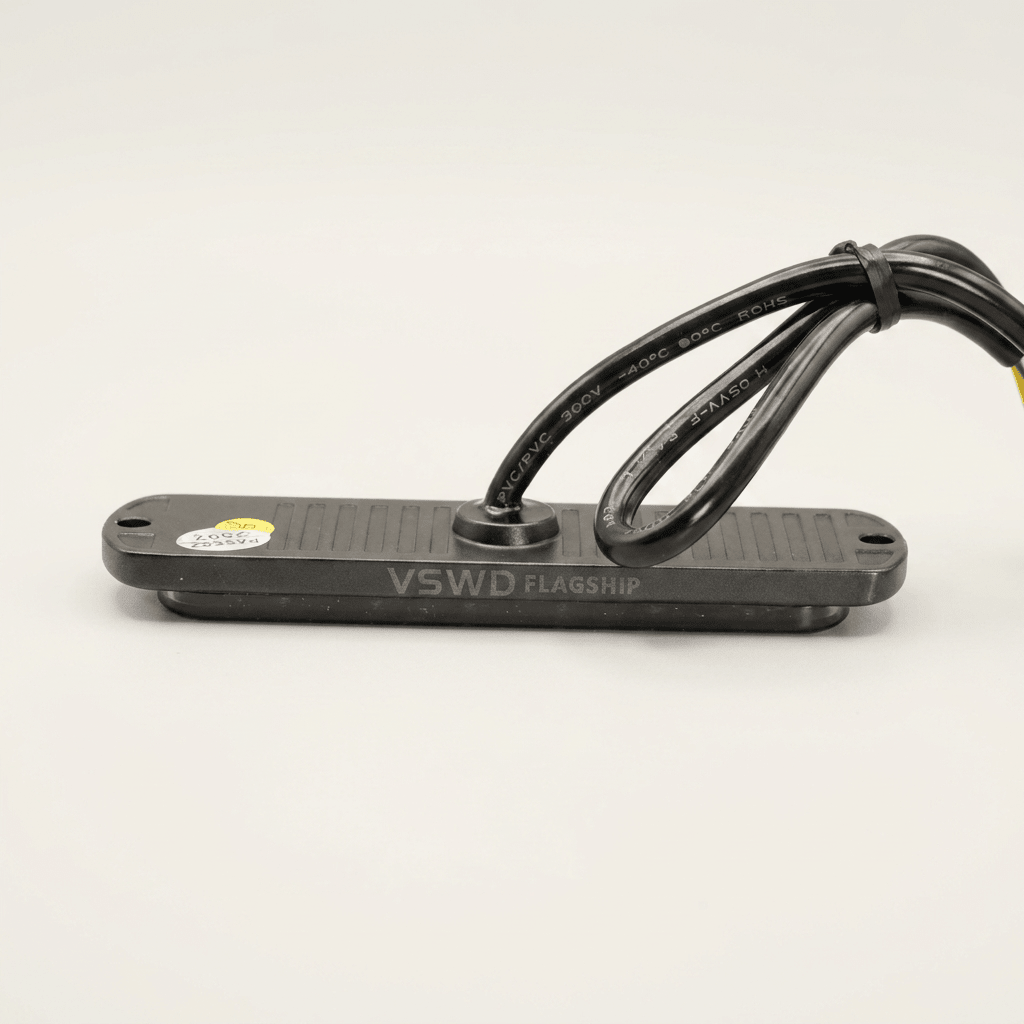

6H711-AS 6-way LED warning light Smoked Lens
6H711-AS 6-way LED warning light Smoked Lens
SKU:VSWD-6H711-AS
VSWD
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
Versatile lighting for safety needs
The 6H711-AS 6-way LED warning light with a smoked lens is a vital addition to your safety equipment. Designed for use in various applications, this light is suitable for emergency vehicles, construction sites, and more. Its compact size and easy installation make it ideal for tight spaces where visibility is crucial.
Reliable performance with low power
Featuring energy-efficient LED technology, this warning light ensures low power consumption while providing high brightness. The six-directional design offers optimal coverage, making sure that your presence is visible from all angles. Built to withstand harsh conditions, the rugged construction ensures durability over time.
Sleek design with effective functionality
The smoked lens gives a subtle look while still delivering powerful illumination when needed. Its modern design complements any vehicle or equipment without being obtrusive. Whether used on the road or on-site, this warning light guarantees you can signal alerts effectively, enhancing safety in various environments.
SPECIFICATION
SPECIFICATION
- Flash Patterns 26Patterns
- Approvals ECE R10, ECE R65
- Voltage 9-30v
- IP Rating IP69k
- LEDs 6 LEDs
- Colours Amber
- Mounting Bolt
- Additional Features Sync wire
- Dimensions 113 x 29 x 10m LxWxD
- Housing Material Aluminium
- Lens Material Polycarbonate
- Max qty. of Sync'd heads : 12 units
- With memory function
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION

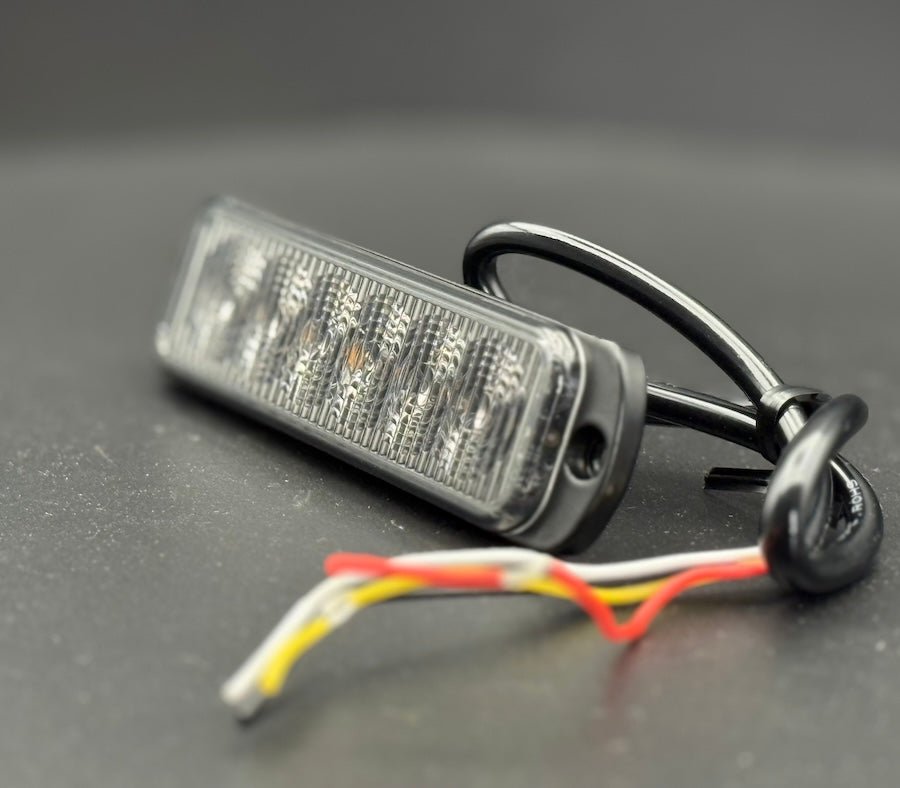

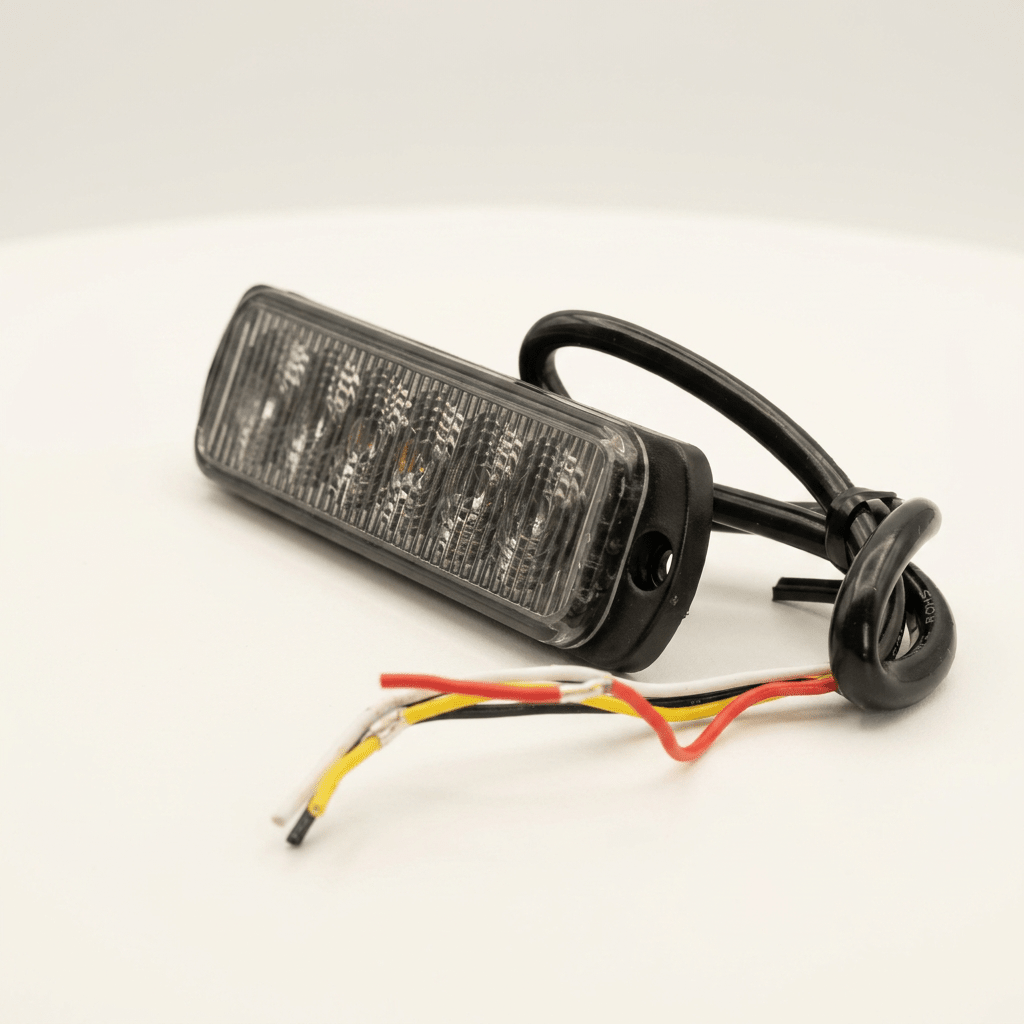

Wiring:-
Red ... +VDC
Black ... Ground
Yellow ... Pattern selection + Synchronisation
For pattern select apply yellow to red wire
Less than 1s for next pattern
1 - 3s for pervious pattern
3 - 5s back to pattern 1
Over 5s for low power, press again over 5s to resume high power.
Synchronisation : Connect yellow wires of all heads together for synchronisation
WHITE ... Alternate selection
Firstly connect white wires of all heads together
Second connect white wires of group A and constantly connect to red wires, and leave others as Group B. The Group A and B will archive alternating flash
Disconnecting white wire will be back to synchronisation
