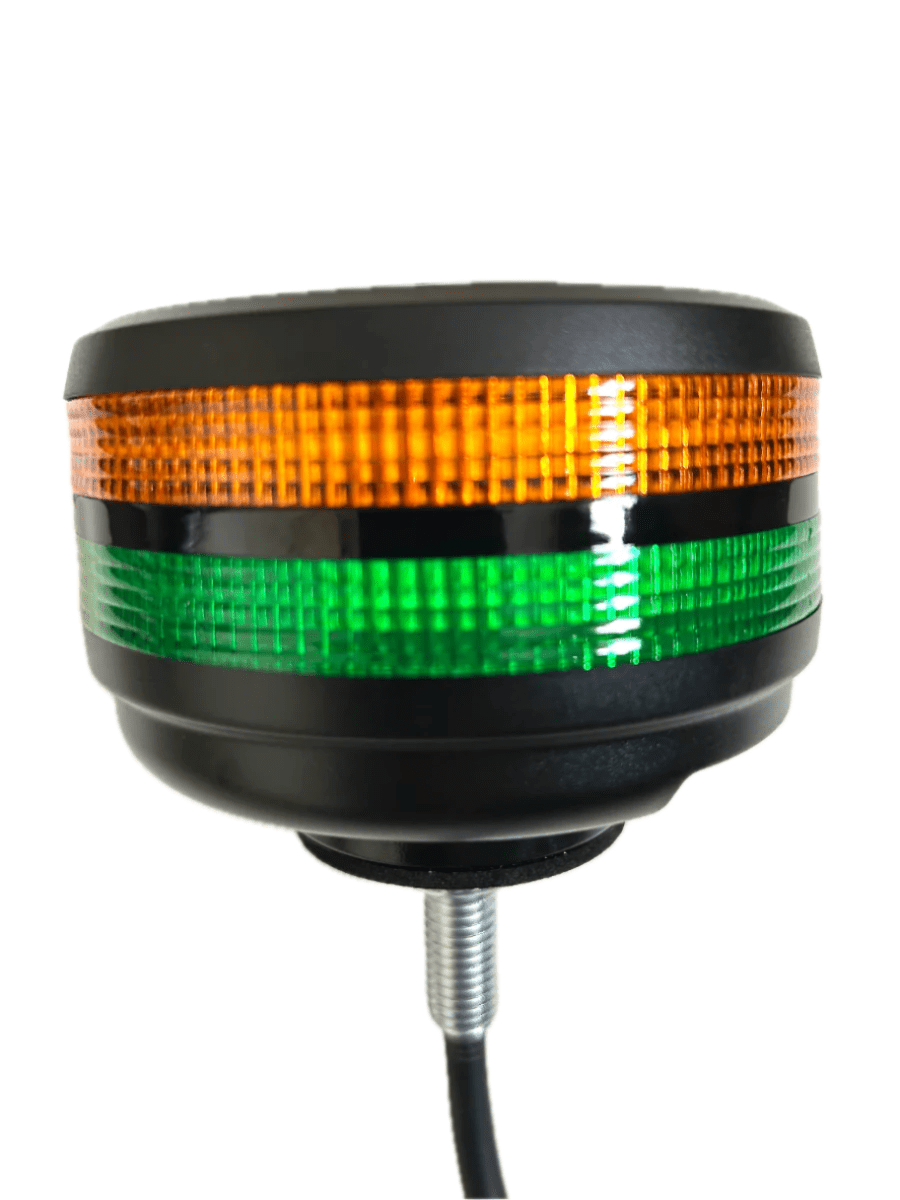

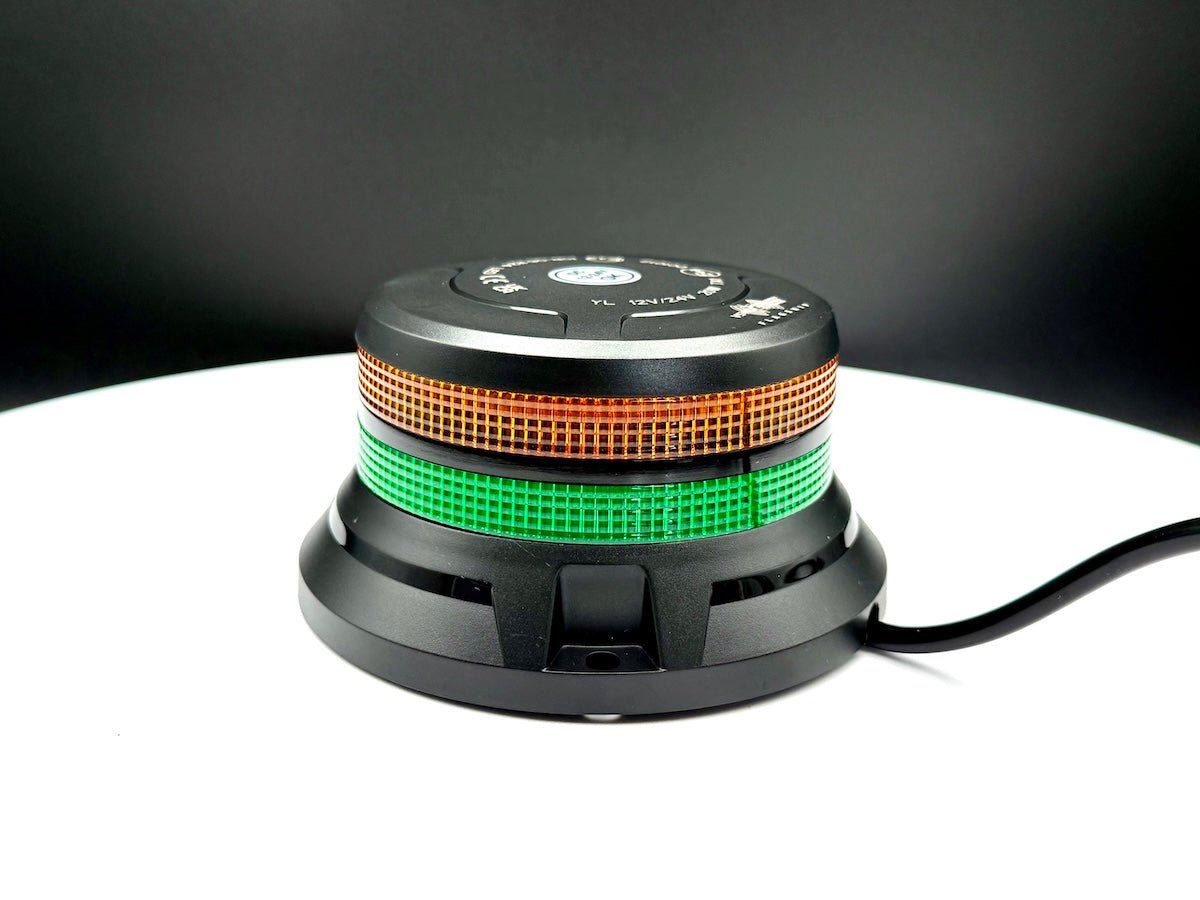

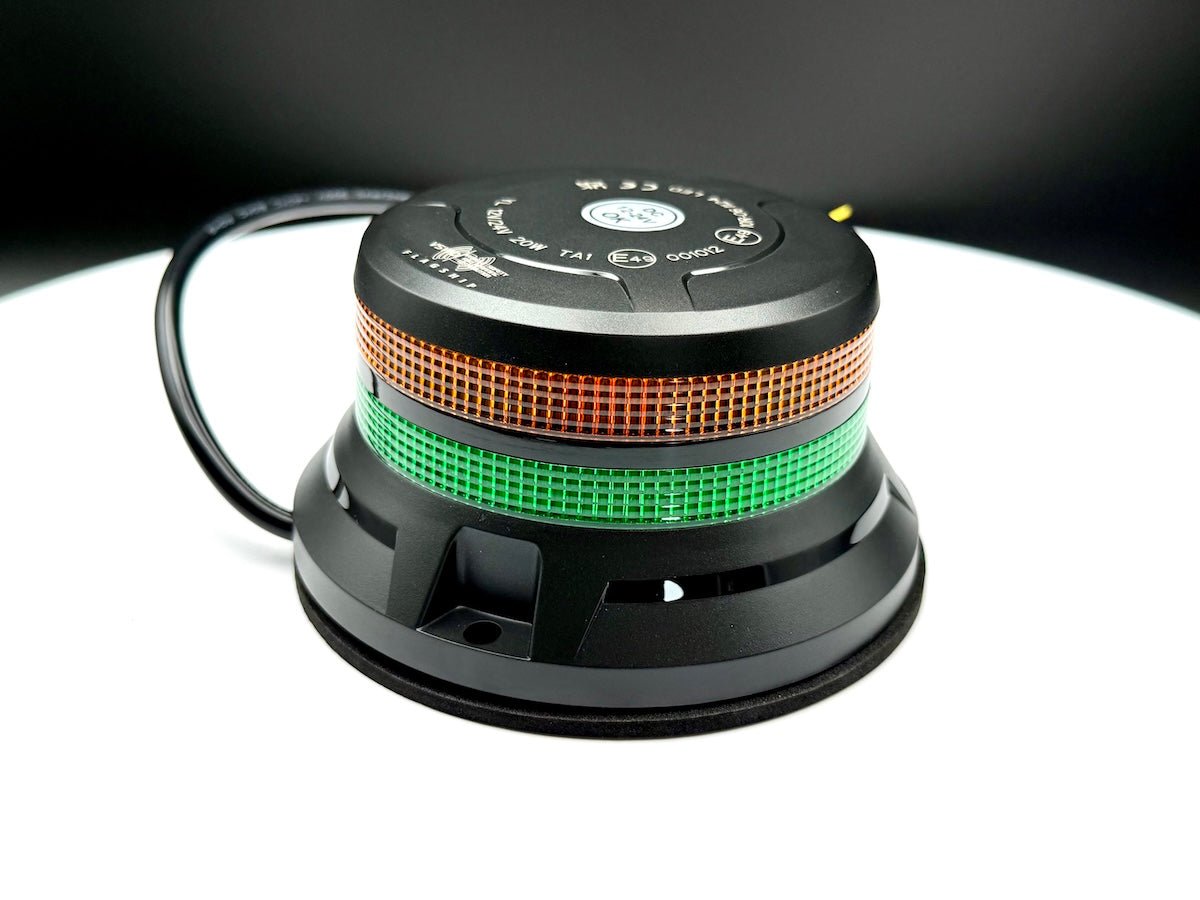

233 Series dual colour (amber/green) beacon "Flagship" Brand
233 Series dual colour (amber/green) beacon "Flagship" Brand
SKU:233-1B-AG
VSWD
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
The New 233 series beacon is a compact dual colour beacon designed for current safety requirements.FLAGSHIP Brand product

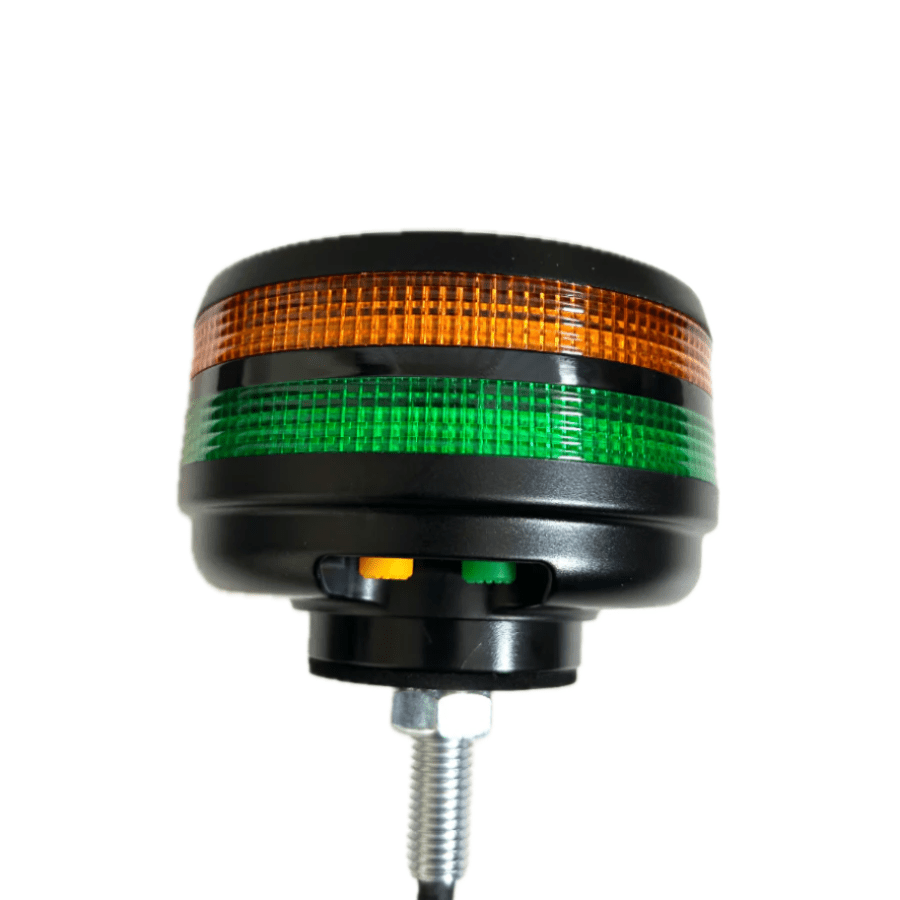

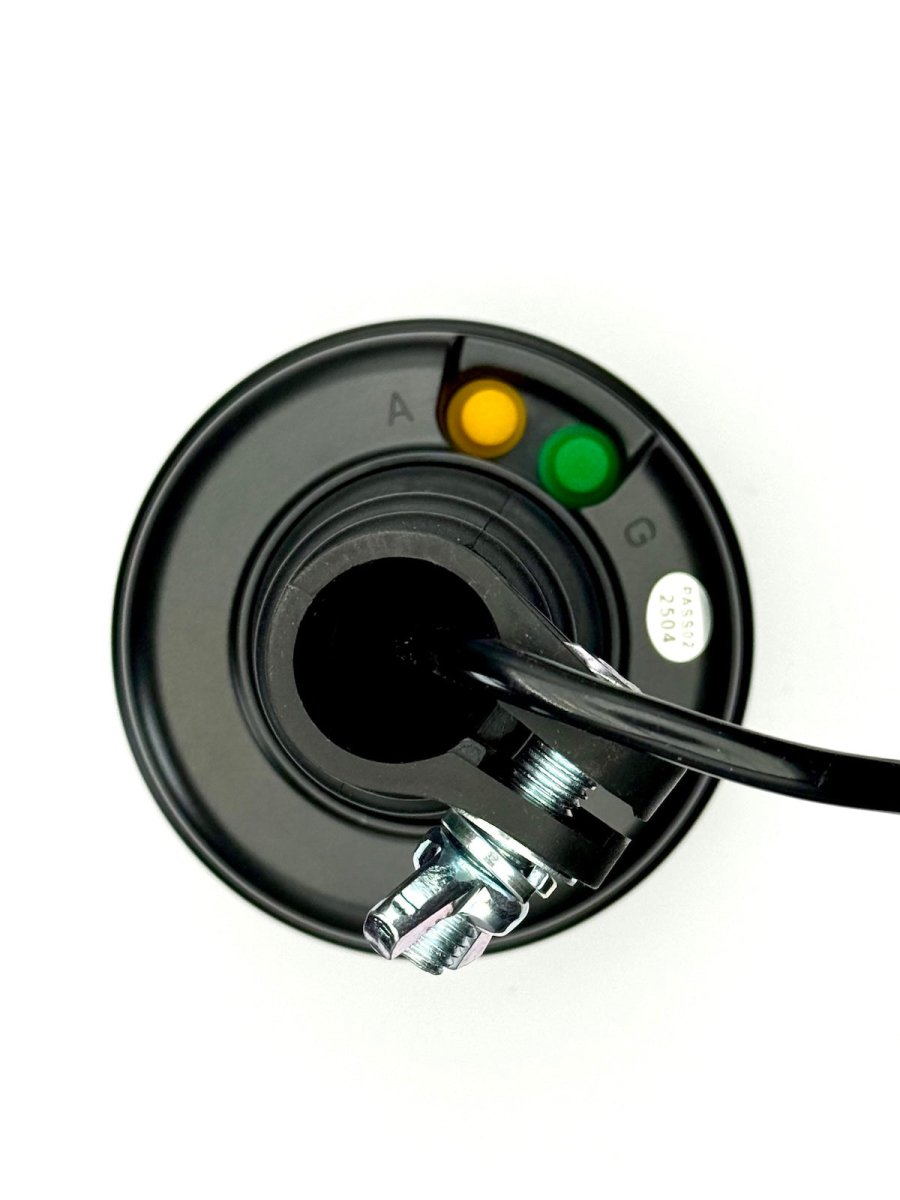

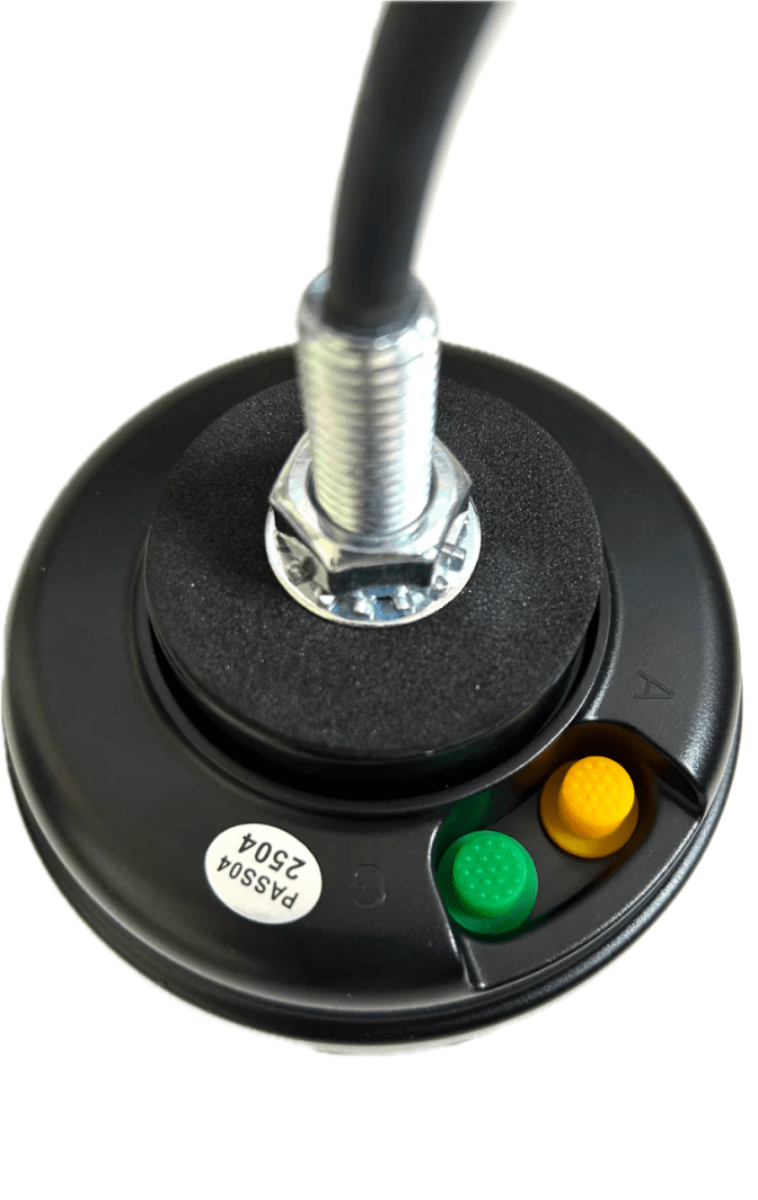

The green portion of the beacon is quite unique as it allows you to operate it on steady burn reducing the confusion of both amber and green flashing especially when the green is usually an indicator the the operator has the seat belt fastened. the flash pattern can be selected via button on the underside of the beacon or via fixed wiring option. See attached PDF for full details
SPECIFICATION
SPECIFICATION
- Flash Patterns 4 Patterns

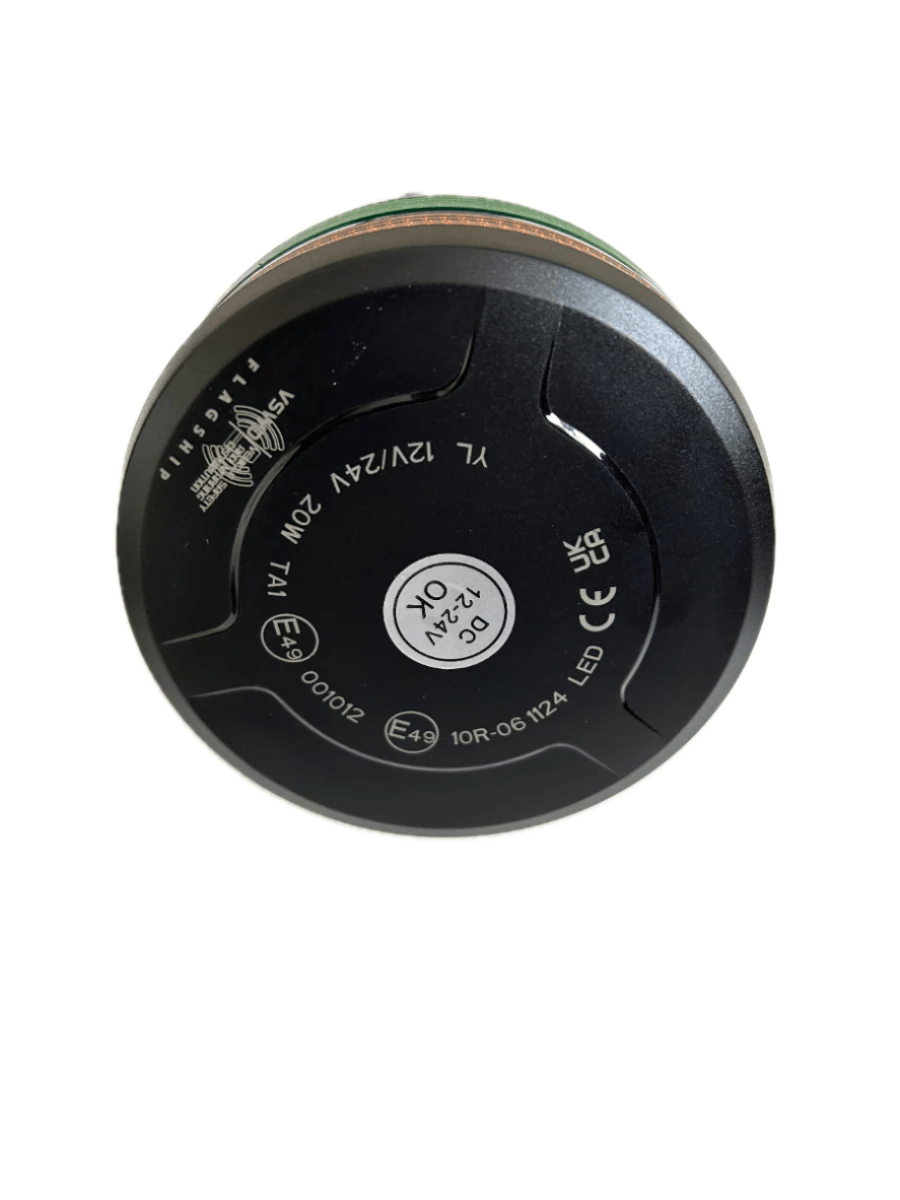

- Approvals ECE R10, ECE R65 TA1 (Amber) Meets SAE J845 Class 1, CISPR 25 class 3
- Voltage 12-24v
- IP Rating IP67
- LEDs 24 LEDs Amber 24 LEDs Green
- Colours Dual Colour Amber/Green

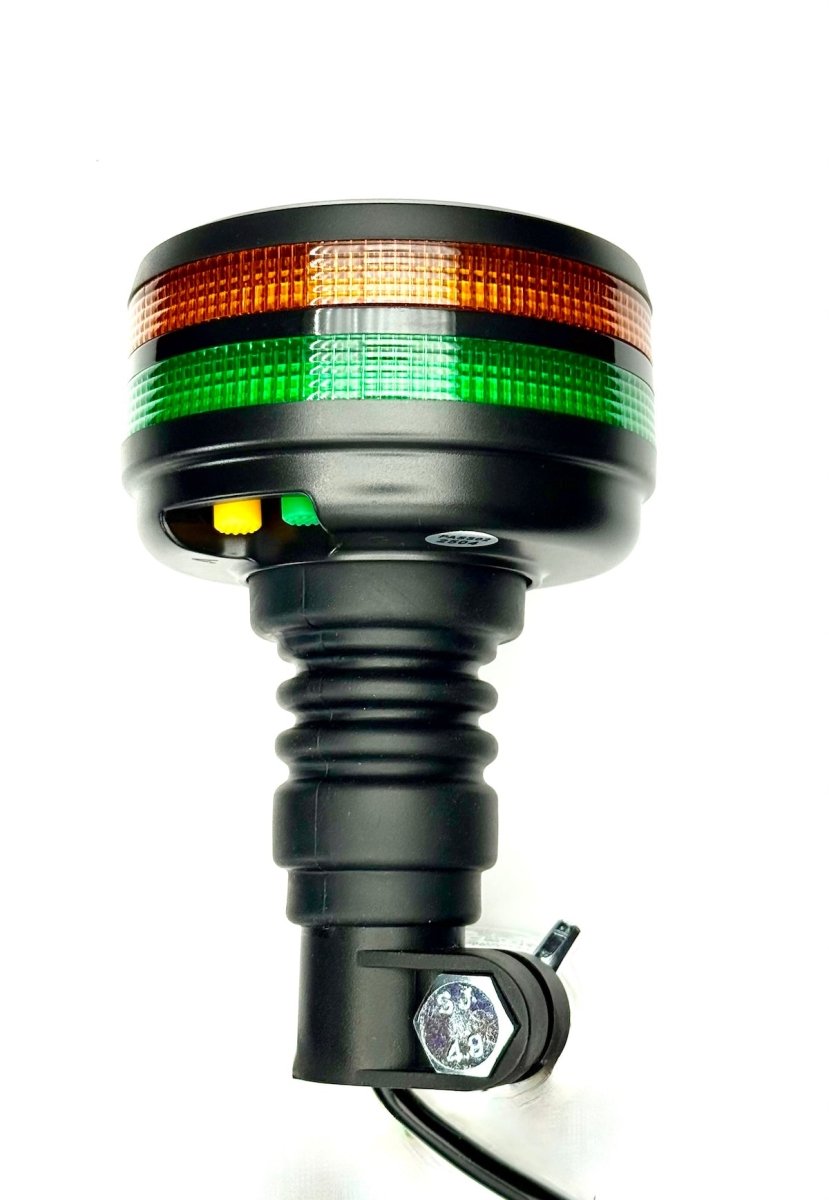

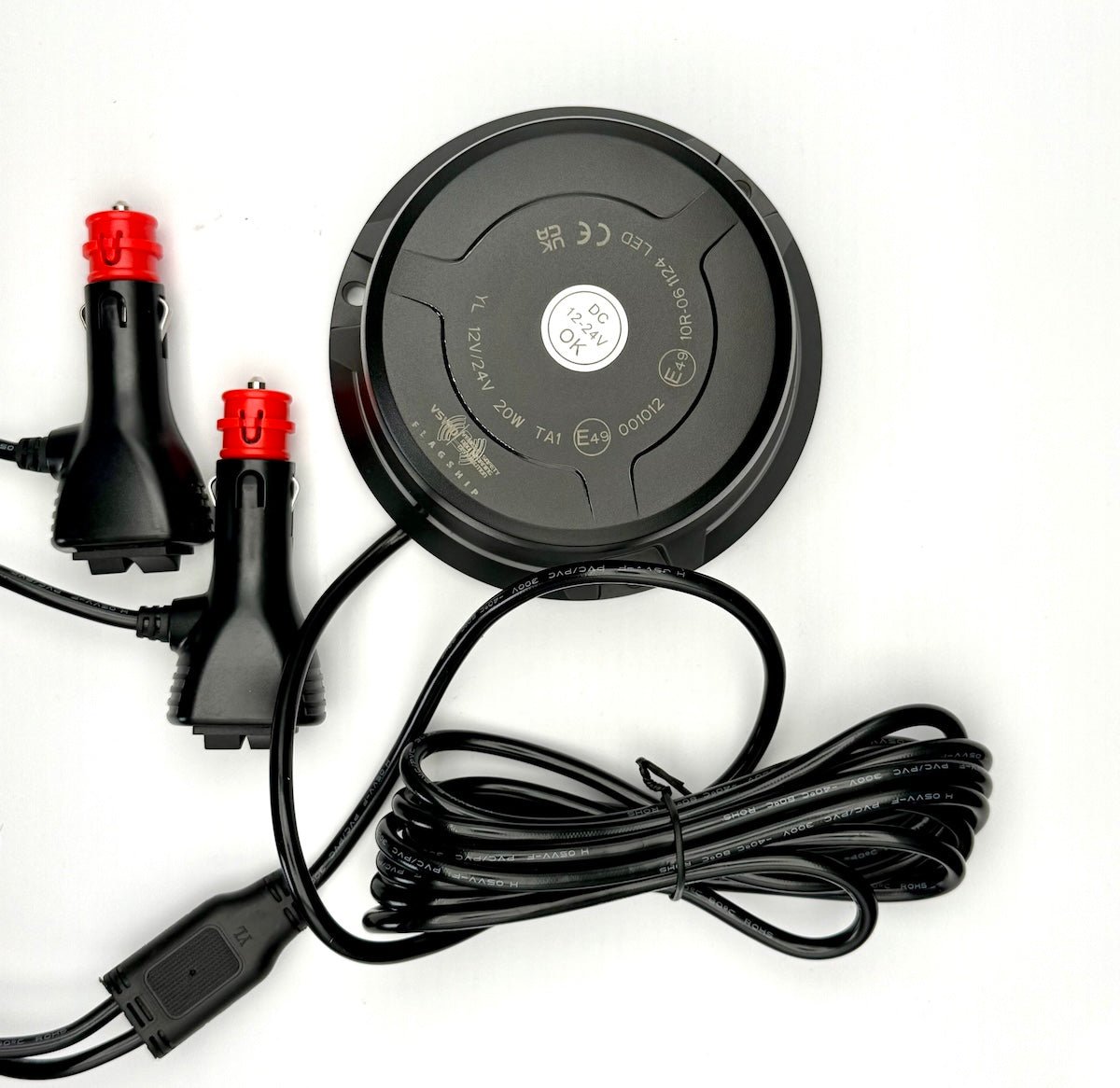

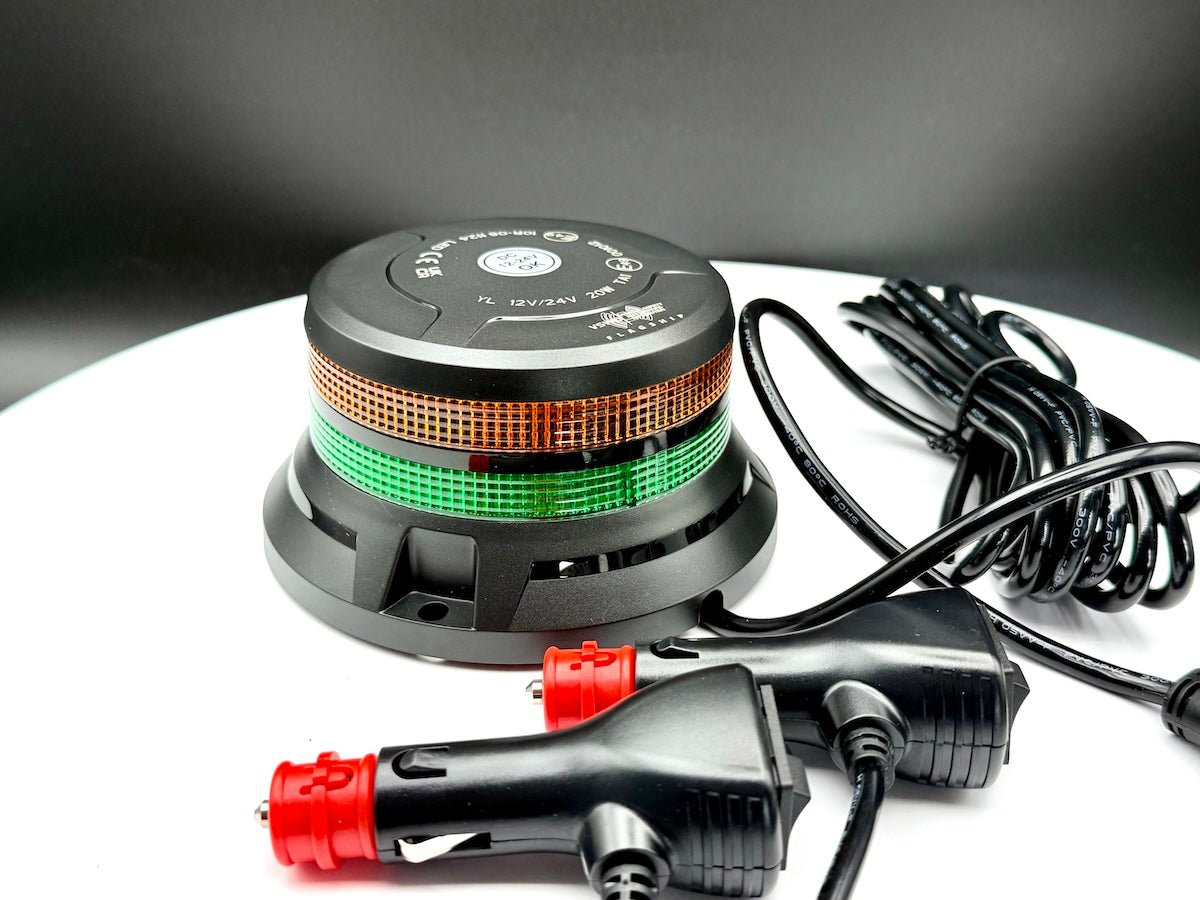

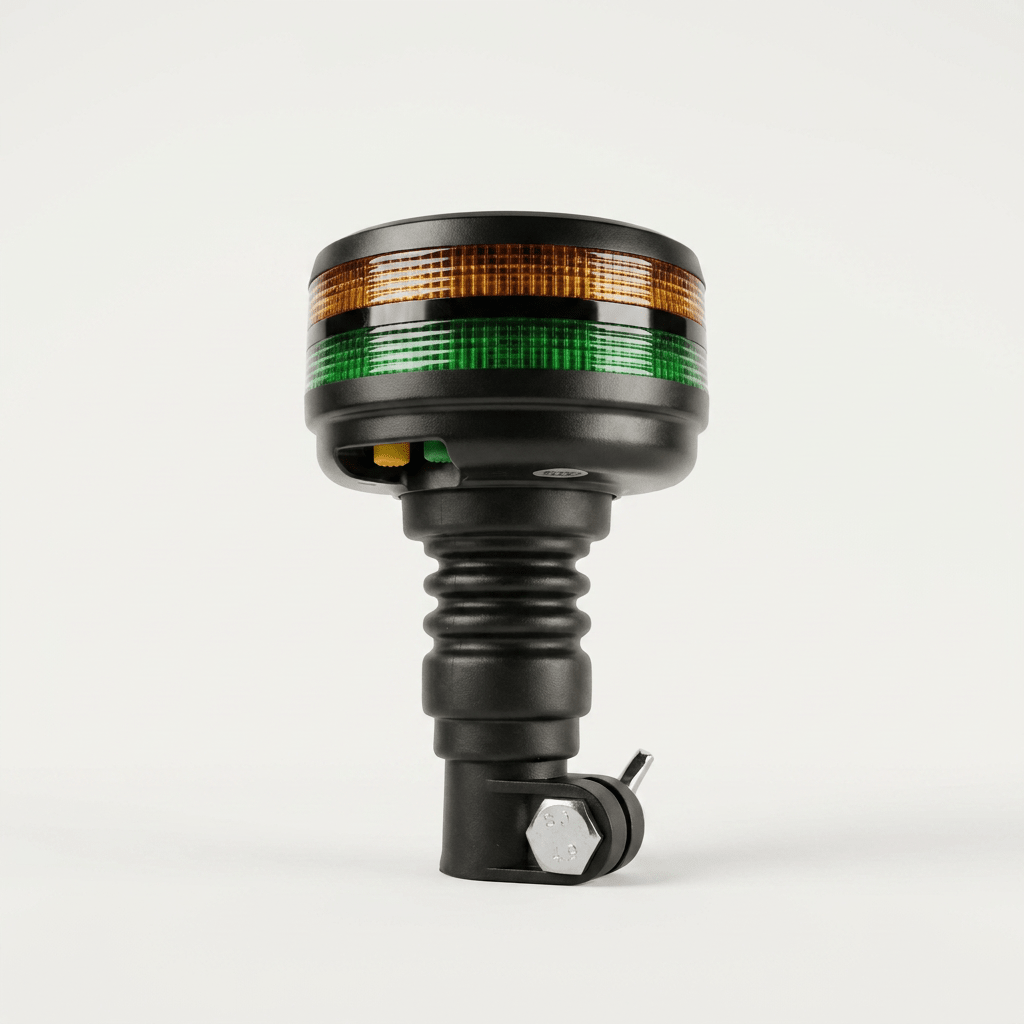

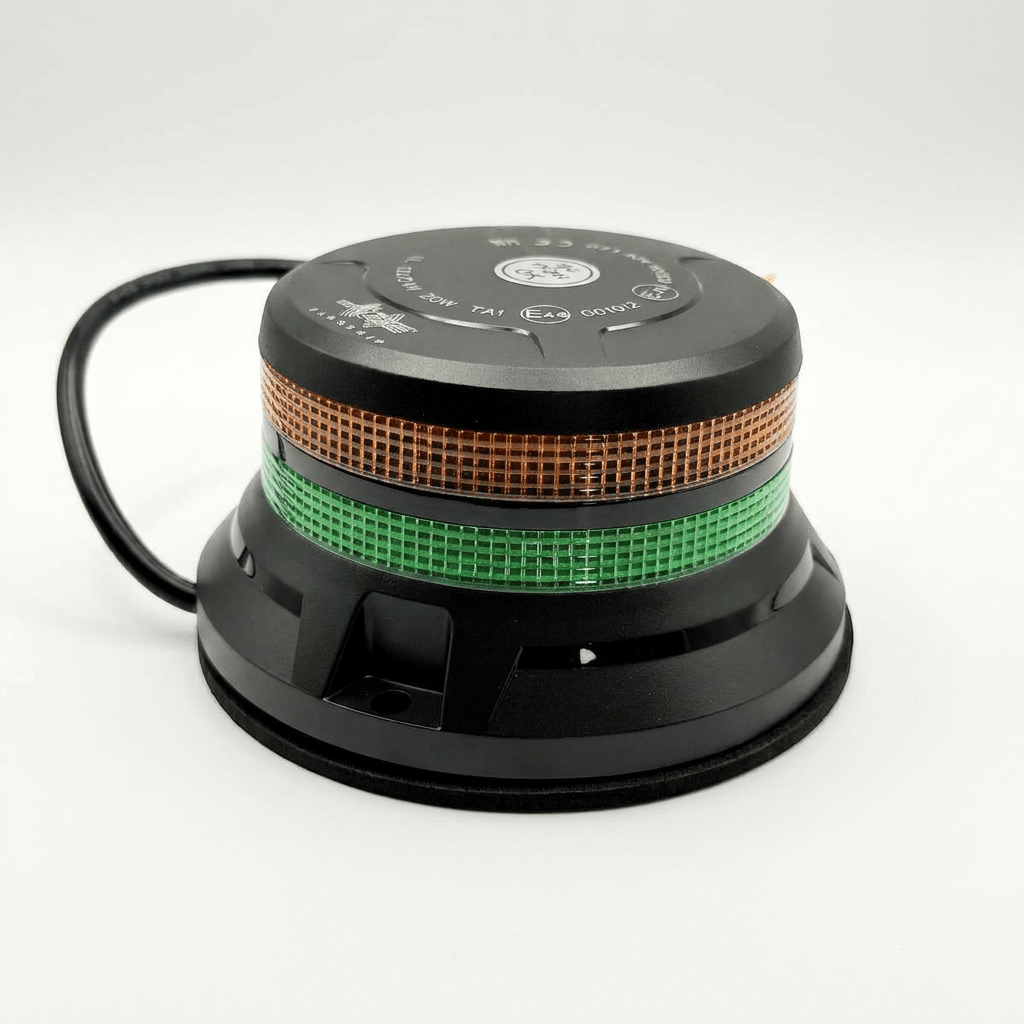

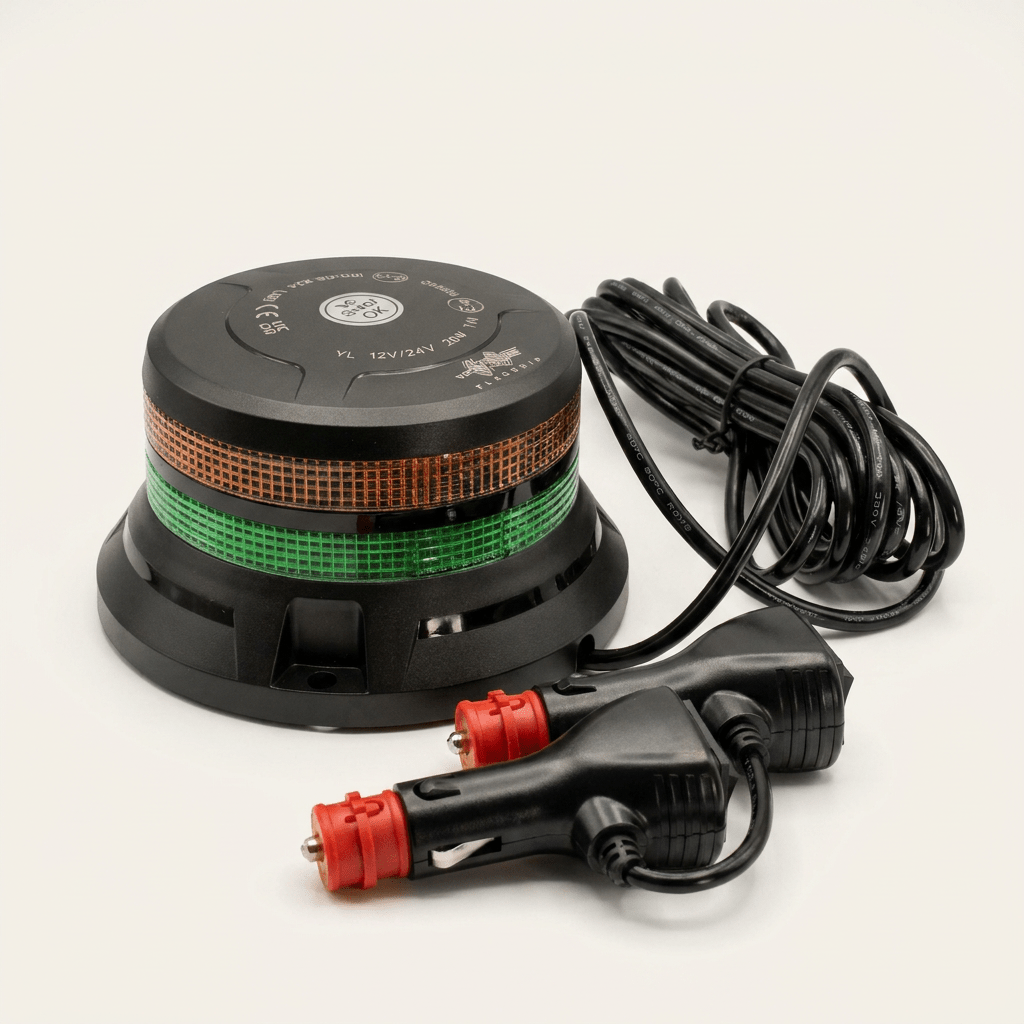

- Mounting Various, see above
- Additional Features Green steady on, pattern, Sync
- Dimensions 156 x 128 mm maximum
- Housing Material Polycarbonate
- Lens Material Polycarbonate
INSTALLATION & CARE
INSTALLATION & CARE
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
FAQ
FAQ
Warranty Information
Product Warranty
At SRH Lighting, we pride ourselves on supplying quality products backed by reliable customer support. If you experience a fault with a product purchased from us, it may be covered under warranty subject to the conditions outlined below.
Unless otherwise stated, products are covered by a 24-month warranty period from the original invoice date.
For assistance with a warranty claim, please contact our team by phone or email. We will be happy to guide you through the process and advise on the next steps.
To help us process your claim efficiently, please provide:
- Your invoice or proof of purchase
- Product part number
- Details of the fault
- Supporting photographs where possible
Warranty Exclusions
The warranty does not cover faults or damage resulting from:
- Accidental damage, impact, collision, storm damage, or other external influences
- Incorrect installation, misuse, neglect, or improper operation
- Unauthorised modifications or alterations to the product, including rewiring, repainting, or dismantling
- Normal wear and tear or environmental deterioration
SRH Lighting reserves the right to inspect products before approving any warranty claim.
Please refer to our Terms & Conditions for full warranty details.
Condensation
A small amount of condensation inside a lamp can occur naturally due to changes in temperature and humidity and is not considered a manufacturing defect.
As lamps warm up during operation, moisture present in the air inside the unit may condense when it comes into contact with cooler surfaces such as the lens. Products fitted with breathers are designed to minimise this effect by allowing airflow and pressure equalisation.
To ensure correct operation, breathers should be kept clear and free from paint, dirt, mud, or other obstructions.
Paint & Surface Finish
Damage to painted or coated surfaces caused by environmental factors such as road salt, grit, sand, chemicals, oxidation, or debris is considered external damage and is not covered under warranty.
Regular cleaning and maintenance are recommended, particularly in harsh operating environments.
Installation & Mounting
Products should always be mounted securely and in accordance with the manufacturer’s recommendations.
Installing lamps onto bull bars, push bars, light bars, or aftermarket mounting systems may increase vibration levels beyond normal operating conditions. Excessive vibration can lead to premature wear or failure of brackets and fixings, which is not covered under warranty.
Care must also be taken when tightening plastic mounting points or housings. Over-tightening can cause stress fractures or breakages and will be regarded as installation damage rather than a product defect.
