C704-A LED Corner hazard warning Module
C704-A LED Corner hazard warning Module
SKU:C704-A
VSWD
Couldn't load pickup availability

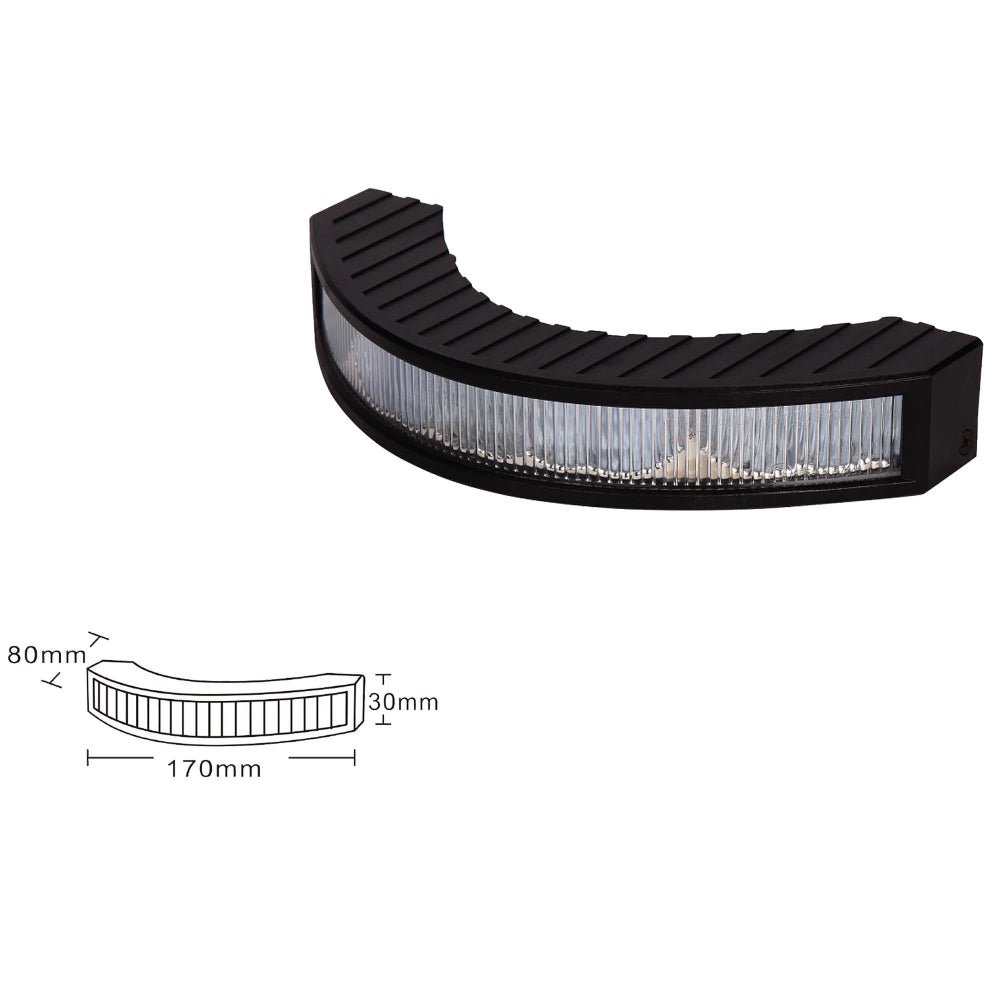

The C704-A LED Corner Module Strobe is engineered specifically for use in a comprehensive four-way lighting configuration.
Designed to be installed at each corner of a vehicle, this module ensures optimal visibility and coverage from all angles. Its precise placement enhances the overall effectiveness of the strobe system, providing reliable and consistent illumination critical for safety and signalling purposes in demanding environments.
Specification
Specification
- Flash Patterns 26 Patterns
- Approvals ECE R10 ECE R65
- Voltage 9-30v
- IP Rating IP67
- LEDs 12 LEDs
- Colour Amber
- Mounting Bolt or Bracket
- Additional Features Sync wire
- Dimensions 130 x 70 x 30mm
- Housing Material Polycarbonate
- Lens Material Polycarbonate
Installation and care
Installation and care
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
