HELLA LED Hazard Warning Corner Module 270 set
HELLA LED Hazard Warning Corner Module 270 set
SKU:2XD 455 355-001
Hella
Couldn't load pickup availability
Set of two modules is homologated as “half bar” (ECE R65 HTA1)
Wide angle coverage of at least 270° by using two modules
and 360° by using four modules
Synchronisation of 2 or 4 modules

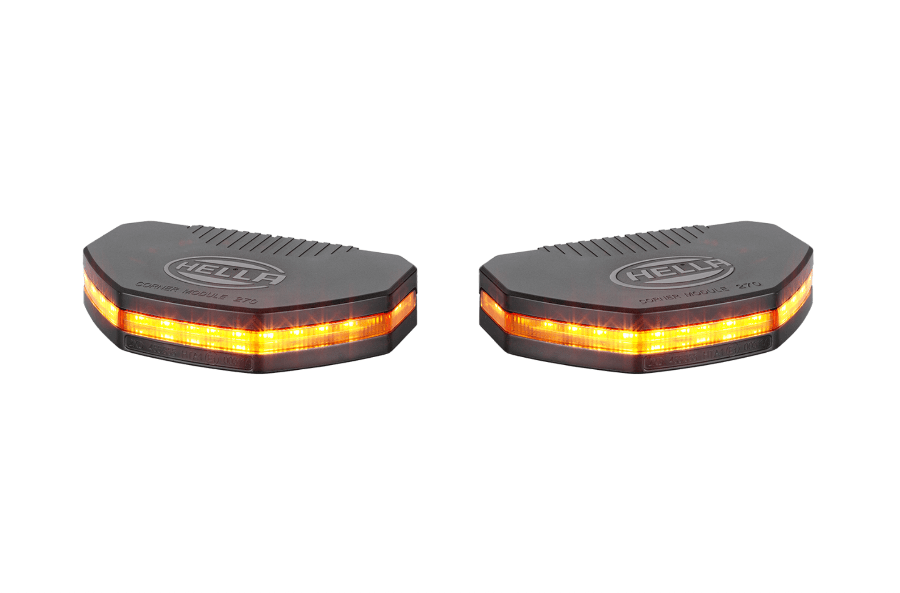

The HELLA Corner Module 270 is a special wide angle warning lamp which is approved as a “half bar” as a set of two modules and offers a new alternative to conventional beacons.
Two modules illuminate an area of at least 270 degrees at a distance of 20m from the vehicle, emitting a flashing amber warning light. The modules can be synchronised for a double flashing pattern.

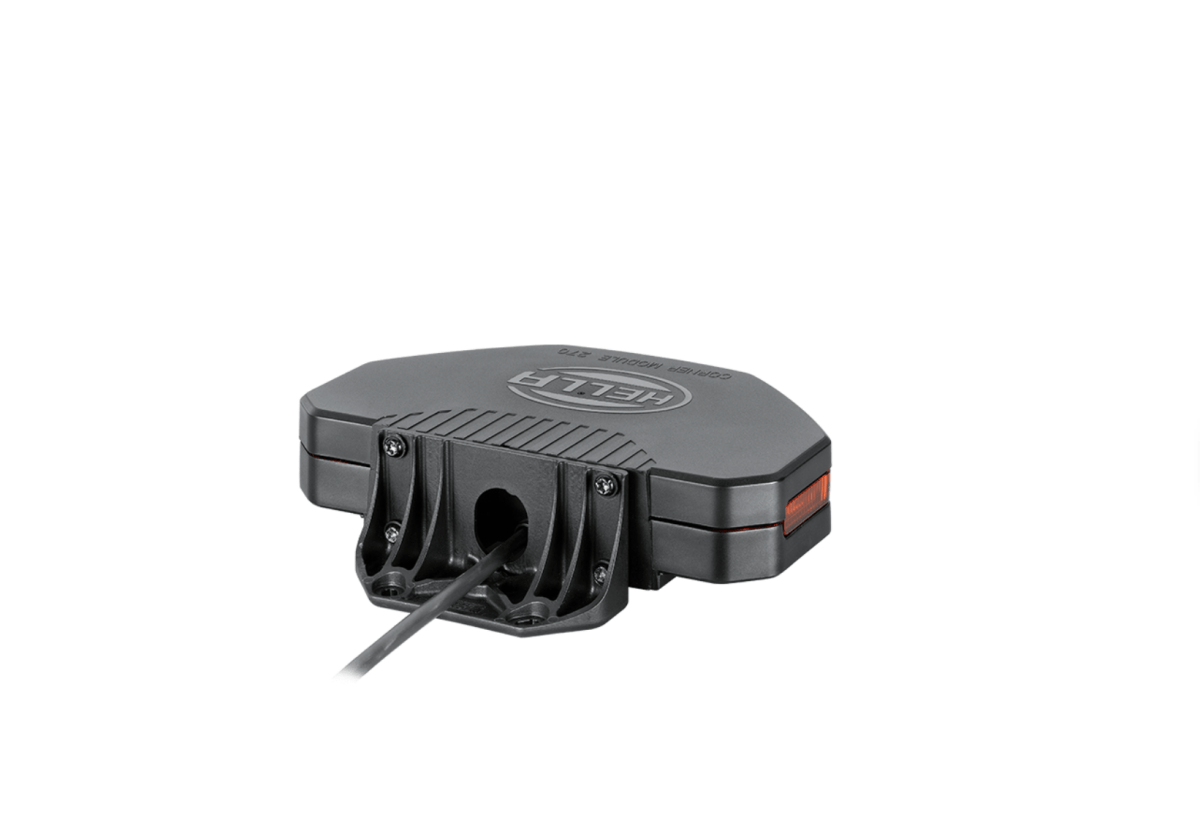

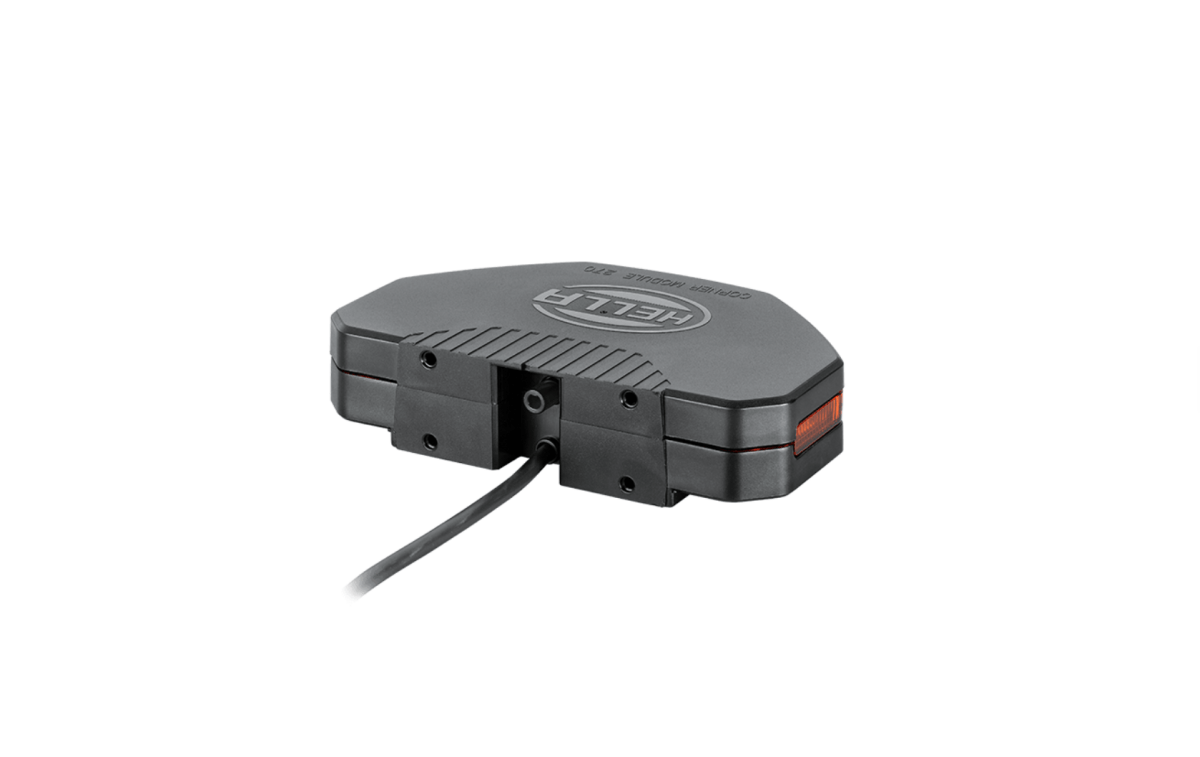

It is recommended that the modules are positioned at a 45 degree angle to the driving direction of the vehicle for uniform illumination over full 270 degrees. They can be integrated into the vehicle body or surface mounted using a bracket.
Specification
Specification
Installation and care
Installation and care
To preserve the quality of your lights, do not utilise a pressure washer on a high setting.
The use of harsh cleaning chemicals can detrimentally effect the appearance and life of the product. Use warm soapy water and a wash brush or clean sponge to thoroughly clean front and back and rising to remove all soap.
With today’s high-quality lighting offering excellent dust and water sealing, lamp failures are rare. One common cause is water tracking through unsealed electrical connections, causing the copper core to blacken. Using waterproof plugs and sockets (superseals or Deutsch connectors) and adhesive heat-shrink sleeving and terminals can prevent this issue.
